Description & Specs
Items | Pins | Part Number | Voltage Rating | Current Rating | Wire Gauge | Cable OD |
M11 | 2 | AH-M11-0402MFD/FMD01311 | 60V | 5A | ≤0.5mm² | 3.5mm-5.5mm |
M12 | 2 | AH-M12-0502MFD/FMD01111 | 60V | 5A | ≤0.75mm² | 3.5mm-6.8mm |
M13 | 1 | AH-M13-2501MMD/FFD01231 | 250V | 25A | ≤4.0mm² | 3.5mm-5.0mm |
M13 | 2 | AH-M13-0402MFD/FMD01211 | 60V | 4A | ≤0.5mm² | 3.5mm-5.0mm |
M13 | 2 | AH-M13-0402MFD/FMD01111 | 60V | 4A | ≤0.5mm² | 3.3mm-5.0mm |
M14 | 2 | AH-M14-0502MFD/FMD01111 | 60V | 5A | ≤0.75mm² | 3.5mm-6.8mm |
Cable OD | 3.5mm-5.0mm |
Mechanical Life | 500 mating cycles |
Operating Rating | -20ºC-+80ºC |
Waterproof Level | Not Waterproof Type |
Before get the quotation, please tell us the connection of waterproof connector.
such as:
(1)Type: solder type or screw fixing type;
(2) The voltage rating: 300V;110V...
(3)The current rating: 10A,25A...
(4)Wire gauge: ≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size: 2*18AWG;3*20AWG...
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

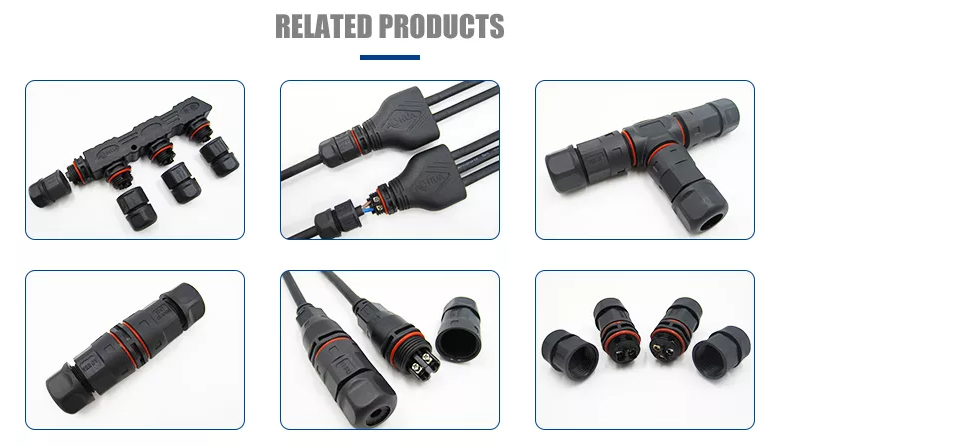

Related Products
Our Advantages
Advantages:

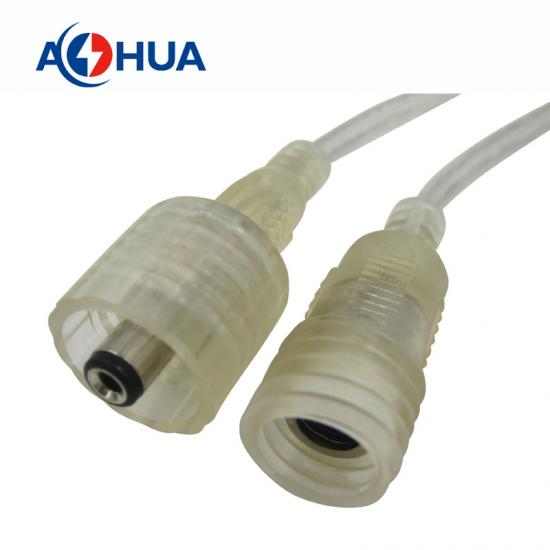

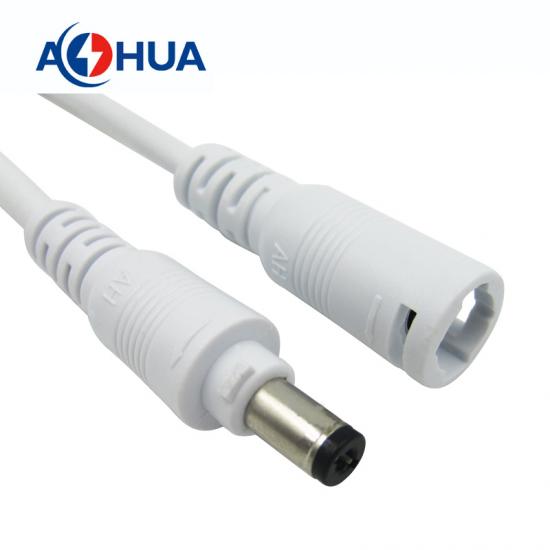

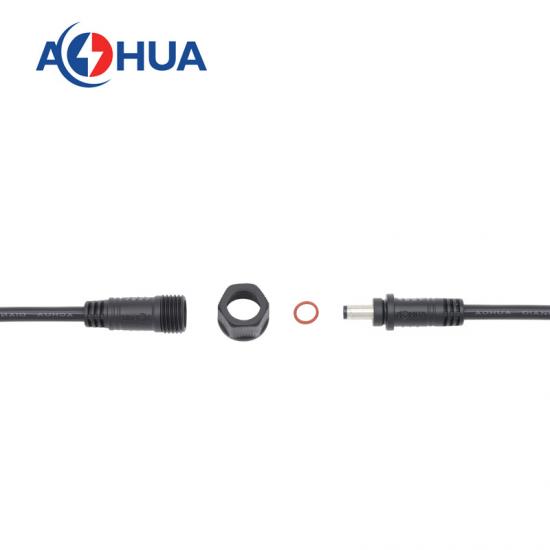

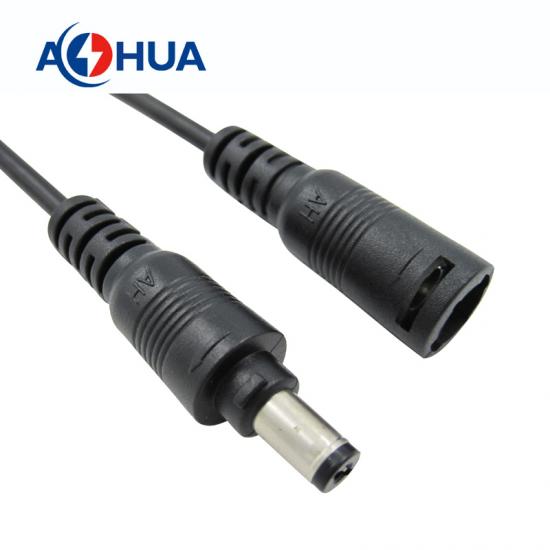

1.Connector:Molded with cable, thread solder DC Waterproof connector type.
2. Color:Black\White\customized yellow and blue Can be choiced.
3. Wire size:2*20AWG;2*22AWG;2*24AWG.
4. DC size:5.5*2.1;5.5*2.5.
5. Favorable waterproof feature: ip65;not waterproof type.
6. Easy Install: Male to female,assemble easily.
7. Wire length:Any length of the cable is available and terminal processed.

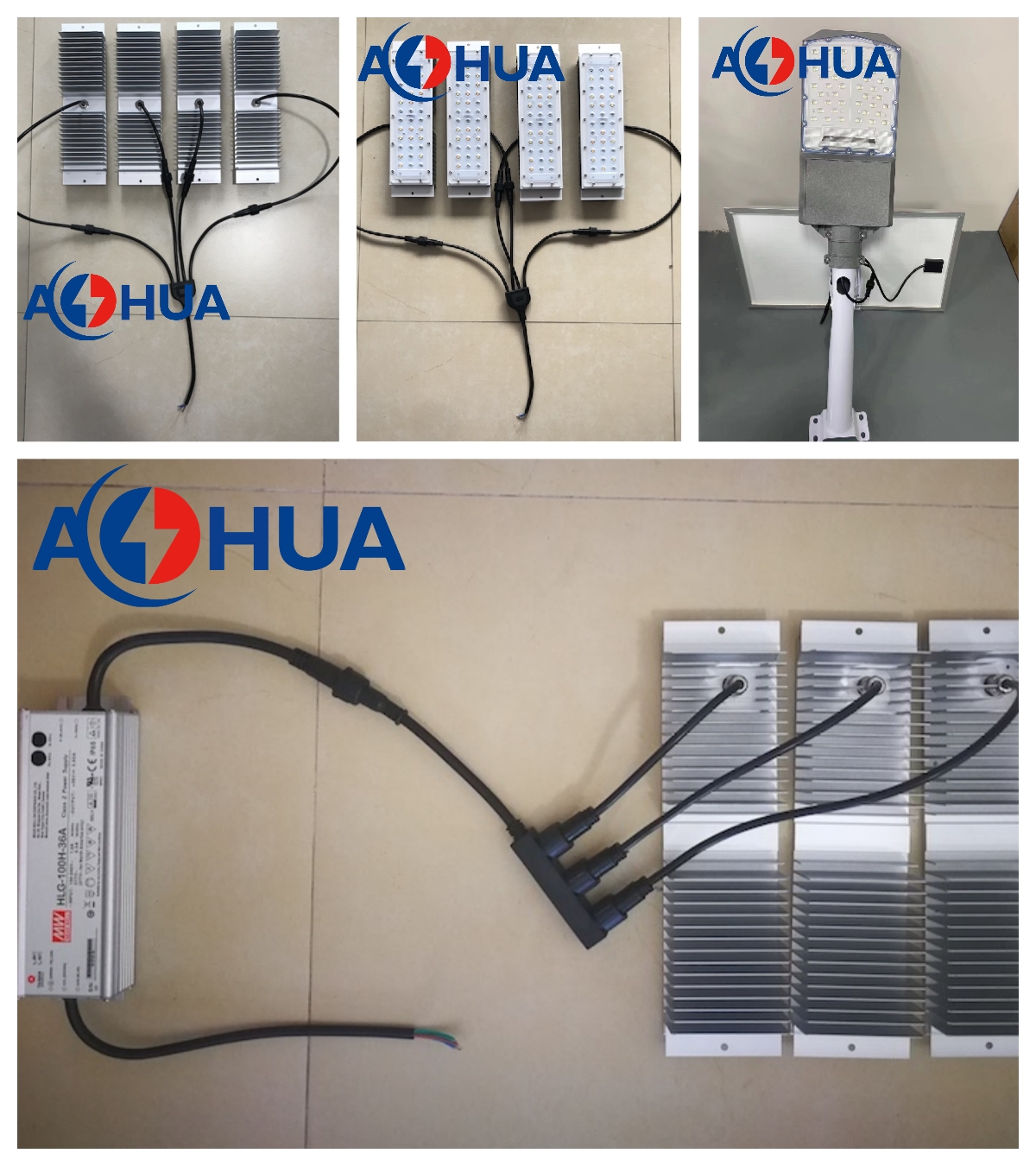

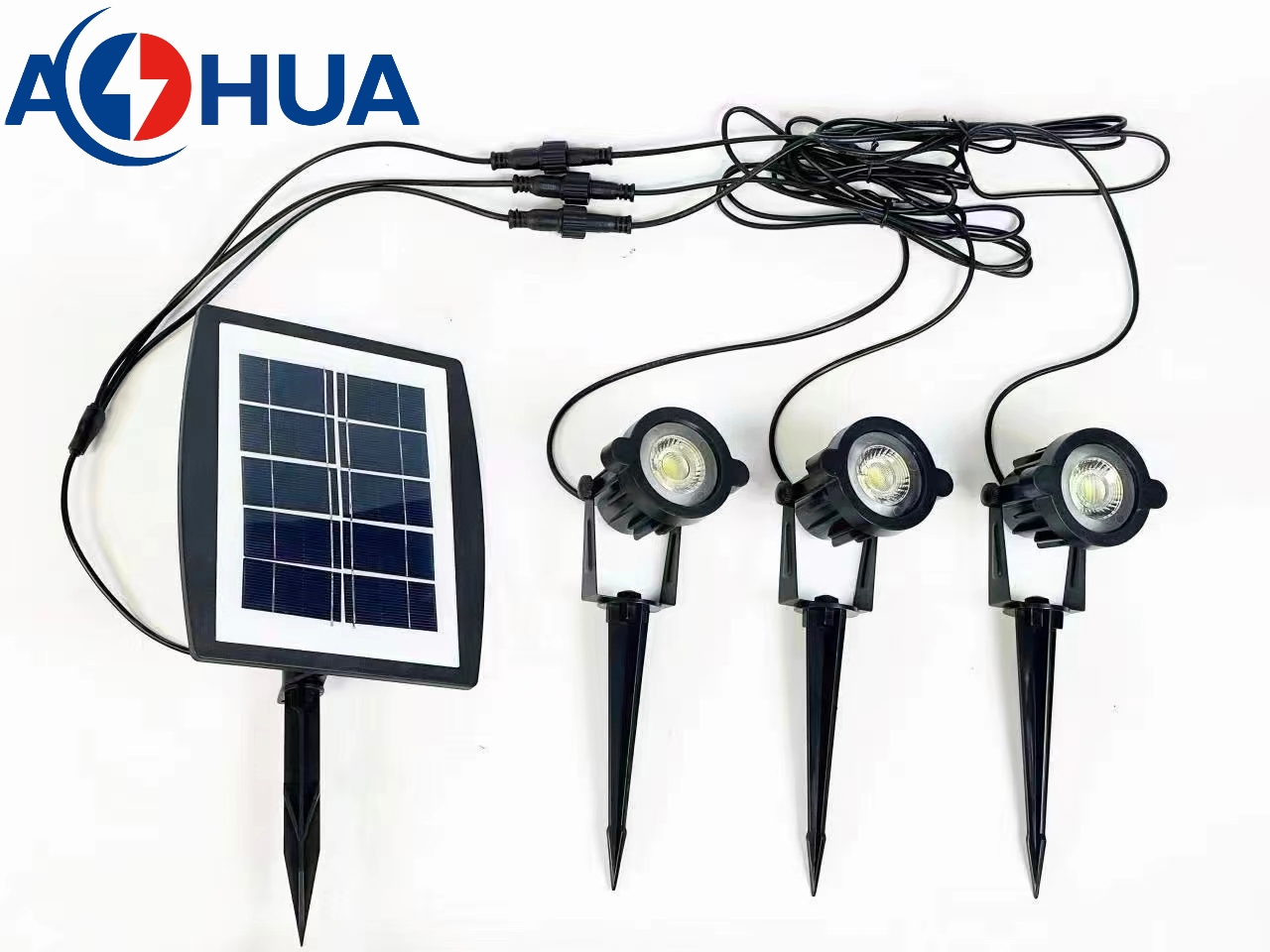

8.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
Assembly Connector | Wire to wire /Wire to panel waterproof connector,L/T screw type connector |
Over-mold Connector | Nylon/PVC /Metal /Aviation waterproof connector,DC connector |
T Connector | Over-mold T waterproof connector |
Y Connector | Over-mold Y waterproof connector |

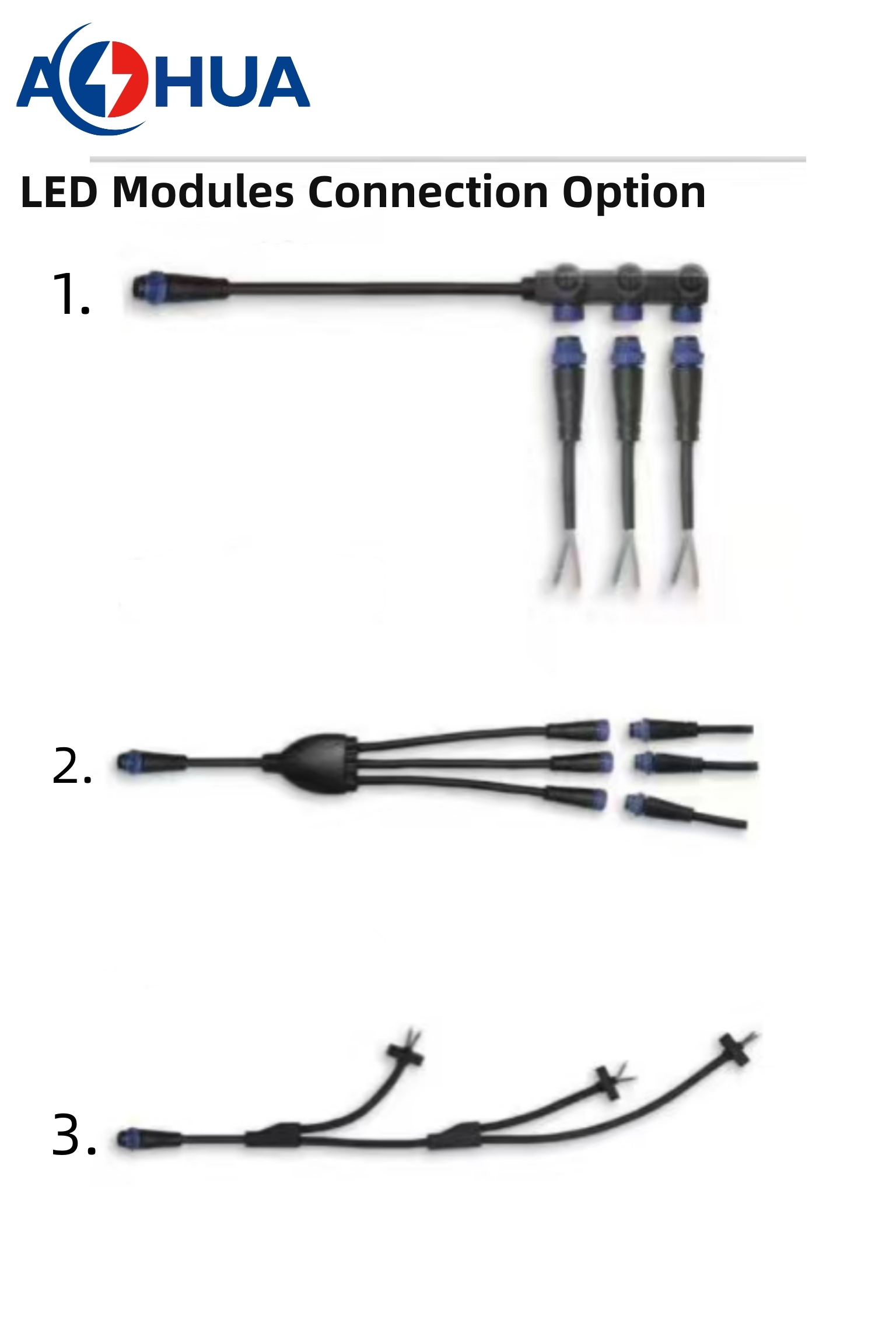

Distributor Connector | M15/M18 Series(1to2/3/4/5/6) LED waterproof connector |
Packaging & Shipping
Quantity(sets) | 1 - 2000 | >2000 |
Lead time (days) | 4 | To be negotiated |
Shipment |
Express(DHL,Fedex,TNT,Ups);Ocean freight Land freight;Air freight |
