These connectors are widely used in various industries, including but not limited to:
Outdoor LED Lighting: The IP67-rated rear-facing panel mount connectors are well-suited for outdoor LED lighting applications. They provide robust and reliable electrical connections, ensuring the longevity and performance of the lighting systems.

Industrial Automation: Rear-facing panel mount connectors find extensive use in the industrial automation sector, where they facilitate secure and efficient electrical connections in control panels, machinery, and other automation equipment.

Power Distribution: These connectors are also commonly employed in power distribution systems, where they ensure reliable power transmission and protect against environmental factors such as moisture and dust.

Advantages:
The IP67 waterproof rating is a standout feature of these panel mount connectors. It attests to their exceptional resistance to moisture and dust ingress, rendering them highly reliable and durable. The connectors can withstand harsh environmental conditions, making them suitable for both indoor and outdoor applications.

Distinctive Design: Panel Mount Connectors is divided into male and female panel mount connector,and male and female panel mount connector is splited into front and rear panel mount.


How to choose a right panel mount connector?

This classification is based on their installation space requirements. More specifically, they are divided into front-facing and rear-facing panel mount connectors.

Differences between rear and front Panel Mount Connectors:

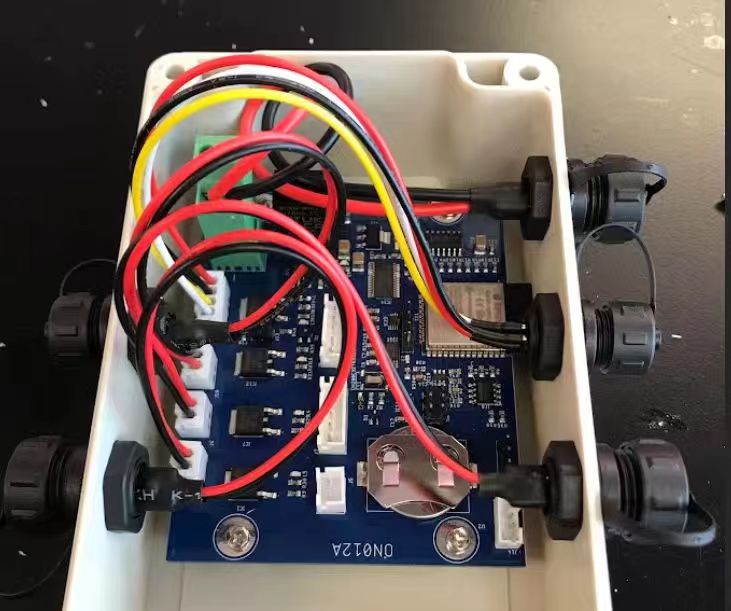

what types of panel mount connector depends on the available installation space. In scenarios where space is limited, front panel mount connectors are recommended. In such cases, the hex-nut part of the panel mount connector is installed externally on the panel. Conversely, for installations with ample space, the use of rear panel mount connectors is strongly recommended. When the installation is complete and the equipment is closed, the hexagonal part of the panel mount connector is positioned on the inner side of the panel, inaccessible from the outside. This provides an enhanced level of security while also contributing to an aesthetically pleasing appearance.

Today, our article primarily focuses on the rear male panel mount connectors.

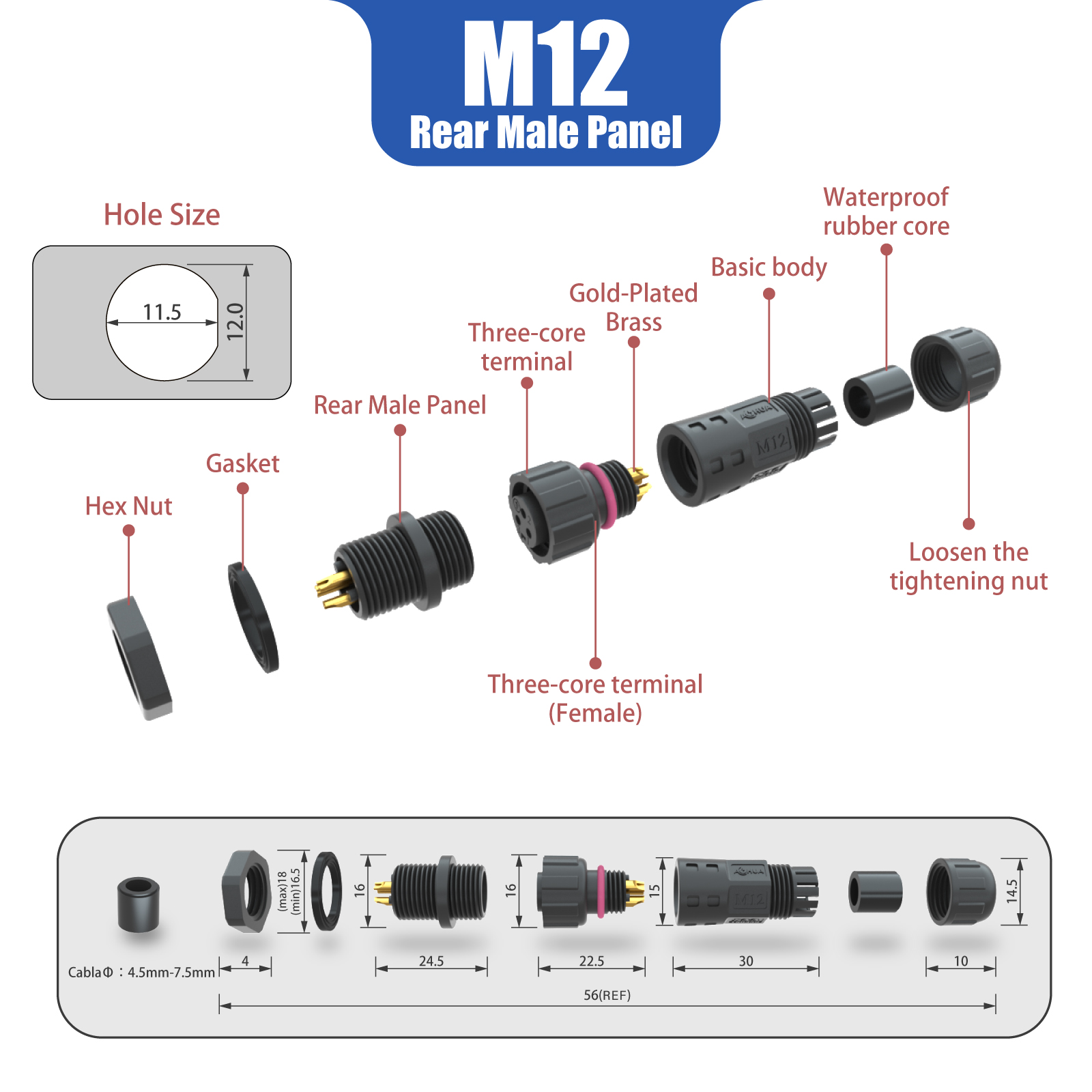

AOHUA Male Rear panel mount connector is made of High-quality Nylon PA66 material,there are M12 M16 M20 M25 M29 ,and M12 M16 M20 the wire connection way is solder type,but M20 M25 M29 there are Screw locking  with multi-core for your choosing,to meet your requirments.
This type of connector is assembled,without cable,it consict of a few components:

It is a kind of polymer engineering, environmental protection, with excellent performance and weather resistance, corrosion resistance, oxidation resistance, aging resistance.

and the contact material adopts gold plated brass,with Strong electrical conductivity, stability, anti-oxidation,to ensure the product can service long life.
The waterproof rated is up to IP67,if it can be installed qualified,even up to IP68.The Operating Rating is -40℃～105℃.The Machinal life is 3000 mating clycles.
2pin and 3pin approved the UL/CE/TUV/RoHS/ISO9001 certificate.approved certificate or non certificate can be chosen from.

About the panel mount terminal processing :

We have been seleted by many enterprises of forigen and domestic,and Gained a high degree of recognition and trust.
IF you chose us to be your partner,we will return you to the best service and high-quality product.
