M16 10A 2pin Power Signal Male Female Extension IP67 Waterproof Outdoor Lighting Connector

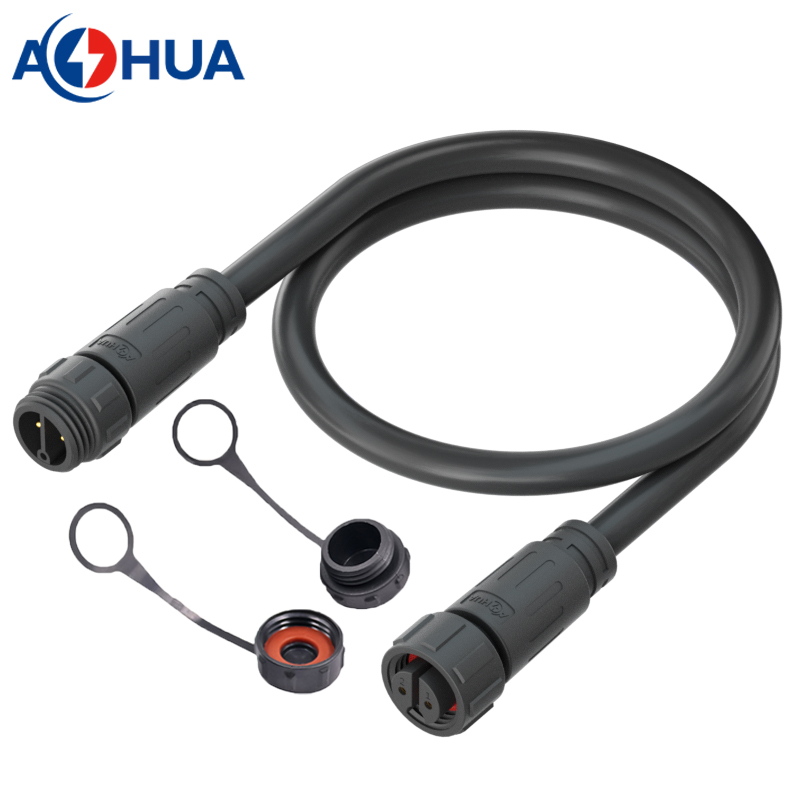

Customized extension cable connector for outdoor lighting

Item NO.:
M16
Lead Time:
2 weeks
Product Orgin:
Shenzhen China
Shipping Port:
Shenzhen
Color:
black
Product Material:
PA66/PVC

Inquiry now

products Details

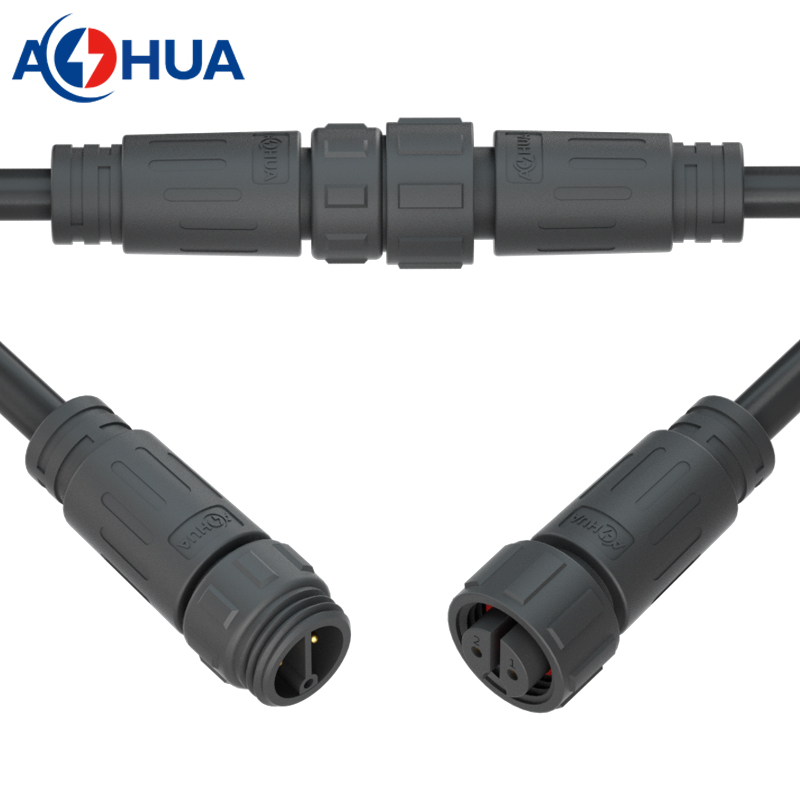

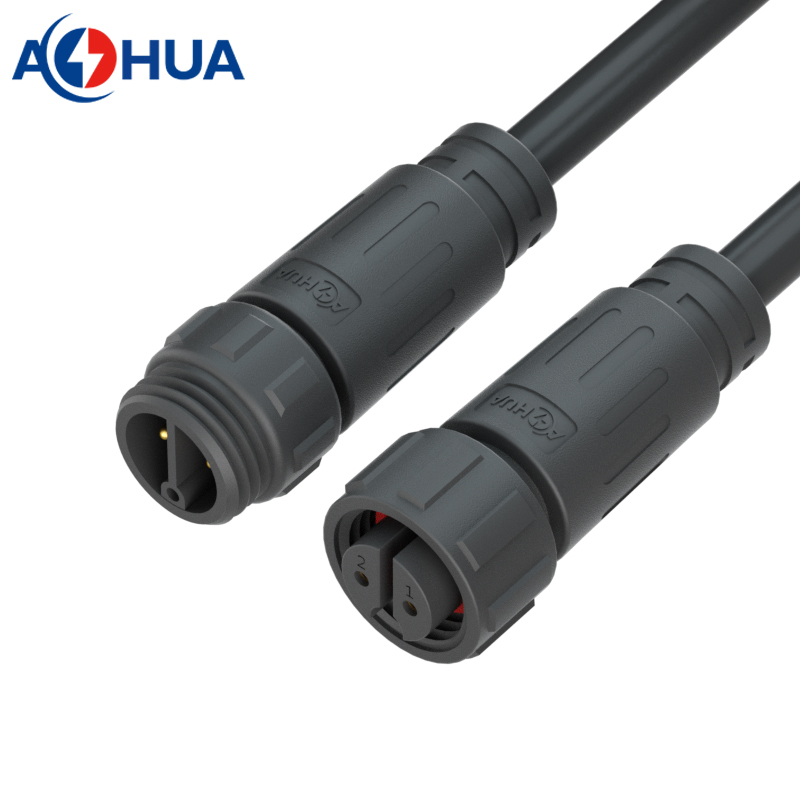

M16 10A 2pin Power Signal Male Female Extension IP67 Waterproof Outdoor Lighting Connector

Customized extension cable connector for outdoor lighting. Here is AOHUA group, which is a professional manufacturer of designing and producing cable wires and waterproof connectors over 17 years' experience. We are engaging in cable wire production, and connectors production. We are good at the mold design, conductor design, connector design; and we are good at the soldering, processing and injection.

Model: M16
Contacts: 2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 8pin, 10pin
Plastic material: PA66/PVC
Cable material: PVC/rubber/TPU/PU/silicone
Conductor material: gold plated brass

PIN	P/N	Voltageed Rated	Current Rated	Wire Gauge

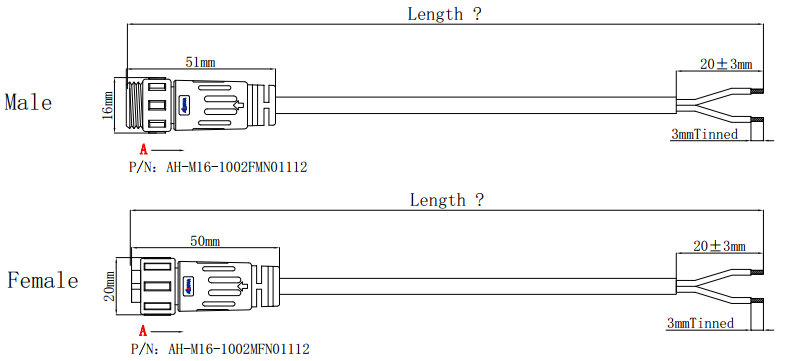

2	M: AH-M16-1002FMN01112 F: AH-M16-1002MFN01112	300V	10A	≤1.0mm²
3	M: AH-M16-1003FMN01112 F: AH-M16-1003MFN01112	300V	10A	≤1.0mm²
4	M: AH-M16-0504FMN01112 F: AH-M16-0504MFN01112	300V	5A	≤0.5mm²
5	M: AH-M16-0505FMN01112(φ0.8)/M: AH-M16-1005FMN01112(φ1.5) F: AH-M16-0505MFN01112(φ0.8)/F: AH-M16-1005MFN01112(φ1.5)	110V	5A	≤0.5mm²/≤0.3mm²
6	M: AH-M16-0506FMN01112(φ0.8)/M: AH-M16-1006FMN01112(φ1.5) F: AH-M16-0506MFN01112(φ0.8)/F: AH-M16-1006MFN01112(φ1.5)	110	5A	≤0.5mm²/≤0.3mm²
7	M: AH-M16-0507FMN01112 F: AH-M16-0507MFN01112	60V	5A	≤0.2mm²
8	M: AH-M16-0508FMN01112 F: AH-M16-0508MFN01112	60V	5A	≤0.2mm²
10	M: AH-M16-0510FMN01112 F: AH-M16-0510MFN01112	60V	5A	≤0.2mm²

Customization is our culture. In AOHUA, we can custom most of low voltage connector and cable wires.Customize your outdoor lighting connector with favorable price.

Whatever cable solution you need, we can design mold and injection for you.

How to order? Your rough drawing will be better to understand your idea if you can provide. Please specify the wire details and power to us, our team will get back to you with CAD/3D and price.

Includes: contact number, connectorr type, working ampere, wire guage and cable length and so on. The more details you provide, the better to understand.
