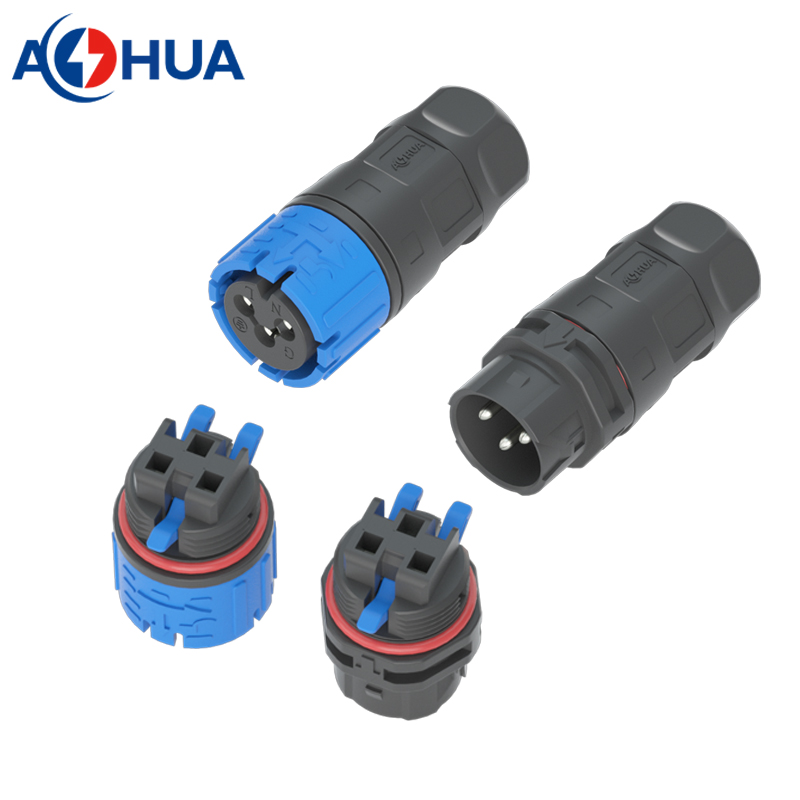

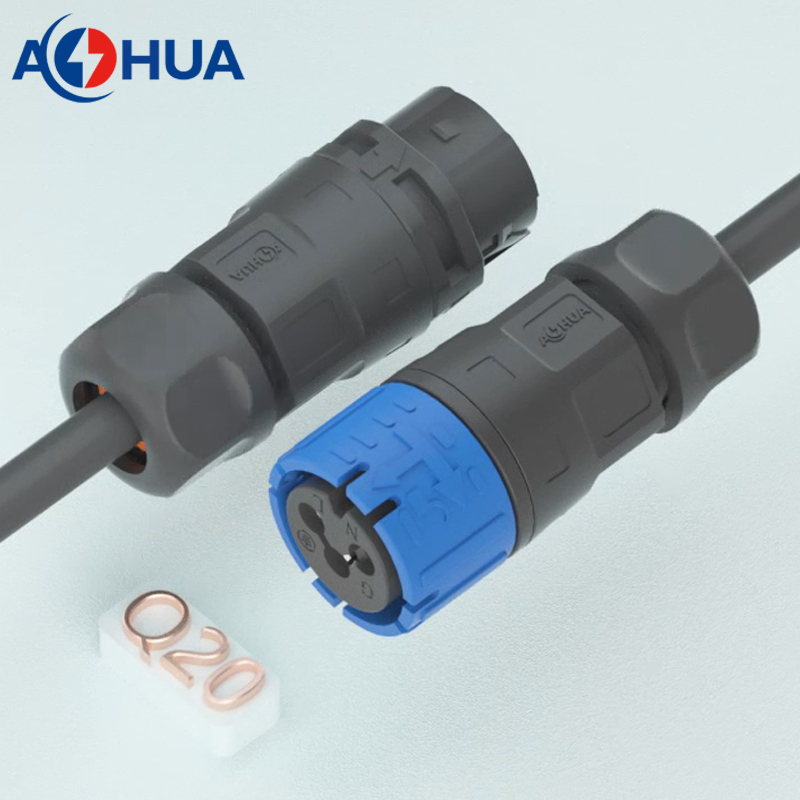

M20Q 3pin 15A Assembly Power Cable Joint Push Wire Self Locking Male Female Waterproof Wiring Connector
This is the self locking waterproof connectors from AOHUA original research and development designing. To get faster connection, you should test and use this waterproof connector for your cable.
There are two significant features on this connector:
- self locking: the male to female plug/unplug is self locking, no screw threads. That should be faster and easier in pluggable.
- push-wire: this is push-wire terminal inside for wiring operation. That is fastest wiring connection at present on the whole world.
- Model: M20Q
- Contacts: 3pin
- Rated Voltage: 300V
- Rated Current: 15A
- Plastic Material: PA66
- Metal Material: copper
- Connection: push-wire

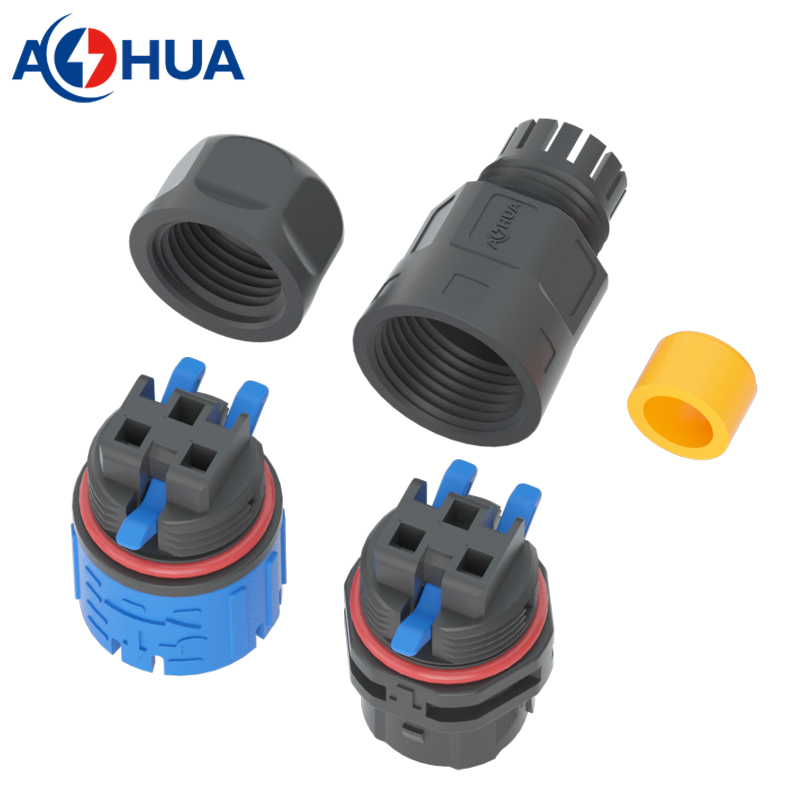

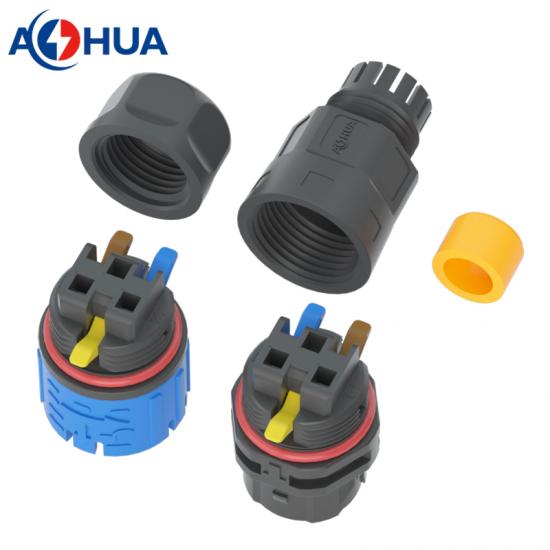

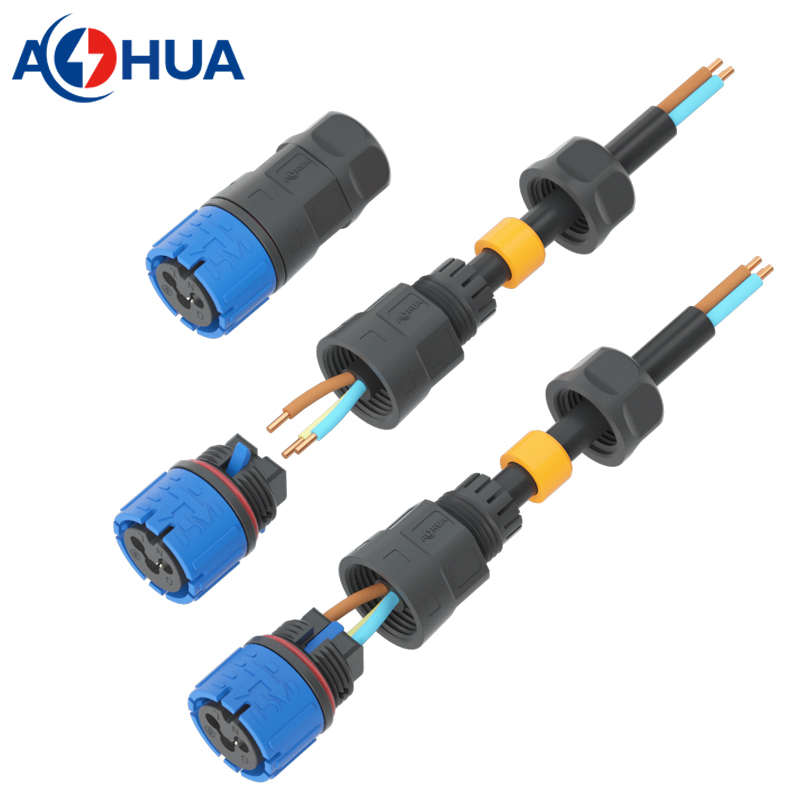

Component
- connector core
- coupling nut
- O-ring
- enclosure
- waterproof nut
- cable gland

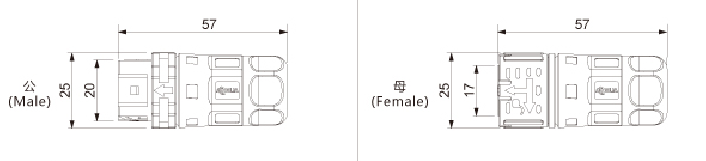

| Contacts | 3pin |
| Part Number |
Male: AH-M20Q-1503FMZ01232 Female: AH-M20Q-1503MFZ01232 |
| Rated Voltage | 300V |
| Rated Current | 15A |
| Wire Gauge | ≤1.5mm² |
| Cable OD | 5-10mm |
| Operating Temperature | -40℃~+105℃ |
| Mechanical Life | 500 mating cycles |
| Waterproof Grade | IP67 |
| Cable Gland | φ6.5/φ7.5/φ8.5/φ9.5/φ10mm |
 |
 |
 |
How to order the correct waterproof connector?
- specify the connector type you need;
- specify the working ampere;
- specify the contacts number;
- specify the wire gauge and cable OD of you want to connect;
- where will the connector used to?
The cable gland inside diameter should be larger than OD to permit the cable go through; but should be close to the OD to fit the cable.
AOHUA is the leading producer in Shenzhen China, we are engaging in designing and producing waterproof connectors with more than 18 years' experience. There are more than 4000 products and 20 series connectors in our factory. We are good at designing and producing of various of cable solutions for led lighting and power systems. Please send us requirements about your cable wires and waterproof connectors.
