Outdoor Y Shape Male Female Assembly Molding Power Wiring Waterproof LED Connector Cable

Outdoor Y Shape Male Female Assembly Molding Power Wiring Waterproof LED Connector Cable

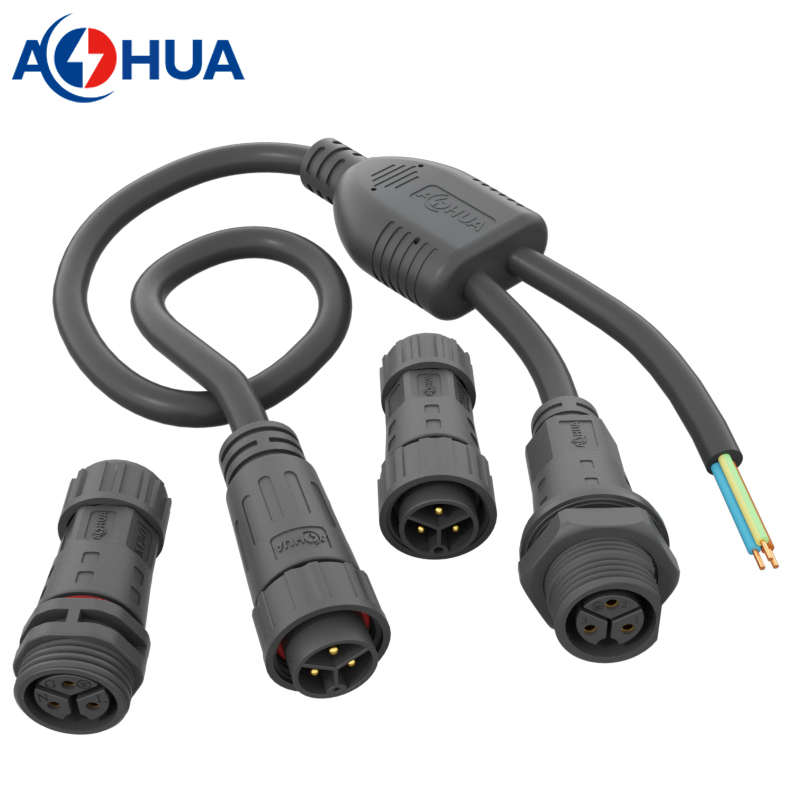

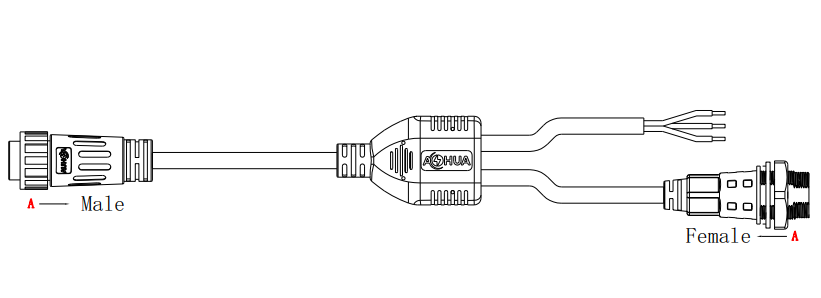

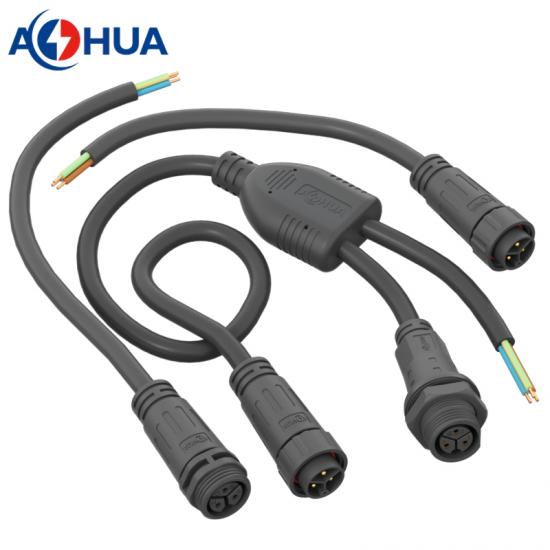

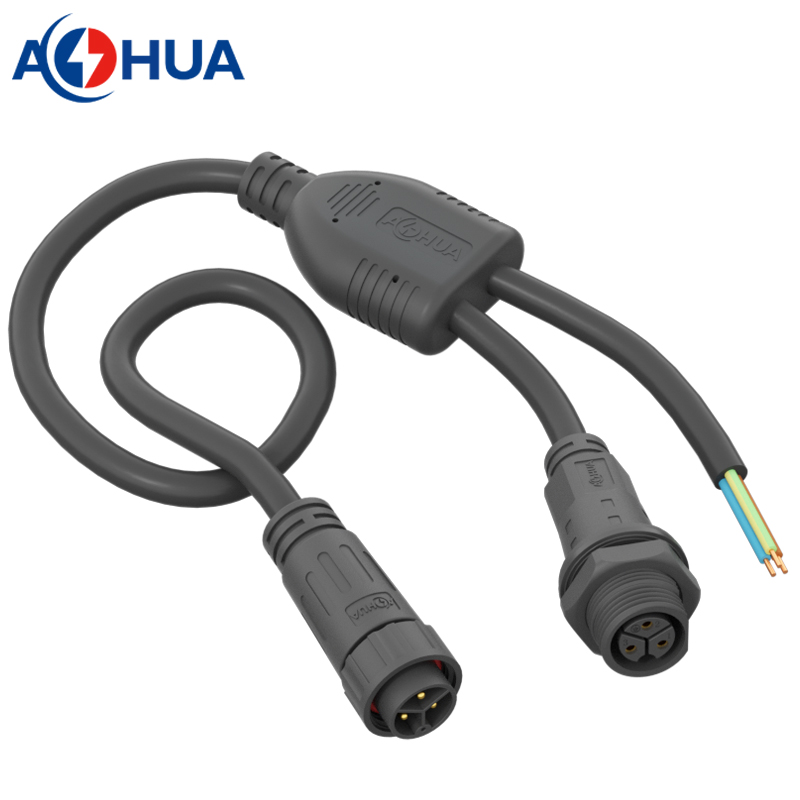

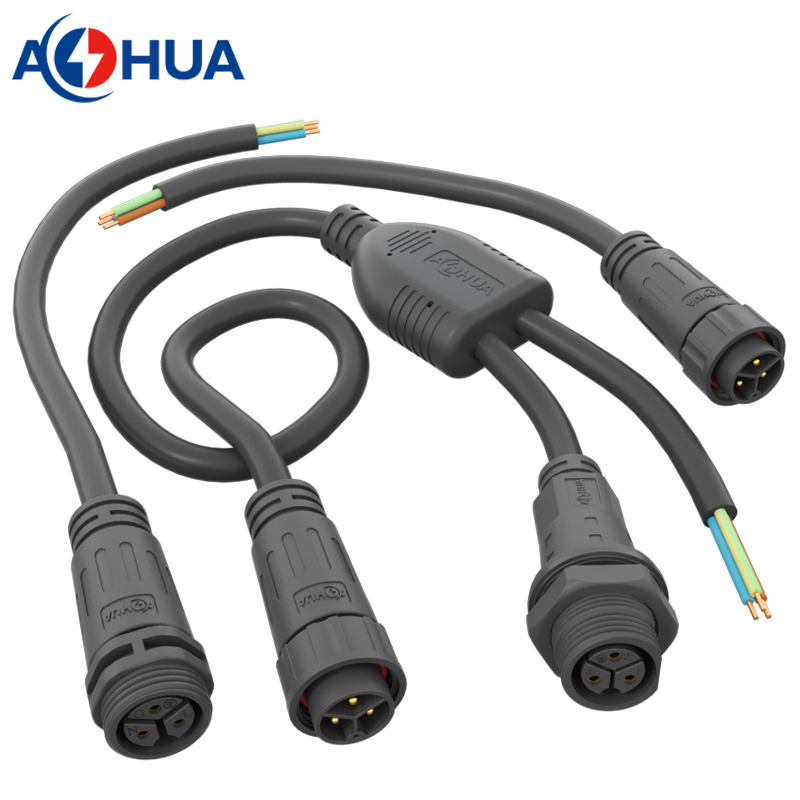

This is customized Y shape led connector cables with waterproof connectors. The input side is male inline connector, the output is female panel mount type connector and a branch bare wire with tinned.

This led connector cables accept the wire gauge 3*1.0mm² and 3*1.5mm², or 3*16AWG and 3*14AWG. The cable can be PVC or rubber material. Meanwhile, the metal material is gold plated brass, which is high strength. In this cable solution, the most flexible choice is you can make it in different length to meet your application.

• Model: Y splitter with waterproof connector M20
• Contacts: 3pin
• Rated Voltage: 300V
• Rated Current: 15A
• Wire Gauge: ≤14AWG
• Cable OD: 5-12mm
• Plastic Material: PVC and PA66
• Cable Material: PVC or Rubber
• Metal Material: gilded brass

M20 connector datasheet

Y distributor datasheet

1. what is the branch cables you need?

2. what is the working ampere?

3. what is the wire gauge and cable length you need?

4. what is the wire connector you want? Parallel or Series?

5. what is the material of connector or cable you need?

6. is there any other customized request? color or LOGO?

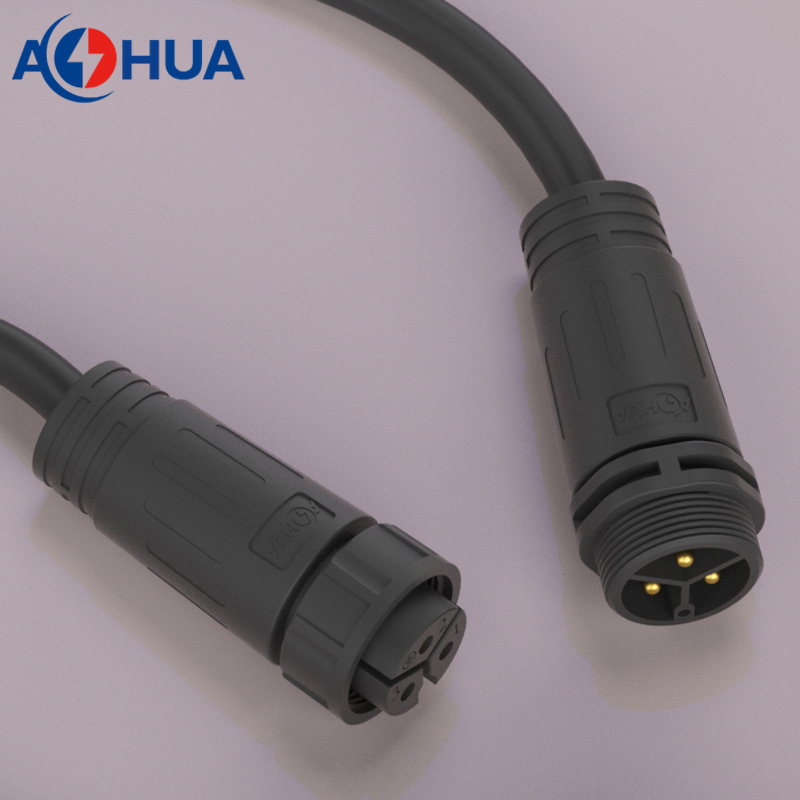

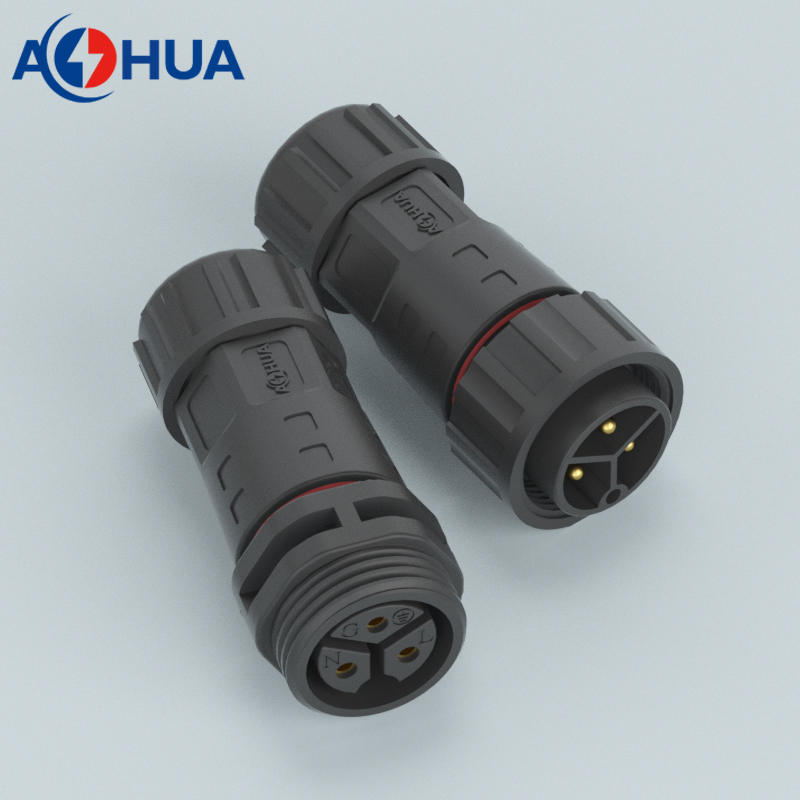

Assembly mated connector for the led connector cable There is assembly type connector for mating with the male/female connector from Y splitter.	Molded mated connector for the led connector cable Over molding type connector mate with the male/female connector from the Y splitter.

Assembly type and molded type male / female connector for led connector cable

Assembly type connector cable be solder type or screw type for choosing from when needed.	Over molding connector is molded with cable directly, no need any operation for the connector.

AOHUA is a leading manufacturer located in Shenzhen, with more than 18 years' experience, which is engaging in the designing and production of led connector cable solutions. Please contact Molly to know about AOHUA, then believe and choose AOHUA to start your valuable projects.
