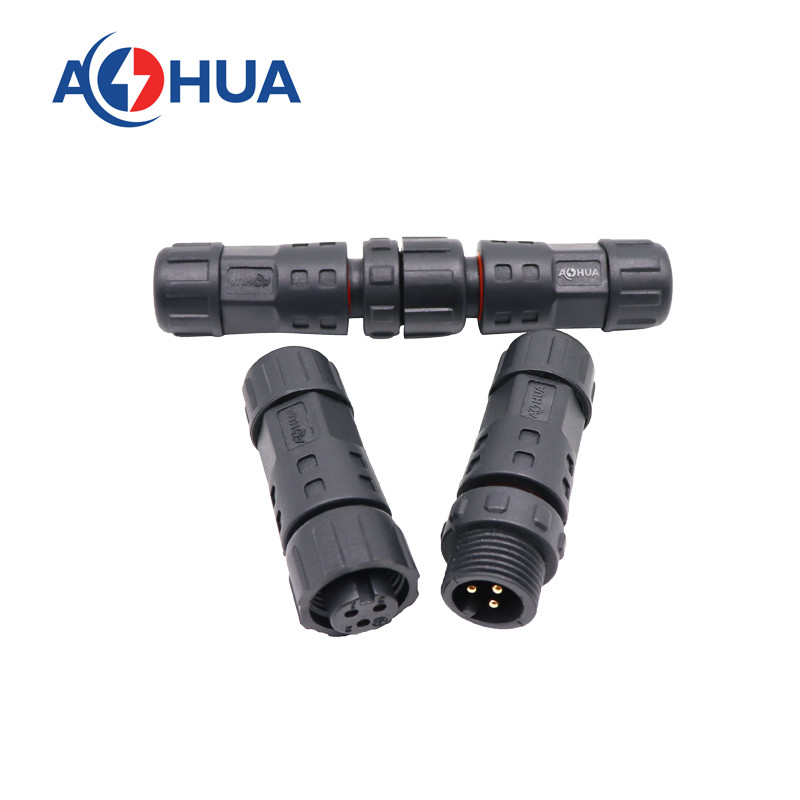

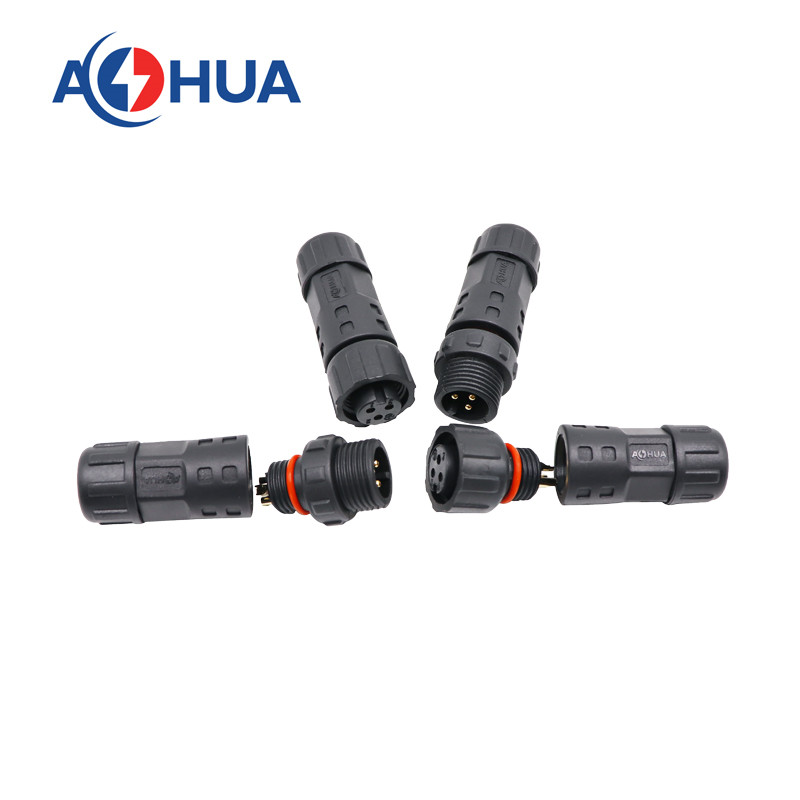

UL/CE M12 5A 3PIN Male Female Assembly IP68 Waterproof Connector

AOHUA M12 2PIN Male Female Connector Assembly Type Solder Thread IP68 Waterproof

For this type connector, it is classified as a male-to-female type; we also refer to it as a wire-to-wire type. It is precisely because of the distinction between male and female connectors that these connectors can be used more flexibly.

This male-to-female connector is also one of our standard connector models; for both the male and female connectors, there is a choice of 2 to 8 pins.(By the way, the specific number of pins on the connector should be selected based on the actual number of conductors.)

When selecting connectors, depending on the region, there is often a requirement for certifications such as UL and CE. These safety certifications ensure that the connector configuration is more comprehensive, whilst also providing a more secure electrical connection.

The M12 connector offers options that meet the requirements

Below is an overview of the M12-3PIN product specifications:

P/N: AH-M12-0503MFZ/FMZ01112

Connect Current Rated: 5A

Voltage Rating: 300V

We Recommend Using Wire Gauge:

2PIN*16AWG/1.0mm² ；2PIN*18AWG/0.75mm²；2PIN*20AWG/0.5mm² ；2PIN*22AWG/0.3mm² ；2PIN*24AWG/0.2mm².

Certification:  CE/UL/TUV
