In this article, we will explore the application of IP67-rated waterproof connectors made of nylon material, with gold-plated brass contacts, in wall washer lights.
Additionally, we will discuss the advantages of these connectors and the associated waterproof connection cables.

Nylon Overmolded Waterproof Connectors:
The IP67-rated waterproof connectors used in wall washer lights are constructed with nylon overmolding, offering exceptional durability and protection against water ingress.
The use of nylon material provides the following advantages:

1.Superior Waterproofing: The IP67 waterproof rating ensures a high level of protection against water immersion, making these connectors suitable for outdoor applications where wall washer lights may be exposed to rain or other forms of moisture.

2.Impact Resistance: Nylon overmolded connectors have excellent impact resistance, making them suitable for rugged environments. They can withstand accidental impacts or vibrations, ensuring the durability and reliability of the wall washer lights.

3.Chemical Resistance: Nylon material is resistant to various chemicals, which is beneficial in outdoor settings where wall washer lights may come into contact with substances such as fertilizers, pesticides, or cleaning agents.

Gold-Plated Brass Contacts:
The contacts within the nylon overmolded waterproof connectors are made of brass and coated with a layer of gold plating. This choice of materials offers several advantages:

1.Reliable Conductivity: Brass is known for its excellent electrical conductivity, ensuring a stable and efficient flow of electricity within the connectors. The gold plating further enhances conductivity and minimizes the risk of oxidation, maintaining a reliable and consistent electrical connection.

2.Corrosion Resistance: The gold plating on the brass contacts provides reliable protection against corrosion caused by atmospheric elements or moisture. This ensures the long-term performance and lifespan of the connectors.

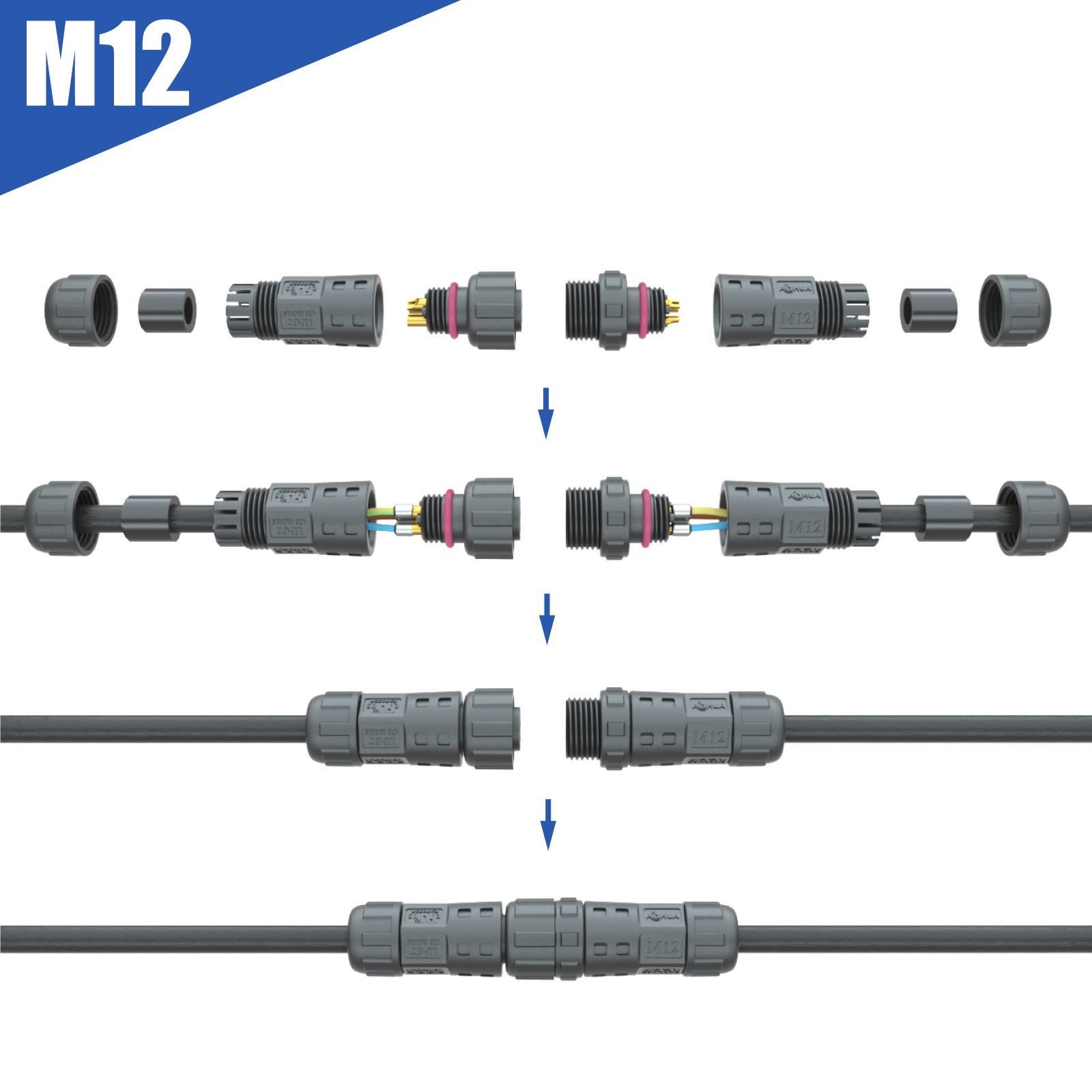

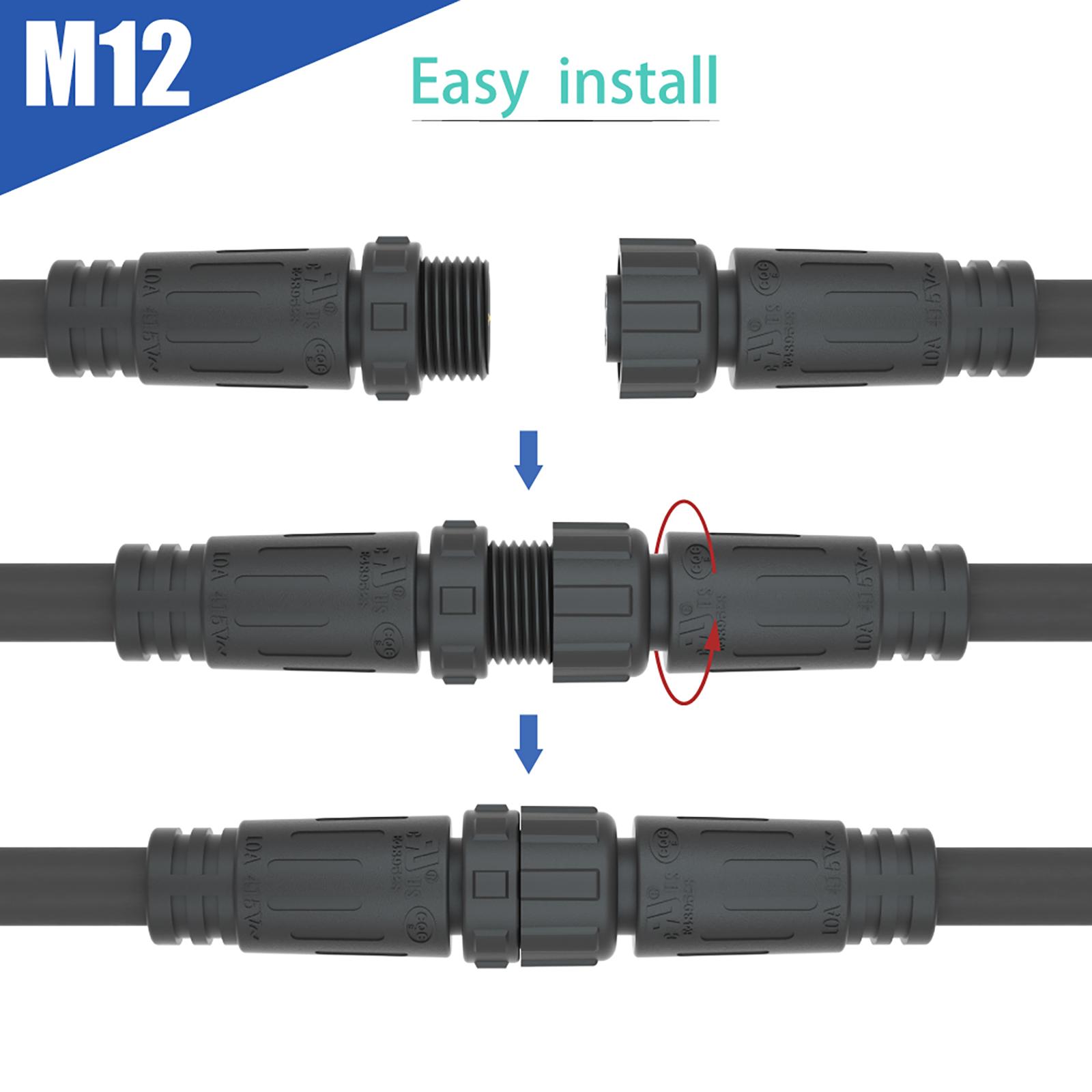

IP67 waterproof connector can be divided into field assembly without wire release connector and injection molded with cable waterproof connector, injection molded with cable waterproof connector is based on the assembly of joints and designed, they have the same number of core, the use of materials are the same, the biggest difference is the field assembly connector without wire, and nylon coated connector with line.




No matter is assembly connector or injection molded with cable connector,there are multi modle and core can be chosen from:
M12 M15 M16 M20 M25 M29.
2pin 3pin 4pin 5pin 6pin 7pin 8pin 10pin 2+3pin 2+4pin for your choice.

Certified and Non-certified Series:
Both certified and non-certified series of connectors are available, with most 2-core and 3-core products meeting UL/TUV/SAA/CE/RoHS/ISO9001 standards. Certification ensures compliance with industry regulations and standards, providing peace of mind regarding the connectors' quality and safety.

In Conclusion:
Nylon overmolded waterproof connectors with gold-plated brass contacts are essential components in wall washer lights. Their superior waterproofing capabilities, impact resistance, chemical resistance, reliable conductivity, and corrosion resistance ensure the optimal performance and durability of the lighting system. Coupled with overmolded waterproof connection cables, these connectors provide a robust and reliable solution for wall washer lights. Whether in certified or non-certified series, these connectors offer peace of mind through their compliance with industry standards.
