IP67 Male Rear Panel Mount Connector:
The rear panel mount connector, with an IP67 waterproof rating, is constructed using nylon material. Nylon offers features such as corrosion resistance, oxidation resistance, and weather resistance. This connector, without wires, is designed for on-site assembly, making it convenient for factory operations and installations. The soldering method is used for wire connections, making the panel connector easy to install. Only soldering tools are required to establish a connection between the panel hardware and the wires.

Hardware of Panel Connector:
The panel connector's hardware is made of gold-plated brass, providing excellent conductivity and stability. This choice of materials ensures a durable and cost-effective connector. By utilizing high-quality raw materials, we avoid many unnecessary complications. The plug-and-socket interface of the connector is designed for direct insertion, offering simplicity and ease of operation, ultimately saving labor costs.

Panel Types can be chosen from:
Our panel-style assembly connectors are available in both front and rear panel options. Furthermore, they can be classified into male and female panels. In the present case study, we utilized a male rear panel mount connector. How can we distinguish between a front panel and a rear panel? The following diagram illustrates the difference:

When referring to the front panel, the hex-nut is located outside the enclosure, while for the rear panel installation, it is positioned inside the enclosure. Comparing with each other, the rear panel mount is safer than the front panel mount. If installation space is not restricted, choosing the rear panel mount is the best option.

Wide Range of Options:

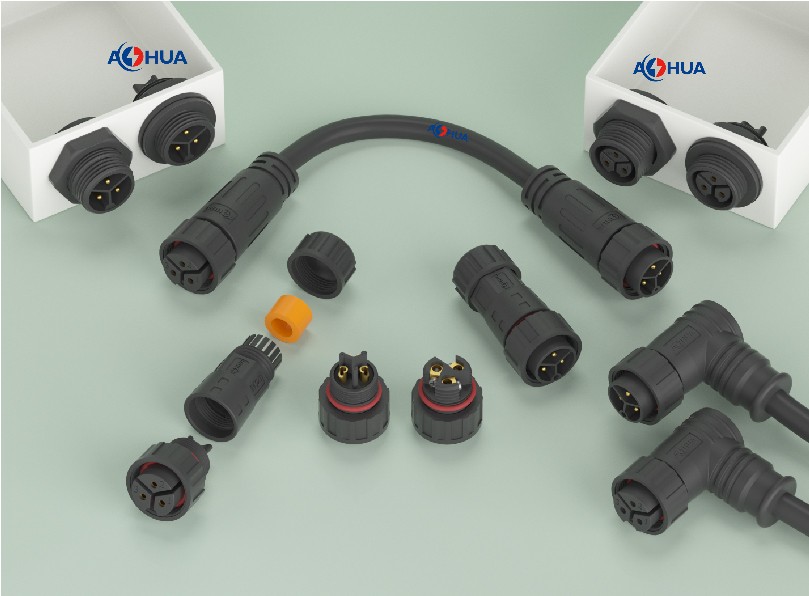

We offer a variety of pin configurations and models for our panel connectors: M12, M16, M20, M25, M29, 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 2+3Pin, and 2+4Pin, ensuring that we can meet your specific needs.

2Pin and 3Pin approved UL/CE/RoHS/ISO9001/TUV Certificate.

In the case ,we used a 2-pin male rear panel mount connector.

In this case, the female socket that connects to the panel is of the assembly type.

 However, an alternative option of  can be provided for the female socket upon specific customer requirements：
Female plug injection molded with cable.
Customization is available to cater to individual needs.

Conclusion:

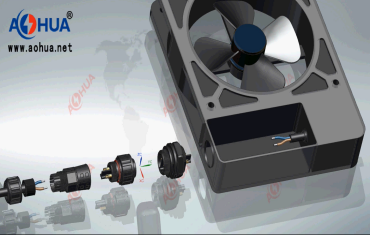

Aohua's IP67 rear panel mount connector, designed for optimal performance and durability, finds versatile applications in fan systems. With its waterproof properties, robust construction materials, and efficient plug-and-socket interface, this connector provides convenient installation and reliable connectivity. Aohua remains committed to delivering high-quality products, tailored solutions, and excellent service as we continue to forge a path towards a brighter future together.
