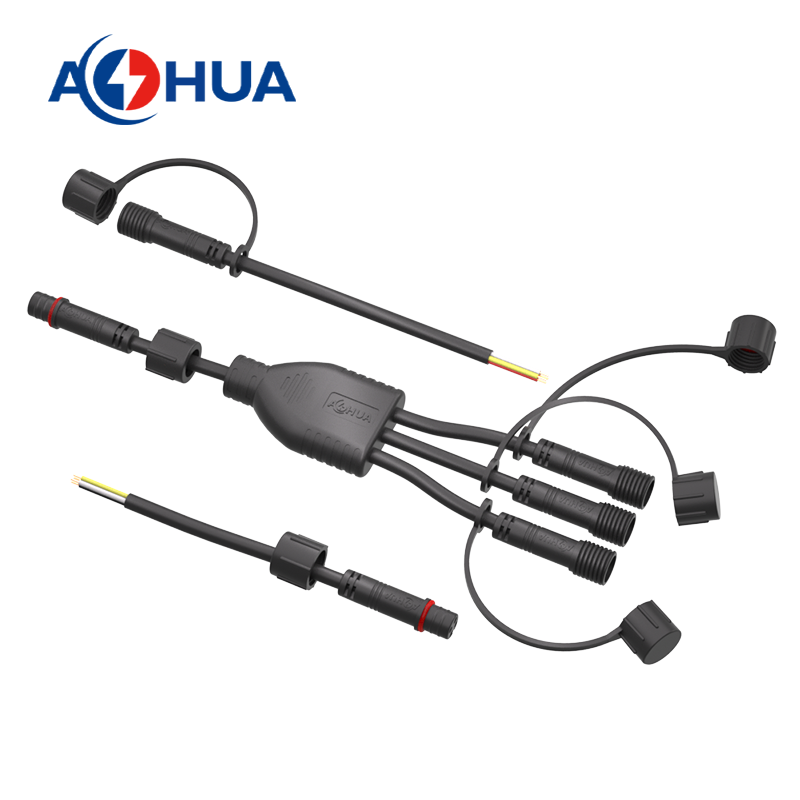

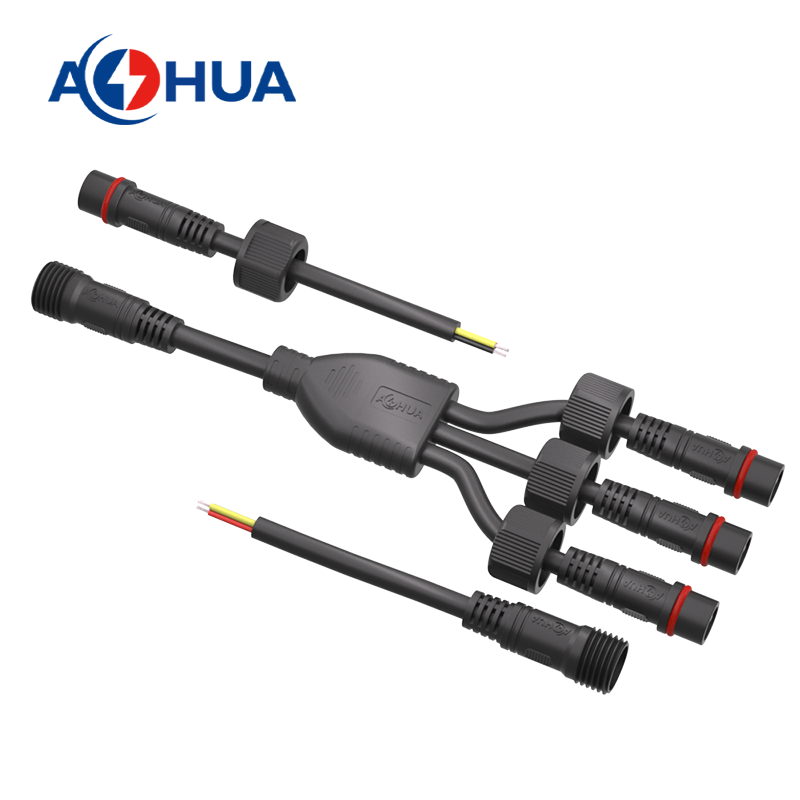

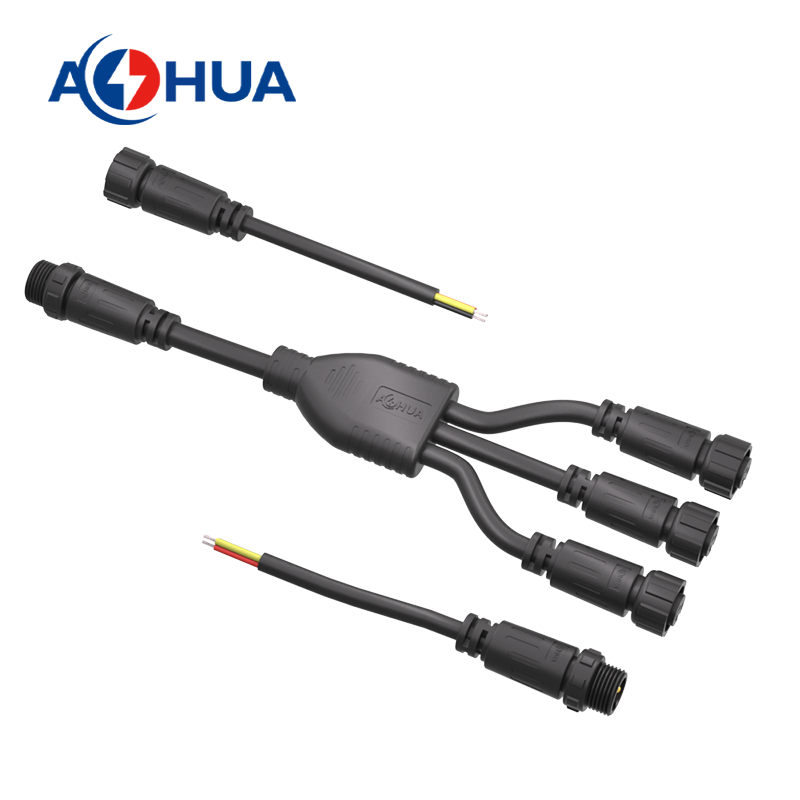

1. Male-Female Plug & Play Assembly
- Structure Features: 1 input main line + 3 output branch lines, with pre-terminated male/female plugs for direct mating. The integrated Y-shaped cable design ensures a seamless, sealed connection without exposed terminals.
-
- Key Advantages: No on-site wiring required, 100% factory-tested for reliability, perfect for mass production and fast field installation.
-
2. Multiple Interface Options
- Threaded Locking Type: Secure screw-on mating for high-vibration, heavy-duty industrial applications, ensuring zero loosening under extreme conditions.
-
- Quick Assembly Type: Tool-free twist-lock design for fast, tool-free installation in lighting and consumer electronics projects.
-
- Customizable: Available in 2-pin, 3-pin, and multi-pin configurations to match your voltage, current, and application needs.
Parameter Item
Specification Details
Protection Level
IP68 (Waterproof & Dustproof)
Rated Voltage
250V AC/DC (Customizable)
Rated Current
25A (Standard, high-current version available)
Pin Count Options
2-Pin, 3-Pin, 4-Pin (Multi-Pin Customizable)
Applicable Wire Gauge
0.5~4.0mm² (20~12AWG)
Operating Temperature
-40℃ ~ +85℃
Contact Resistance
≤0.005Ω
Insulation Resistance
≥1000MΩ
Housing Material
PA66 Nylon (Flame Retardant, UV-Resistant)
Sealing Material
Food-Grade Silicone
Terminal Material
Tin-Plated Copper
Cable Type
UL1007 / UL1015 / Custom
Interface Type
Threaded Locking / Quick Twist-Lock
