15A Power Electrical 2 3 PIN Waterproof Splitter 1 in 2 3 Way Out for Drive

Item NO.:
M20 Connector
Lead Time:
3-5days
Product Orgin:
China-Shenzhen
Shipping Port:
Shenzhen
Payment:
T/T; Paypal; Wechat; Alipay
Color:
Black
Product Material:
PA66/PVC

Inquiry now

products Details

This is an industrial-grade integrated male-female plug and cable assembly, specifically designed for circuit connection scenarios in complex and harsh environments such as outdoor, damp, and dusty conditions.

Featuring a sealed male-female mating structure and waterproof housing, it effectively blocks ingress of moisture, dust, and mildly corrosive substances. Suitable for wiring applications in LED outdoor lighting, security equipment cabling, new energy outdoor installations, and industrial automation production lines, it streamlines on-site wiring procedures while enhancing circuit connection stability and safety within demanding environments.

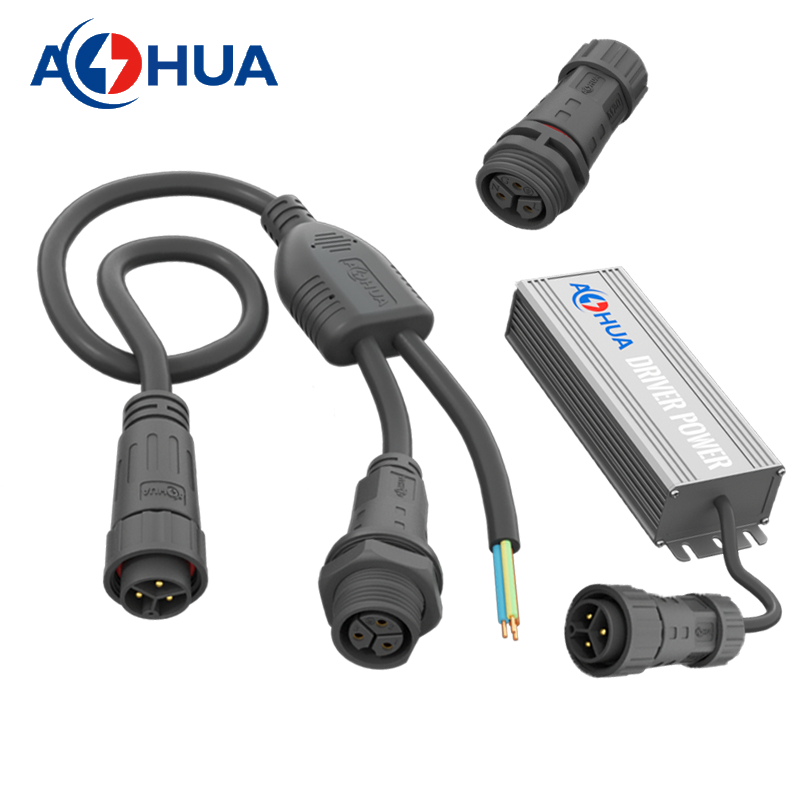

Type：Waterproof male and female connectors (including plugs, sockets, and cables), commonly available in 2/3/4-pin configurations. The image depicts an assembled version complete with cables.
Waterproof rating：IP67 (withstands short-term immersion, suitable for outdoor applications, LED lighting, equipment wiring, and similar scenarios).
Material: The casing is made of nylon (durable, insulating), while the contact pins are gold-plated brass (excellent conductivity, oxidation-resistant).
Application Scenarios:LED street lighting, outdoor equipment, new energy apparatus, industrial automation and other scenarios requiring waterproof wiring.

M20 Connector:

M20-2PIN: Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm² 1.5mm²

M20-3PIN: Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm² 1.5mm²

M20-4PIN: Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm²

M20-5PIN: Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm²

M20-6PIN: Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm²

M20-7PIN: Suitable Wire Guage: 0.2mm² 0.3mm²

M20-8PIN: Suitable Wire Guage: 0.2mm² 0.3mm²

M20-9PIN: Suitable Wire Guage: 0.2mm² 0.3mm²

M20-2+3PIN: 2PIN Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm²

3PIN Suitable Wire Gauge: 0.2mm² 0.3mm²

M20-2+4PIN: 2PIN Suitable Wire Guage: 0.2mm² 0.3mm² 0.5mm² 0.75mm² 1.0mm²

4PIN Suitable Wire Gauge: 0.2mm² 0.3mm²
