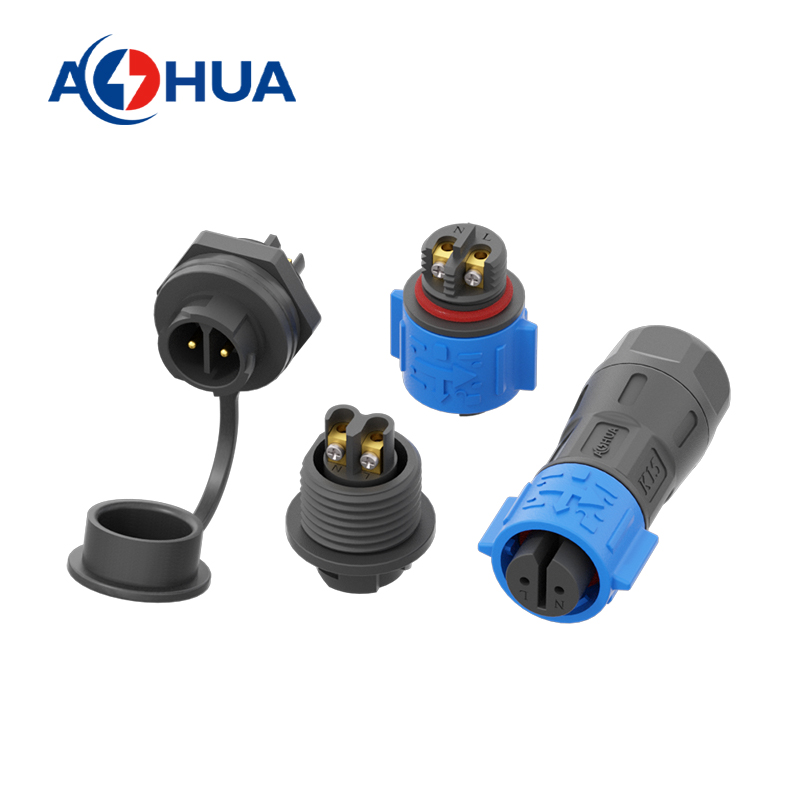

20A 2PIN K20 Waterproof IP68 Power Connector for LED Light

Self Lock Quick Connect Type Cable Connector

Is mating male and female connectors a real pain?

Doing each threaded connection is such a hassle?

Don't want to waste extra time on connector mating?

Check out our self-locking quick-connect fittings!

• No need for time-consuming and labor-intensive swivel joints.

• The installation efficiency of the joints has been significantly improved.

• A simple click will tell you if it's been installed successfully.




This is a more convenient design, when you are in the installation site, the male and female connectors can be securely mated with just a slight snap.

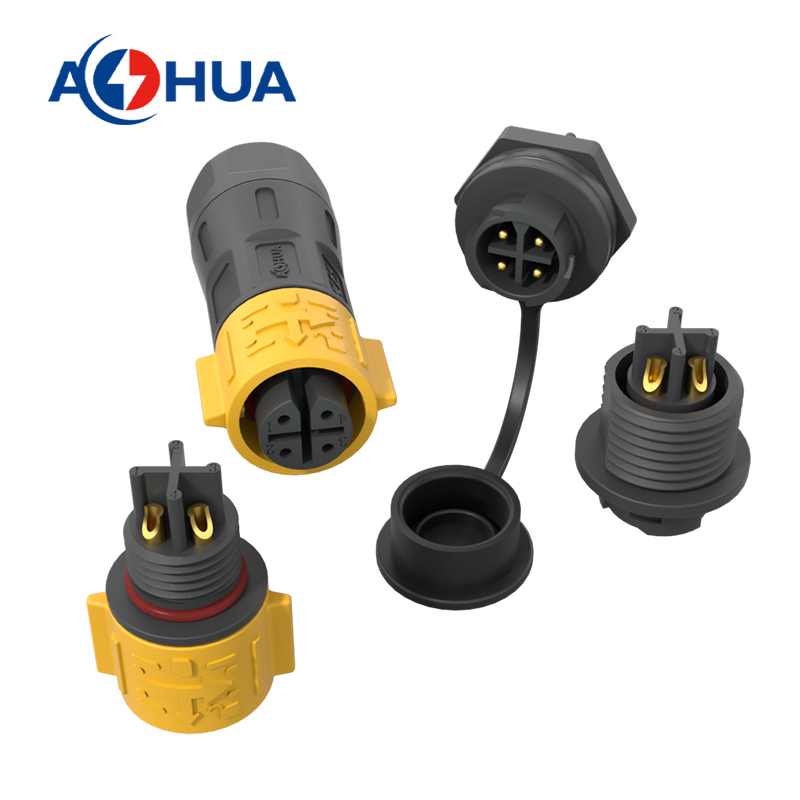

In this connector, it can be desiged for Solder Type and Screw Fixing type. It can use as the normally type connector, you needn't be unable to use it just because this connector is different from previous ones.

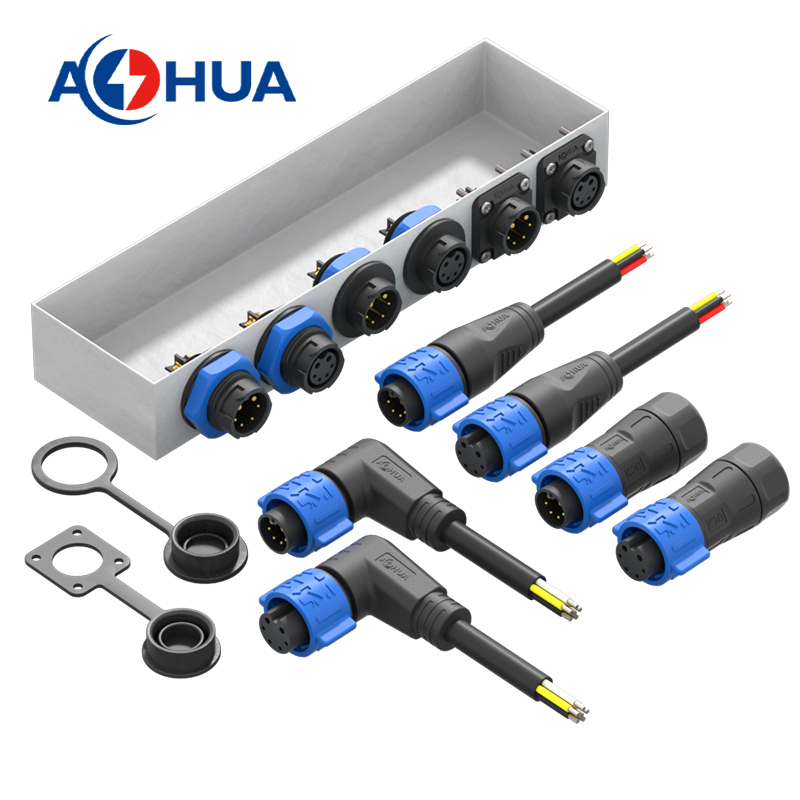

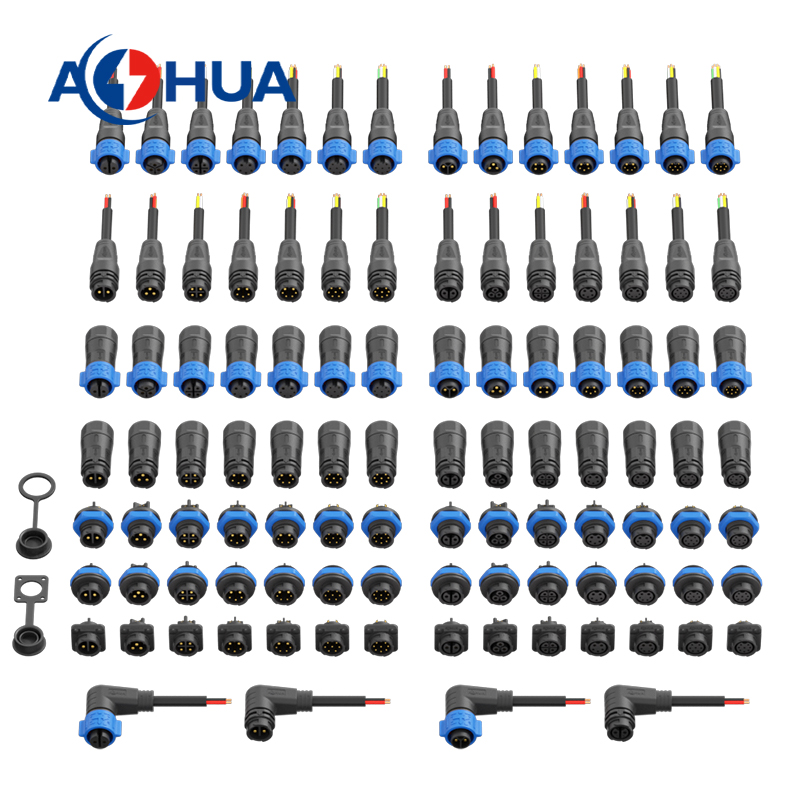

In the Self Lock Quick Connect Type Connector, it looks like the normally connector, we also design a series connector about it.

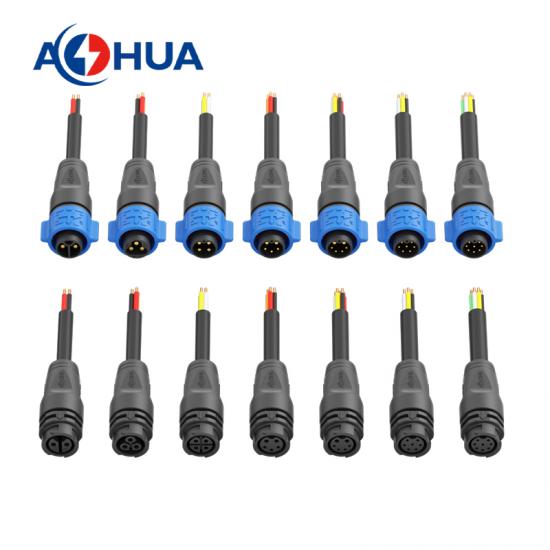

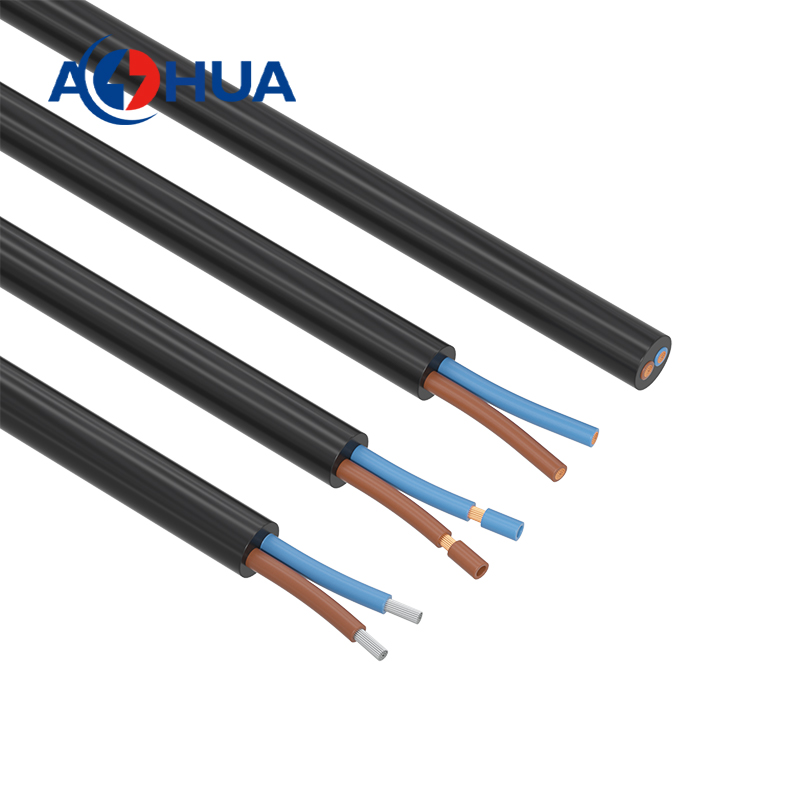

A Connector with cable type, this is customized type:

1.Wire gauge:

There are 3 series connector for you choose, if you do not know how to choose a connector, and it's just a random connector you picked, and just tell us which one you would need, may be the connector you choose one is big or one is small... and you can't use it correctly...

So, to avoid such issues, the best suggestion for you to do is: To confirm the wire gauge.

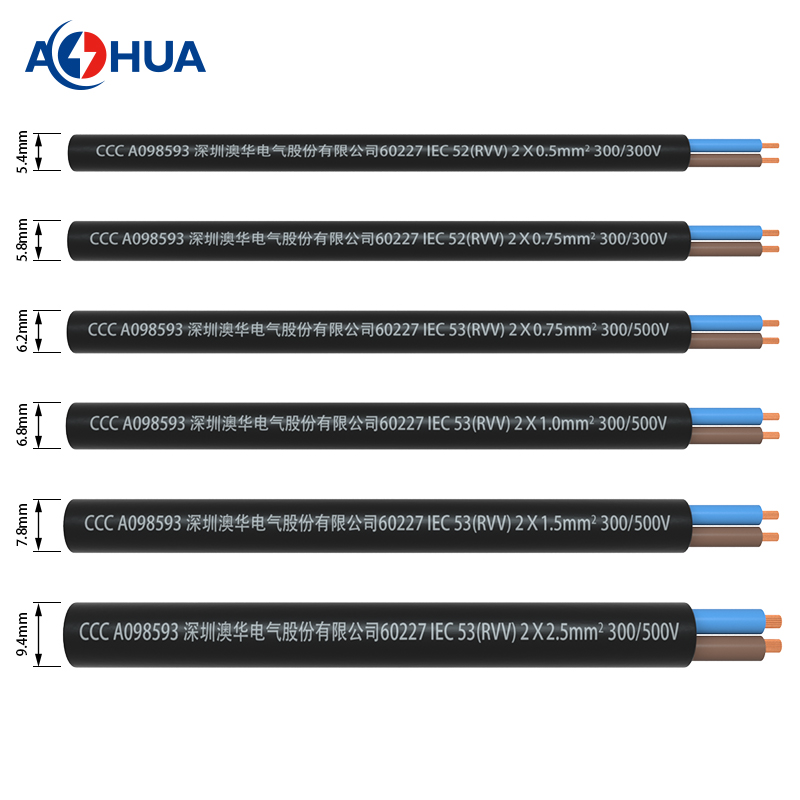

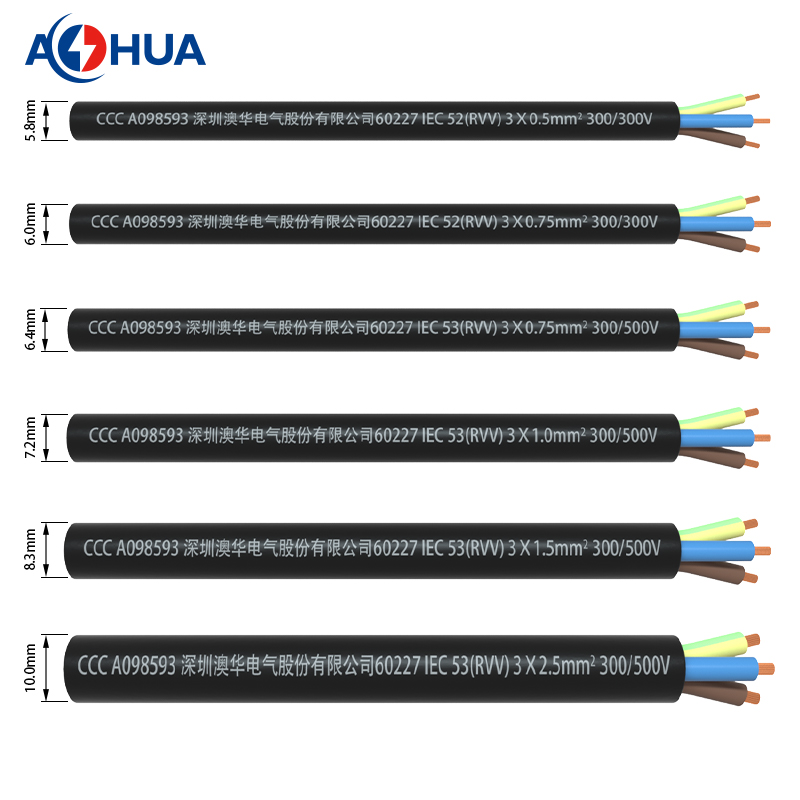

In the datasheet, there are 3 series connector, and 8 type wire gauge from 24AWG to 10AWG, the table shows the most suitable connectors for these wire gauges and corresponding conductor counts.

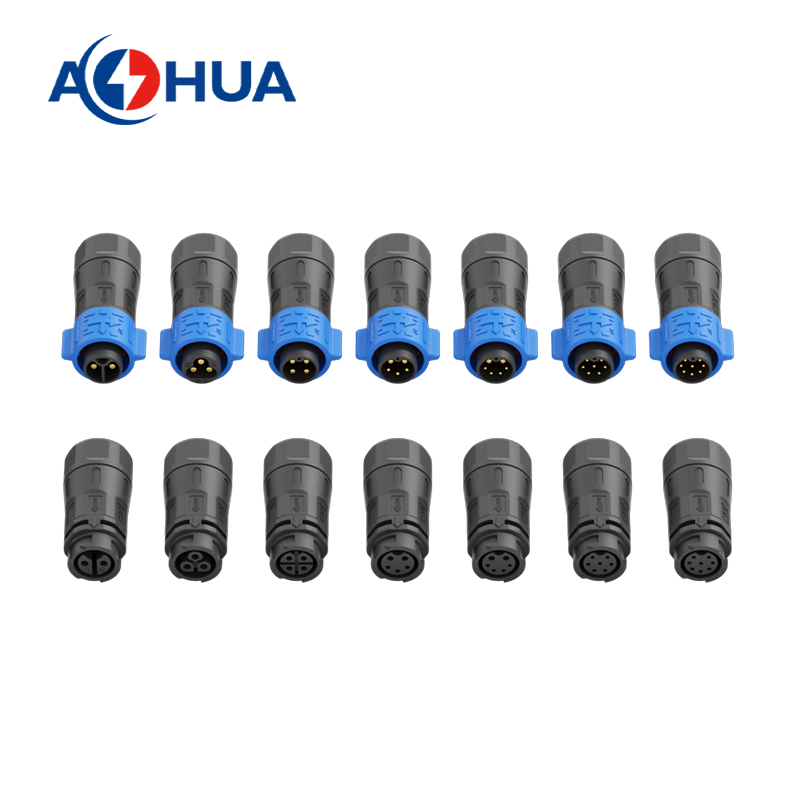

2.In our Self Lock Connectors, there are K15 K20 K25 Connector, which one you choose?

• Look at the wire, it is 2 conductor? 3 conductor? 4 conductor?...
• And the wire gauge designed from the current, signal cable: 20AWG? 22AWG?.. Power Cable: 18AWG? 16AWG?...

Once confirm this, we will help you to design a suitable solution to you.

 3.Product Specifications

• Material: [PA66]

• Color Options: [Blue+Black]

• Voltage: [300V]

• Operating Rating: [-40℃-+105℃]

• Waterproof Level: [IP68]

•


  Operating Environment: [Outdoor Waterproof]
