LED outdoor lighting waterproof connector
M20
Home /

Assembly Waterproof Plug

/

M20

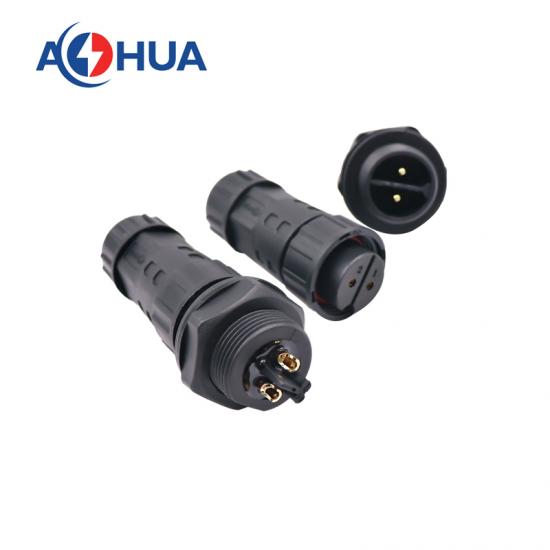

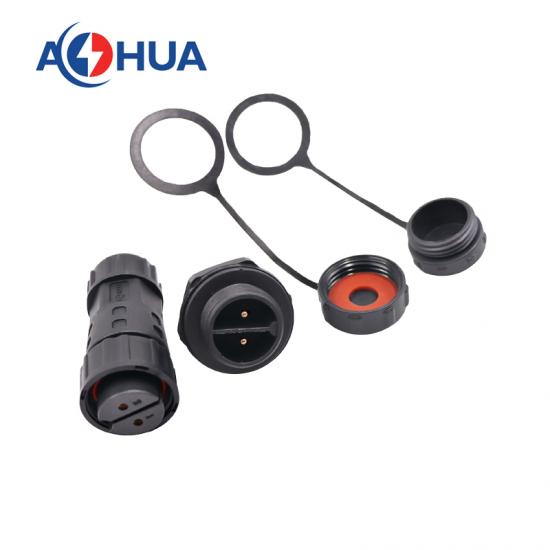

/2pin Solder Type Waterproof IP67/IP68 Panel Mount Cable Connector

2pin Solder Type Waterproof IP67/IP68 Panel Mount Cable Connector

M20 Rear Male Panel Waterproof connector
  • Item NO.:

    M20
  • Lead Time:

    a week
  • Product Orgin:

    China
  • Shipping Port:

    shenzhen,china
  • Payment:

    TT,PAYPAL
  • Color:

    black
  • Product Material:

    PA66
Inquiry now
products Details

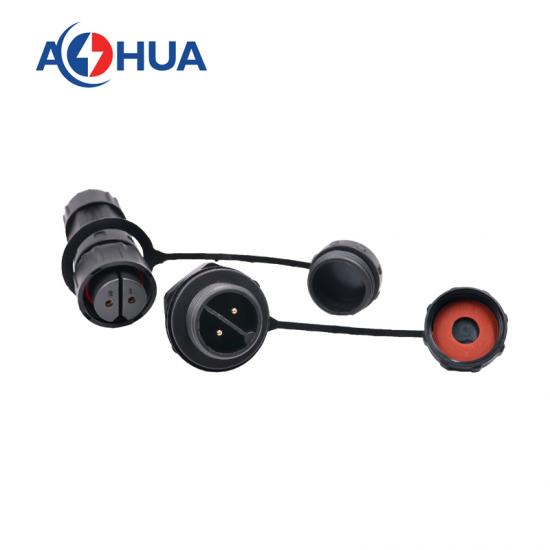

2 PIN M20 Waterproof Connector
Screw fixing type Or Solder type


Description & Specs

Items  Pins Part Number Voltage Rating Current Rating Wire Gauge Cable OD
M12 2 AH-M12-0502FMR/MFZ01112 300V 5A ≤1.0mm² 2.6mm-7.5mm
M16 2 AH-M16-1002FMR/MFZ01112 300V 10A ≤1.0mm² 2.6mm-7.5mm
M20 2 AH-M20-1502FMR/MFZ01112 300V 15A ≤1.5mm² 5.5mm-10mm
M25 2 AH-M25-2502FMR/MFZ01122 300V 25A ≤2.5mm² 6mm-12mm
M29 2 AH-M29-3502FMR/MFZ01122 300V 35A ≤4.0mm² 6.5mm-15mm
Contact Numbers                   2
Voltage Rating                300V
Current Rating                 15A
Wire Gauge              ≤1.5mm²
Cable OD               5.5mm-10mm
Mechanical Life                 3000 mating cycles
Operating Rating                -40ºC-+150ºC
Waterproof Level                 IP67/IP68
Seal Ring                  13*9*6.5/7.5/8.5/9.5/10mm



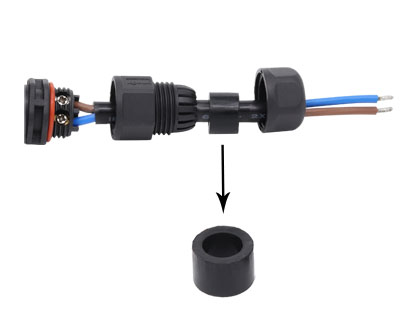

Cable OD Seal Ring
2.6mm-7.5mm 9*9*3.6/4.1/5.5/6.5/7.5mm
5.5mm-10mm 13*9*6.5/7.5/8.5/9.5/10mm
6mm-12mm 15.6*13*7/9/10/11/12/13mm
6.5mm-15mm 20.6*13*7.5/8.5/10/12/13/15mm




Before get the quotation, please tell us the connection of waterproof connector.


(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...

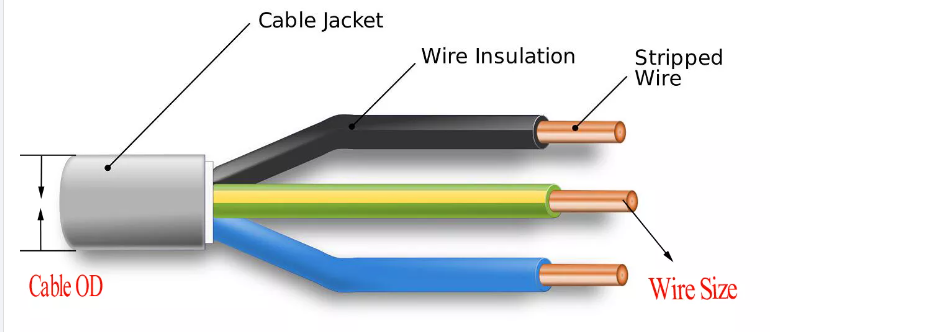

(5)Cable OD
(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...

Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.




Related Products




Our Advantages

Application

Advantages:


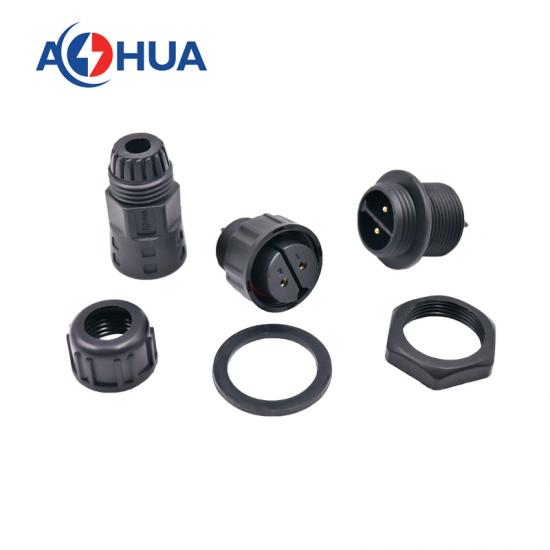

1.Nylon PA66,wire to rear male mount,solder & screw fixing type.

2. Male to female, assemble easily.

3.
Easy Install: The installation process is very simple.

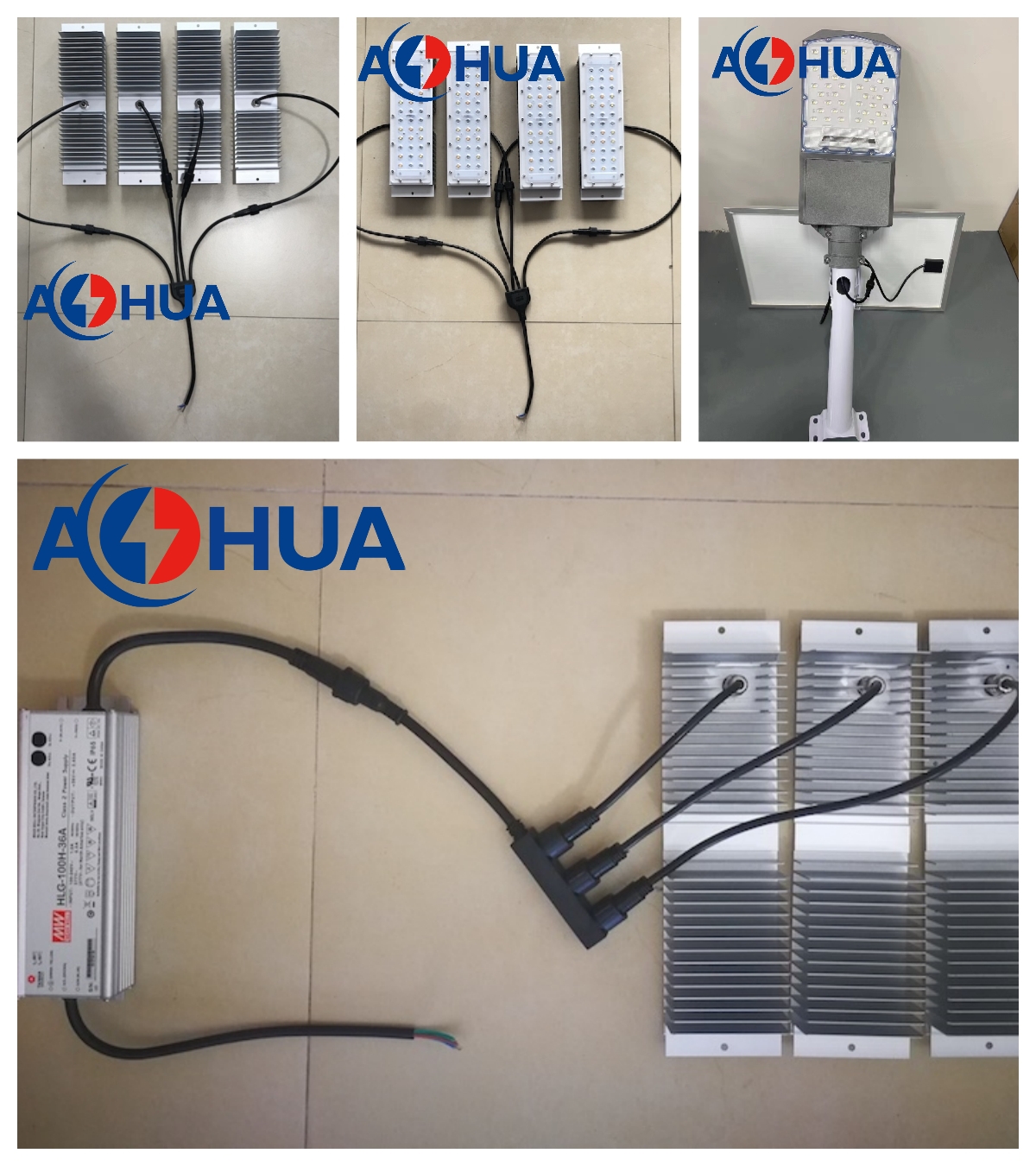

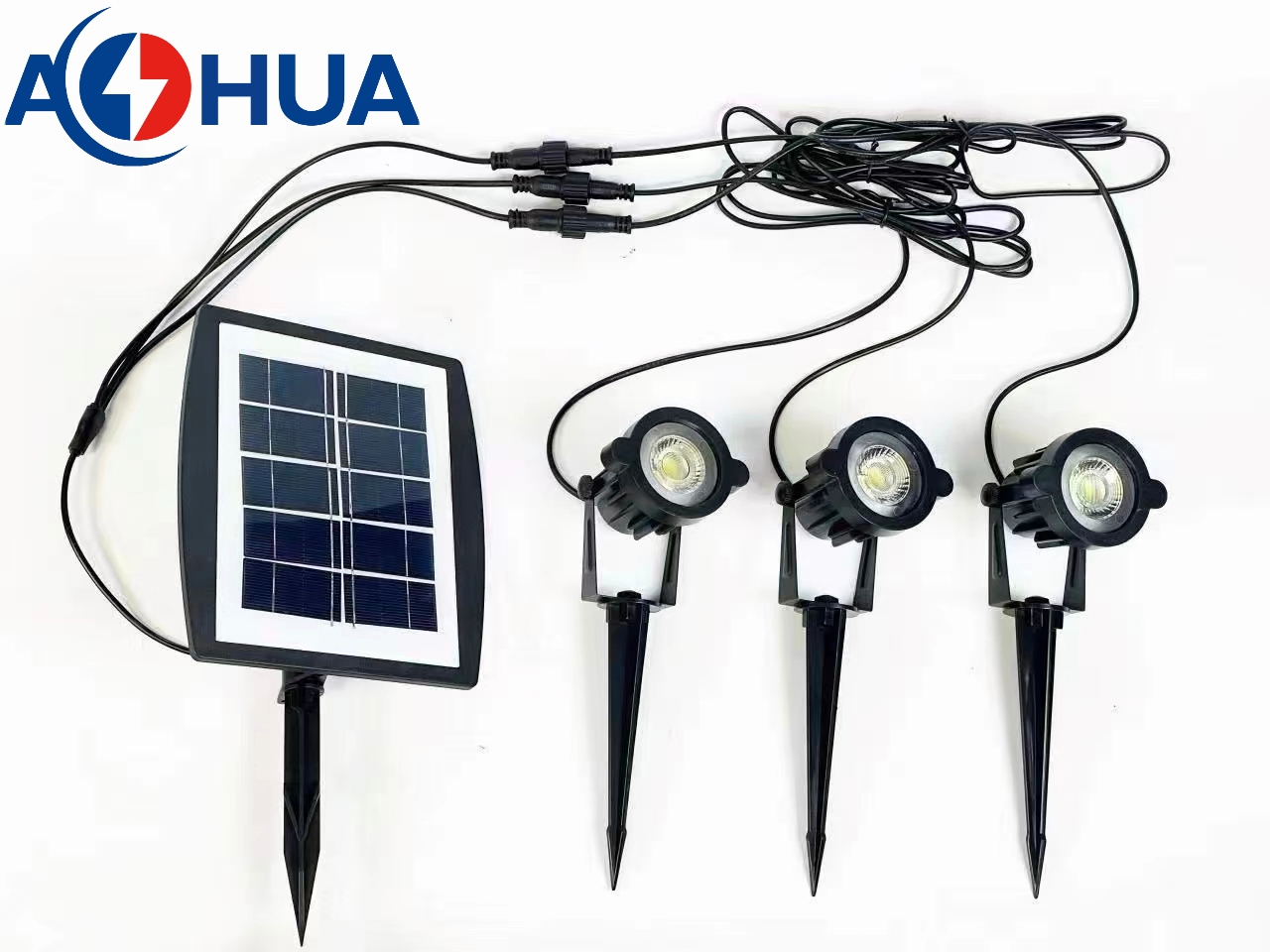

4.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.


Assembly Connector Wire to wire /Wire to panel waterproof connector,L/T screw type connector
Over-mold Connector Nylon/PVC /Metal /Aviation waterproof connector,DC connector
T Connector Over-mold T waterproof connector
Y Connector Over-mold Y waterproof connector

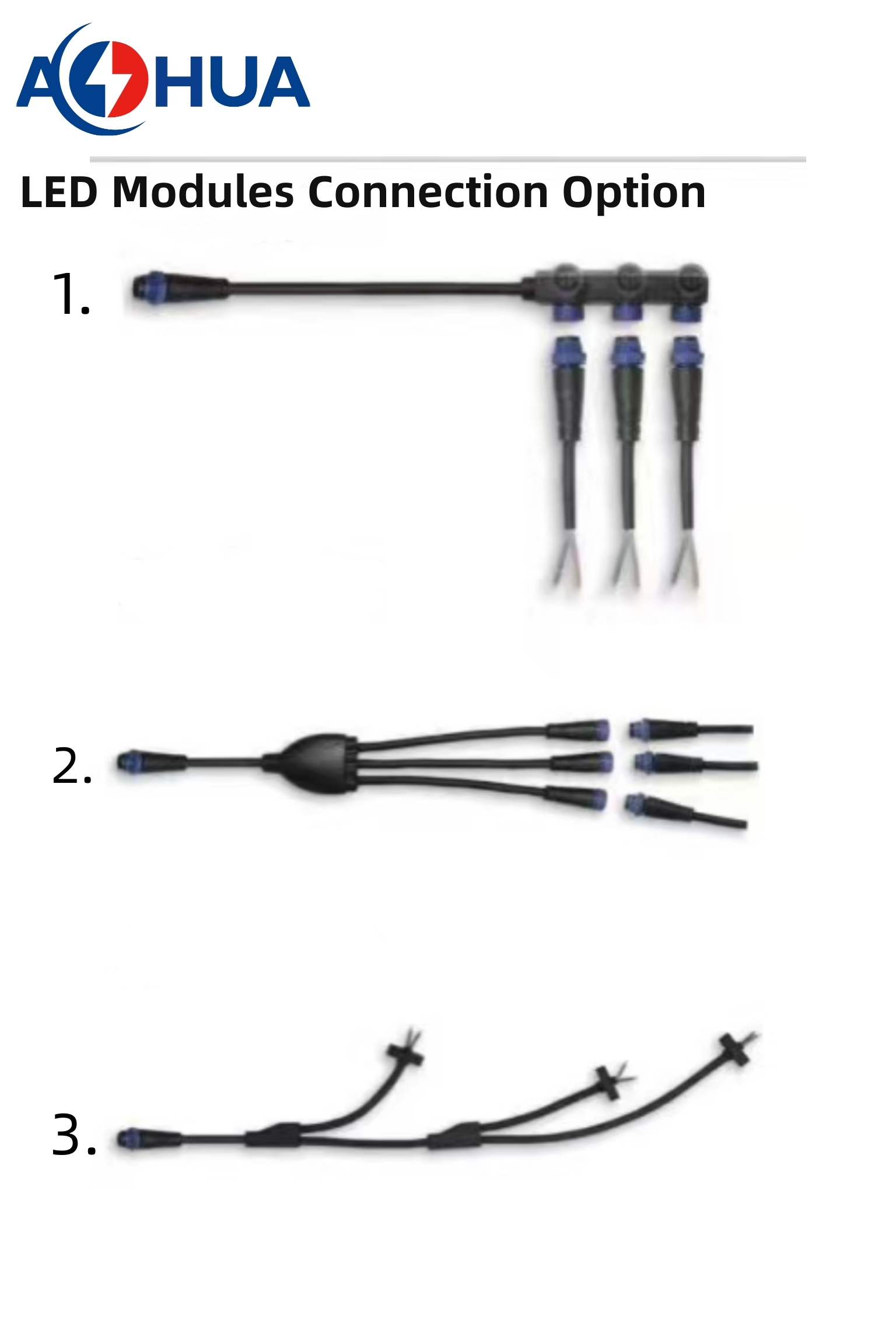

Distributor Connector M15/M18 Series(1to2/3/4/5/6) LED waterproof connector

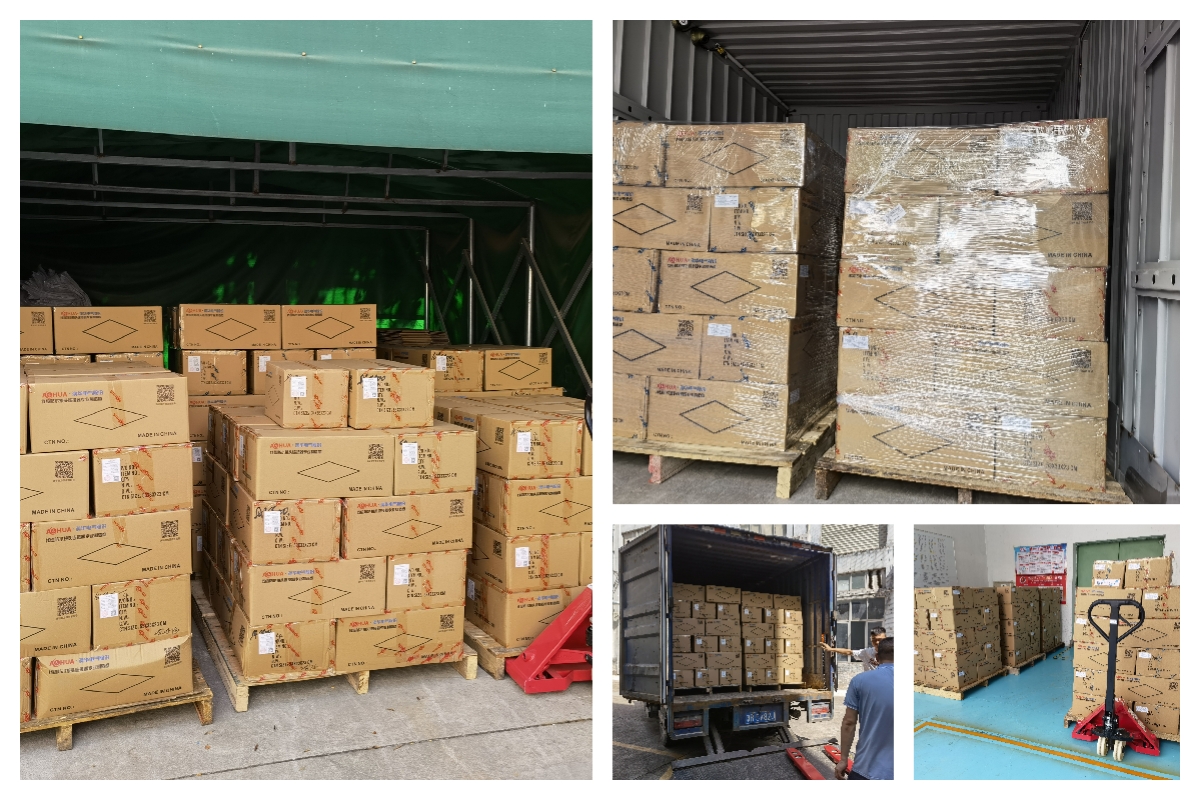

Packaging & Shipping

Quantity(sets) 1-1000 >1000
Lead Time(days) 9 To be negotiated
Shipment Express(DHL,Fedex,TNT,Ups);Ocean freight
Land freight;Air freight







Company Profile


Get Free Inquiry Now

We will contact you as soon as possible!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

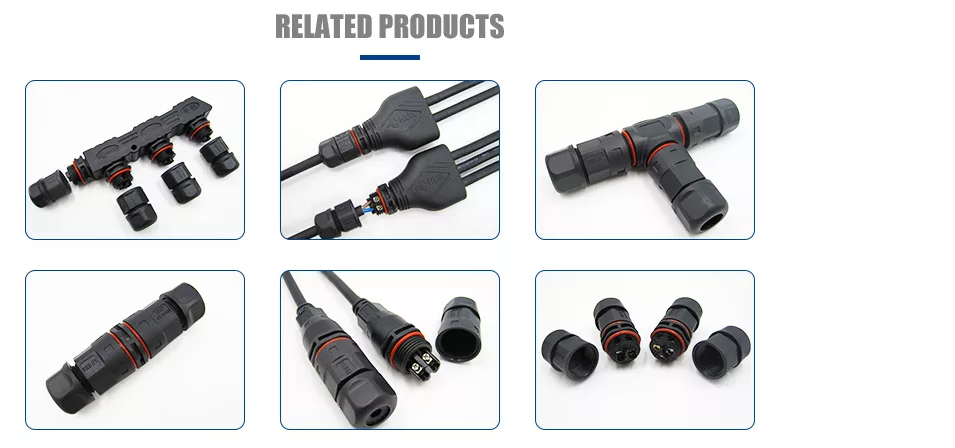

Related Products
