4-Way Waterproof Cable Joint 3-Pin M25 Connector with Screw Lock 6.5-13mm Cable Diameter for Outdoor Lighting Projects

Product Overview

• Superior Waterproof Rating: IP67/IP68 certified—submersible and resistant to heavy rain, perfect for outdoor applications
• Tool-Free Quick Assembly: Solderless design with quick-lock 3-core terminals for fast, hassle-free installation.
• Robust & Durable: M25 threaded locking structure with double sealing rings ensures anti-pull, vibration-resistant connections.
• Wide Cable Compatibility: Accepts cables with outer diameter 6.5mm–13.0mm (supports both 5.5-8.5mm and 8.5-13.0mm wire ranges).
• 4-Way Cross Configuration: One-in-three-out or three-in-one-out flexibility for efficient cable branching and space-saving layouts.
• Wide Temperature Range: Operates reliably from -40°C to +105°C.
• High Current Capacity: Rated for 25A at 250V with wire gauge support up to ≤2.5mm²

Part Numbering System

• 3-Core Model: AH-M25-2503X01132

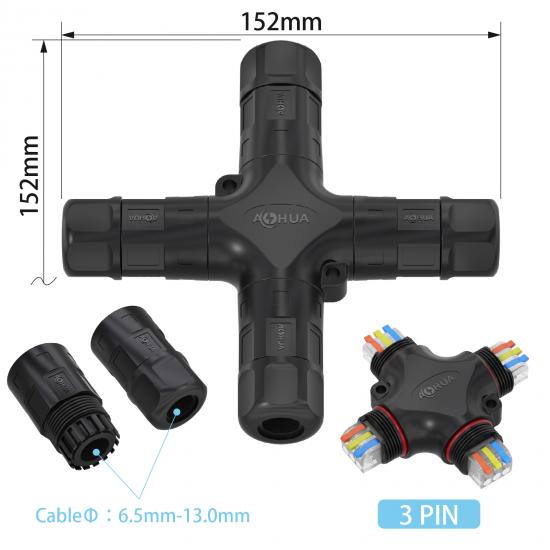

Dimensions & Pin Layout

Overall Dimensions:

• Length (Main Axis): 152.0 ± 0.20 mm

• Height: 32.0 ± 0.15 mm

Pin Layout:

• 3-Core: 3-pin configuration (see diagram for pin positions).

(Include the line drawing from your last image here)

3-Core Model: AH-M20-1503T02132

Application Scenarios

Strip Wires: Remove insulation 15-20mm, separate conductors approximately 5-8mm

Disassemble: Unscrew all connector components

Thread Cables: Pass wires through the housing and screw nut

Insert Terminals: Open toggle of crimping terminal, insert wire core, and tighten securely

Assemble: Screw all components tightly together with O-ring in place

Test: Ensure all seals are tight for waterproof integrity

Packaging & Ordering

• MOQ: Negotiable

• Packaging: Standard export carton with foam protection.

• Delivery: Typically 7-15 days depending on order quantity.
