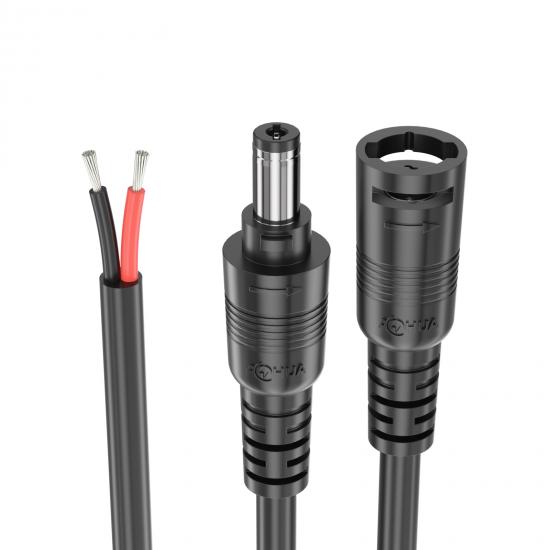

This is AOHUA DC M11 Connector
Parameter item
| Specifications | |
|---|---|
| Waterproof Level | IP67 |
| Voltage Rated | DC 0~260V |
| Current Rated | ≤5A |
| Contact resistance | ≤20mΩ |
| Insulation resistance | ≥100MΩ |
| Dielectric strength | AC 500V/1min |
| Operating temperature | -40℃ ~ +80℃ |
| Insertion and removal cycle life | ≥5000 |
| cable sheath | PVC |
| Installation method | Panel mounting / Direct cable connection |
Packaging, Storage and Transport
- Packaging specifications：Each item is individually packaged in a PE bag, with the outer packaging consisting of a standard corrugated cardboard box; custom labels and barcodes are available.
-
- Storage and transport conditions：Store in a dry, well-ventilated area free from corrosive gases, away from direct sunlight and heavy pressure.
-
- Mode of transport：Suitable for delivery by courier or logistics services, and complies with standard transport requirements for electronic components.
①
②
This type cable connector for your reference, once confirm or not sure about the connector type, pls contact us freely!
