Pins
Part Number
Voltage Rating
Current Rating
Wire Gauge
2
AH-M15-1002FMZ/MFZ01112
300V
10A
≤1.5mm²
3
AH-M15-1003FMZ/MFZ01112
300V
10A
≤1.0mm²
Contact Numbers
2
Wire Gauge
≤1.5mm²
Cable OD
5.5mm-10mm
Mechanical Life
3000 mating cycles
Operating Rating
-40°C~+105°C
Waterproof Level
IP67/IP68
Seal Ring
13*9*6.5/7.5/8.5/9.5/10mm
related products
OUR ADVANTAGES
Application
Tail Terminal:
Tail processing as shown on the above is optional,others not listed can also be processed.
Before get the quotation, please tell us the connection of waterproof connector.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 4A,5A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*1.0mm²;3*1.5mm²...
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

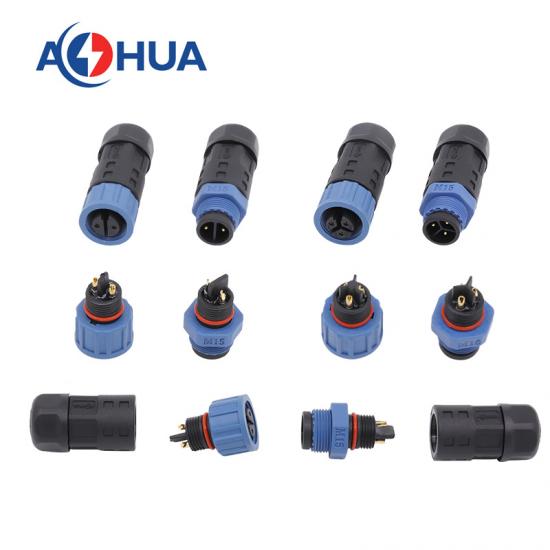

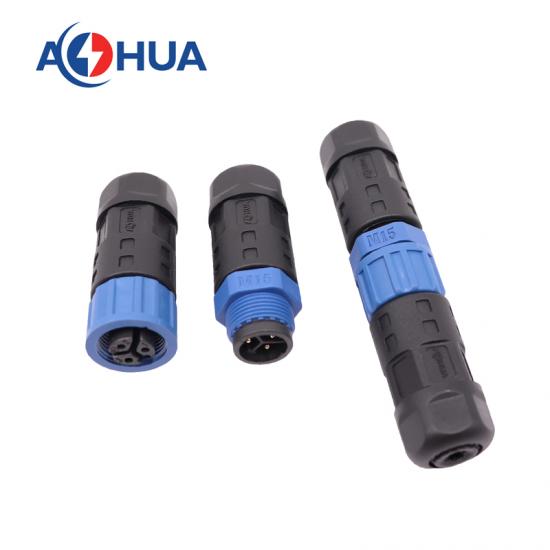

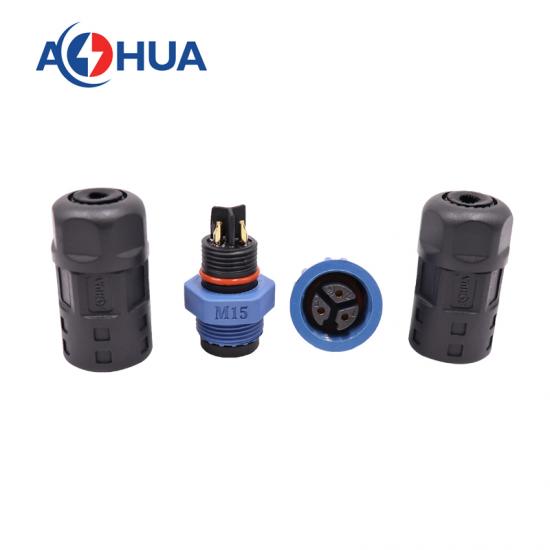

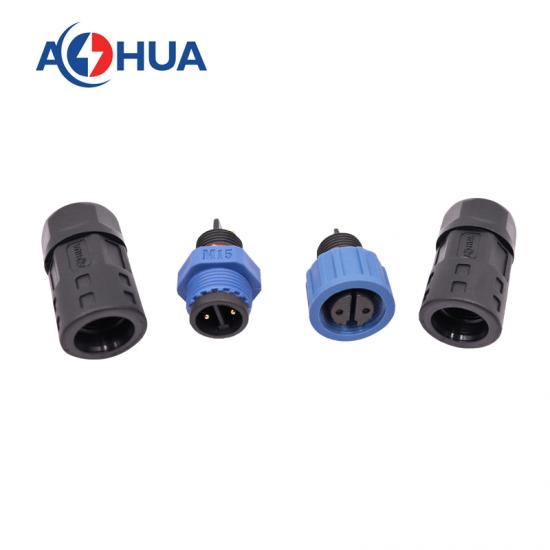

details pictures
