AHUA M20 4-Way Waterproof Connector IP68 Outdoor Electrical Splitter

• The red sealing ring is a critical component for achieving the IP68 waterproof rating, enabling long-term operation at depths of 1.5 metres underwater.

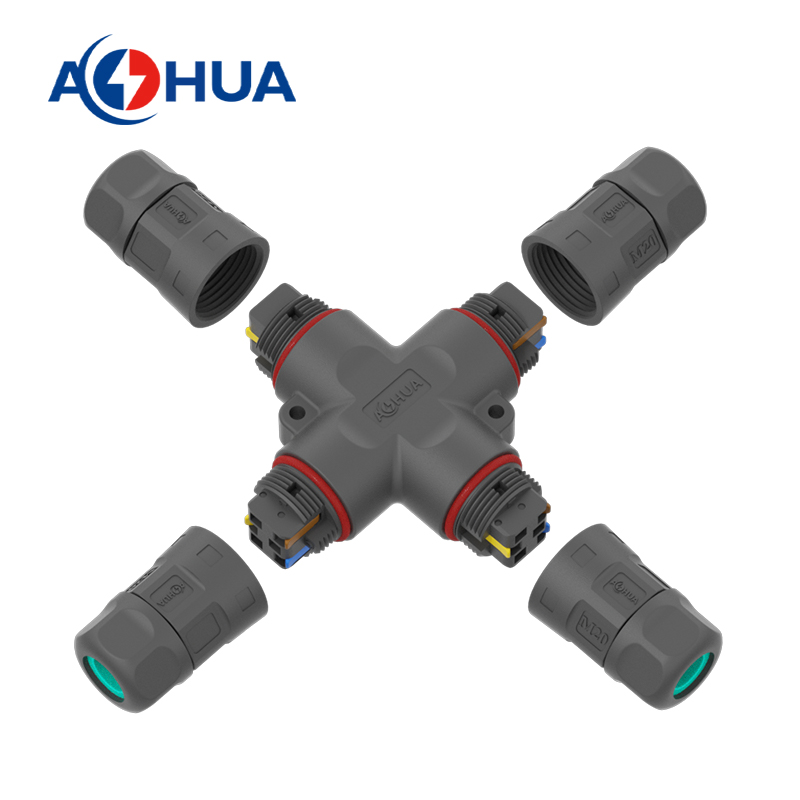

• The plug and main connector are secured by threaded fastening, capable of withstanding a certain degree of tensile force and vibration once installed.

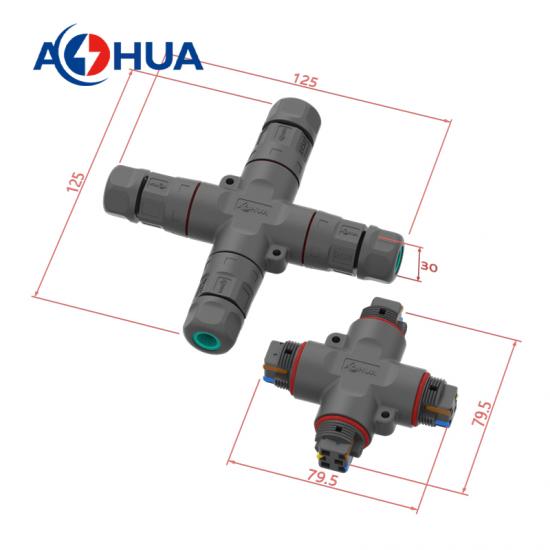

• Dimensions for both specifications: Approximately 125 × 125 × 30 mm when fully assembled.
• Approximately 79.5 × 79.5 × 30 mm for the main connector in disassembled state.。
• Dimension information facilitates the provision of installation space in engineering design, accommodating wiring requirements across diverse scenarios.

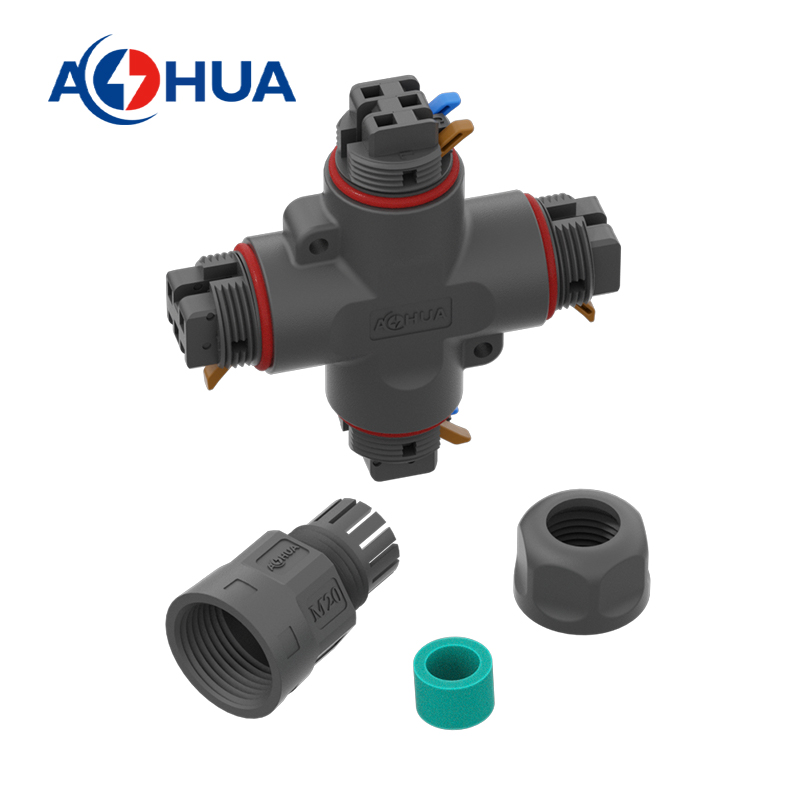

• The internal structure of a single plug is shown: comprising a nut, a waterproof rubber seal (green), and the plug core.
• The green waterproof seal is used to seal the connection between the cable and plug, preventing moisture from penetrating the cable interface.
• This design facilitates rapid on-site wiring without soldering, thereby simplifying the installation process.

     M20-4 Way Connector  IP68 Waterproof X Connector Crimp in Type Connector

     Pin: 2PIN

     Voltage Rating: 250V

     Current Rating: 25A

     Wire Gauge:  ≤2.5mm²

     Suitable Wire Outside Diameter: 4.5mm-10mm
