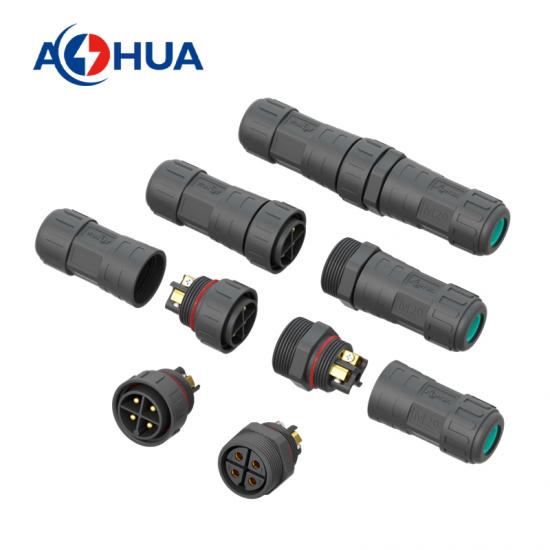

AHUA Mechanical Connection Cable M29 Power Waterproof Assembly Male Female Plug 4Pin LED Outdoor Cable Joint 25A Electrical Plug

M29 assembly waterproof connector can be combined with L/T/Y/F Type connectors to provide a solution for LED lamp modules.
Widely used in LED plant growth lamp, streetlight, garden light, stage light, LED outdoor display, junction box, outdoor engineering,
mining engineering, solar-wind power, solar water heaters and various machinery and so on..

If you need help,pls contact our team:

1.Screw wiring type assembly waterproof plug M29.
Connector coming without cable.  Operating tool:A well screwdriver.

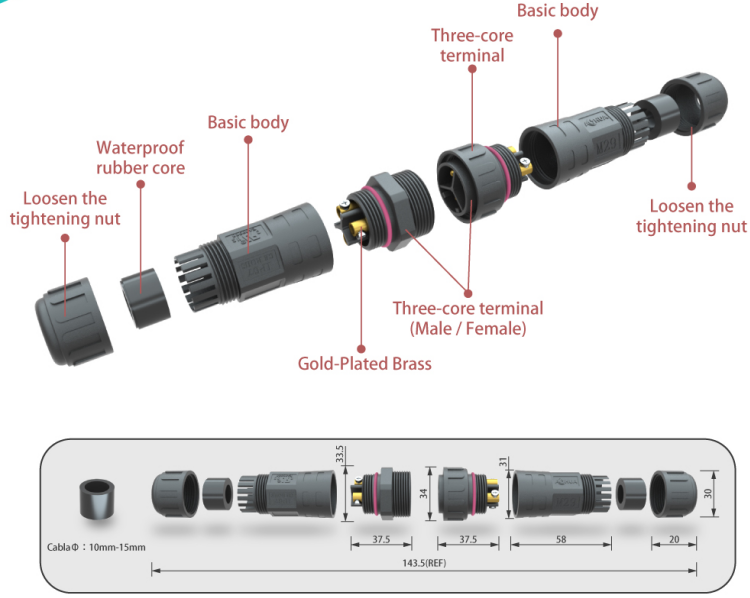

M25 is composed of Male core,Female core,O-ring ,Housing, Seal Ring and Screw Nut.

How to order a suitable connector?

Before order, please specify the details of your cable as follow:
1. How much Voltage/Current do you need this connector to carry on?
 Such as: 500V 25A...

2.What's the Wire size do you need this connector to connect?
Such as: 4*2.5mm²...

3. What is the Cable outer diameter(OD)?
Such as: 12mm,then we can select a suitable seal ring for connector.


A suitable size of the seal ring can help the connector achieve better waterproof effect,
according to the cable outer diameter to choose seal ring size.

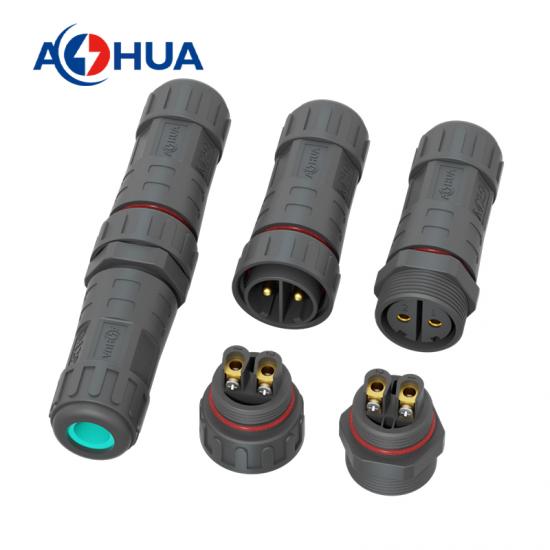

2PIN Wire to wire Male Female connector.

Male Part Number:
AH-M29-3502FMZ02122
Female Part Number:
AH-M29-3502MFZ02122

1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 500V 35A.
4.Mechanical Life: 3000 mating cycles.
5.Connection Cable OD: 6.5~15mm.
6.Cable Gauge: 0.75mm2,1.0mm2,1.5mm2,2.5mm2;4.0mm2,6.0mm2;
10AWG,12AWG,14AWG,16AWG,18AWG.
7.Certificate: CE/ROHS/ISO9001...
8.Major Market for Sales: All Over the World...

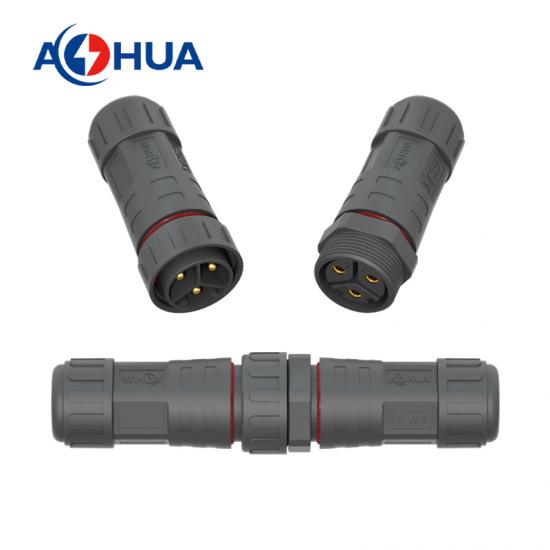

3PIN Wire to wire Male Female connector.

Male Part Number:
AH-M29-3503FMZ02122
Female Part Number:
AH-M29-3503MFZ02122

1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 500V 35A.
4.Mechanical Life: 3000 mating cycles.
5.Connection Cable OD: 6.5~15mm.
6.Cable Gauge: 0.75mm2，1.0mm2,1.5mm2,2.5mm2;4.0mm2,6.0mm2;
10AWG,12AWG,14AWG,16AWG,18AWG.
7.Certificate: CE/ROHS/ISO9001...
8.Major Market for Sales: All Over the World...

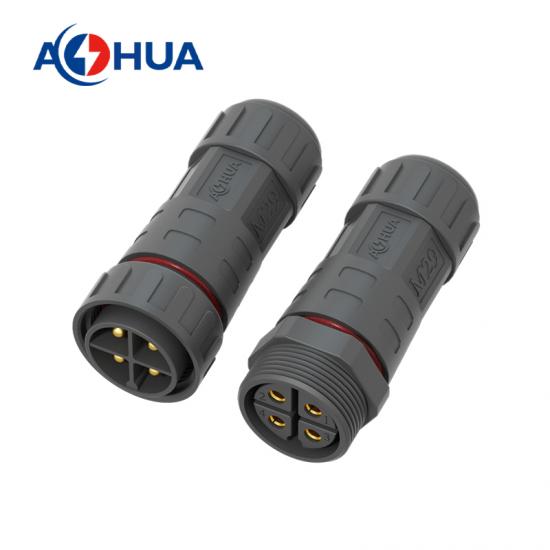

4PIN Wire to wire Male Female connector.

Male Part Number:

AH-M29-2504FMZ02122
Female Part Number:
AH-M29-2504MFZ02122

1.Plastic Material: Nylon PA66.
2.Contact Material: Gold-plated Brass,Nickel-Plated Brass.
3.Voltage/Current: 250V 25A.
4.Mechanical Life: 3000 mating cycles.
5.Connection Cable OD: 6.5~15mm.
6.Cable Gauge: 0.75mm2，1.0mm2,1.5mm2,2.5mm2;4.0mm2;
12AWG,14AWG,16AWG,18AWG.
7.Certificate: CE/ROHS/ISO9001...
8.Major Market for Sales: All Over the World...

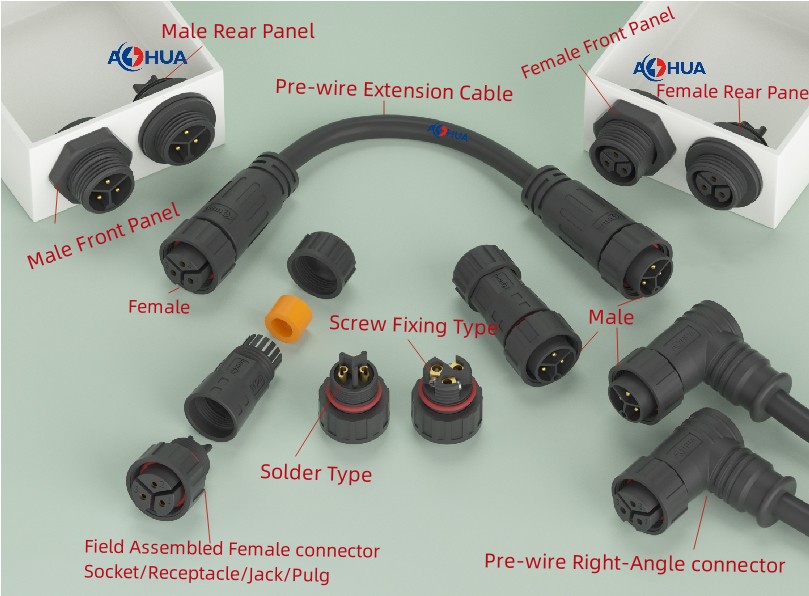

There are Wire to Panel and Pre-wired type connector to meet your needs.
