LED outdoor lighting waterproof connector
Y Splitter Waterproof Plug
Home /

Y Splitter Waterproof Plug

/AOHUA 1 to 2 power cable distributor 5.5x2.1 5.5x1.5 DC plugs led dc power Y type cable splitter dc connector splitter cable

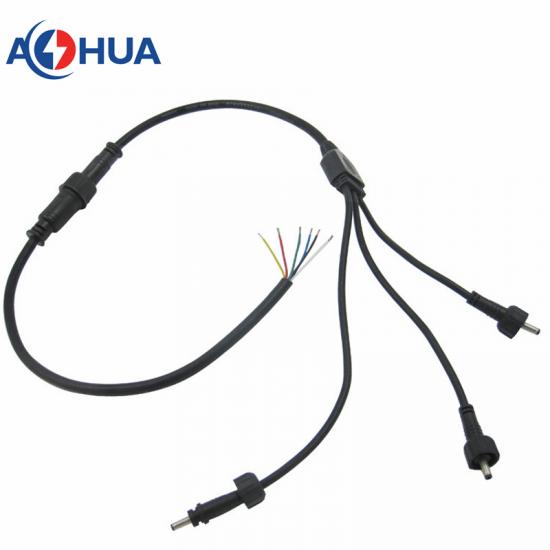

AOHUA 1 to 2 power cable distributor 5.5x2.1 5.5x1.5 DC plugs led dc power Y type cable splitter dc connector splitter cable

5.5x2.1 5.5x1.5 DC plugs / led dc power Y type connector
  • Item NO.:

    Y Type
  • Lead Time:

    A week
  • Product Orgin:

    China
  • Shipping Port:

    Shenzhen, China
  • Payment:

    TT,PAYPAL
  • Color:

    Black/White
  • Product Material:

    PA66/PVC
Inquiry now
products Details

AOHUA Y type waterproof connector


Y type cable splitter for cable solutions, there are more than 10 series. The cable splitter will be molded with electric wire even molded with waterproof connector.

Y-M16 Assembly Type Series

Y type integrated wiring harness with small and simple appearance.
Y Series, high quality at competitive price.
Nylon material, one end is a L assembly screw type connector, and the other end is bare wire or with connector.
Favorable waterproof feature: ip65.
You need to check the wire gauge and each cable length, and if it need connector or not.
Any length of the cable is available and terminal processed.
There's a choice of 1 out of 2, 1 out of 3, 1 out of 4, 1 out of 5.
Convenient maintenance and replacement, reduce the costs of after service.

Y-M20 Assembly Type Series

Y type combined head, simple structure and moderate cost.

The quantity of the branches can be increased or decreased according to customer's demand flexibly Nylon material, one end is a L assembly quick push wire type connector, and the other end is bare wire or with connector.

Favorable waterproof feature: ip65.

You need to check the wire gauge and each cable length, and if it need connector or not.

Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.

YP01-YP03 Series


The YP03 multiple branch Y type waterproof cable connector. In this cable solutions, Y splitter are usually connectors with male and female connectors. Such as, the main cable will be molded with the female connector, the branch cables will be molded with male connectors. The wire size is 2*24AWG, the cable length is customized.
There are 2pin, 3pin, and 4pin for this splitters, And its can customized for 2 branches, 3 branches, and 4 branches. main cable wire gauge is ≤1.5mm² (cable OD not exceed 8.3mm), the branch wire gauge is ≤ 1.0mm²(cable OD not exceed 6.8mm).
There are many waterproof connectors to molded for this Y type splitter, such as M10 M12, M14 and M16 connectors.
How to choose the right Y splitter, you just need to tell us the wire gauge, cable length, number of branches and cable connection, we will advise. We also welcome you offer the simple drawing you want, we will give you the professional solution and drawing.

YP04-YP07 Series

Y type splitter is a kind of multiple cables splitter, which is one cable input and multiple branch cables output. As usual, this splitter will be designed 1 input 2 3 4 5 outputs, the main cable with connectors and branch cable with connectors or the main cable and branch cables are without connectors but with bare cables.
The splitter size is length 58mm*wide 37mm*high 21mm, The main cable wire size is Less than or equal to 2.5mm², branch cable wire size is less than or equal to 1.5mm²; the main cable OD is not exceed 10mm, the branch cable is not exceed 8.3mm. This splitter is suitable for 2pin 3pin and 4pin.
In this example, the main cable designed without connector and branch cable designed with female connectors, the main cable and branch cable wire sizes are 2*0.75mm².

YP08-YP11 Series

YP 09 Y type splitter is the multiple cables designed solution, which is one cable input and multiple branch cables output. it will be designed in 2 to 6 output cables. its size is length 64mm*wide 50mm*high 15mm. The main cable wire size is Less than or equal to 2.5mm², branch cable wire size is Less than or equal to 1.5mm²; the main cable OD is not exceed 9.5mm, the branch cable is not exceed 8.3mm. This splitter is suitable for 2pin 3pin and 4pin.
Before quotation, please let me know the wire size, cable length, the number of branch cables and etc. For example, the main cable wire size is 2*1.5mm², length 500mm; branch cable wire size 2*1.0mm², length 300mm. There are 3 output cables. The main cable with male connector, the branch cable with female connector.
This Y type splitter is used to the power wire layout in plant grow lighting, led lighting, feeding system, and so on.

YN01-YN03 Series

Y02 nylon cable splitter is our new designed Y type splitter, the splitter is nylon material, it’s suitable for outdoot hard
environment, the waterproof rate is IP67/IP68. the splitter size is length 57mm*wide 37mm*high 21mm,the main cable wire size is no larger than 2.5mm², branch cable wire size is no larger than 2.5mm², the main cable OD max is 9.5mm, branch cable OD is 8.3mm,This splitter is suitable for 2pin 3pin and 4pin.
How to choose the right Y type splitter, pls let me know the wire size, cable length, the number of branches , connection(Parallel or Series) and so on, then we can advise.

YN04-YN06 Series

Y type combined head,simple structure and moderate cost.
The series circuit or parallel circuit can be custom-made according to customer's requirements.
The quantity of the branches can be increased or decreased according to customer's demand flexibly.
Greatly improve the waterproof performance and assembly efficiency.
Convenient maintenance and replacement, reduce the costs of after service.
Our drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
You can send me information about what you want.like this:
1 to 4 Y type cable splitter.
Main cable 2*14AWG black rubber cable 300mm with male connector.
Branch cable 2*16AWG black rubber cable 300/400mm with female connector.
Then we can advise.
You can get some samples before mass order.

YN33 YN43 Series


Tips  before quotation.


Please tell us the cable details:

1. Current rating, eg: 4A.

2. Pins, eg: 2pin, 3pin.

3. Wire size, eg, main cable 2*20AWG, branch cable 2*22AWG.

4. Cable outer diameter(OD), eg: 6.8mm.

5. Length of each cable, eg: 300mm.

AOHUA Waterproof Connector Factorypicture of waterproof connector work shopwaterproof connector produce stepwelcome to AOHUA waterproof connector factoryFAQ Of Waterproof connector

More details, please send inquiry to us, we will try our best to help you!!!
