Application
Assembly waterproof plug is suitable for indoor /outdoor , such as outdoor led lighting, LED panel screens, outdoor security cameras,solar energy inverter, medical device, communications, marine equipment.control systems, measuring equipment and testing equipment, for data and power and so on.
AOHUA Assembly Screw Fixing type L/T/X/H/F 1 in 2/3/4/5 out Waterproof Connector IP67/IP68 for Outdoor LED Lamp Module

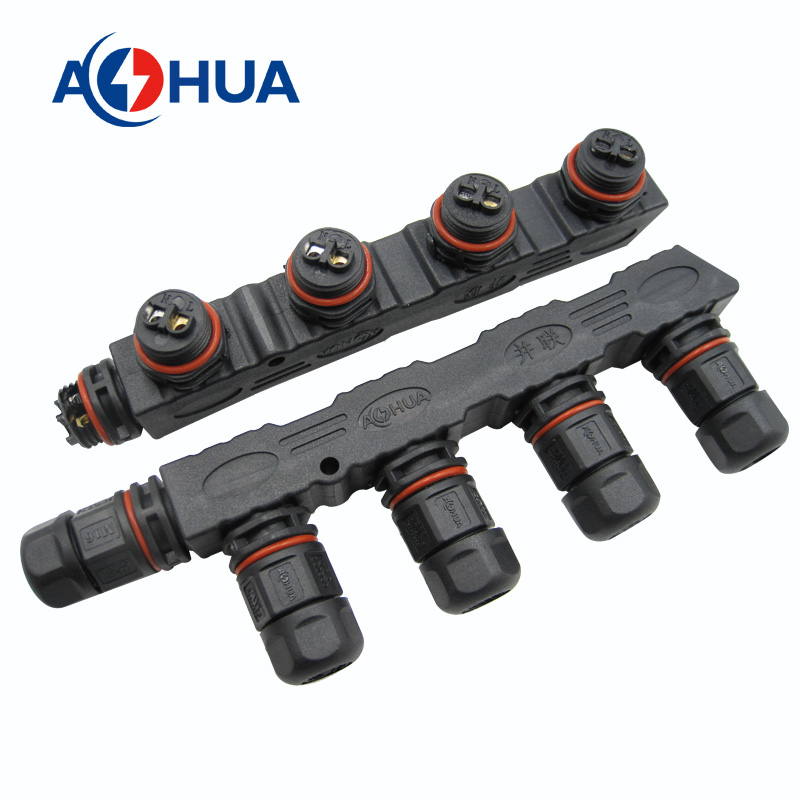

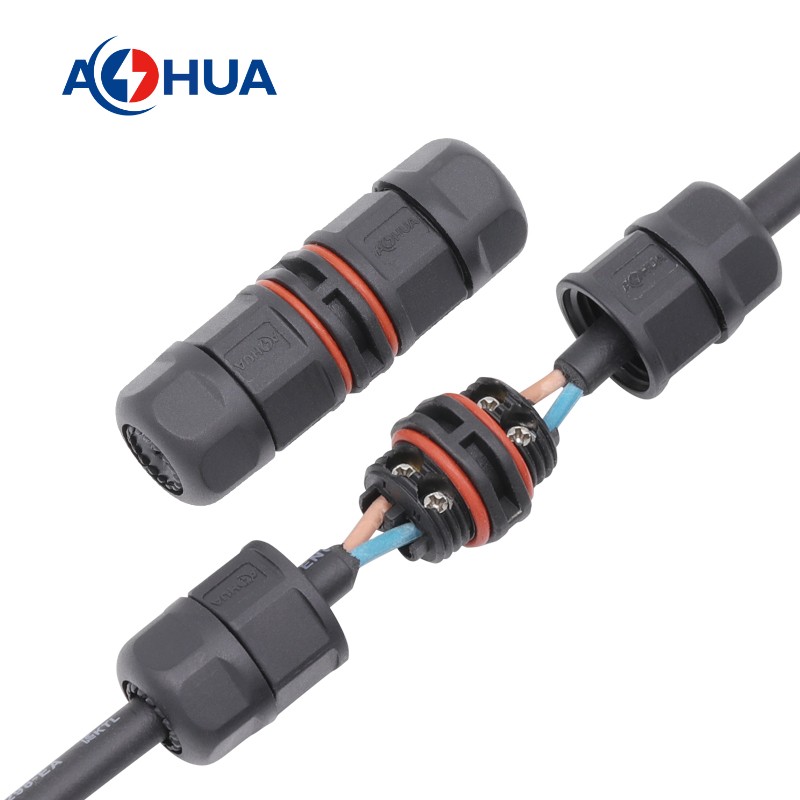

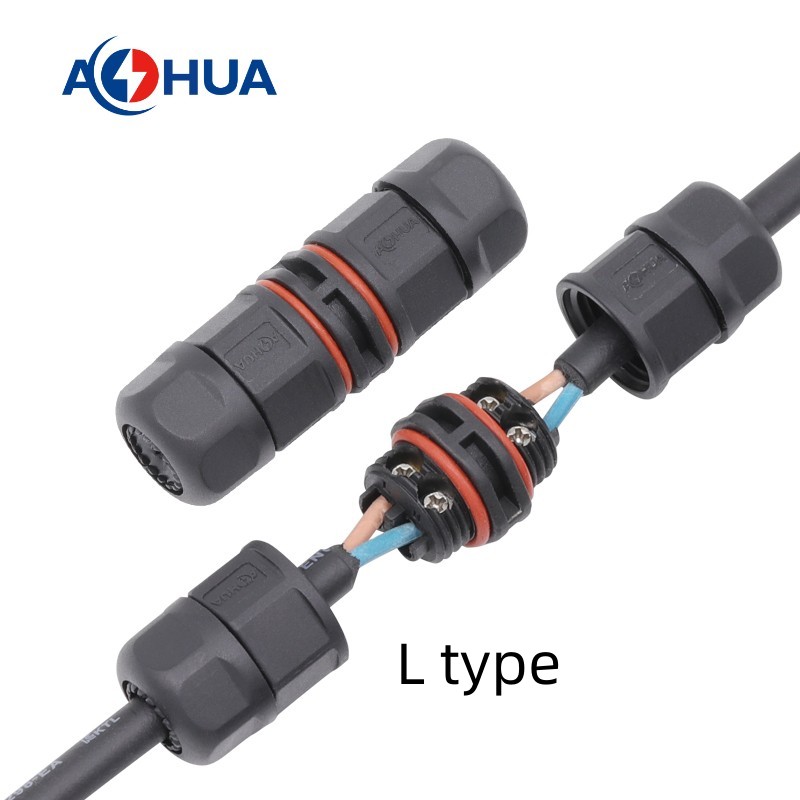

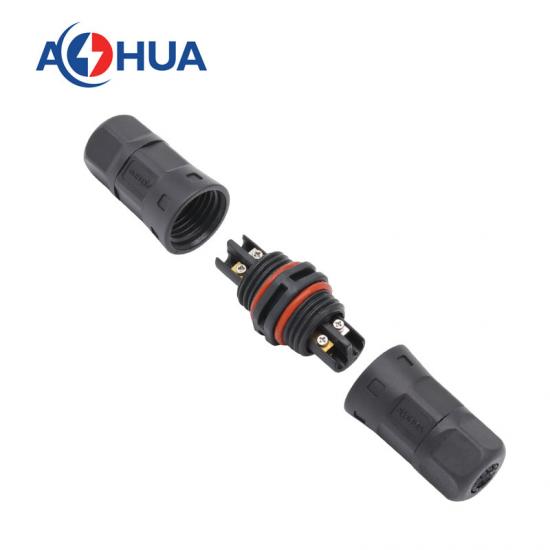

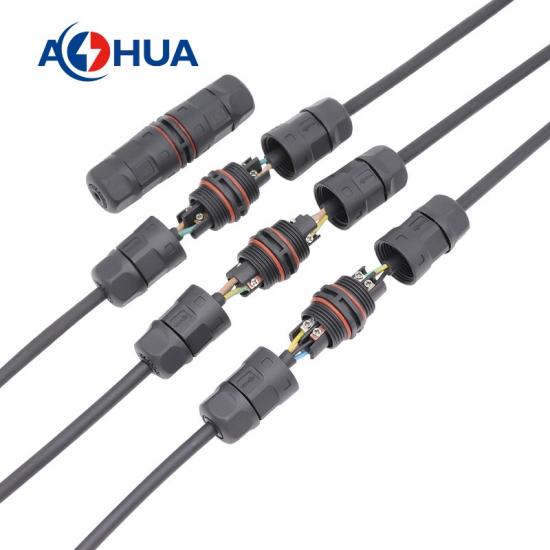

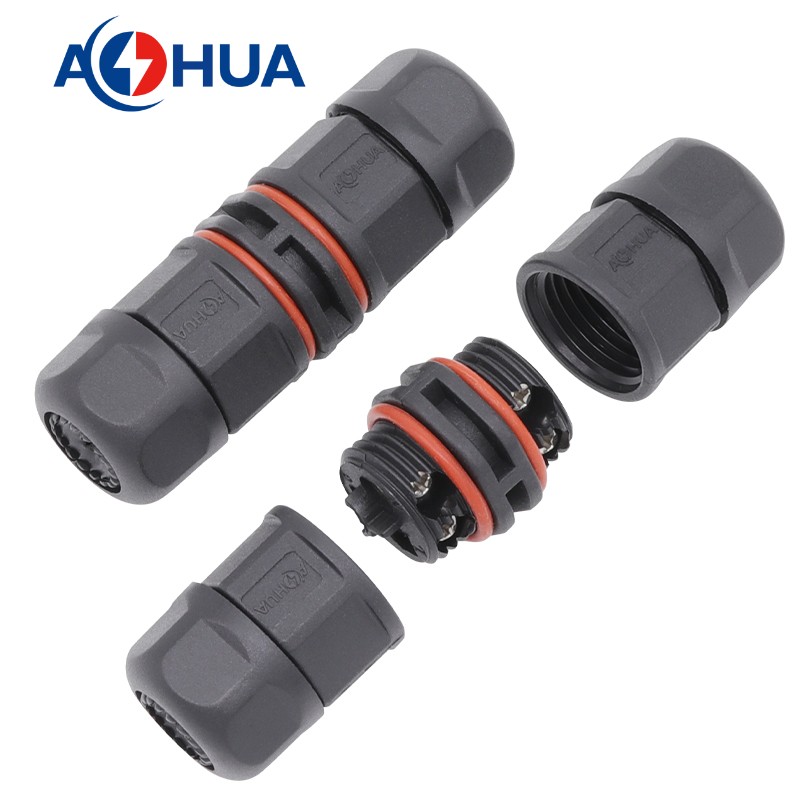

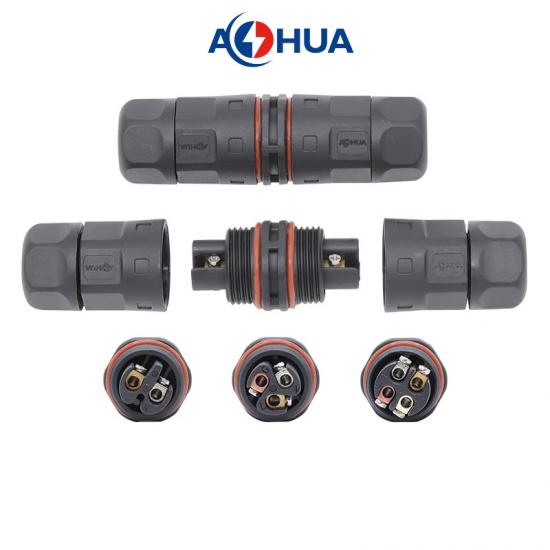

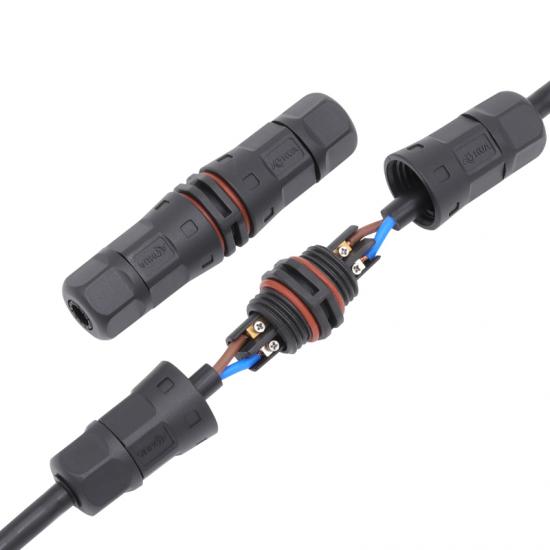

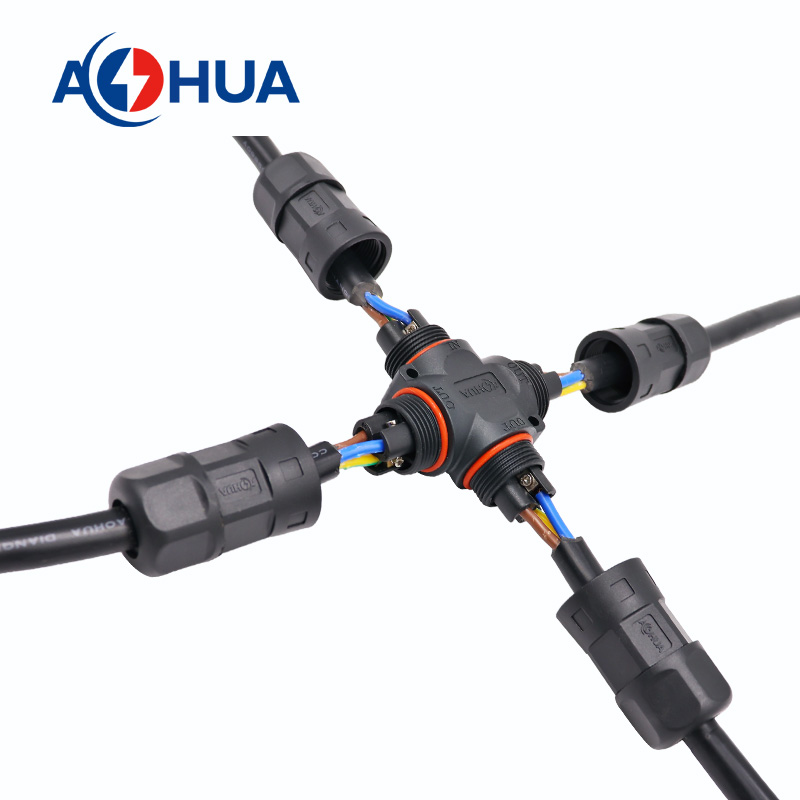

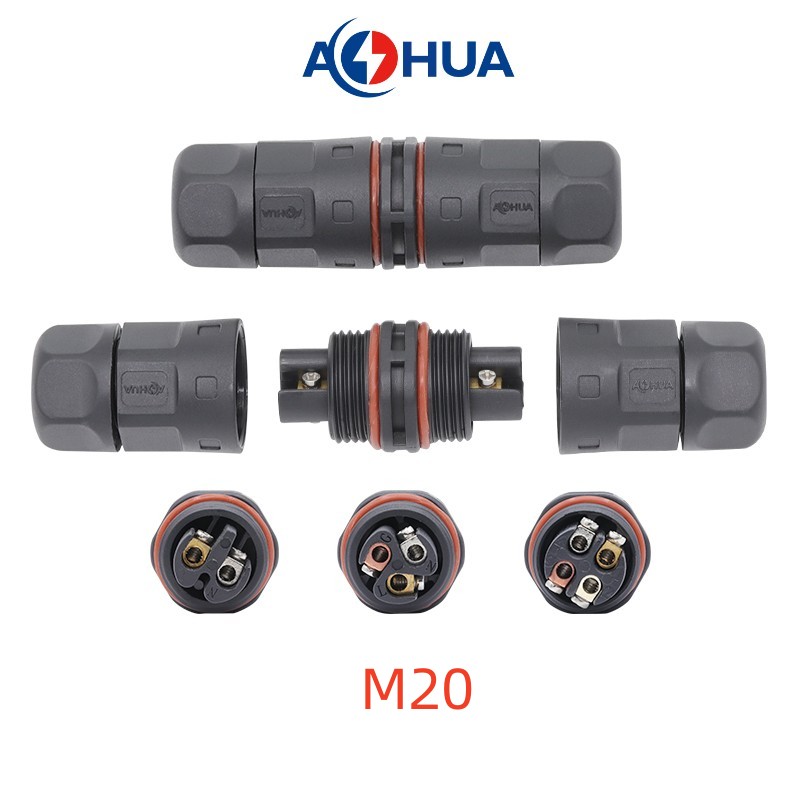

1.Assembly Series no gender Waterproof connectors include L assembly series T assembly 1 in 2 out 3-ways series and X assembly 1 in 3 out 4-ways series,and Assembly Splitter 1 in 2/3/4 out H/F Series.
2.The connection ways are Screw fixing type.Install easily, use easily, and save time.

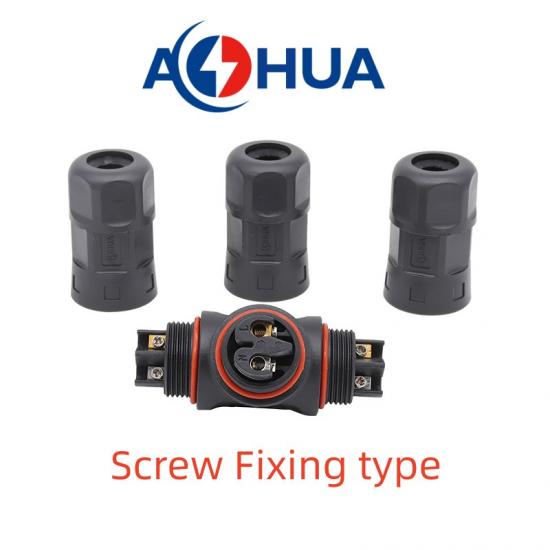

Screw fixing type installation :Only need a screwdriver.
3. The operating rating is -40ºC ~ +105ºC(L/T/X series),-20ºC ~ +80ºC(H/F series)and the Waterproof rate is IP65/IP67/68.
4.Shell Material:Classy Nylon PA66, with strong temperature resistance, corrosion resistance, pressure resistance, 94V0 flame retardant, Non-toxic, environmental protection,etc.
5.Contact material is made with nickel-plated brass,(Gold-plated brass,silver-plated brass and so on,can be customized as you needs) beautiful and durable,with high conductivity,corrosion resistance, long service life.
6.Seal Ring and O-ring are made of rubber. Excellent waterproof effect, oxidation resist.
4.Shell Material:Classy Nylon PA66, with strong temperature resistance, corrosion resistance, pressure resistance, 94V0 flame retardant, Non-toxic, environmental protection,etc.
5.Contact material is made with nickel-plated brass,(Gold-plated brass,silver-plated brass and so on,can be customized as you needs) beautiful and durable,with high conductivity,corrosion resistance, long service life.
6.Seal Ring and O-ring are made of rubber. Excellent waterproof effect, oxidation resist.
Before quotation, please tell us the cable details,thanks
*Confirm Current Rating and Number of Contacts(such as:8A...and such us:3pin...)
*Confirm you need assembly connector or over-mold type connector.
*Confirm Cable Wire size and Cable OD(Cable outer diameter) (such as: 2*1.5mm2...and such as 8mm...)
*Confirm Cable Length and Material.(such as:1000mm...and such as Nylon or PVC).
*Confirm Cable Wire size and Cable OD(Cable outer diameter) (such as: 2*1.5mm2...and such as 8mm...)
*Confirm Cable Length and Material.(such as:1000mm...and such as Nylon or PVC).
*Confirm tail processing (such as tin plating, Cold-pressed Terminal,O/U terminal/fuse)
L/T/X/H/F 1 in 2/3/4/5 out Waterproof Connector

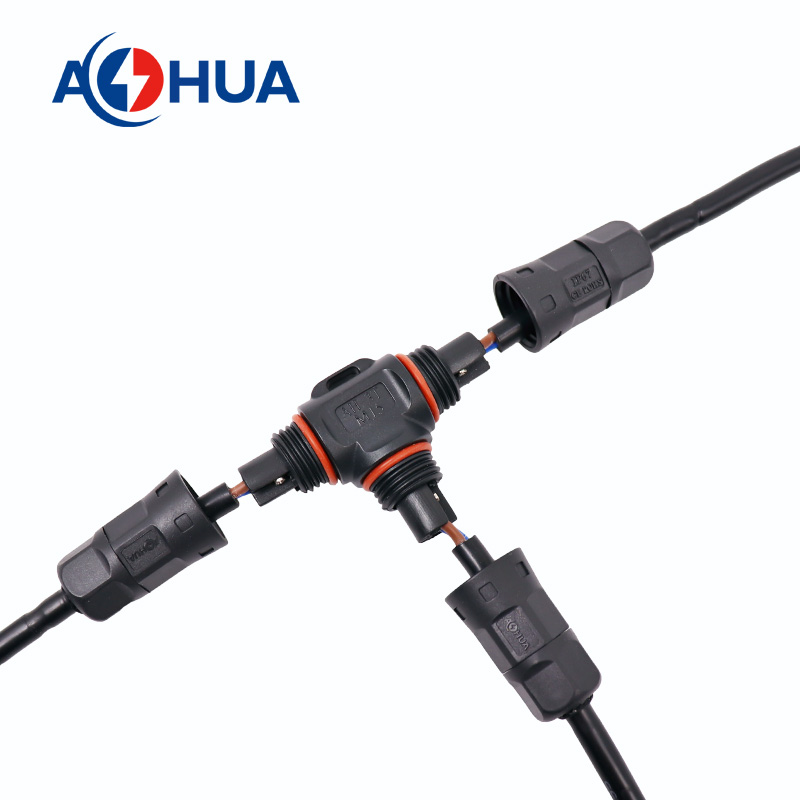

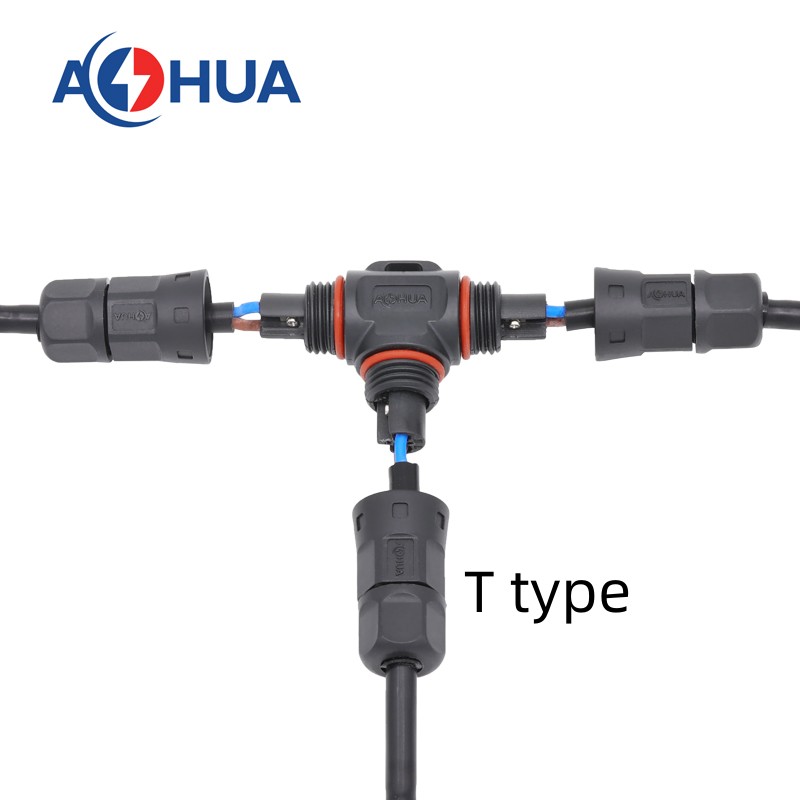

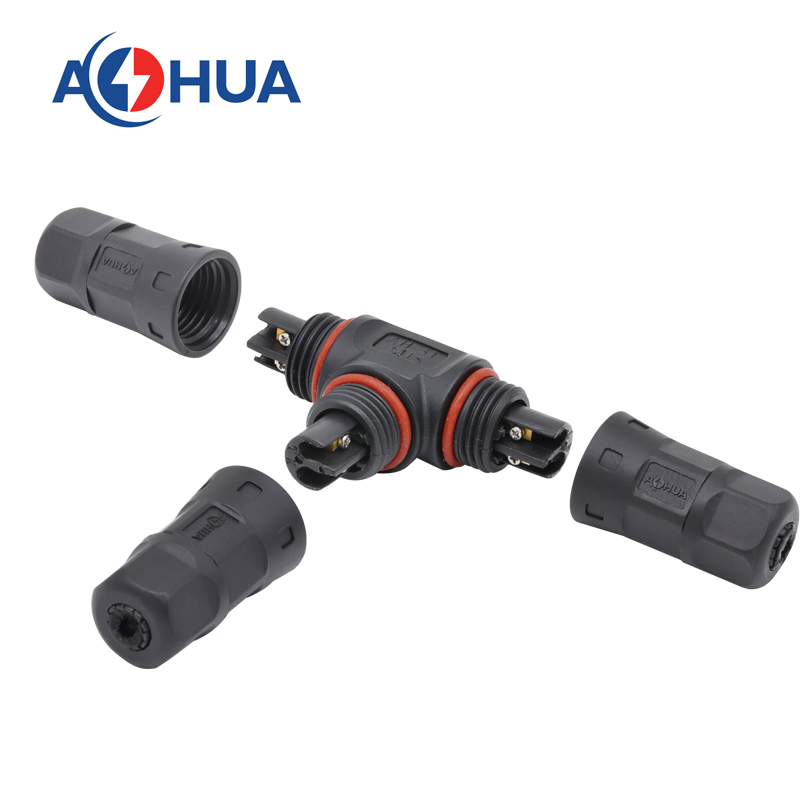

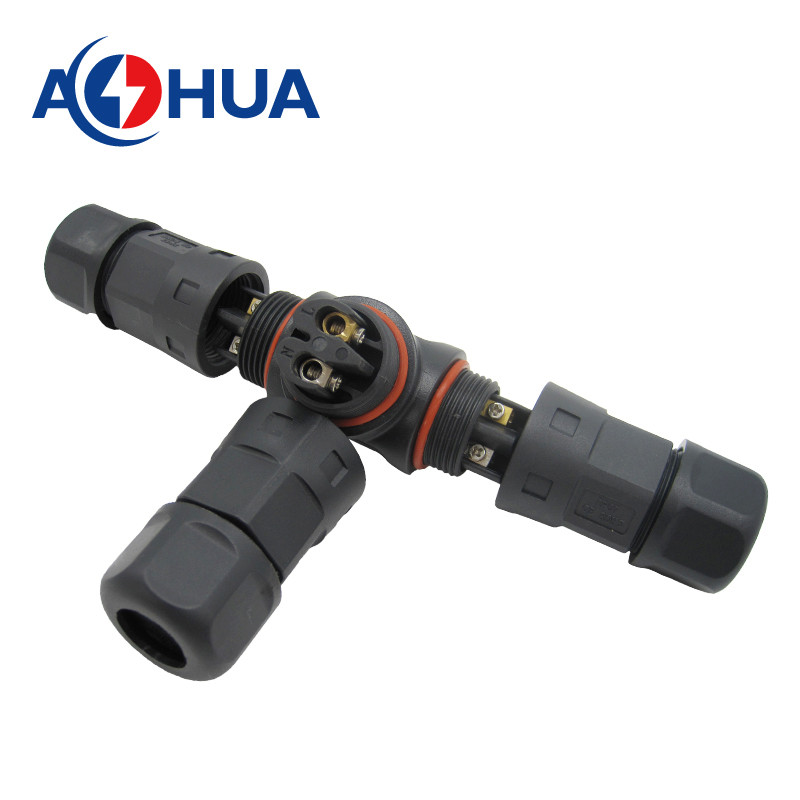

T Type Specification and Product Display

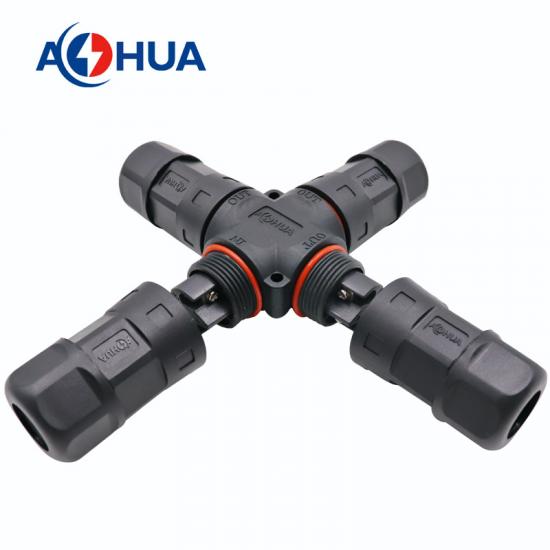

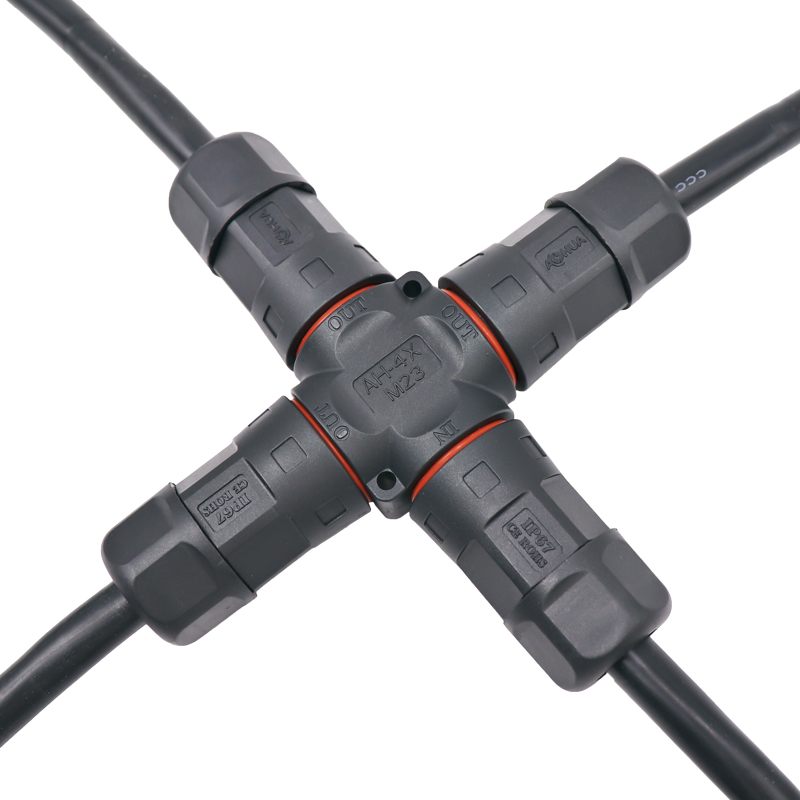

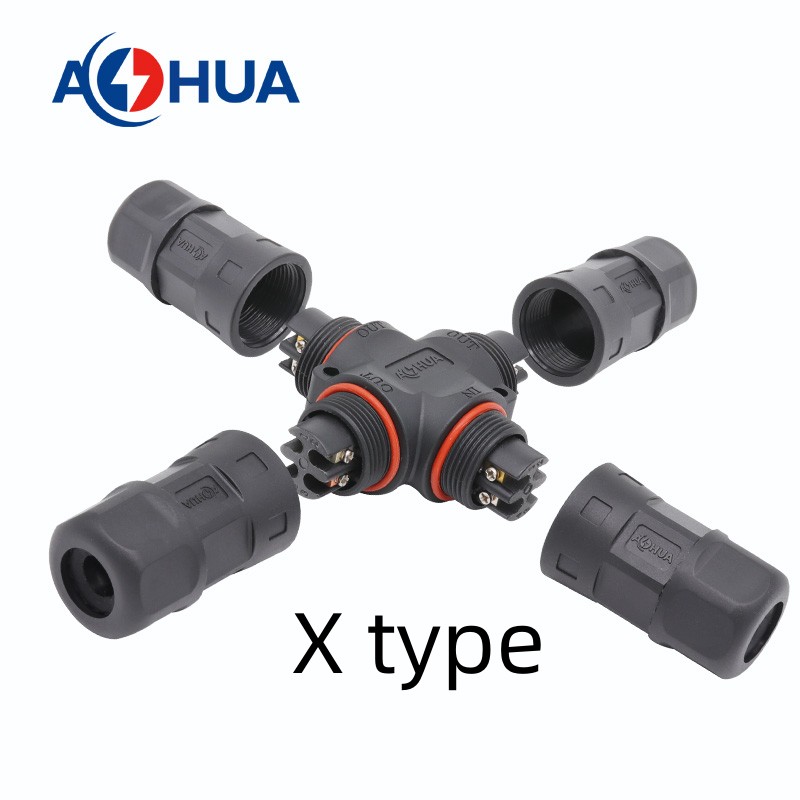

X Type Specification and Product Display

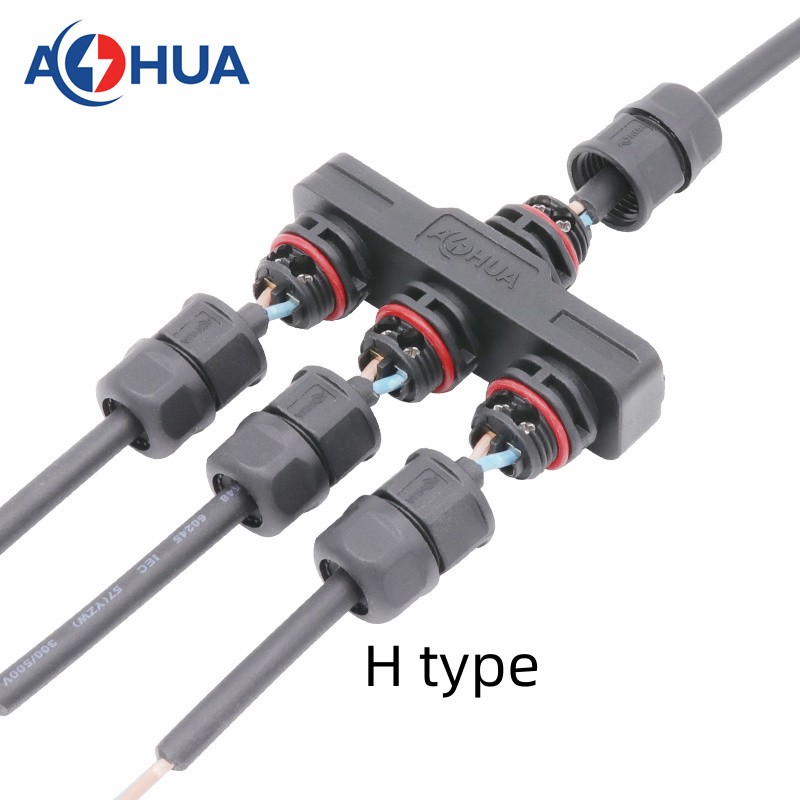

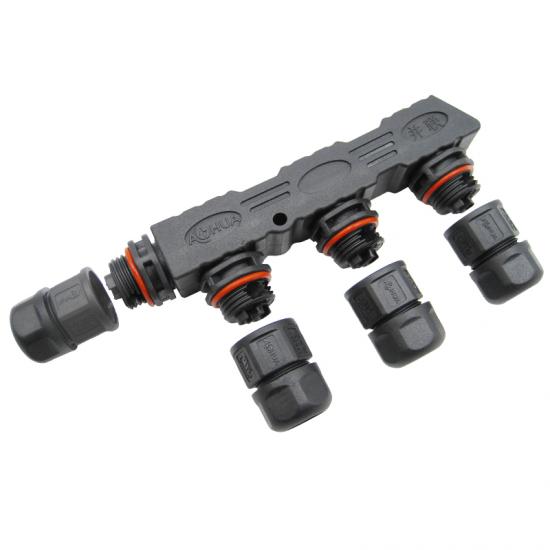

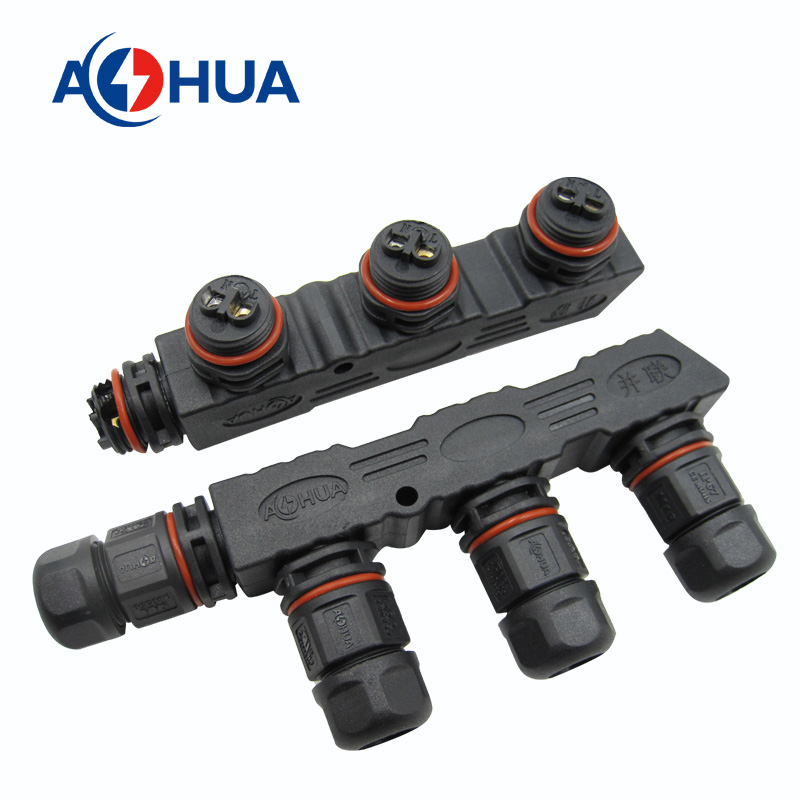

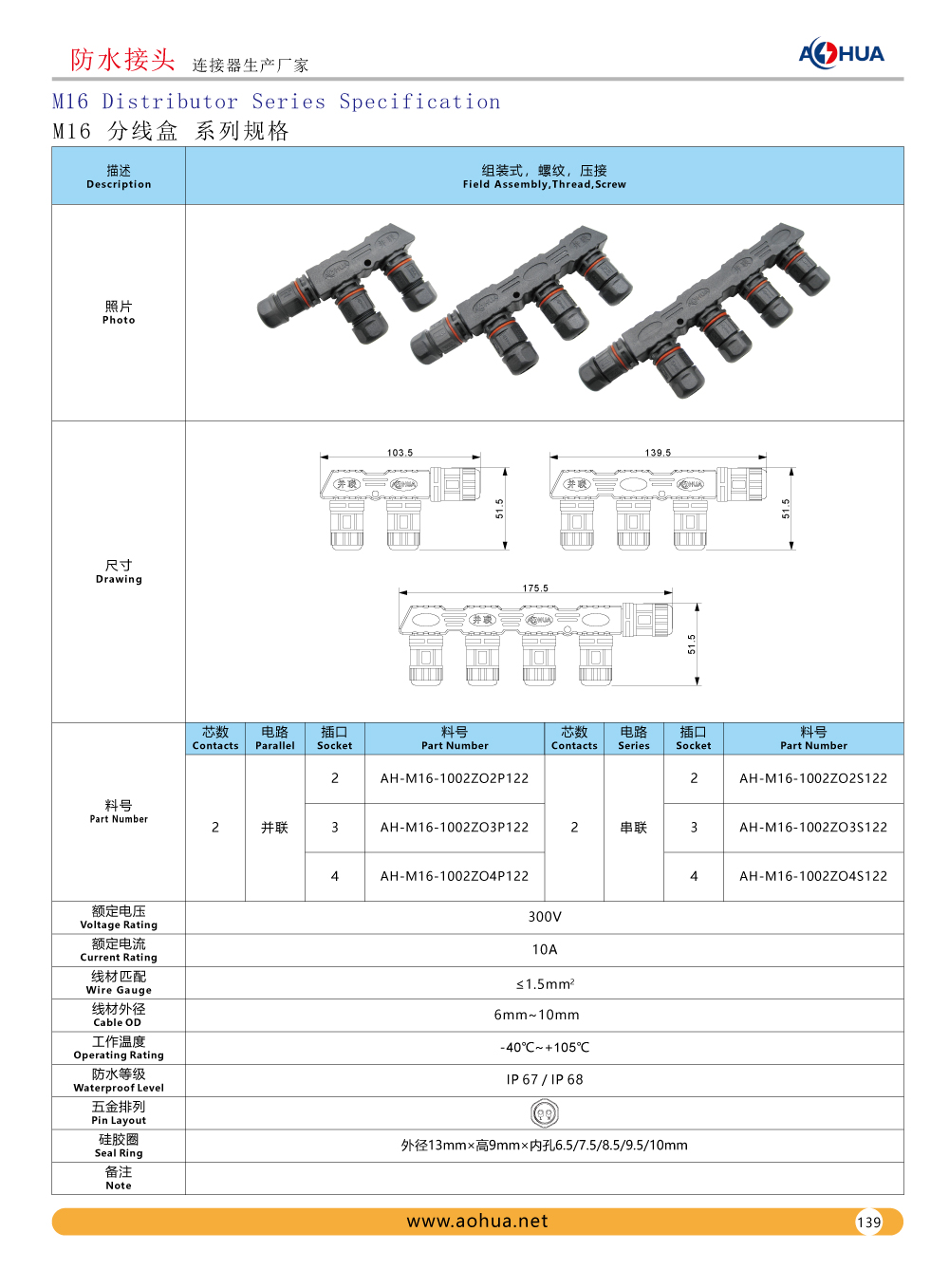

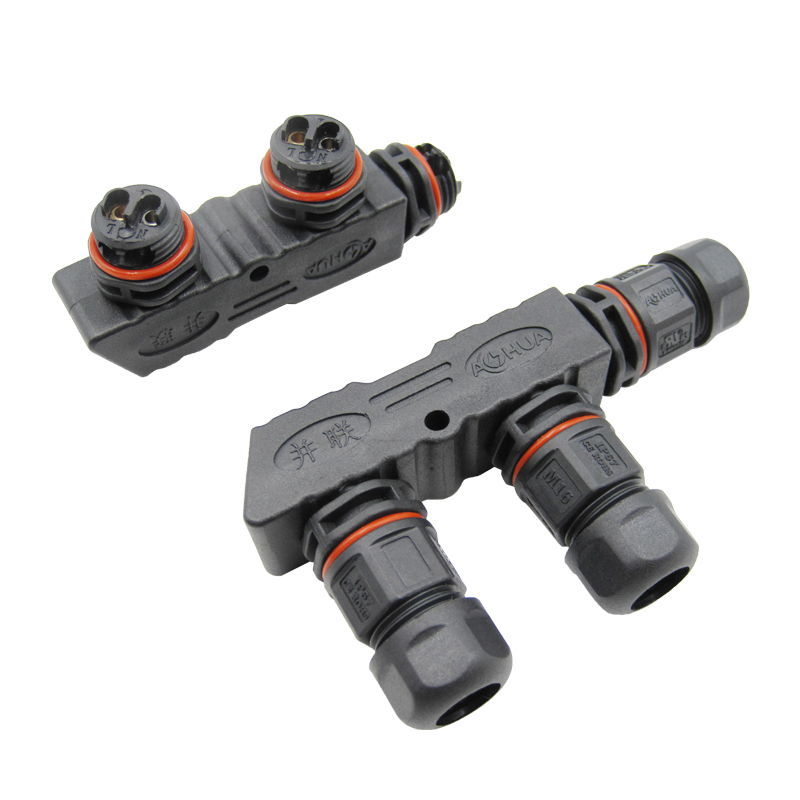

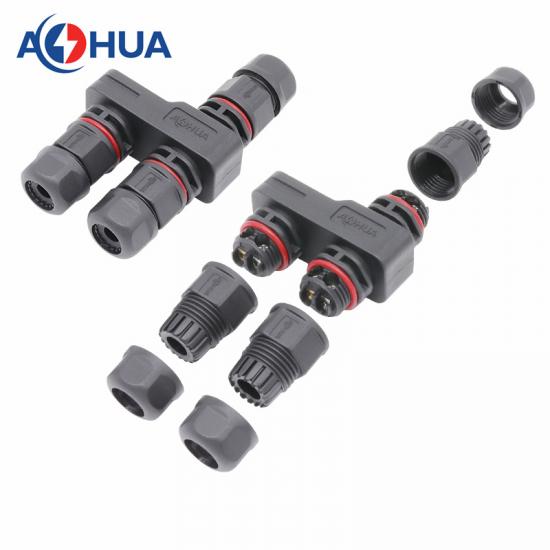

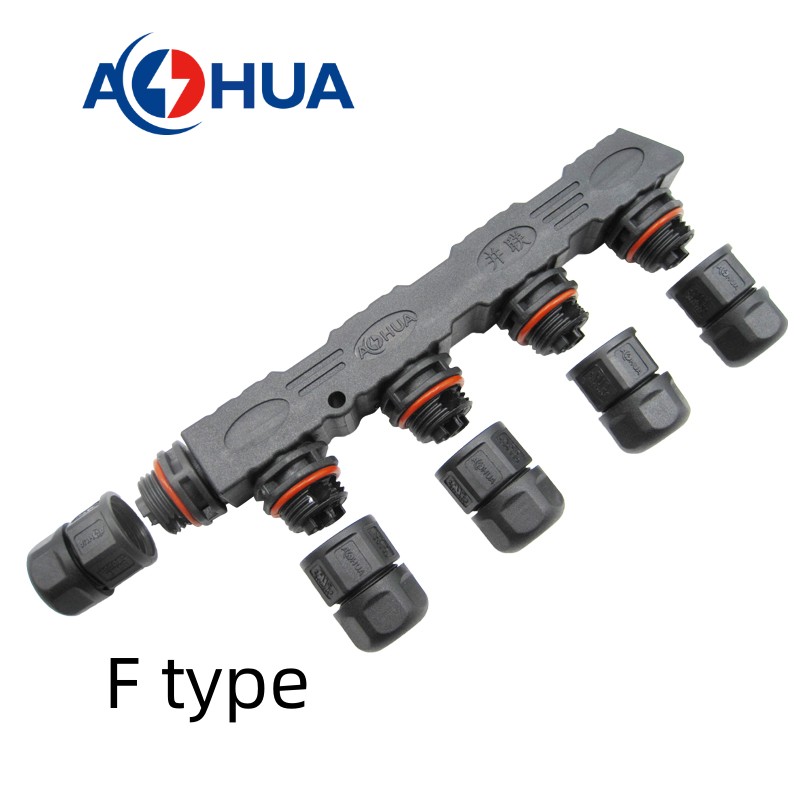

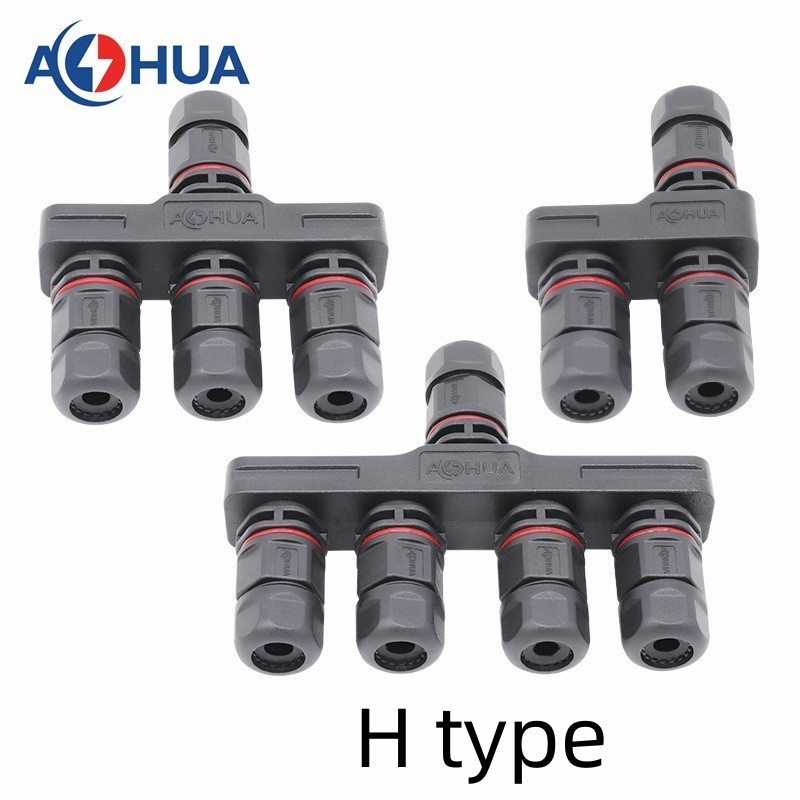

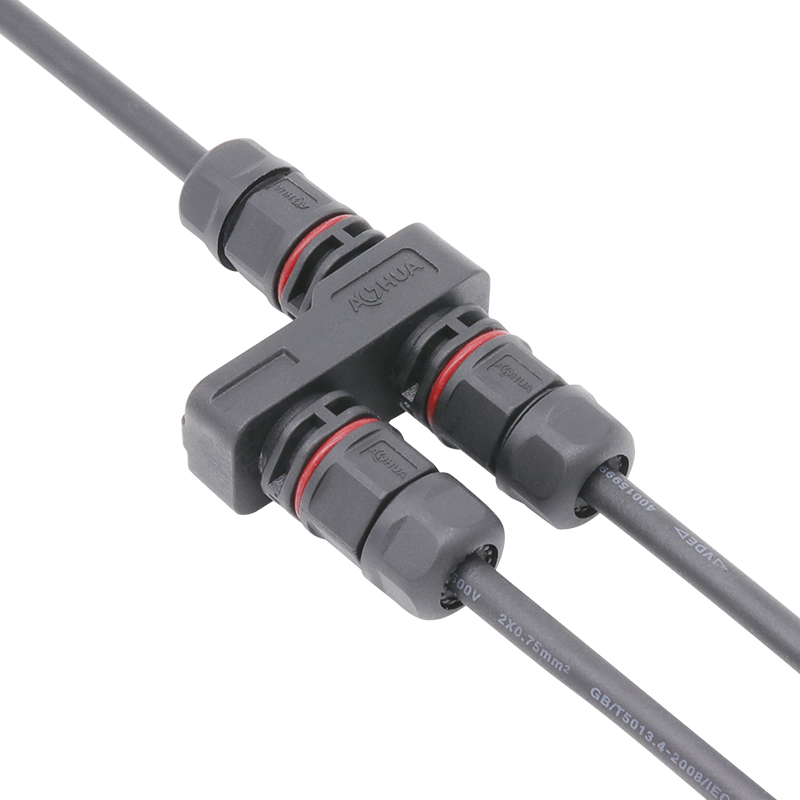

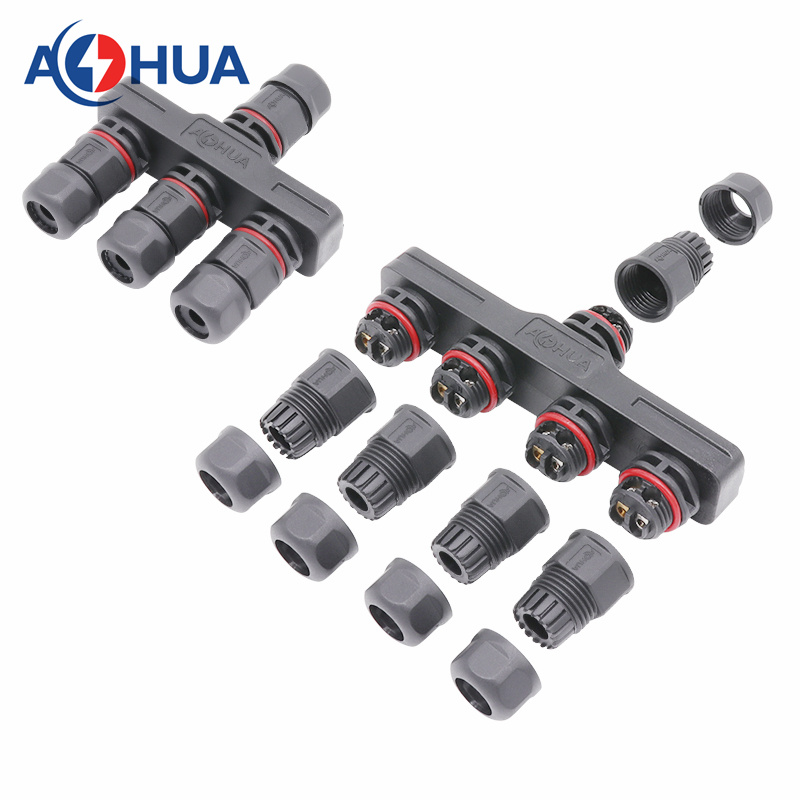

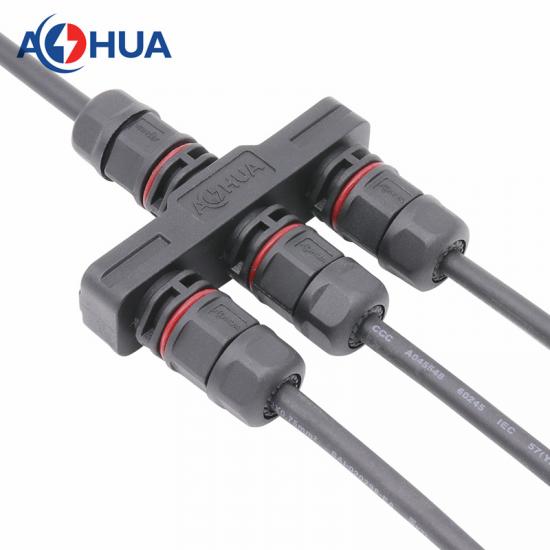

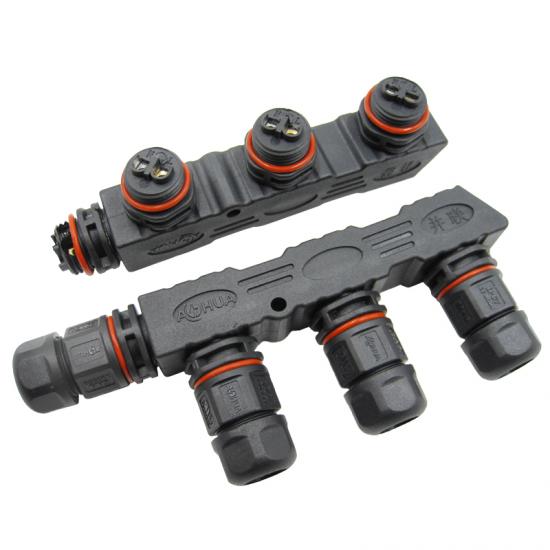

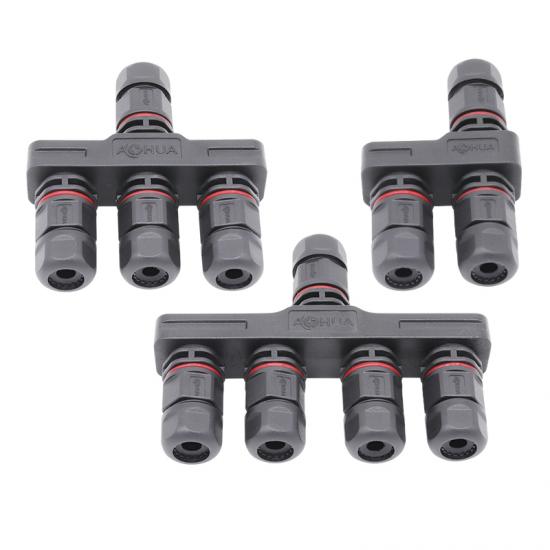

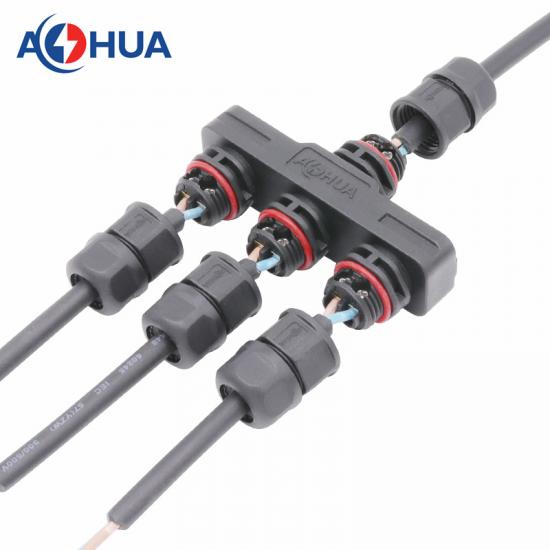

H/F Type M16 Specification and Product Display
Our Advantages
T Type Specification and Product Display
X Type Specification and Product Display
H/F Type M16 Specification and Product Display
Our Advantages
Packaging&shipping
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is
available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail
address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but
carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good
products in your company?
A:Our factory has gained ISO9001,ISO14001,and we pay great
attention to the quality of products, from material purchase to product
delivery, in this whole process, we have several product testing,therefore,we
are selected by many domestic and foreign engineering and enterprises.
5.Q:Can you give me some advise
about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are
interested in our products,one of the most effective and time-saving ways is
that you show your drawing to us what you want,if you are not sure.We can give
you a solution promptly.
6.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you
the photos of the products and packages before you pay the balance.
7.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know
more about us,we believe that you will be more firm to choose us to be your
supplier.
