LED outdoor lighting waterproof connector
PVC Series IP65
Home /

Male / Female Waterproof Plug

/

PVC Series IP65

/Aohua Customized 1pin 2pin Multi core connector Quick PVC series M6-01 M6-02 M10 Mini connector for Computer computer devices

Aohua Customized 1pin 2pin Multi core connector Quick PVC series M6-01 M6-02 M10 Mini connector for Computer computer devices

Electrical vehicle Quick connector/ebike/sctoor charger connector
  • Item NO.:

    Quick PVC series M6-
  • Lead Time:

    5000 pcs a week ;≤ 5000 pcs to be Negot
  • Product Orgin:

    Shenzhen,China
  • Shipping Port:

    Shenzhen port
  • Payment:

    TT,PAYPAL
  • Color:

    Black
Inquiry now
products Details
Related Products



It is widely used in intelligent home control system,intelligent switch , intelligent door lock,Intelligent Camera,sensors, intelligent  switch , intelligent door lock, automobile wire harness,shared bikes, computer peripheral equipment,printers and so on.


Aohua Customized 1pin 2pin Multiple core connector Quick PVC series M6-01 M6-02 M10 Mini connector for Computer computer peripheral equipment connecting

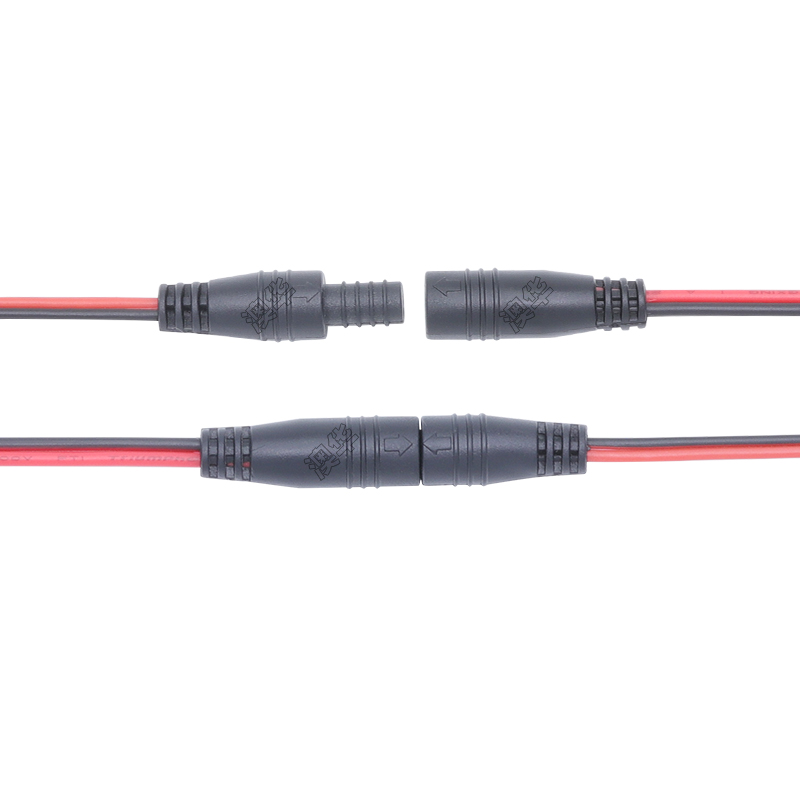

1.Quick PVC series M6-01 M6-02 M10 Mini connector plug socket are high quality at competitive price at signal plugs,

waterproof plug sockets are male/female type, coupling type is quick insert structure,and the wire connecting way is crimping.

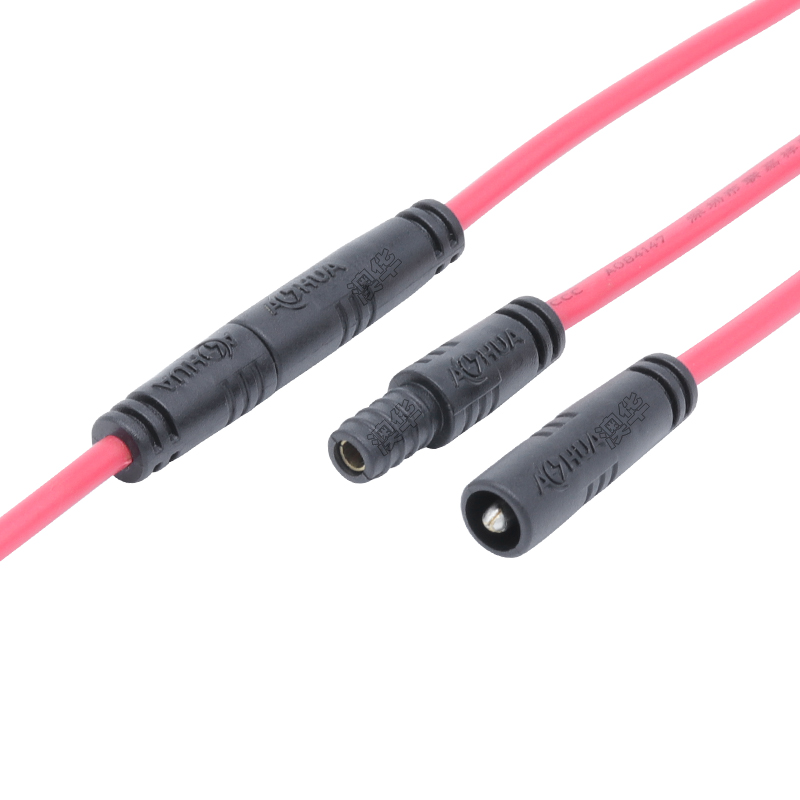

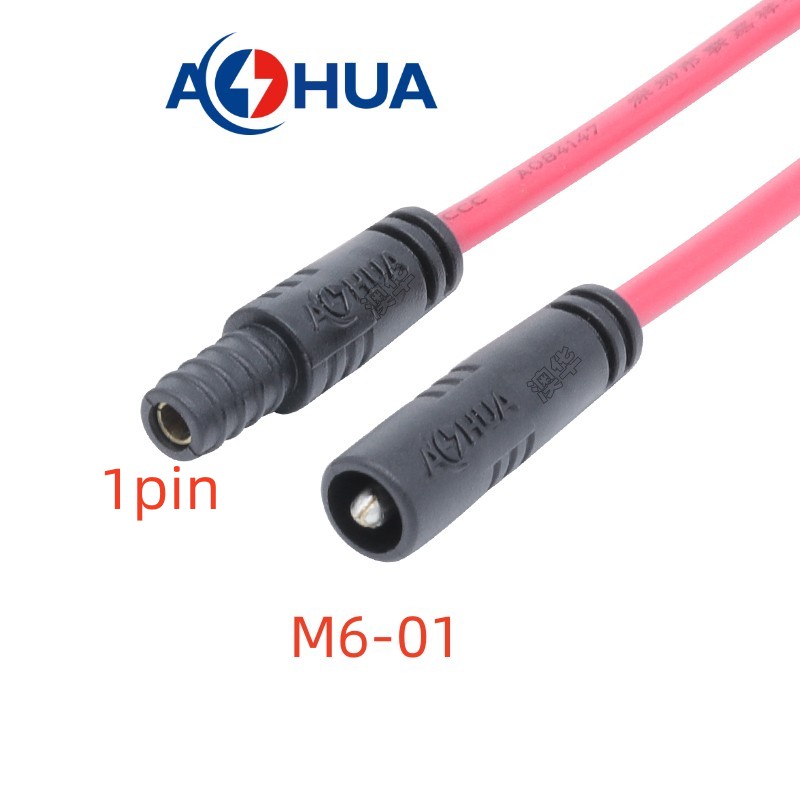

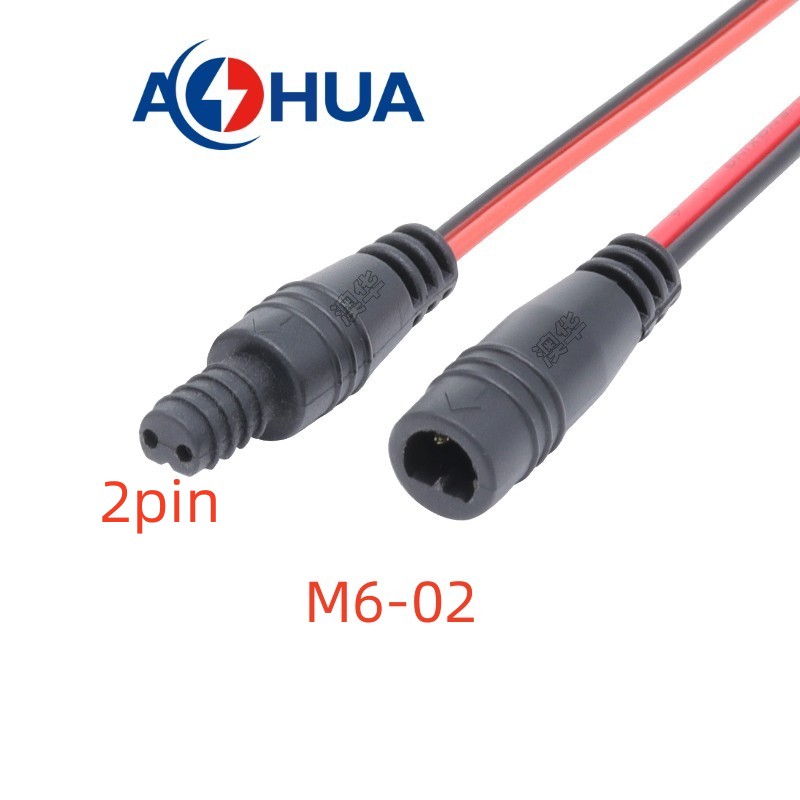

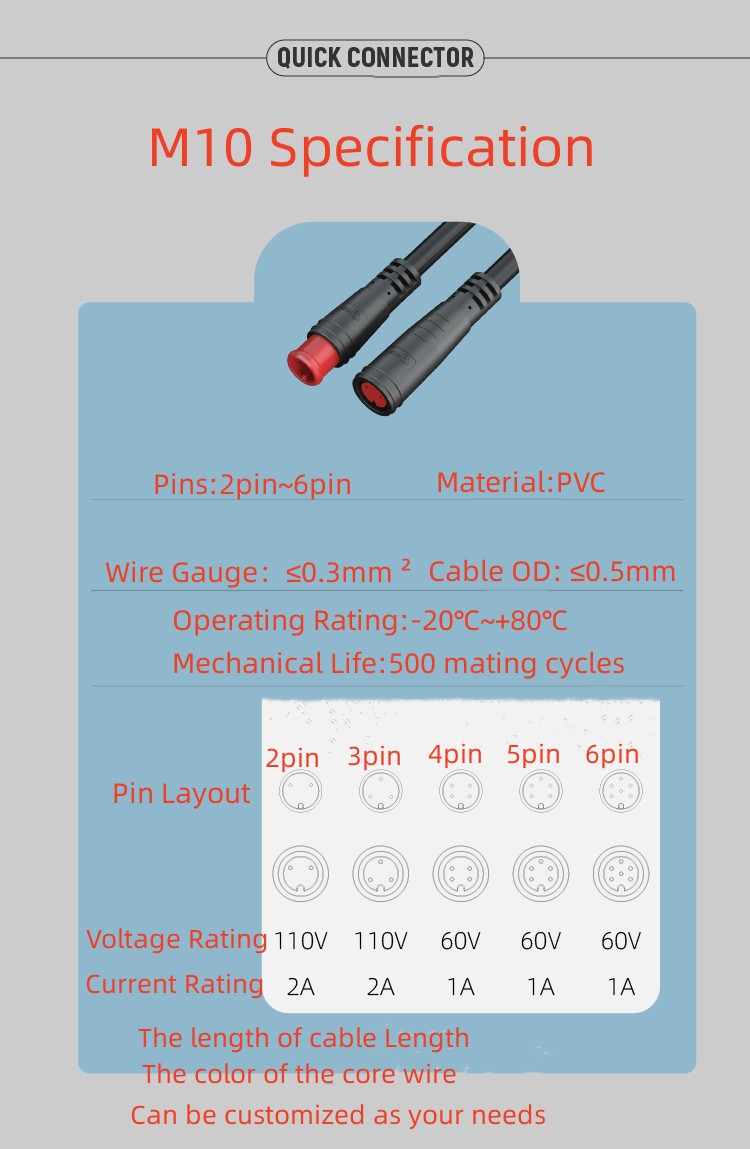

2.Quick PVC series M6-01 M6-02 M10 are molded with cable connector,M06 only 1 pin ,M6-02 2pin, M102pin~6pin for choices,

M6-01 M6-02 are not waterproof type.

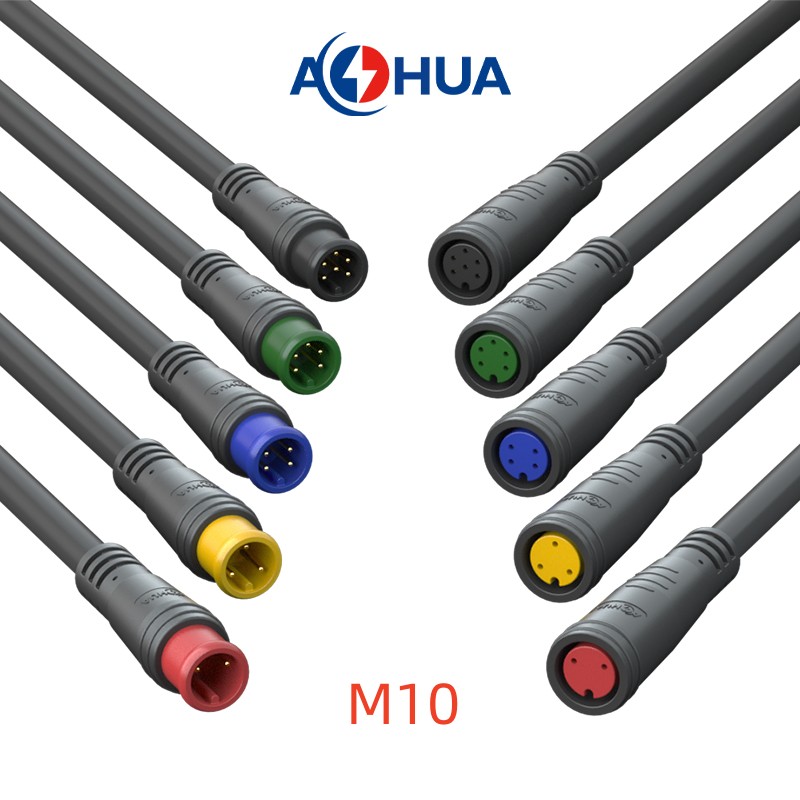

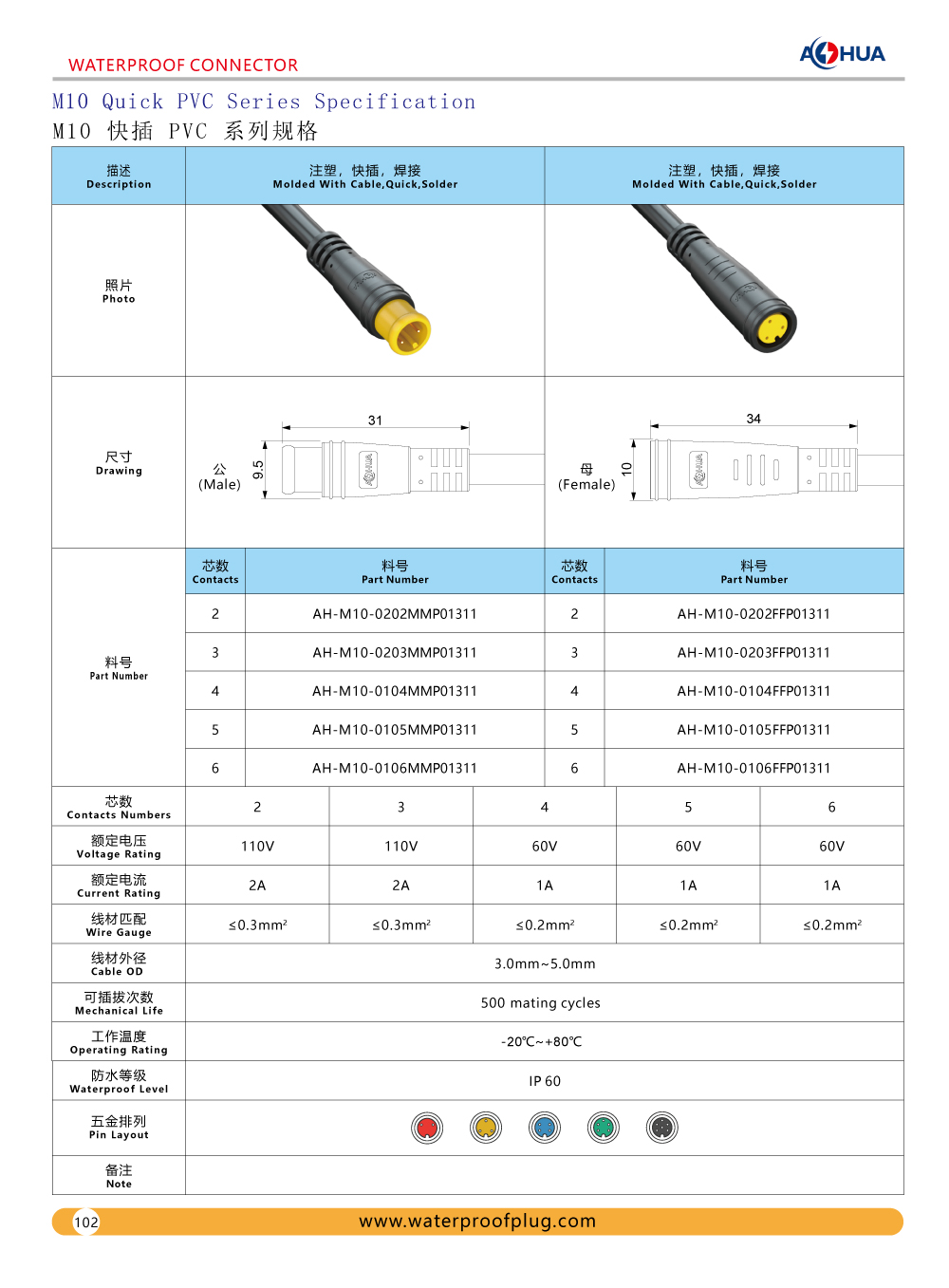

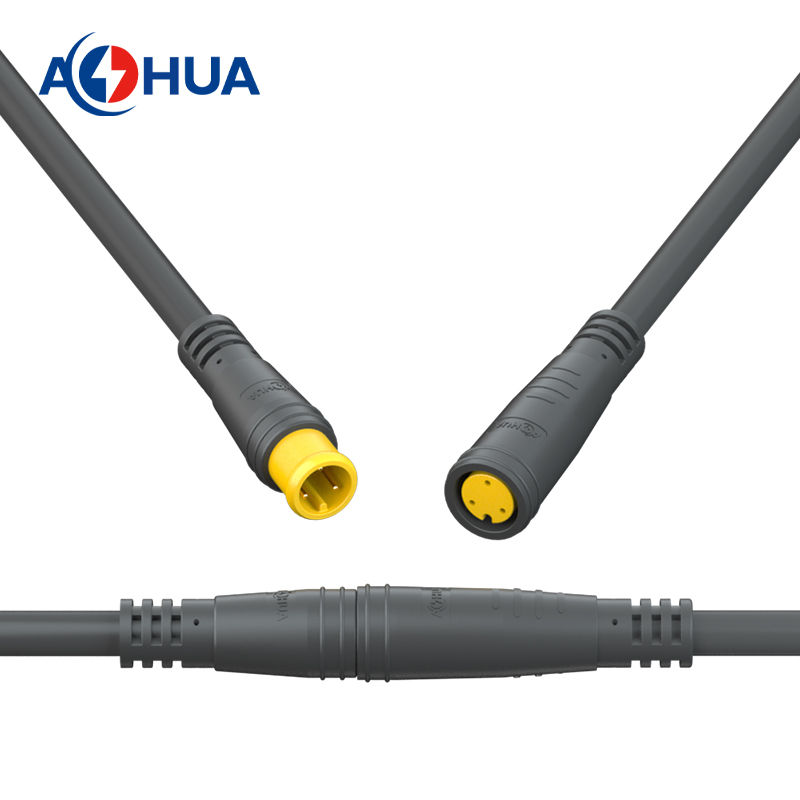

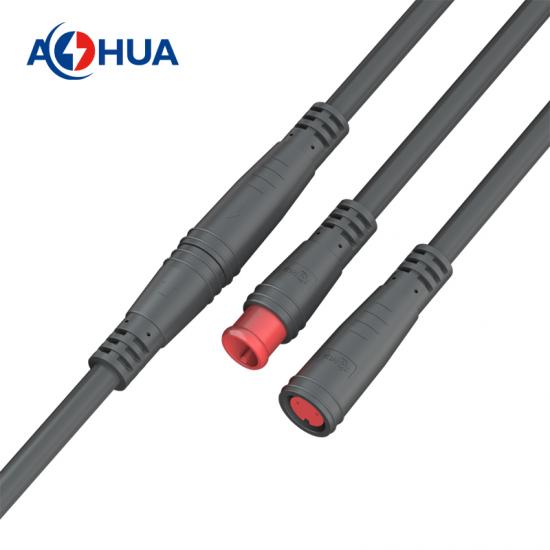

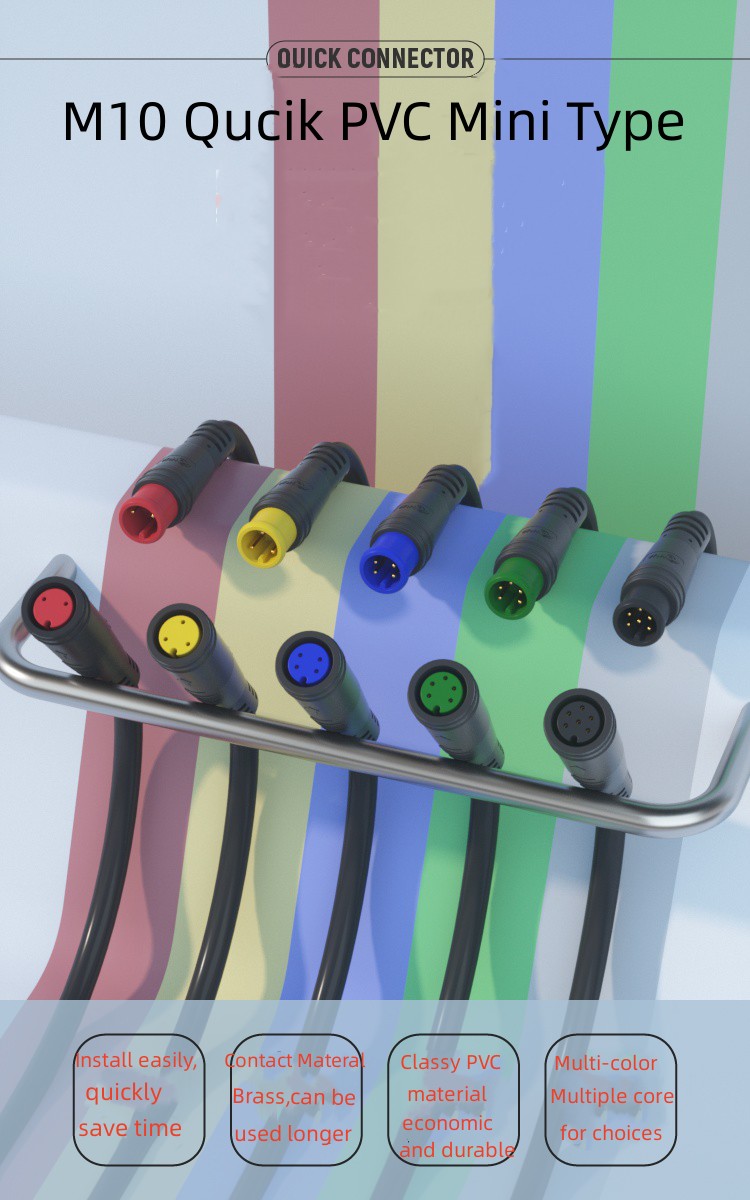

M10 Waterproof connector,Waterproof Rate is IP60.
The Mechanical Life is 500 mating cycles.
The operating rating is -20~+80℃.
The shell is Over-molded with PVC material connector.

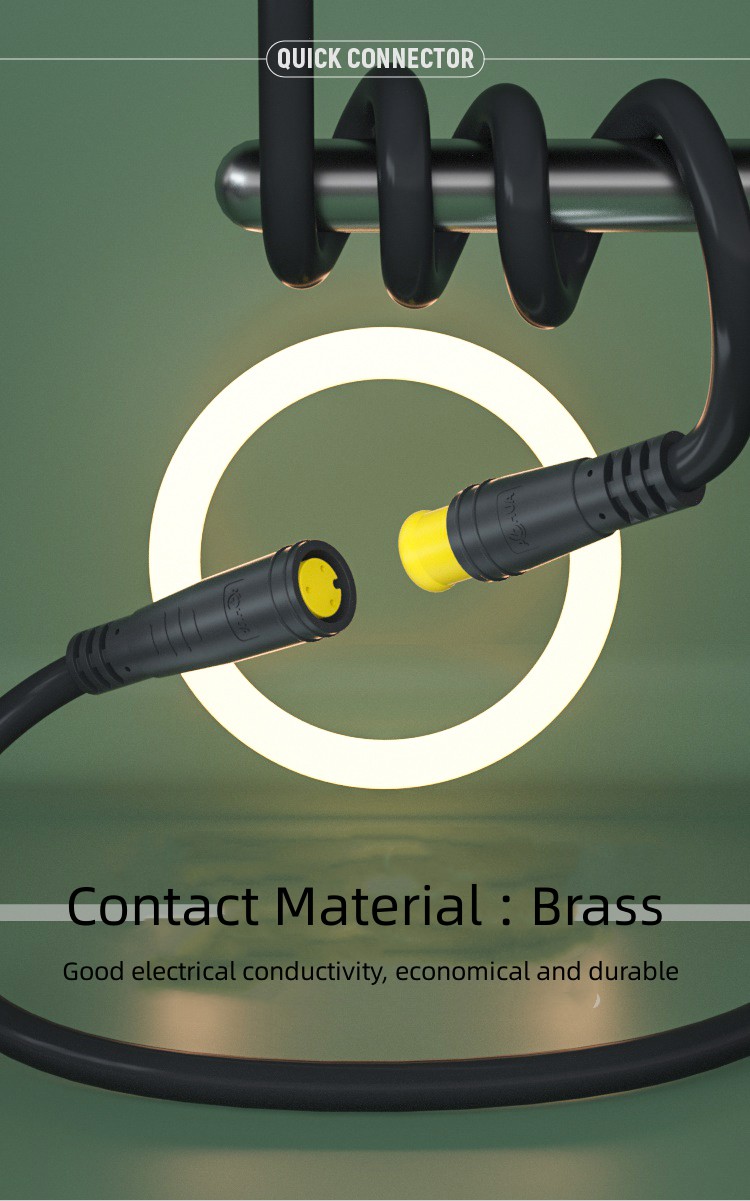

Contact material is brass.

Classy PVC and Brass material ensure the connector can be used longer,economic and durable,install easily and faster, use easily, and save time.

3.Contact Material: Pure copper plated with gold,silver or nickel as your need.

4.Injection molding with PVC cable type (length can be customized)

5.Wire tail terminal mode can be customized according to customer requirements (tin plating, Cold-pressed Terminal,O/U terminal/fuse, etc.)




Before quotation, please tell us the cable details,thanks

*Confirm Current Rating and Number of Contacts(such as:8A...and such us:3pin...)

*Confirm you need assembly connector or over-mold type connector.
*Confirm Cable Wire size and Cable OD(Cable outer diameter) (such as: 2*1.5mm2...and such as 8mm...)
*Confirm Cable Length and Material.(such as:1000mm...and such as Nylon or PVC).

*Confirm tail processing (such as tin plating, Cold-pressed Terminal,O/U terminal/fuse)

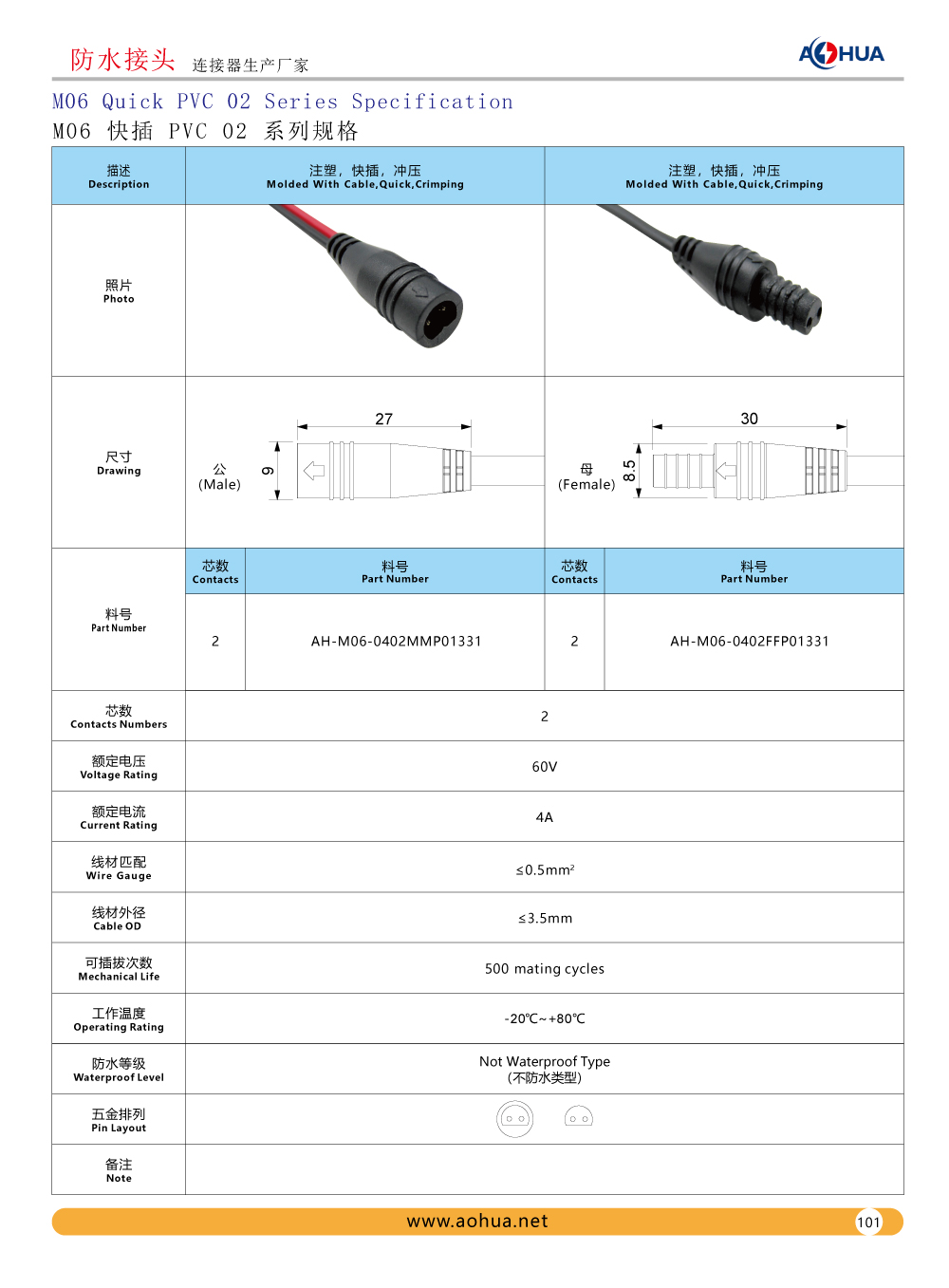

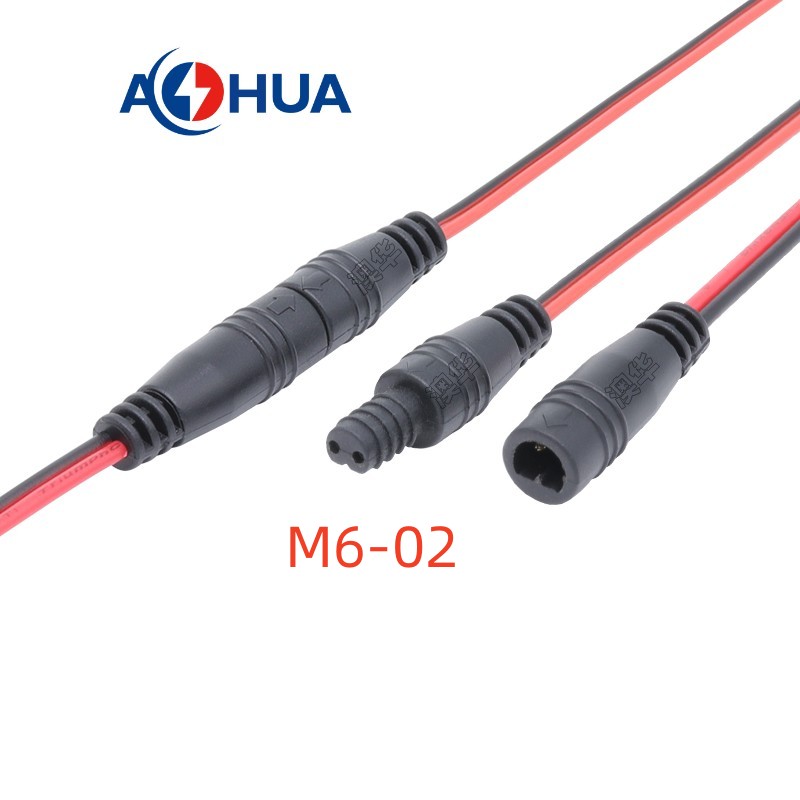

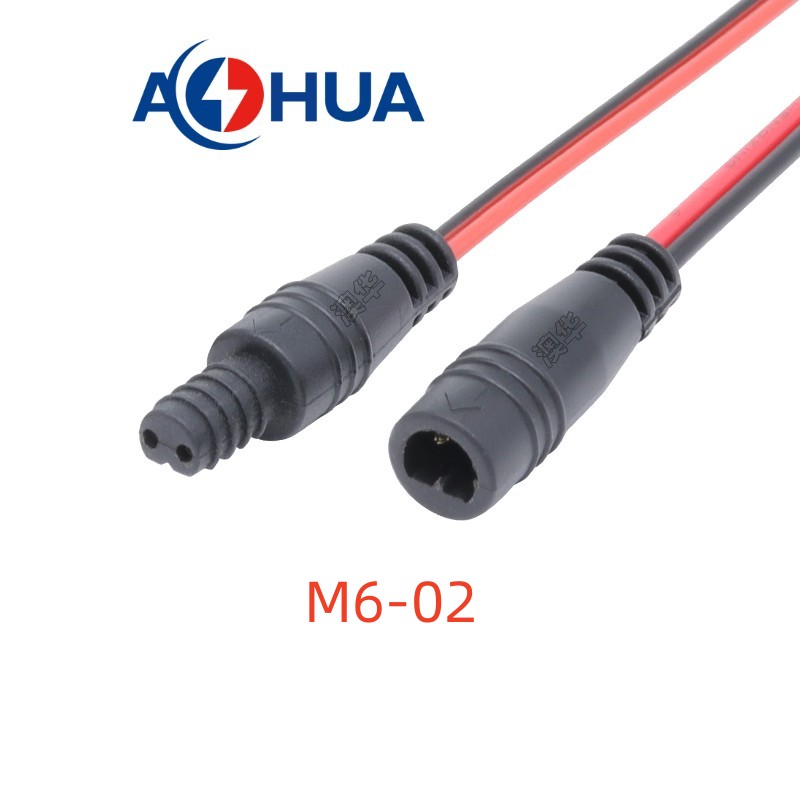

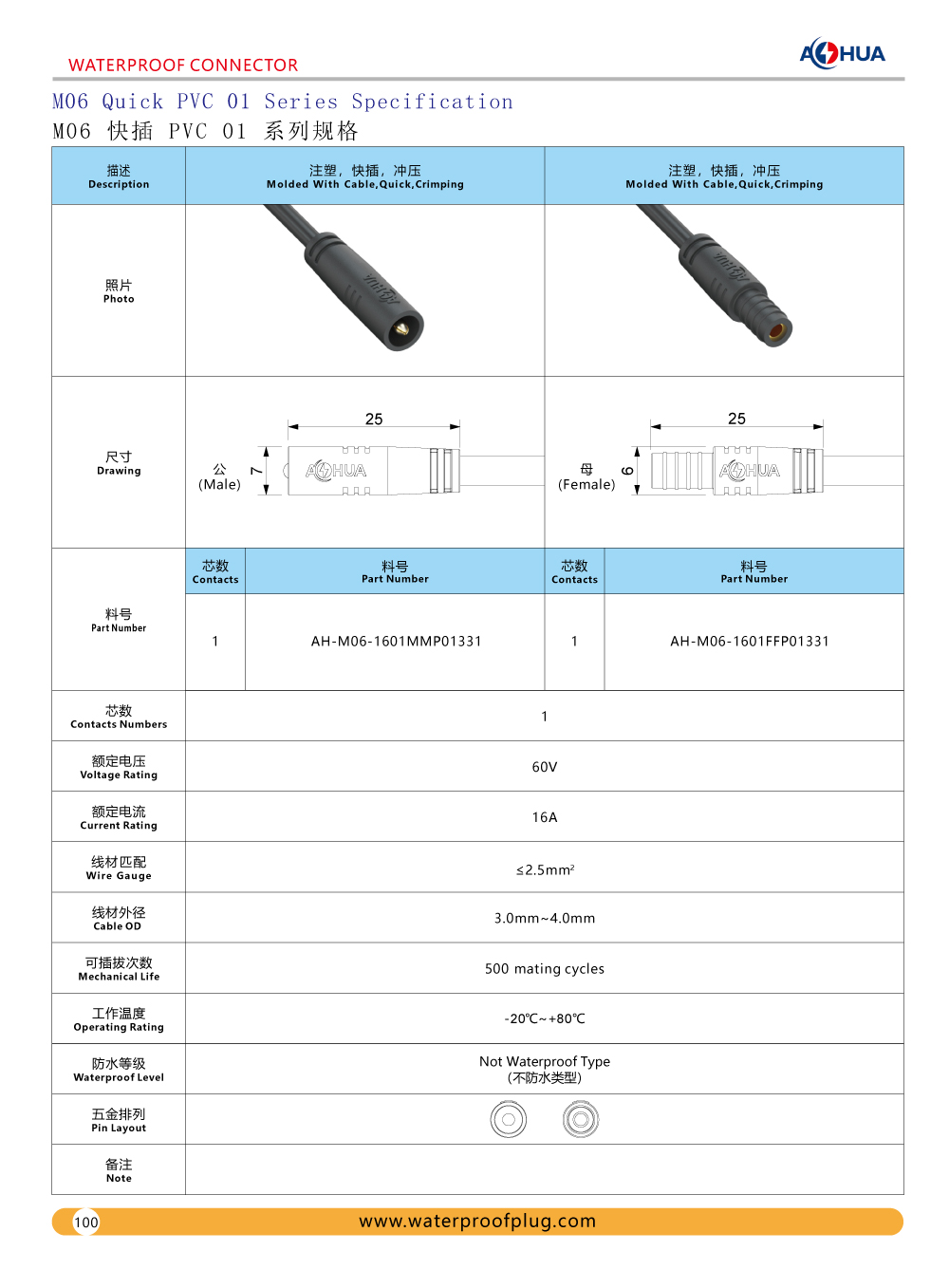

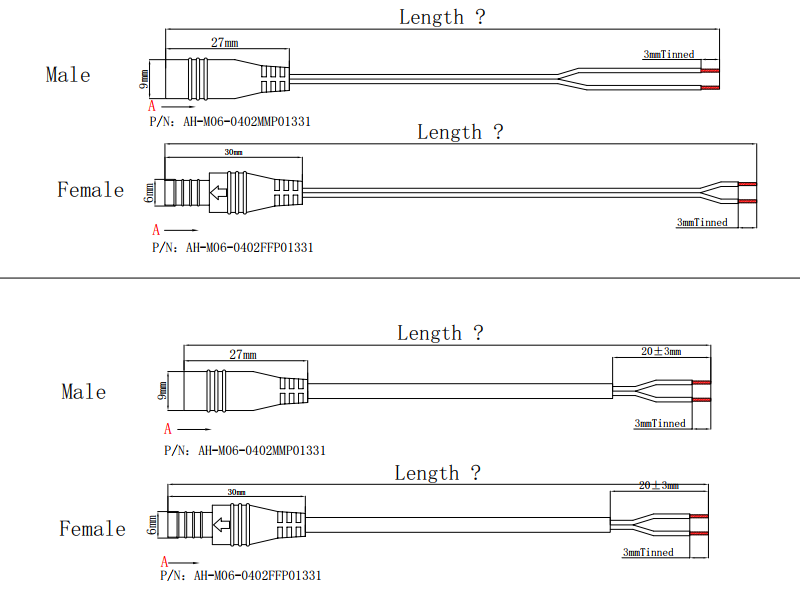

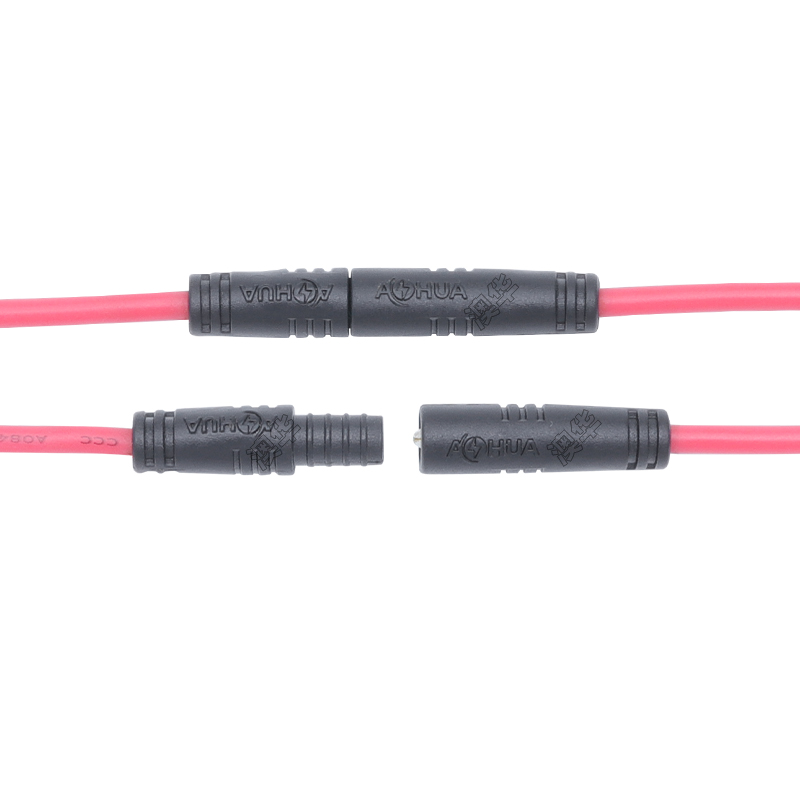

Let us show you Not waterproof connector M6-01 M6-02 firstly. Design Drawing,Specification and Product Display as below:



AOHUA Waterproof Connector Factorypicture of waterproof connector work shopwaterproof connector produce stepwelcome to AOHUA waterproof connector factory

Packaging&shipping
FAQ

1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing,therefore,we are selected by many domestic and foreign engineering and enterprises.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want,if you are not sure.We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:How to contact with you?
A:Please give me your email,it is the best and the most effective method to keep in touch with each other,and i can provide you with professional solutions in the shortest time.
9.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.



Before quotation, please tell us the cable details,thanks.
* Curren Rating, eg: 2A...
*Wire Size, eg: 2*24AWG...
*Cable length, eg: 300mm each side...
*Confirm tail processing (such as tin plating, Cold-pressed Terminal,O/U terminal/fuse, etc.)

*Cable material,length,and terminal striping length can be customized as your requirements.

Before quotation, please tell us the cable details,thanks.
* Curren Rating, eg: 2A...
*Wire Size, eg: 2*24AWG...
*Cable length, eg: 300mm each side...
*Confirm tail processing (such as tin plating, Cold-pressed Terminal,O/U terminal/fuse, etc.)

*Cable material,length,and terminal striping length can be customized as your requirements.
