LED outdoor lighting waterproof connector
Y Splitter Waterproof Plug
Home /

Y Splitter Waterproof Plug

/AOHUA customized cable solution push wire outdoor led lighting 1 to 3 waterproof cable splitter ip65 wire connector

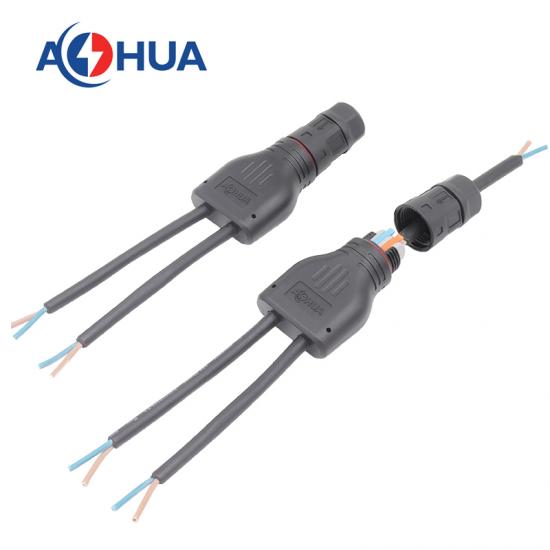

AOHUA customized cable solution push wire outdoor led lighting 1 to 3 waterproof cable splitter ip65 wire connector

M20 Y type 1 to 3 connector / push wire ip65 connector
  • Item NO.:

    Y-M20
  • Lead Time:

    A week
  • Product Orgin:

    China
  • Shipping Port:

    Shenzhen, China
  • Payment:

    TT,PAYPAL
  • Color:

    Black
  • Product Material:

    PA66
Inquiry now
products Details

AOHUA YM20 waterproof connector


Socket Part Number Main Cable Gauge Branch Cable Gauge Main Cable OD Branch Cable OD
2 AH-YM20-0202 ≤1.5mm² ≤1.0mm²
Max 10.0mm Max 6.8mm
3 AH-YM20-0203
1.5mm²
≤1.0mm² Max 10.0mm
Max 6.8mm
4 AH-YM20-0204 ≤1.5mm²
≤1.0mm²
Max 10.0mm
Max 6.8mm
5 AH-YM20-0205 ≤1.5mm²
≤0.5mm²
Max 10.0mm
Max 5.3mm

Operating Rating    -20℃~+80℃
Waterproof Level     IP65
Seal Ring                                  13mm*9mm*6.5/7.7/8.5/9.5/10mm

Y type combined head, simple structure and moderate cost.

The quantity of the branches can be increased or decreased according to customer's demand flexibly.

Nylon material, one end is a L assembly quick push wire type connector, and the other end is bare wire or with connector.

Favorable waterproof feature: ip65.

You need to check the wire gauge and each cable length.and if it need connector or not.

Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.










Tips  before quotation.


Please tell us the cable details:

1. Current rating, eg: 5A.

2. Pins, eg: 2pin, 3pin.

3. Wire size, eg, main cable 2*1.0mm², branch cable 2*0.75mm².

4. Cable outer diameter(OD), eg: 6.8mm.

5. Length of each cable, eg: 300mm.


Application



AOHUA Waterproof Connector Factorypicture of waterproof connector work shopwaterproof connector produce stepwelcome to AOHUA waterproof connector factoryFAQ Of Waterproof connector

More details, please send inquiry to us, we will try our best to help you!!!
