LED outdoor lighting waterproof connector
M12
Home /

Assembly Waterproof Plug

/

M12

/AOHUA Customized Manufacturer Wire to Wire 3 Pole Car Electrical Male Female Connector

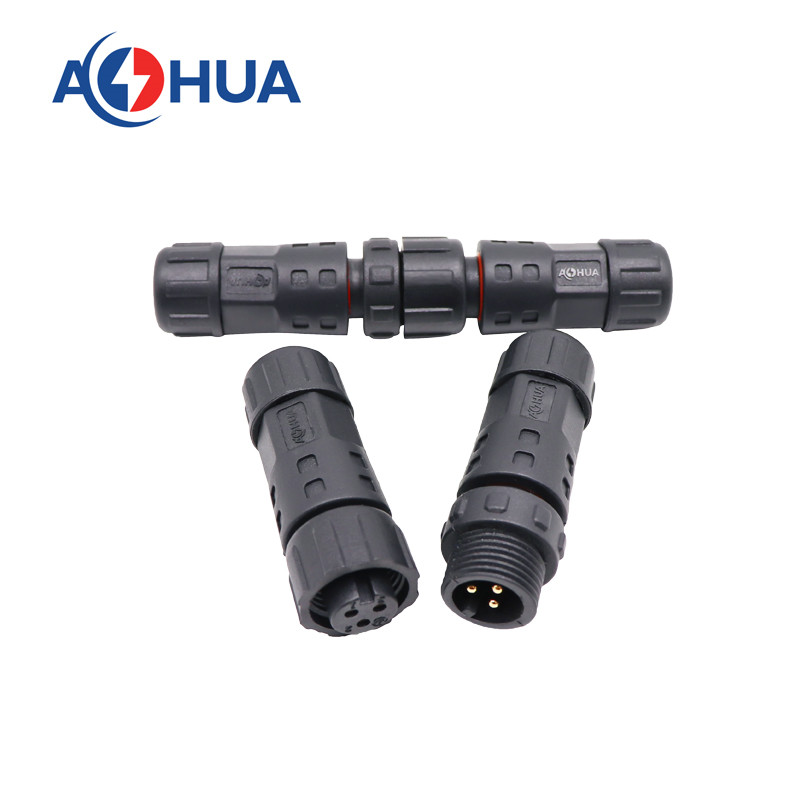

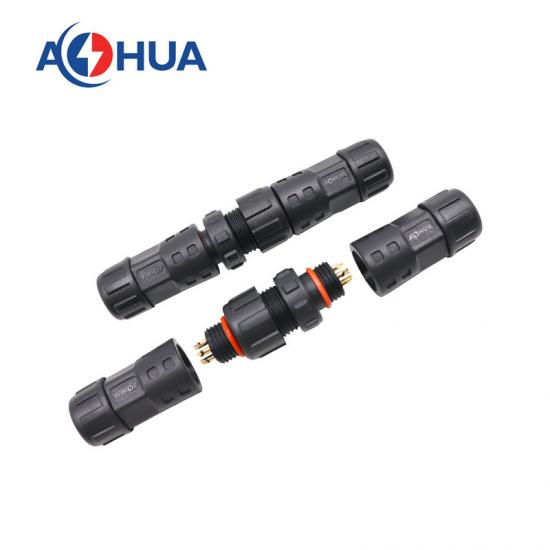

AOHUA Customized Manufacturer Wire to Wire 3 Pole Car Electrical Male Female Connector

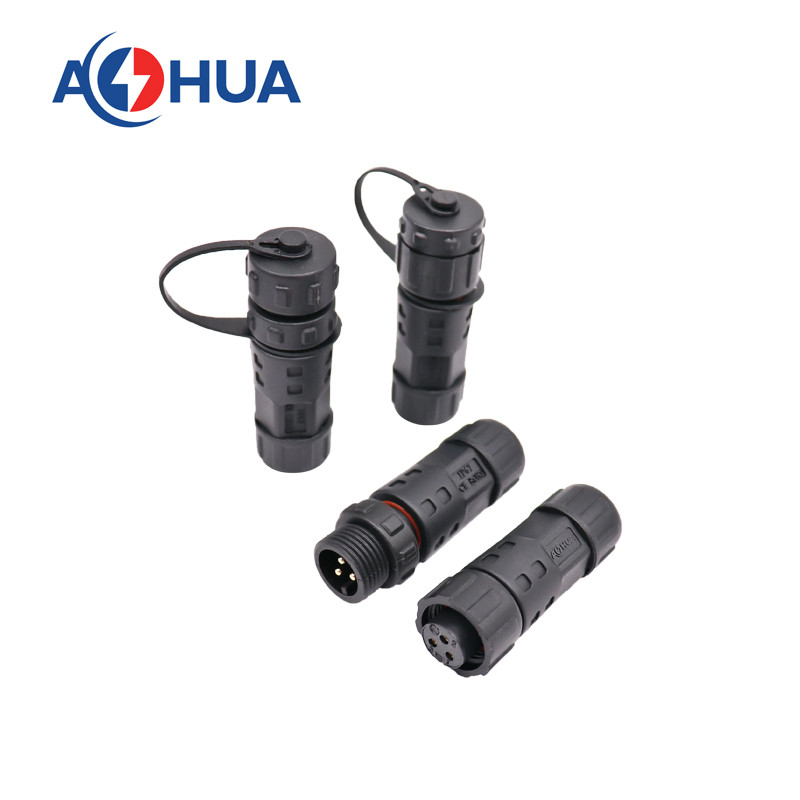

M12 3 Pin Waterproof Connector
  • Item NO.:

    M12
  • Lead Time:

    a week
  • Product Orgin:

    China
  • Shipping Port:

    shenzhen,china
  • Payment:

    TT,PAYPAL
  • Color:

    black
Inquiry now
products Details


AOHUA Mini M12 Solder Connector Electrical Circular Wire Cable IP67 Connector


Pins
Voltage Rating
Current Rating
Wire Gauge
2
300V
5A
≤1.0mm²
3
300V
5A
≤0.75mm²
4
110V
4A
≤0.5mm²
5
60V
2A
≤0.3mm²
6
60V
1A
≤0.2mm²
7
60V
1A
≤0.2mm²
8
60V
1A
≤0.2mm²
Contact Numbers
3
Voltage Rating
300V
Current Rating
5A
Wire Gauge
≤1.0mm²
Cable OD
 2.6mm-7.5mm
Mechanical Life
3000 mating cycles
Operating Rating
-40°C~+105°C
Waterproof Level
IP67/IP68
Seal Ring
IP67/IP68

related products




OUR ADVANTAGES


Application



Certification:
CE IP67 ROHS,UL,TUV certification
Packing:
4 per pack(Comes with 2 sets of different sized grommets to accommodate different size wires.)
Cable Range:
2.6-7.5mm(If you use a cable which is too thin,then the seal won't even cover IP67!!)
Waterproof rating:
IP67/IP68 adcanced waterproof connector
Rated voltage:
≤300V
Rated current:
≤5A
Working Temperature:
-40°C~+105°C
Materal:
palstic(nylon),seal ring(silicon)
Color:
Black

Scope of application:
connectors are suitable for quick connection of garden and outdoor dispalys,floof heating,beacons,cruise ships,LED billboards,LED tunnel lights,LED street lights,external wiring,ect.



Tail Terminal:


Tail processing as shown on the above is optional,others not listed can also be processed.


Before get the quotation, please tell us the connection of waterproof connector.


(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 4A,5A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*0.5mm²;3*1.0mm²...

Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

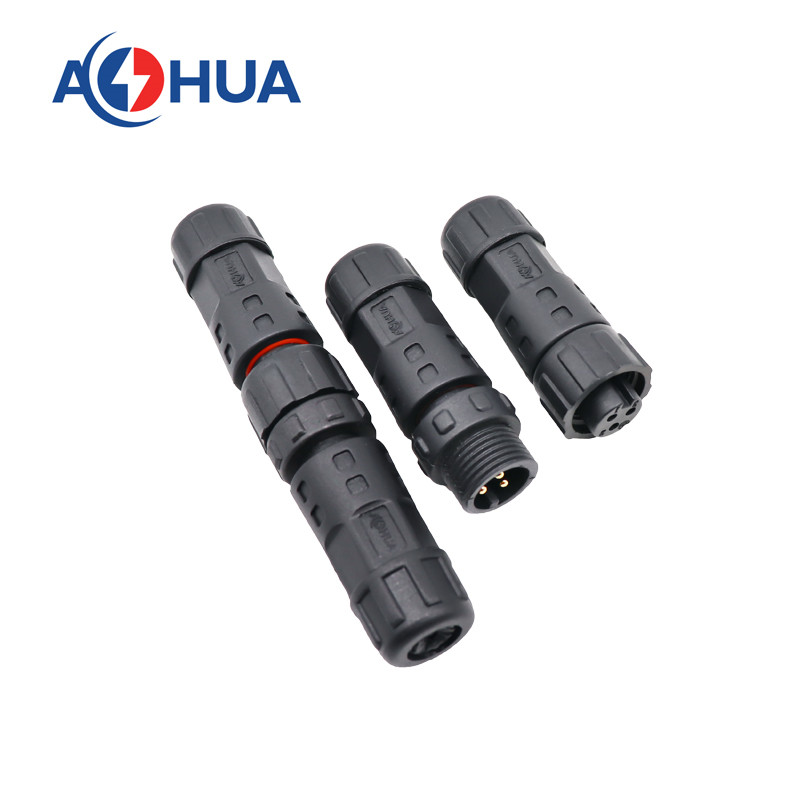

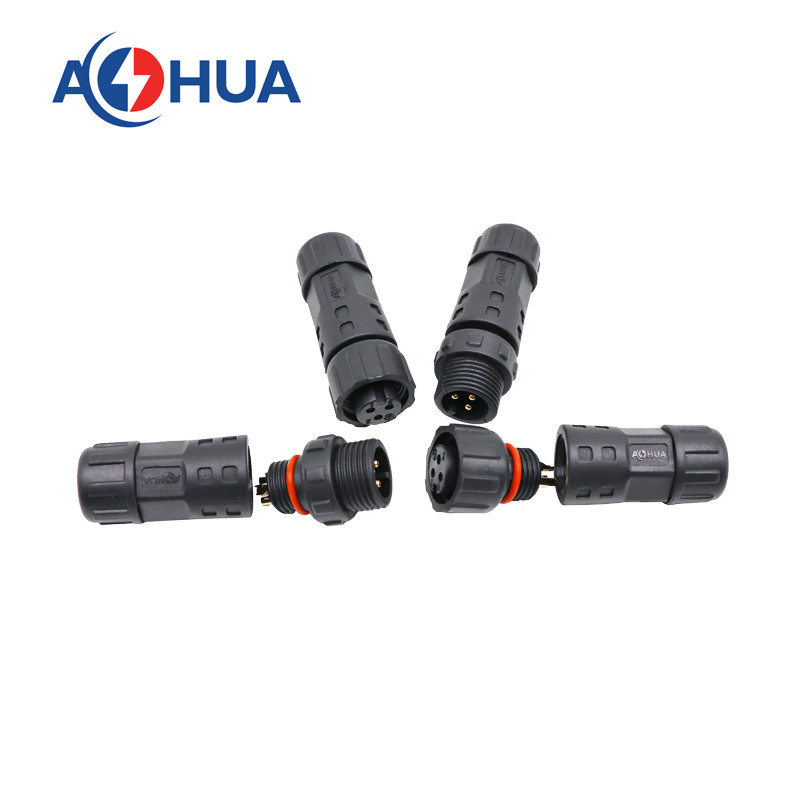

details pictures



packaging & Shipping


Quantity(sets)
1-500
500-1200
>1200
Lead time(days)
4
8
To be negotiated
Shipment
Express(DHL,Fedex,TNT,Ups);Ocean freight
Land freight;Air freight
