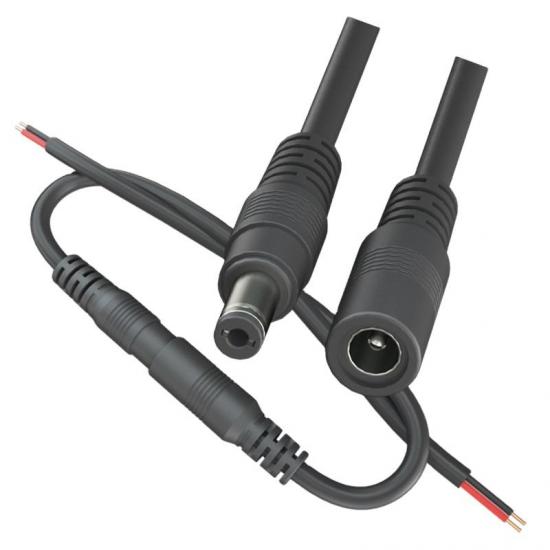

AOHUA DC plug male female cable 5.5X2.1mm CCTV DC power connector black/white flexible cable to connect led strip power camera video cable
Contacts Numbers
2
Voltage Rating
60V
Current Rating
5A
Wire Gauge
≤0.5mm²
Cable OD
3.5mm~5.5mm
Mechanical Life
500 mating cycles
Operating Rating
-20℃~+80℃
Waterproof Level
Not waterproof type
Note
DC 5.5*2.1 OR DC 5.5*2.5
Product Description
Cable Length: As your require.
Wire size: 20AWG, 22AWG,24AWG (inside black and red wire).
Contactor: According to your requirements, can connect with JST, Molex, XH and other connectors.
Conductor material: Tin-plated copper.
Insulation material:PVC insulation.
Conductor material:Tin-plated copper wire.
5.5mm x 2.1 mm/5.5mm*2.5mm DC power supply repair cable is widely used for worn or damaged power cords, such as 12V 24V DC power supply equipment, LED light strips, CCTV security surveillance camera systems or low voltage application systems, etc.
The end of the cable is black and red to indicate the polarity. Pure copper wire can provide faster and more stable conductivity, which can be better connected to other equipment. (DC male plug corresponding cable:red to inside, black to external)
Tips before quotation.
Please tell us the cable details:
1. Current rating, eg: 4A.
2. Pins, eg: 2pin.
3. Wire size, eg, 2*22AWG…
4. Cable outer diameter(OD), eg: 4.5mm…
More details, please send inquiry to us, we will try our best to help you!!!
