LED outdoor lighting waterproof connector
M15
Home /

Assembly Waterproof Plug

/

M15

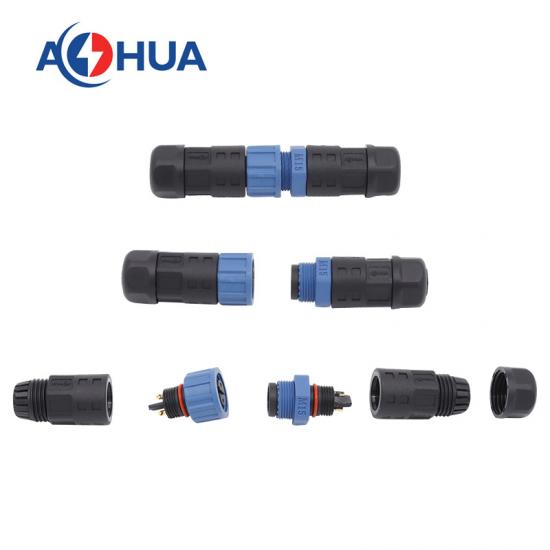

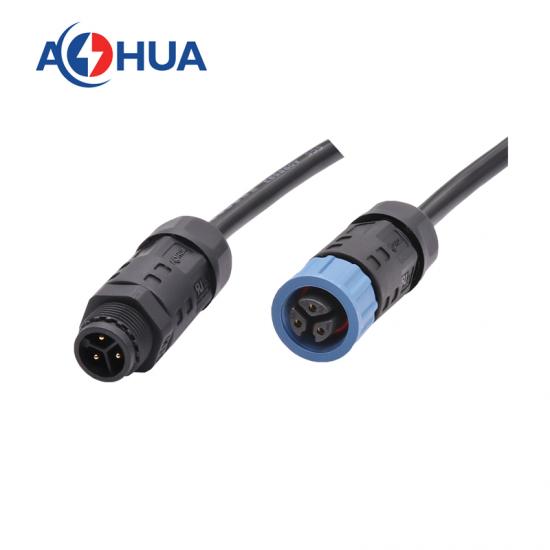

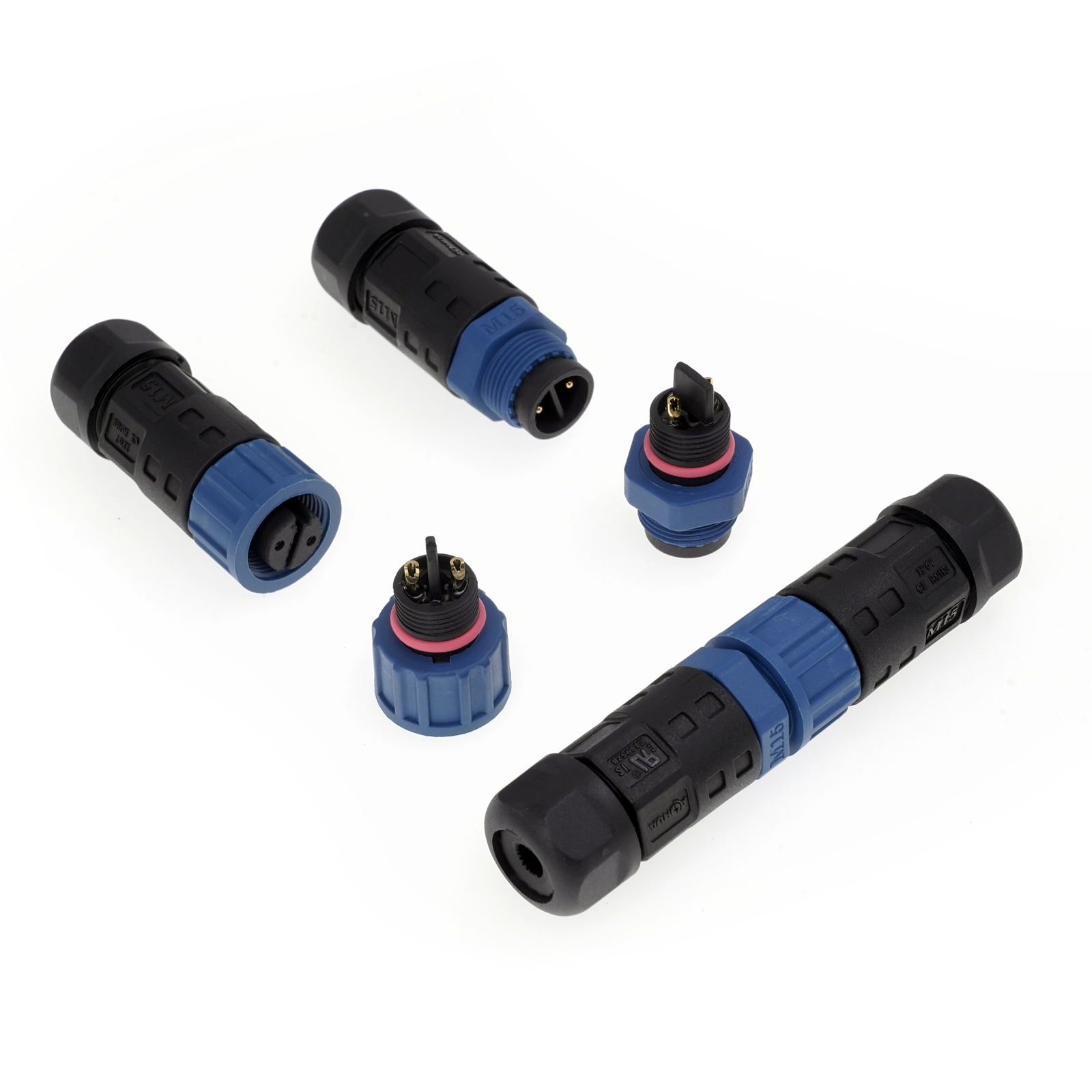

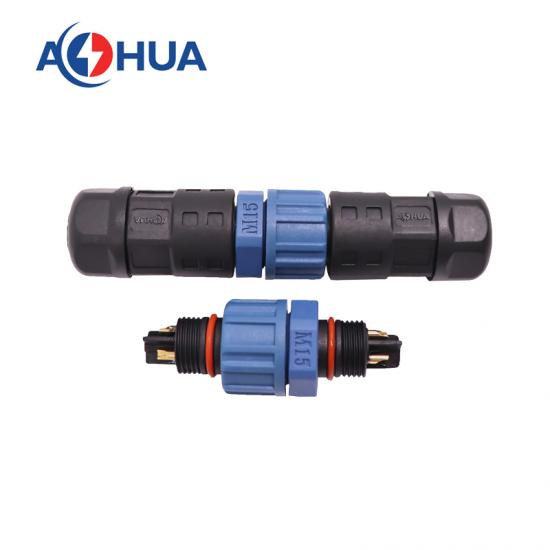

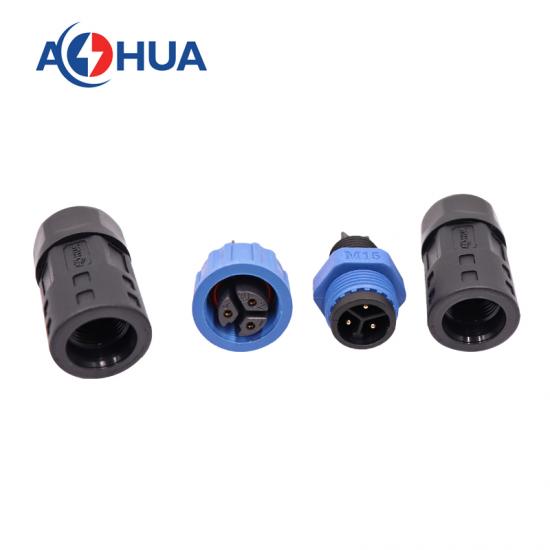

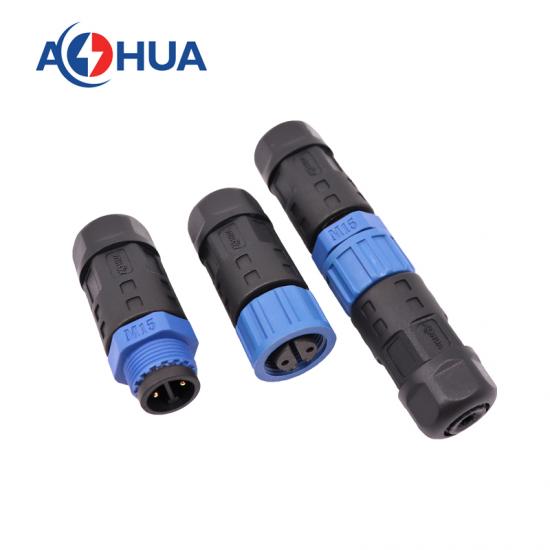

/AOHUA Factory Nylon PA66 Waterproof Circular Connector M15 Solder Type 10A Wire Connector

AH-M15-wire to wire
AH-M15-wire to wire AH-M15-wire to wire AH-M15-wire to wire AH-M15-wire to wire AH-M15-wire to wire AH-M15-wire to wire

AOHUA Factory Nylon PA66 Waterproof Circular Connector M15 Solder Type 10A Wire Connector

M15 3 Pin Waterproof Connector

  • Item NO.:

    M15

  • Lead Time:

    a week

  • Product Orgin:

    China

  • Shipping Port:

    shenzhen,china

  • Payment:

    TT,PAYPAL

  • Color:

    black
Inquiry now
products Details


Pins

Part Number

Voltage Rating

Current Rating

Wire Gauge

2

AH-M15-1002FMZ/MFZ01112

300V

10A

≤1.5mm²

3

AH-M15-1003FMZ/MFZ01112

300V

10A

≤1.0mm²

Cable OD

5.5mm-10mm

Mechanical Life

3000 mating cycles

Operating Rating

-40°C~+105°C

Waterproof Level

IP67/IP68

Seal Ring

13*9*6.5/7.5/8.5/9.5/10mm


related products



OUR ADVANTAGES

Application



Certification:
CE IP67 ROHS,UL,TUV certification
Packing:
4 per pack(Comes with 2 sets of different sized grommets to accommodate different size wires.)
Cable Range:
5.5-10mm(If you use a cable which is too thin,then the seal won't even cover IP67!!)
Waterproof rating:
IP67/IP68 adcanced waterproof connector
Rated voltage:
≤300V
Rated current:
≤10A
Working Temperature:
-40°C~+105°C
Materal:
plastic(nylon),seal ring(silicon)
Color:
Black with blue

Scope of application:
connectors are suitable for quick connection of garden and outdoor dispalys,floof heating,beacons,cruise ships,LED billboards,LED tunnel lights,LED street lights,external wiring,ect.



Tail Terminal:


Tail processing as shown on the above is optional,others not listed can also be processed.


Before get the quotation, please tell us the connection of waterproof connector.


(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 4A,5A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*1.0mm²;3*1.5mm²...

Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.


details pictures



packaging & Shipping

Quantity(sets)
   1-2000
＞2000
Lead time(days)
5
To be negotiated
Shipment
Express(DHL,Fedex,TNT,Ups);Ocean freight
Land freight;Air freight
