Application
It is widely used in outdoor LED, hybrid, Electric bike scooters, car and ship,the lighthouse,cruise ships,industrial equipment , communications equipment,detection equipment, etc.

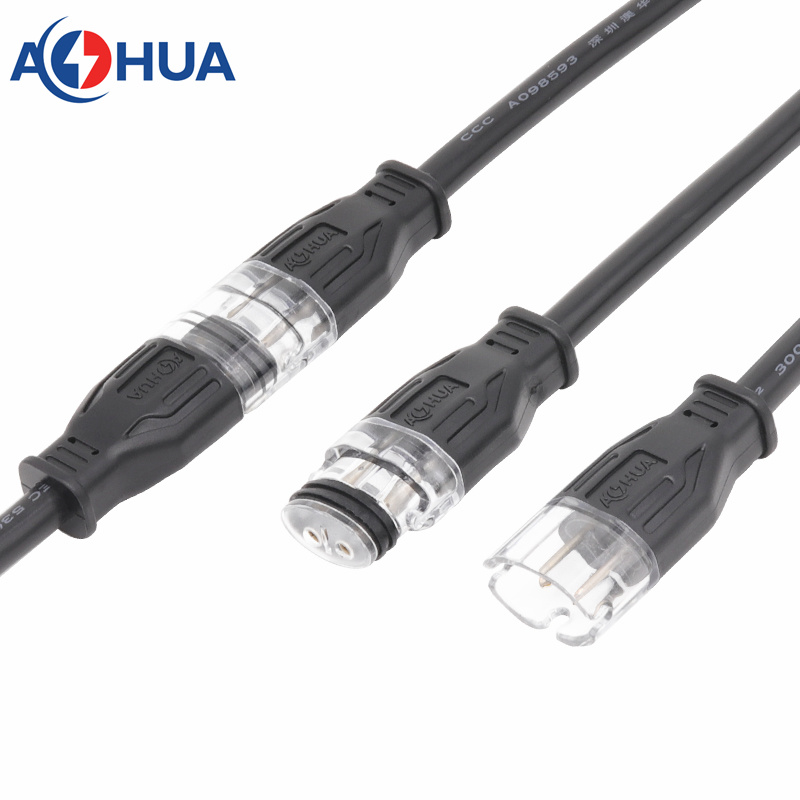

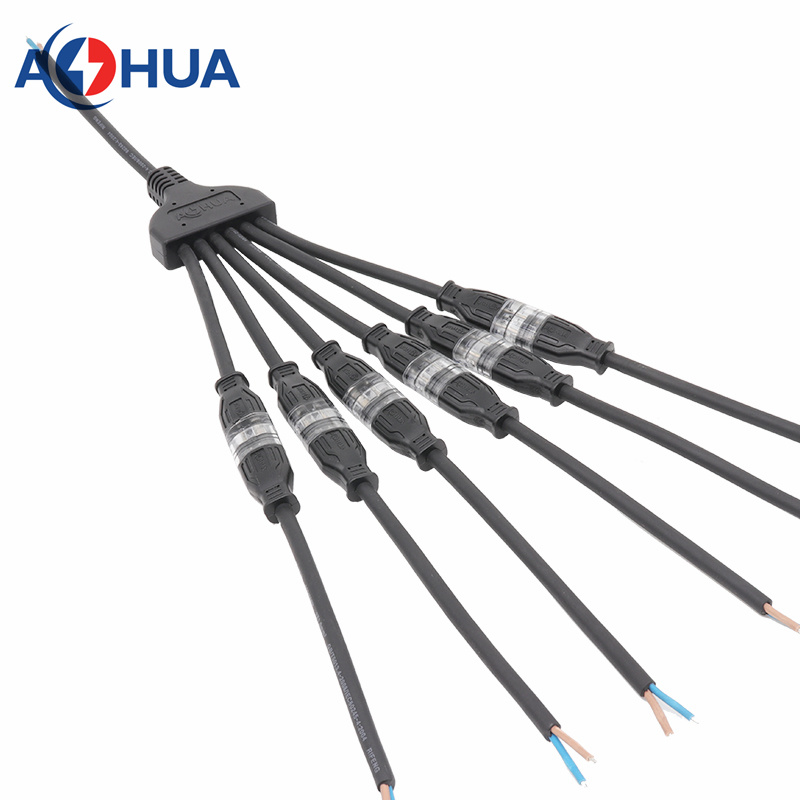

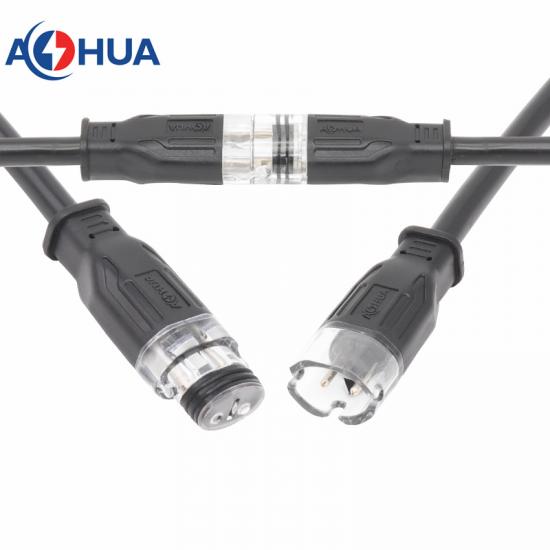

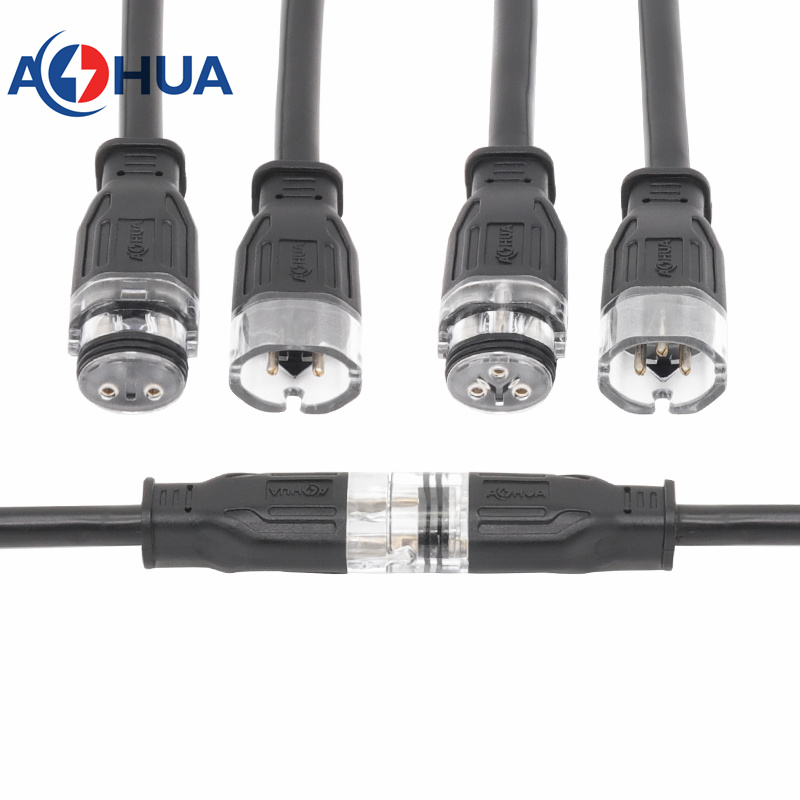

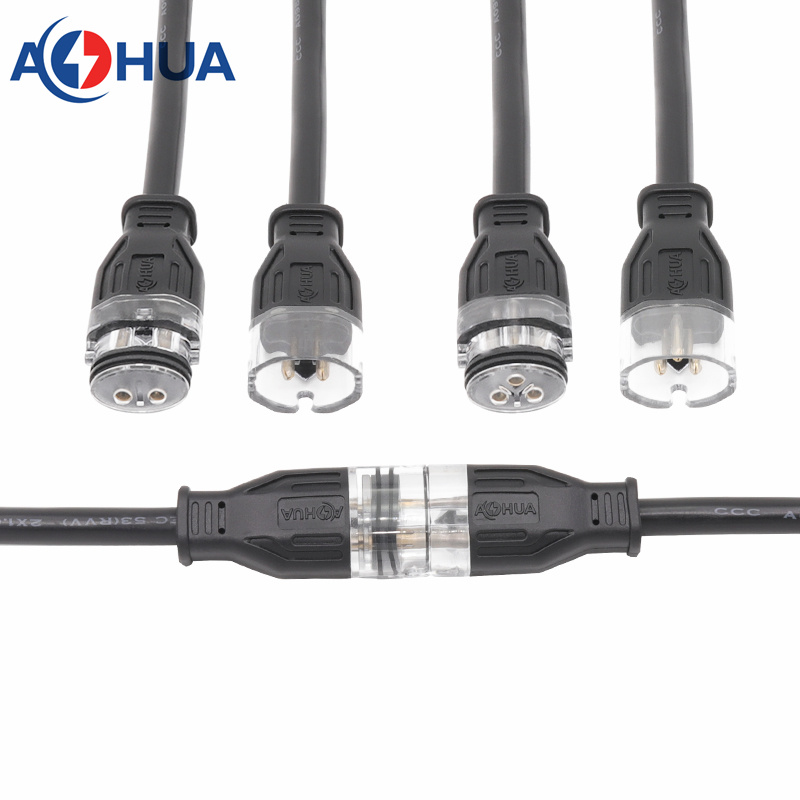

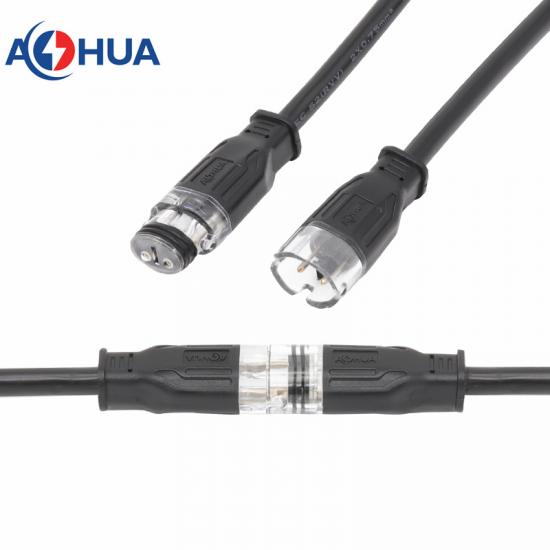

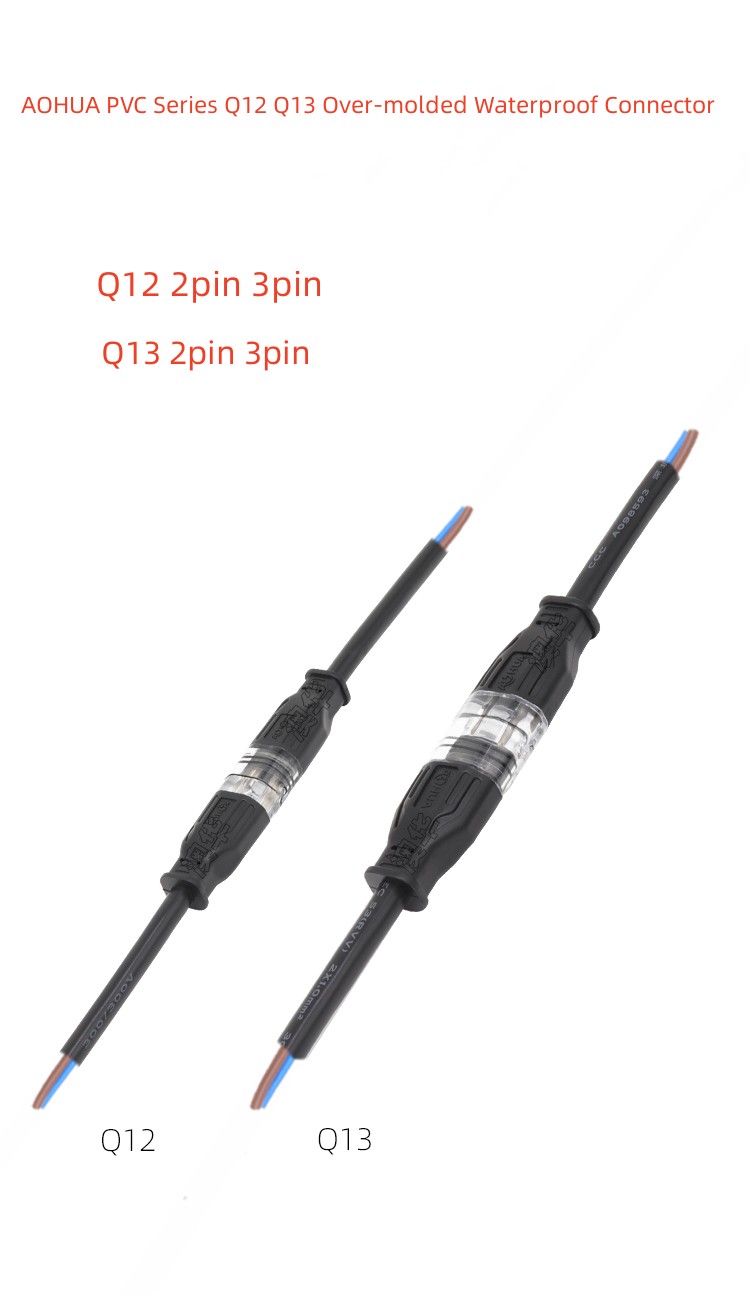

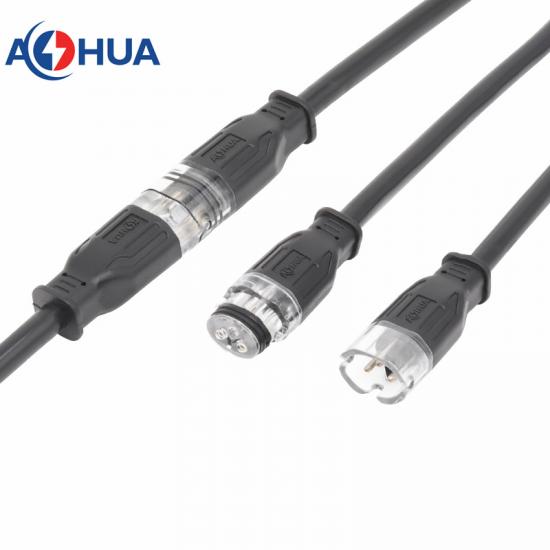

Q series waterproof connector Q12 Q13 are molded with cable connector, and can be designed to different types of solutions according to the different using environment. Such as: Extended cable, male to female, male to male, female to female. T /Y type splitter with Q12 Q13 connector.
Before quotation, please tell us the cable details,thanks.
*Cable length, eg: 300mm each side...

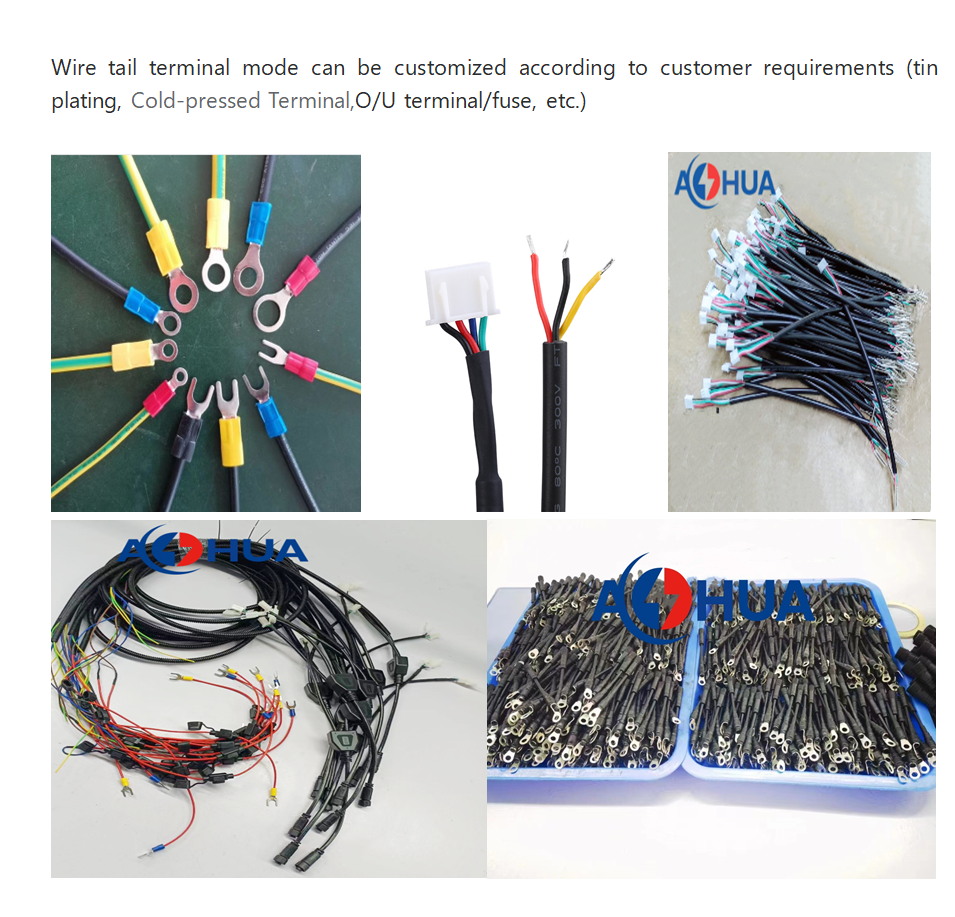

*Confirm tail processing (such as tin plating,Cold-pressed Terminal,O/U terminal/fuse, etc.)
*Cable material,length,and terminal striping length can be customized as your requirements.
Pls send us simple drawing about what you want.
We need to know each side cable length and wire size.
Then we can give advice and quote for you.

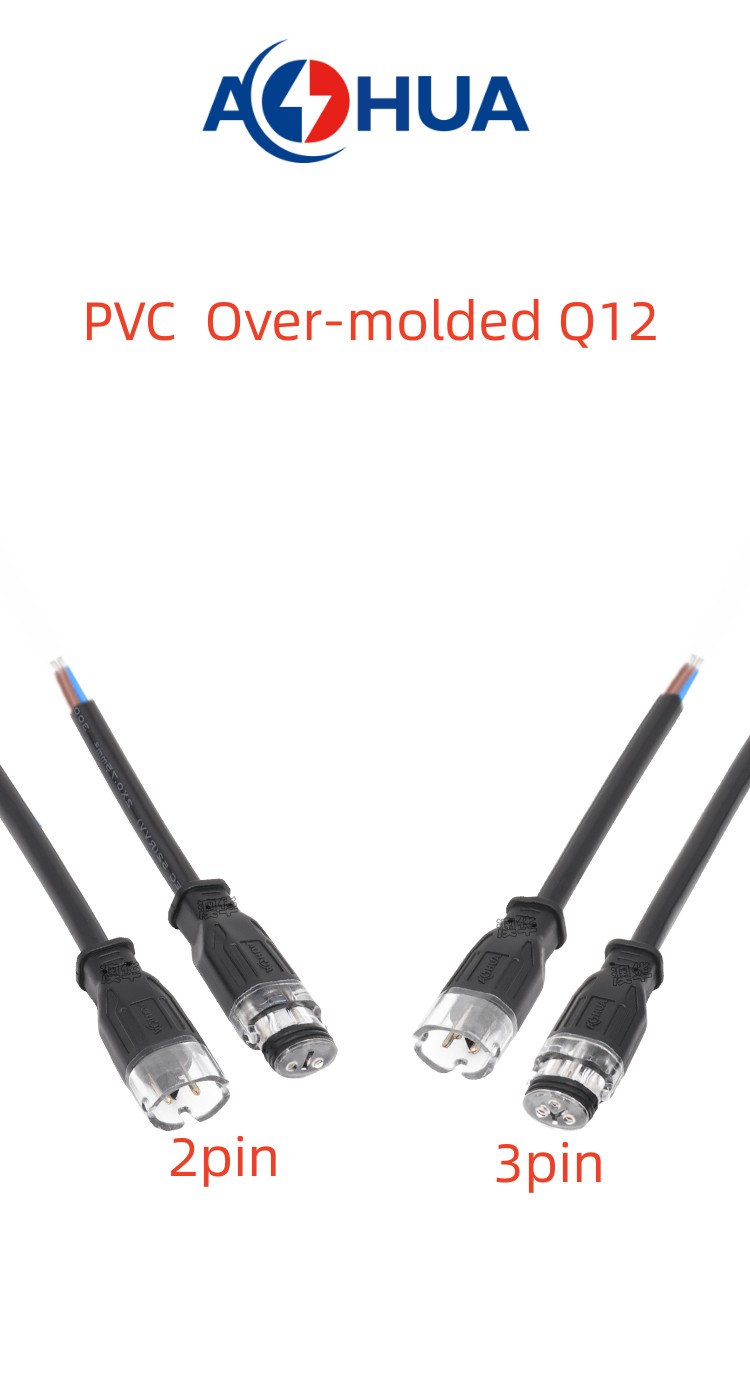

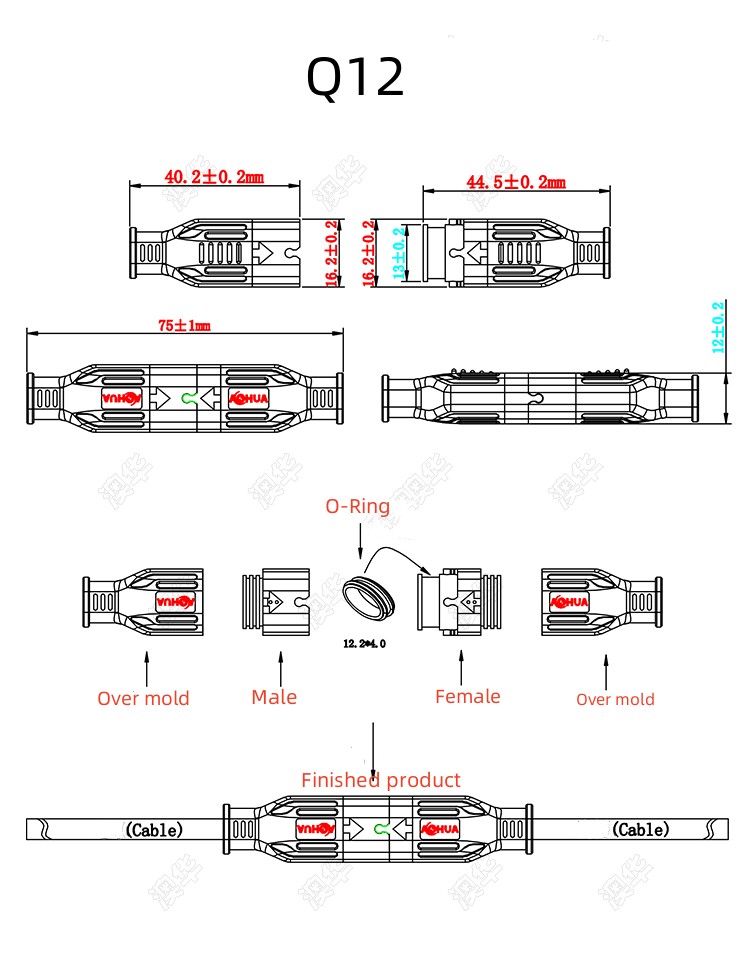

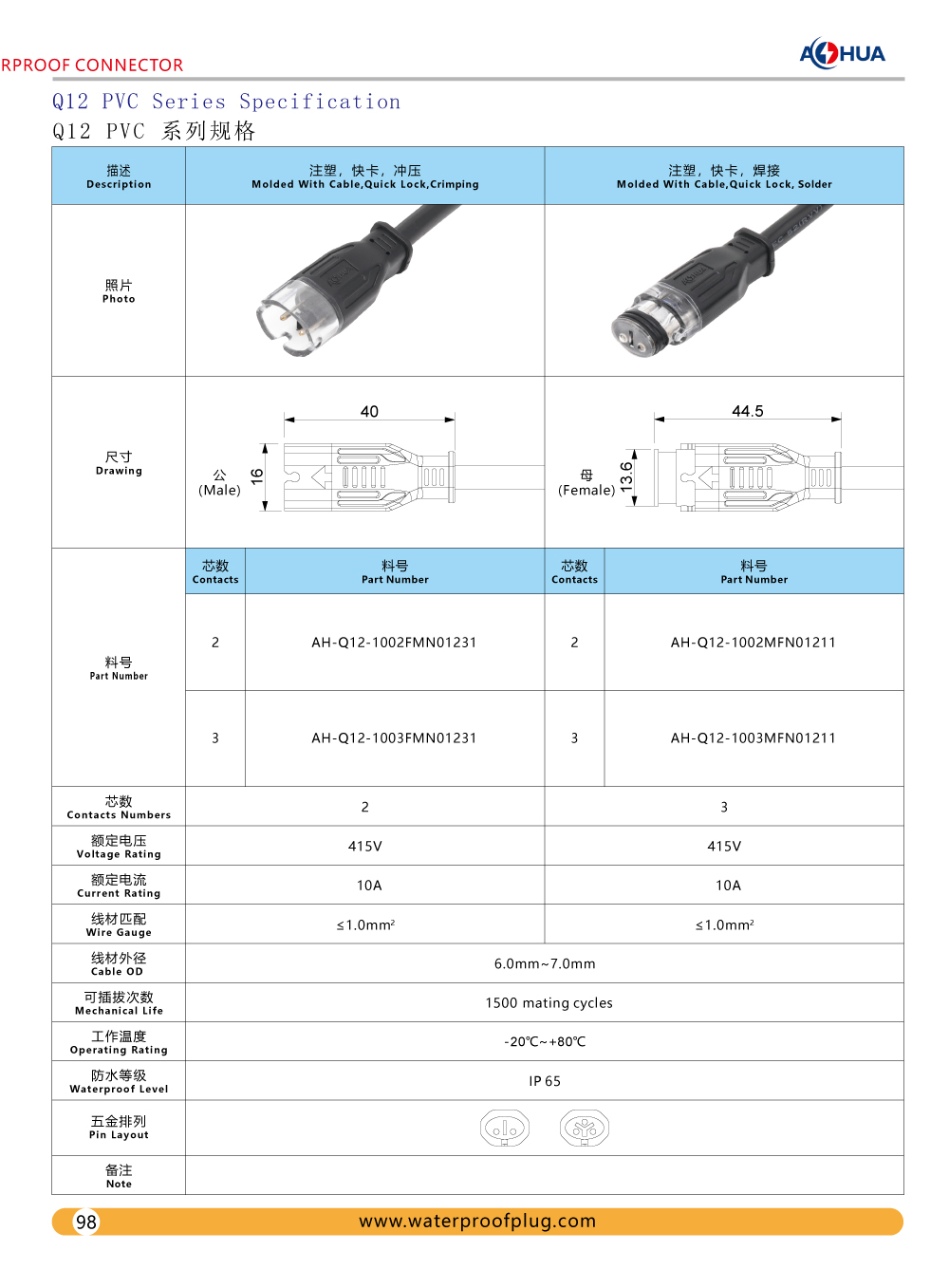

Q12 series is suitable for cable outer diameter(OD) range from 6.0mm to 7.0mm.
Usually, Q12 waterproof connector is suitable for wire gauge ≤ 1.0mm² as follows:
2pin (2*1.0mm²,2*0.75mm²,2*0.5mm², 2*18AGW,2*20AWG, 2*22AWG, 2*24AWG)3pin(3*1.0mm²,3*0.75mm²,3*0.5mm², 3*18AGW,3*20AWG, 3*22AWG, 3*24AWG)

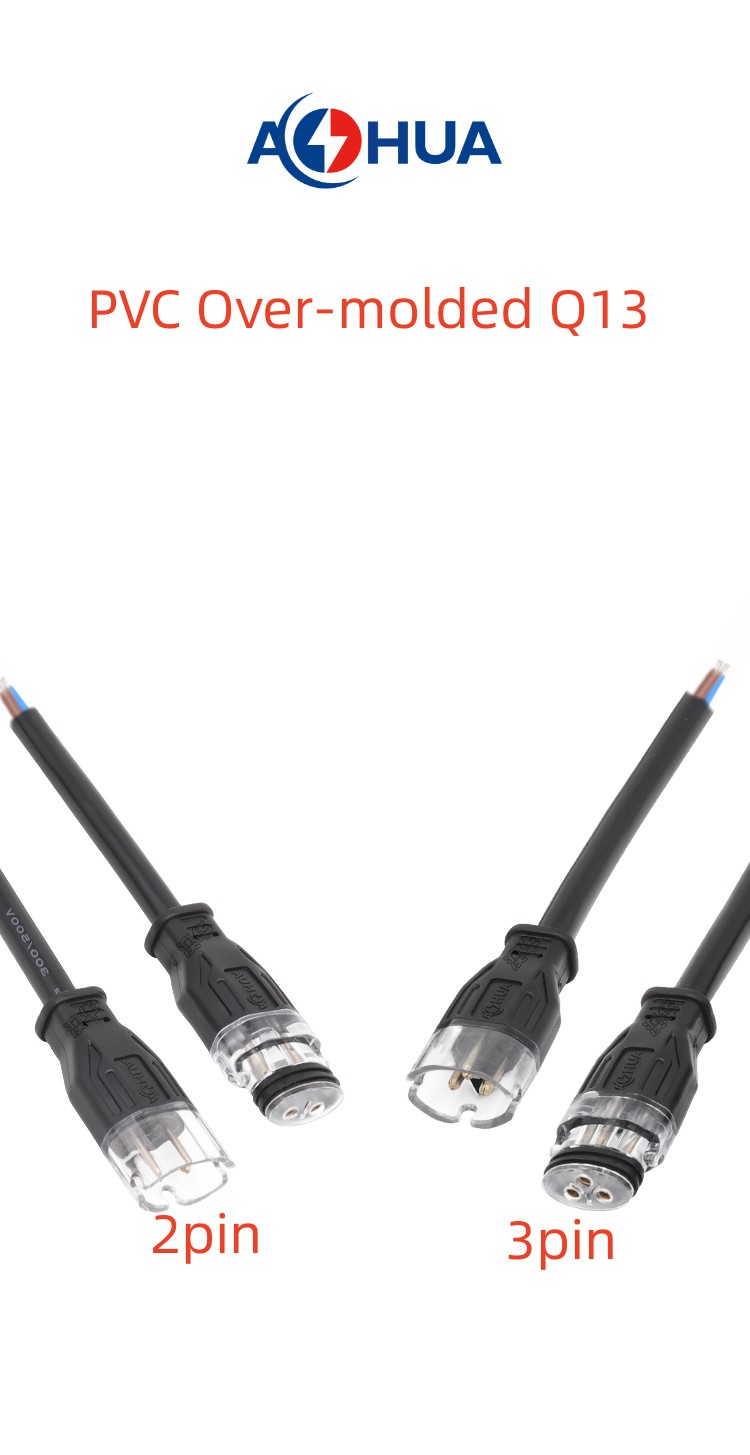

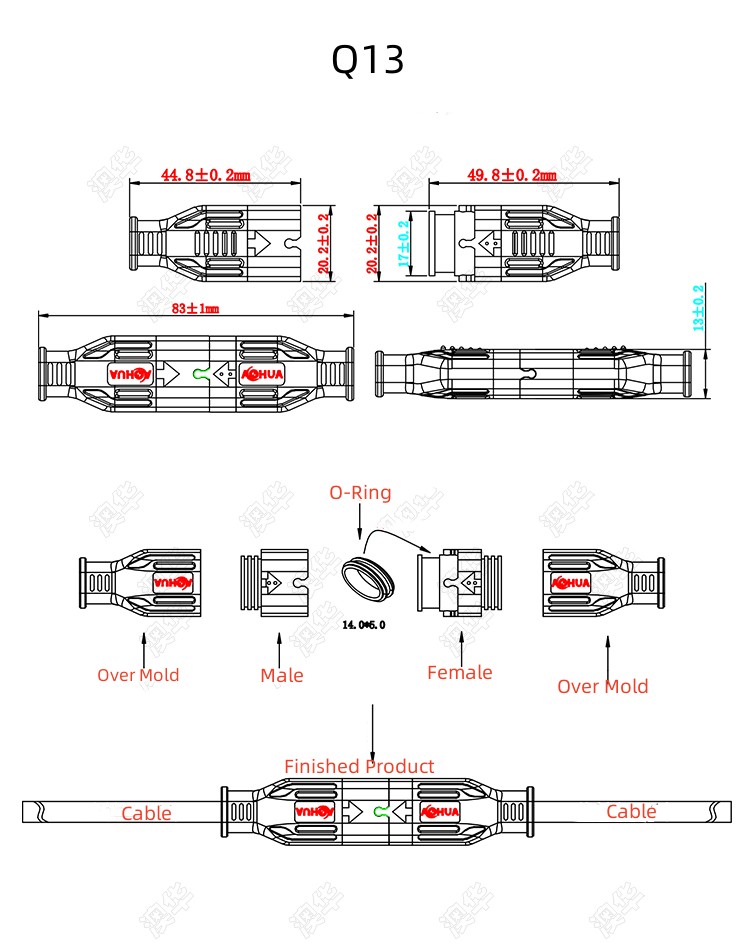

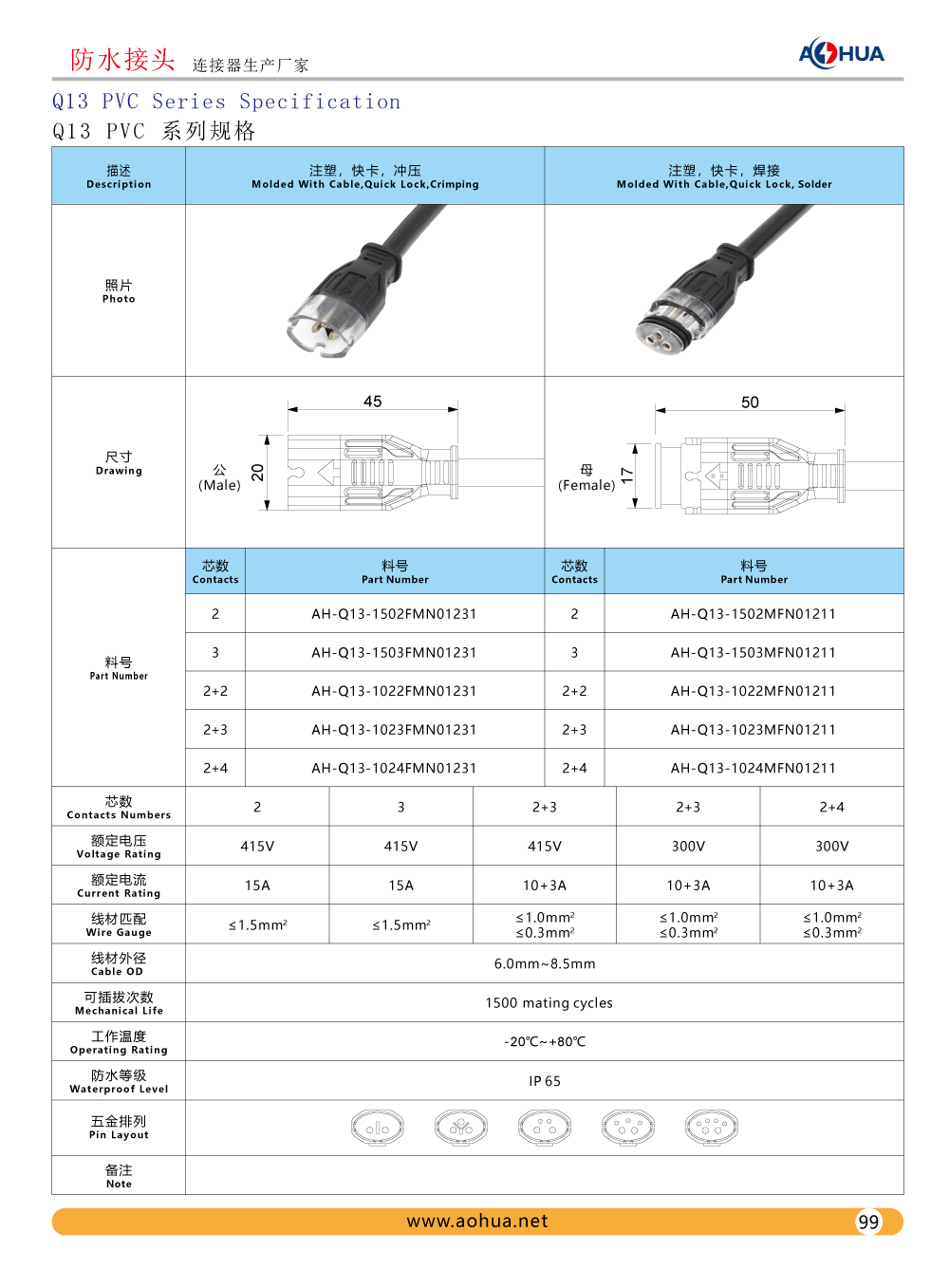

Q13 series is suitable for cable outer diameter(OD) range from 6.0mm to 8.5mm.
Usually, Q13waterproof connector 2pin,3pin are suitable for wire gauge ≤ 1.5mm² as follows:
2pin (2*1.5mm²,2*1.0mm²,2*0.75mm²,2*0.5mm²,2*16AGW, 2*18AGW,2*20AWG, 2*22AWG, 2*24AWG)3pin(3*1.5mm²,3*1.0mm²,3*0.75mm²,3*0.5mm²,3*16AGW, 3*18AGW,3*20AWG, 3*22AWG, 3*24AWG)
1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing,therefore,we are selected by many domestic and foreign engineering and enterprises.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want,if you are not sure.We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:How to contact with you?
A:Please give me your email,it is the best and the most effective method to keep in touch with each other,and i can provide you with professional solutions in the shortest time.
9.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
