AOHUA IP68 Waterproof L20 2PIN Male Female 10A Metal Screw Fixing Type Thread Connector for LED Light

1. Product Type and Core Features

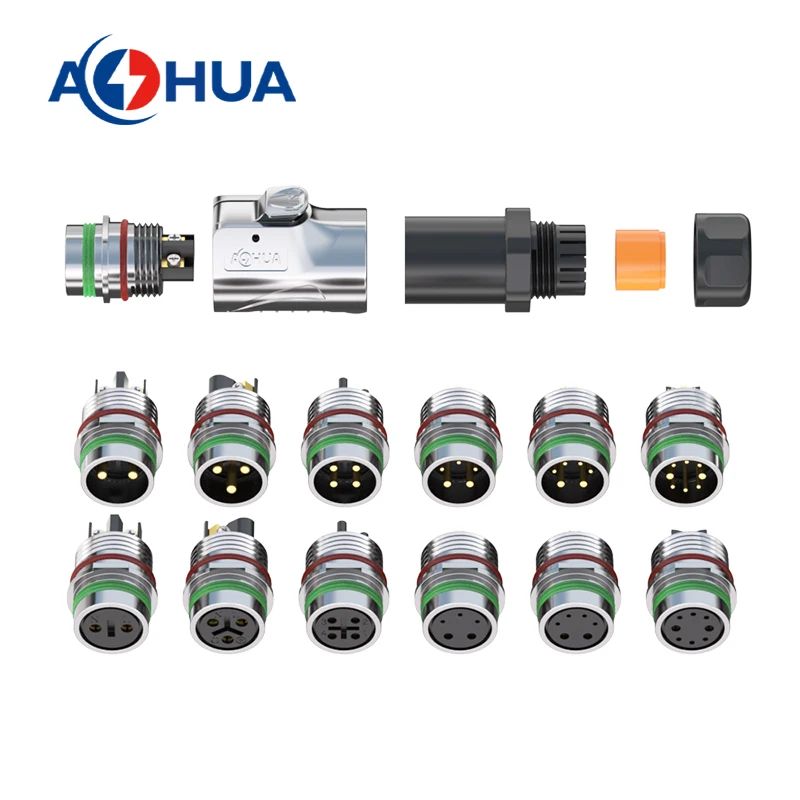

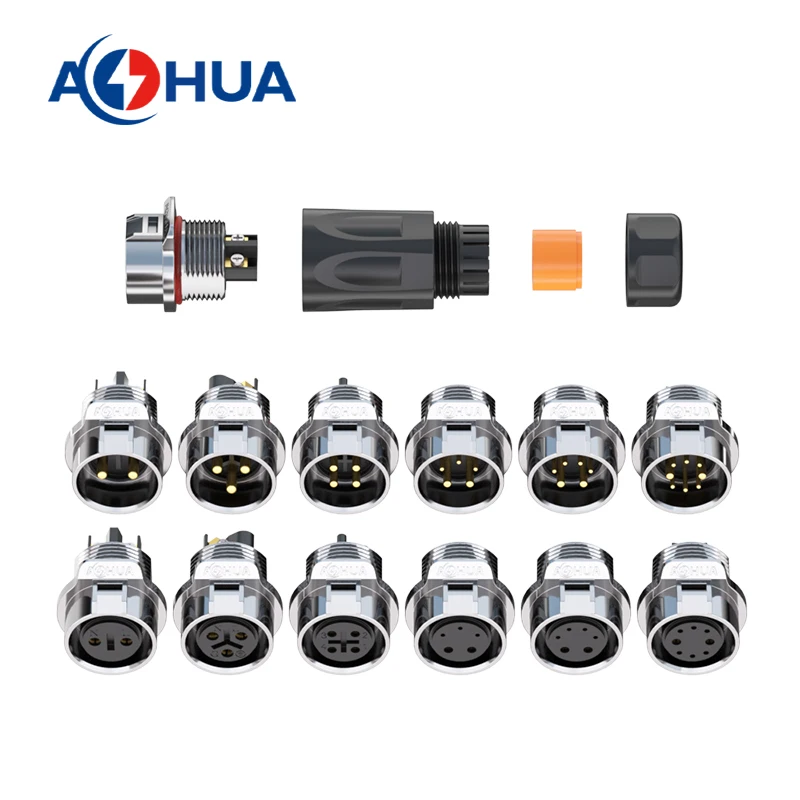

• Type: Circular aviation plug-style waterproof connector (assembly type), with the diagram illustrating the combined structure of "plug + socket + cable".

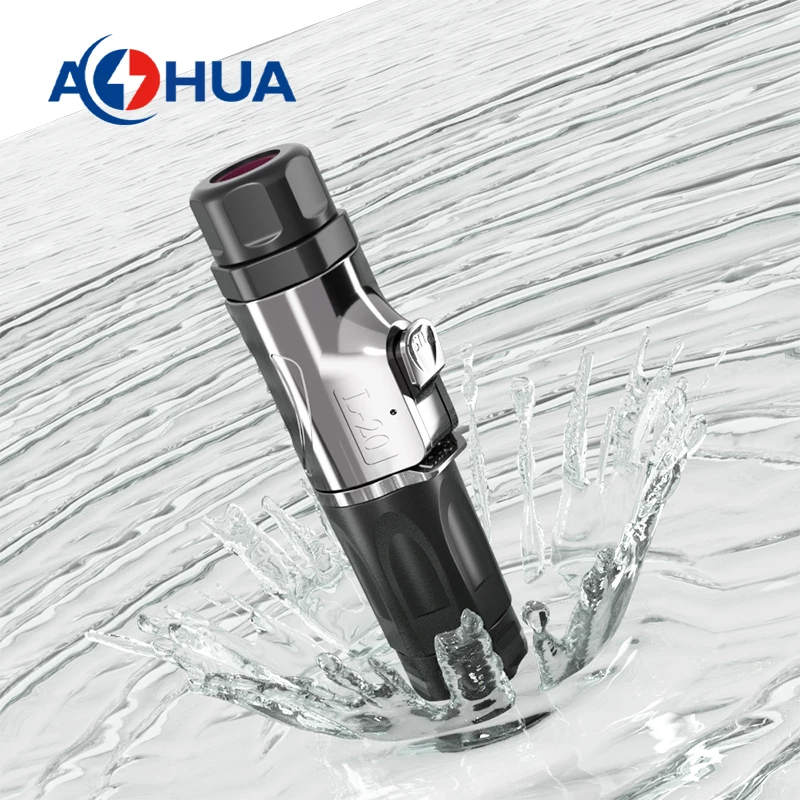

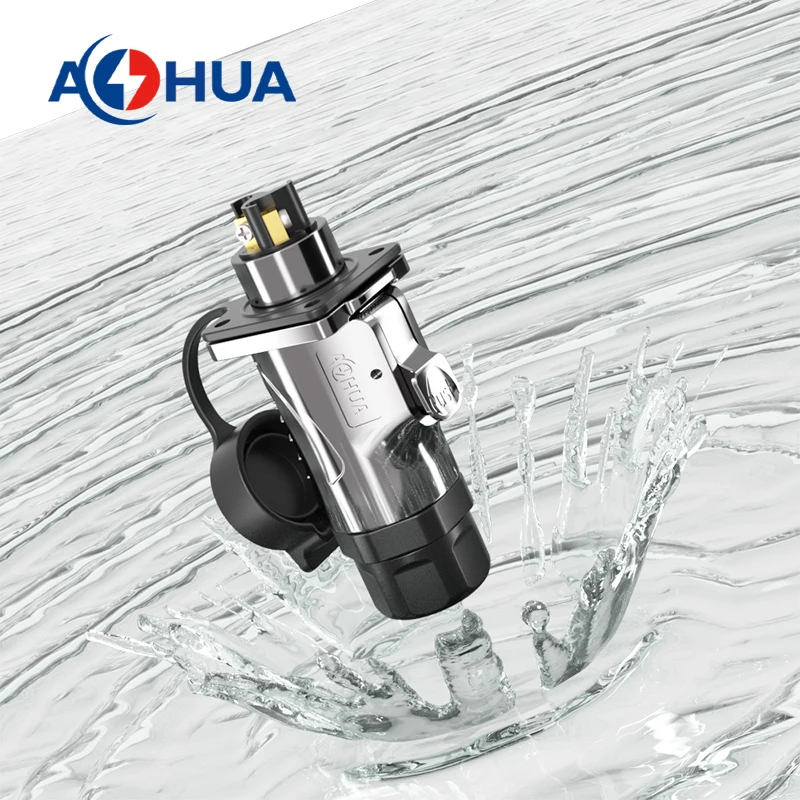

• Waterproof Rating: Typically achieves IP67/IP68 (dustproof and immersion-resistant), suitable for outdoor, industrial equipment, LED lighting and similar applications.
• Core Functionality: Enables rapid cable interconnection + sealed protection, preventing water/dust ingress that could cause short circuits or malfunctions.

• Metal plug/socket: Silver-coloured metal casing (typically stainless steel or alloy) featuring a threaded locking mechanism (ensuring a secure connection), with gold-plated pins inside (for excellent conductivity).
• Cable end assembly: Black plastic waterproof sheath + multi-core coloured cable (with visible yellow, red, blue and other cores), some fitted with retaining clips (to prevent cable pulling).

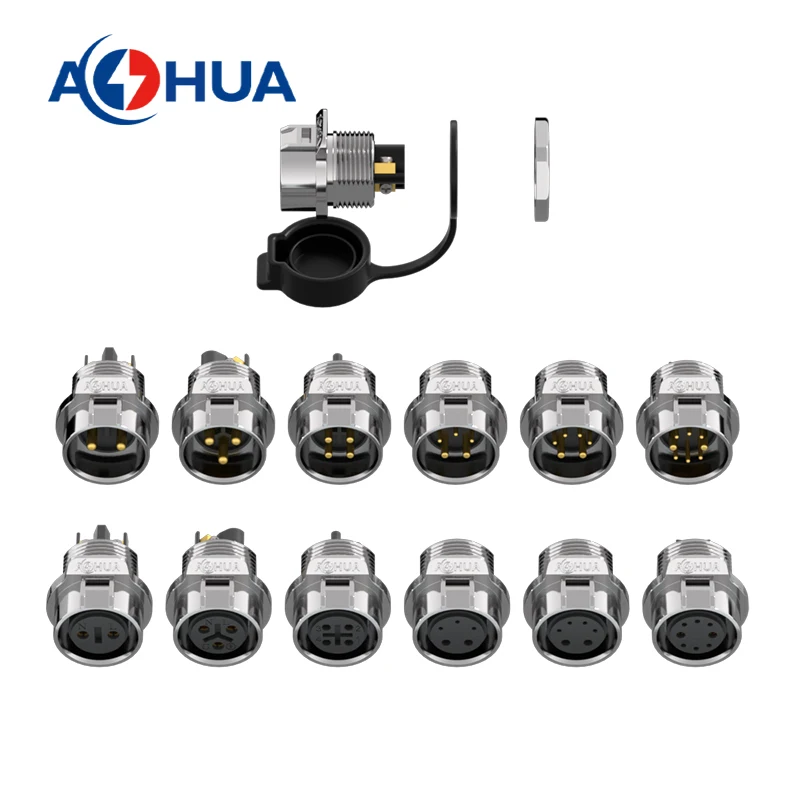

• Accessories: Dust cover (protects unmated sockets), panel mounting bracket (for securing to equipment casing).

3. Application Scenarios

These connectors are primarily used in:

• Cable connections for outdoor LED street lighting and landscape illumination;
• Signal/power transmission for industrial equipment and sensors;
• Electrical systems in humid/vibratory environments such as marine vessels, motor vehicles, and livestock farming.

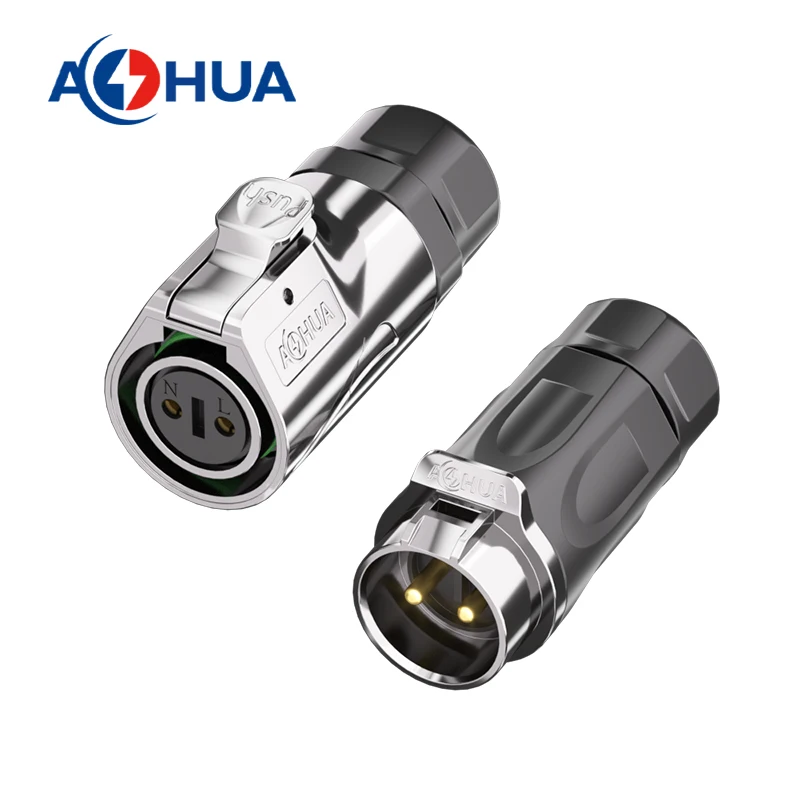

LD20 2PIN Connector:

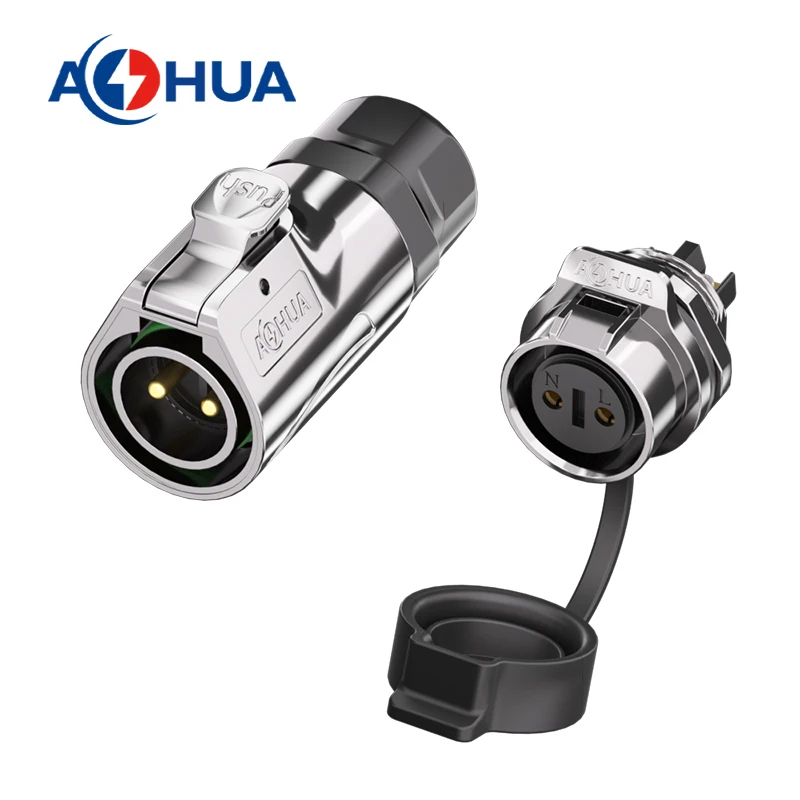

AH-L20-2002MMZ01214        AH-L20-2002FFZ01214 (Screw Fixing Type)

AH-L20-2002MMZ01224        AH-L20-2002FFZ01224 (Sold Type)

Voltage Rating: 300V

Current Rating:20A

Wire Gauge:

0.2mm² /24AWG| 0.3mm²/22AWG|  0.5mm²/20AWG|  0.75mm²/18AWG| 1.0mm²/16AWG| 1.5mm²/14AWG| 2.5mm²/12AWG

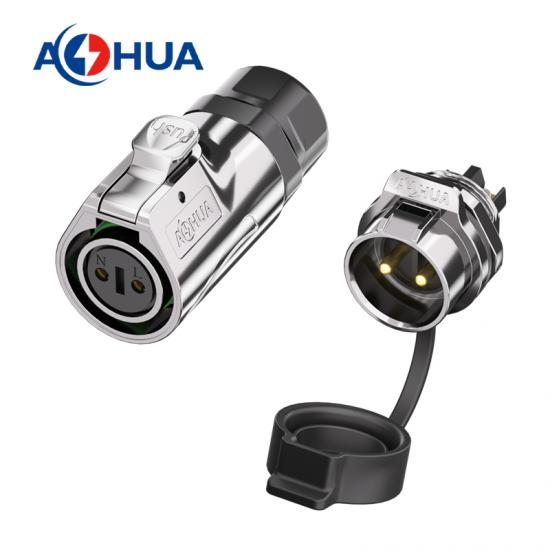

 AH-L20-2002FMZ01214        AH-L20-2002MFZ01214 (Screw Fixing Type)

AH-L20-2002FMZ01224        AH-L20-2002MFZ01224 (Sold Type)

Voltage Rating: 300V

Current Rating:20A

Wire Gauge:

0.2mm² /24AWG| 0.3mm²/22AWG|  0.5mm²/20AWG|  0.75mm²/18AWG| 1.0mm²/16AWG| 1.5mm²/14AWG| 2.5mm²/12AWG

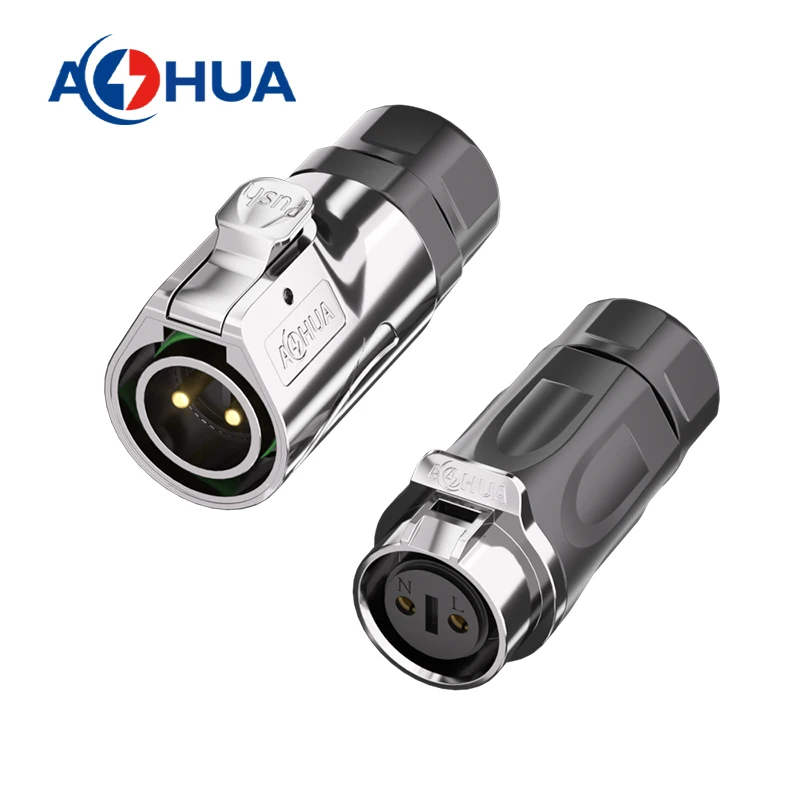

AH-LD20-2002FMR01214     AH-LD20-2002MFZ01214

AH-LD20-2002FMR01224     AH-LD20-2002MFZ01224

Voltage Rating: 300V

Current Rating:20A

Wire Gauge:

0.2mm² /24AWG| 0.3mm²/22AWG|  0.5mm²/20AWG|  0.75mm²/18AWG| 1.0mm²/16AWG| 1.5mm²/14AWG| 2.5mm²/12AWG

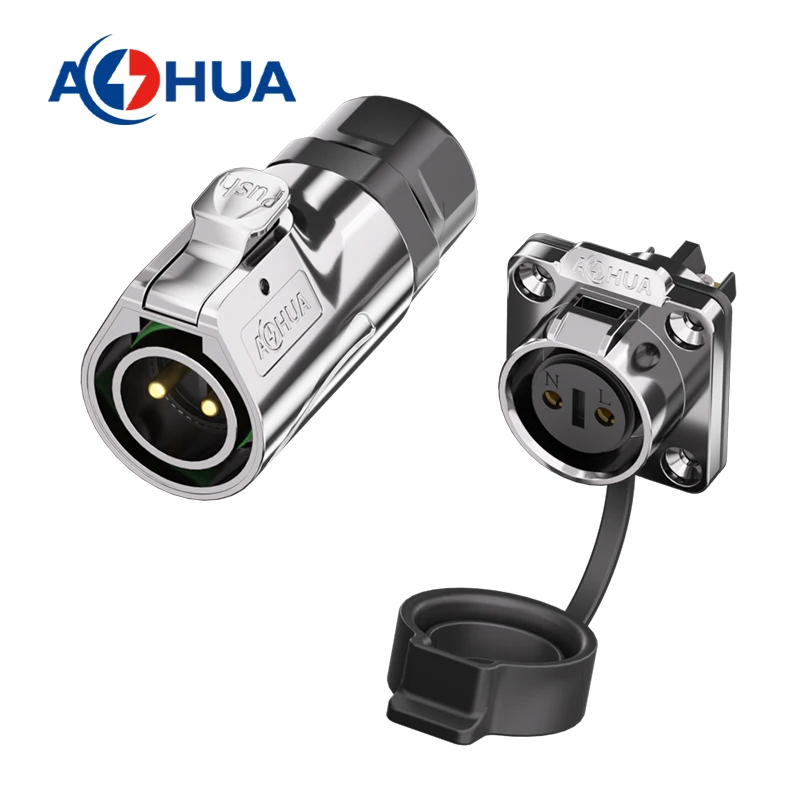

AH-LD20-2002FFR01214     AH-LD20-2002MMZ01214

AH-LD20-2002FFR01224     AH-LD20-2002MMZ01224

Voltage Rating: 300V

Current Rating:20A

Wire Gauge:

0.2mm² /24AWG| 0.3mm²/22AWG|  0.5mm²/20AWG|  0.75mm²/18AWG| 1.0mm²/16AWG| 1.5mm²/14AWG| 2.5mm²/12AWG

AH-LD20-2002FMU01214     AH-LD20-2002MFZ01214

AH-LD20-2002FMU01224     AH-LD20-2002MFZ01224

Voltage Rating: 300V

Current Rating:20A

Wire Gauge:

0.2mm² /24AWG| 0.3mm²/22AWG|  0.5mm²/20AWG|  0.75mm²/18AWG| 1.0mm²/16AWG| 1.5mm²/14AWG| 2.5mm²/12AWG

AH-LD20-2002FFU01214     AH-LD20-2002MMZ01214

AH-LD20-2002FFU01224     AH-LD20-2002MMZ01224

Voltage Rating: 300V

Current Rating:20A

Wire Gauge:

0.2mm² /24AWG| 0.3mm²/22AWG|  0.5mm²/20AWG|  0.75mm²/18AWG| 1.0mm²/16AWG| 1.5mm²/14AWG| 2.5mm²/12AWG
