AOHUA YM16 waterproof connector
Socket
Part Number
Main Cable Gauge
Branch Cable Gauge
Main Cable OD
Branch Cable OD
2
AH-YM16-0202
≤1.5mm²
≤1.0mm²
Max 10.0mm
Max 6.8mm
3
AH-YM16-0203
≤1.5mm²
≤1.0mm²
Max 10.0mm
Max 6.8mm
4
AH-YM16-0204
≤1.5mm²
≤1.0mm²
Max 10.0mm
Max 6.8mm
5
AH-YM16-0205
≤1.5mm²
≤0.5mm²
Max 10.0mm
Max 5.3mm
Operating Rating
-20℃~+80℃
Waterproof Level
IP65
Seal Ring
13mm*9mm*6.5/7.7/8.5/9.5/10mm
Y type integrated wiring harness with small and simple appearance.
Y Series,high quality at competitive price.

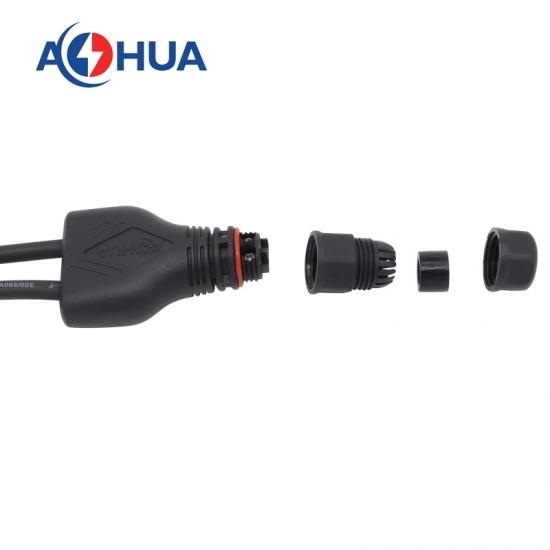

Nylon material, one end is a L assembly screw type connector, and the other end is bare wire or with connector.
Favorable waterproof feature: ip65.
You need to check the wire gauge and each cable length.and if it need connector or not.
Any length of the cable is available and terminal processed.

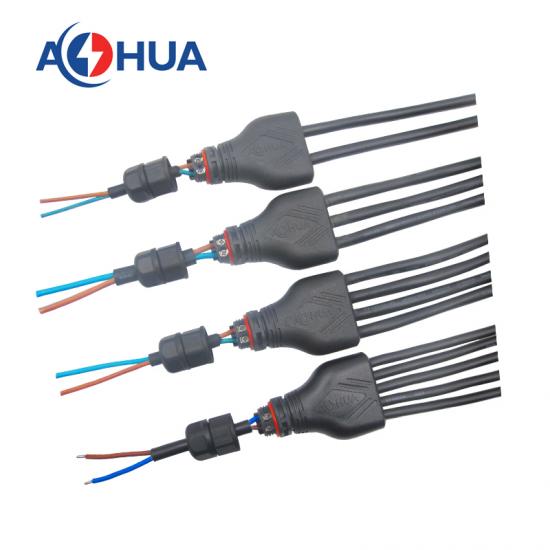

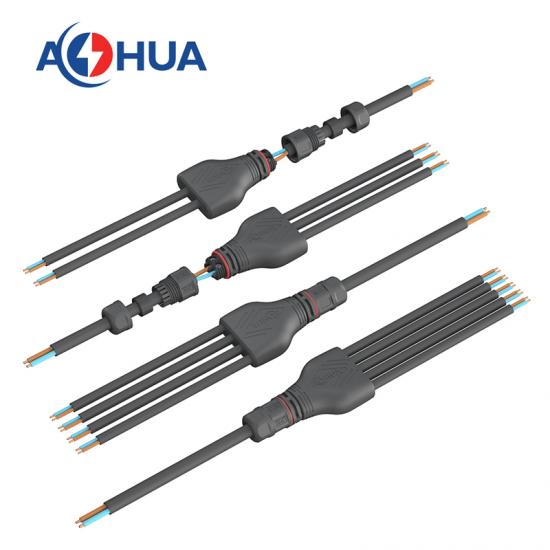

There's a choice of 1 out of 2,1 out of 3, 1 out of 4, 1 out of 5.
Convenient maintenance and replacement, reduce the costs of after service.
Tips before quotation.
Please tell us the cable details:
1. Current rating, eg: 5A.
2. Pins, eg: 2pin, 3pin.
3. Wire size, eg, main cable 2*1.0mm², branch cable 2*0.75mm².
4. Cable outer diameter(OD), eg: 6.8mm.
5. Length of each cable, eg: 300mm.

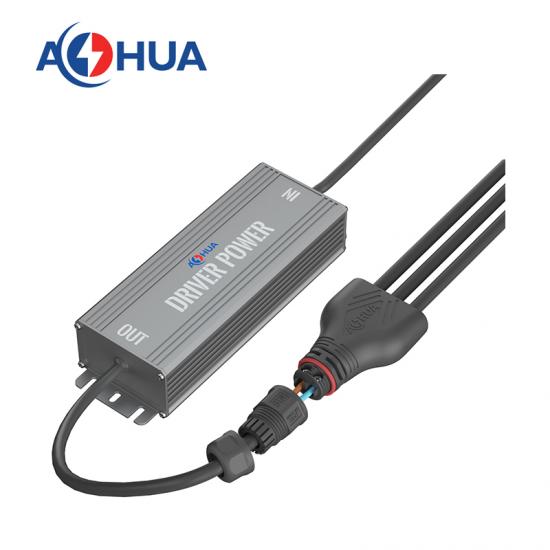

Application
More details, please send inquiry to us, we will try our best to help you!!!
