Application
|
Certification: |
CE IP67 ROHS certification |
|
Packing: |
4 per pack(Comes with 2 sets of different sized grommets to accommodate different size wires.) |
|
Cable Range: |
5.0-7.5/7.5-9.5mm(If you use a cable which is too thin,then the seal won't even cover IP67!!) |
|
Waterproof rating: |
IP67/IP68 adcanced waterproof connector |
|
Rated voltage: |
≤300V |
|
Rated current: |
≤15A |
|
Working Temperature: |
-40°C~+150°C |
|
Materal: |
plastic(nylon),seal ring(silicon) |
|
Color: |
Black |
|
Scope of application: |
connectors are suitable for quick connection of garden and outdoor displays,floor heating,beacons,cruise ships,LED billboards,LED tunnel lights,LED street lights,external wiring,ect. |
Tail
Terminal:
Tail
processing as shown on the above is optional,others not listed can also be
processed.
Before
get the quotation, please tell us the connection of waterproof connector.
(1)Type:Solder
type or screw fixing type;
(2)
The voltage rating:such as 110V;300V...
(3)The
current rating:such as 10A,15A...
(4)Wire
gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable
OD(over diameter): 5.5mm;6mm...
(6)Wire
size:2*0.5mm²;3*1.5mm²...
Then
AHUA team will answer you and choose the correct waterproof connector for you
within 24h.

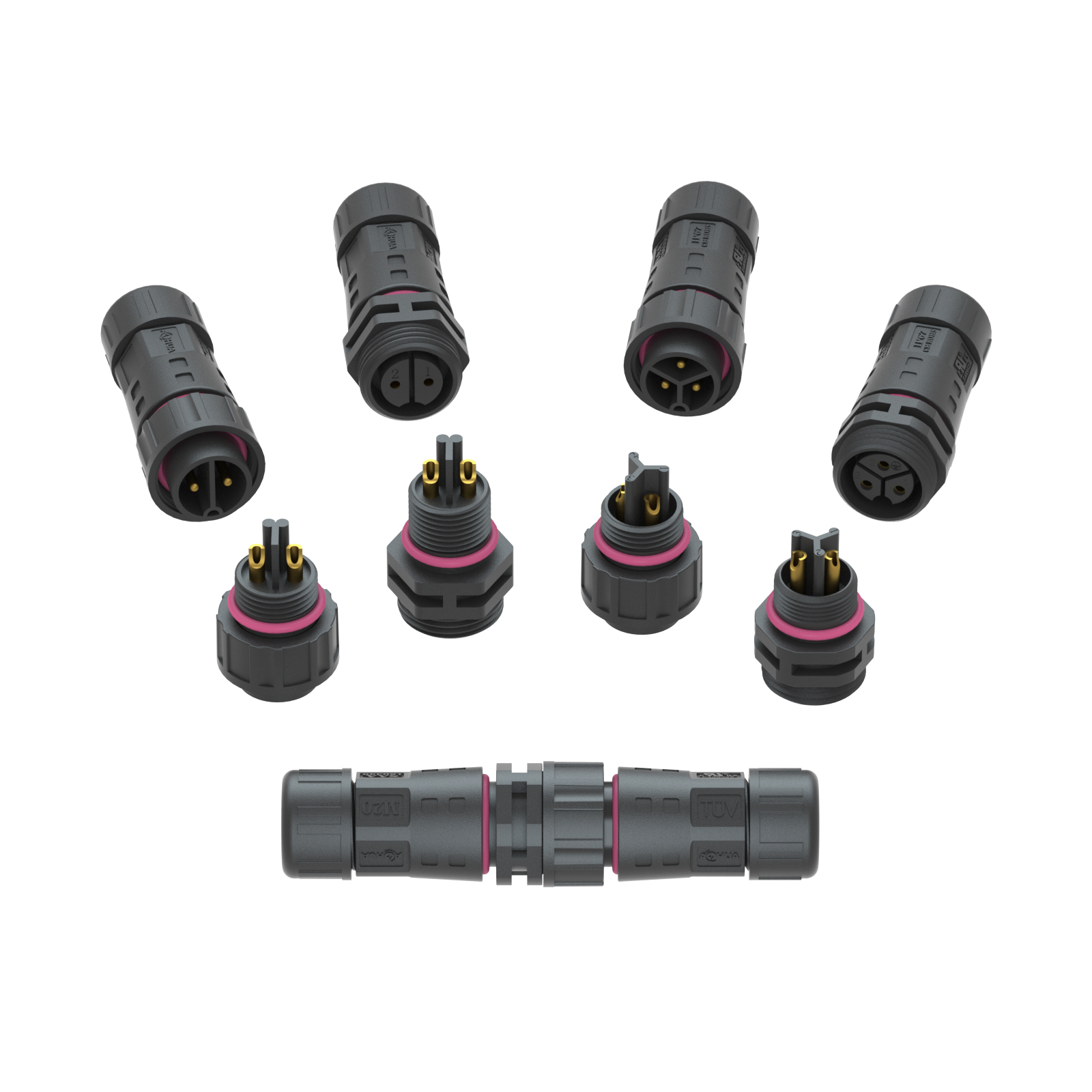

DETAILS PICTURES

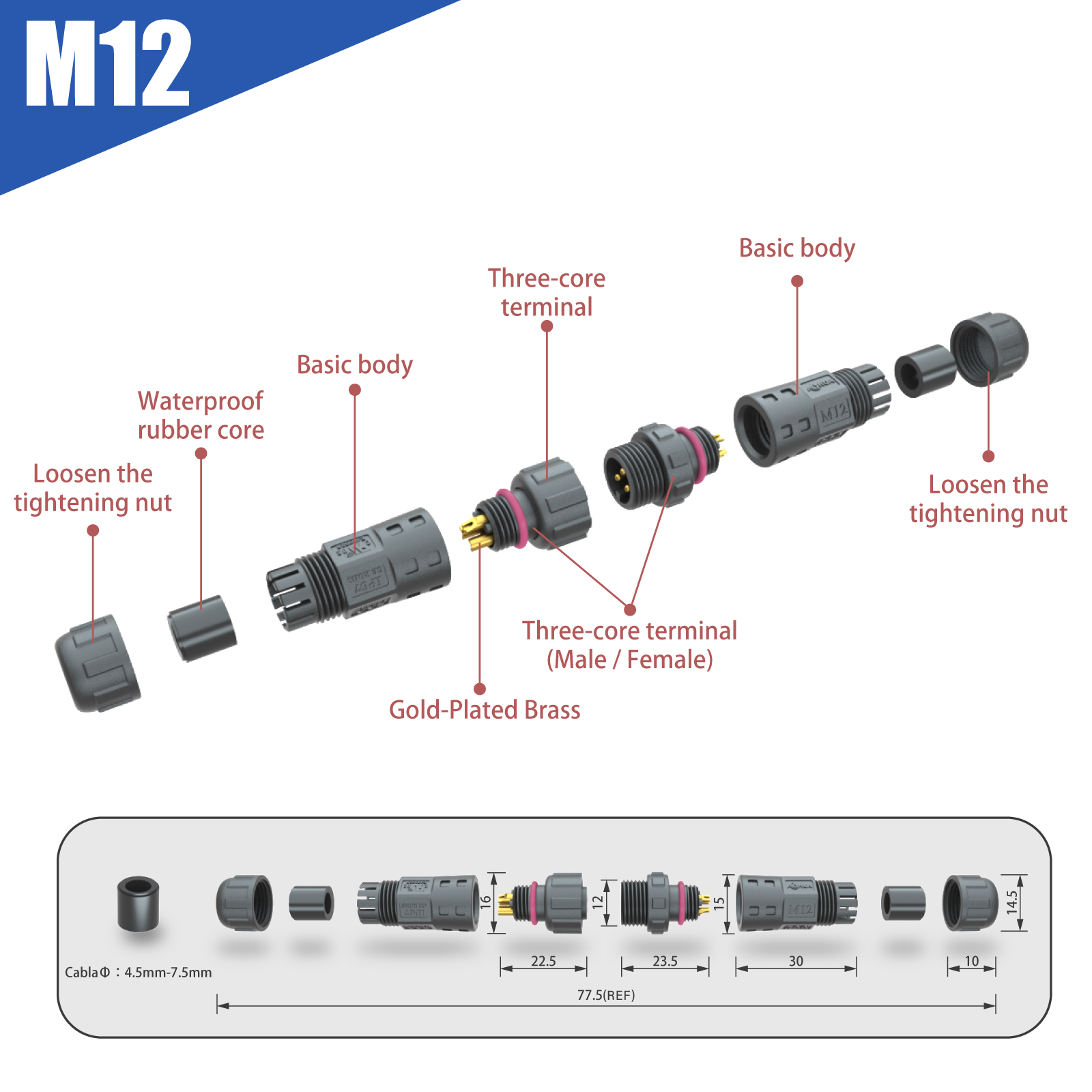

2,3

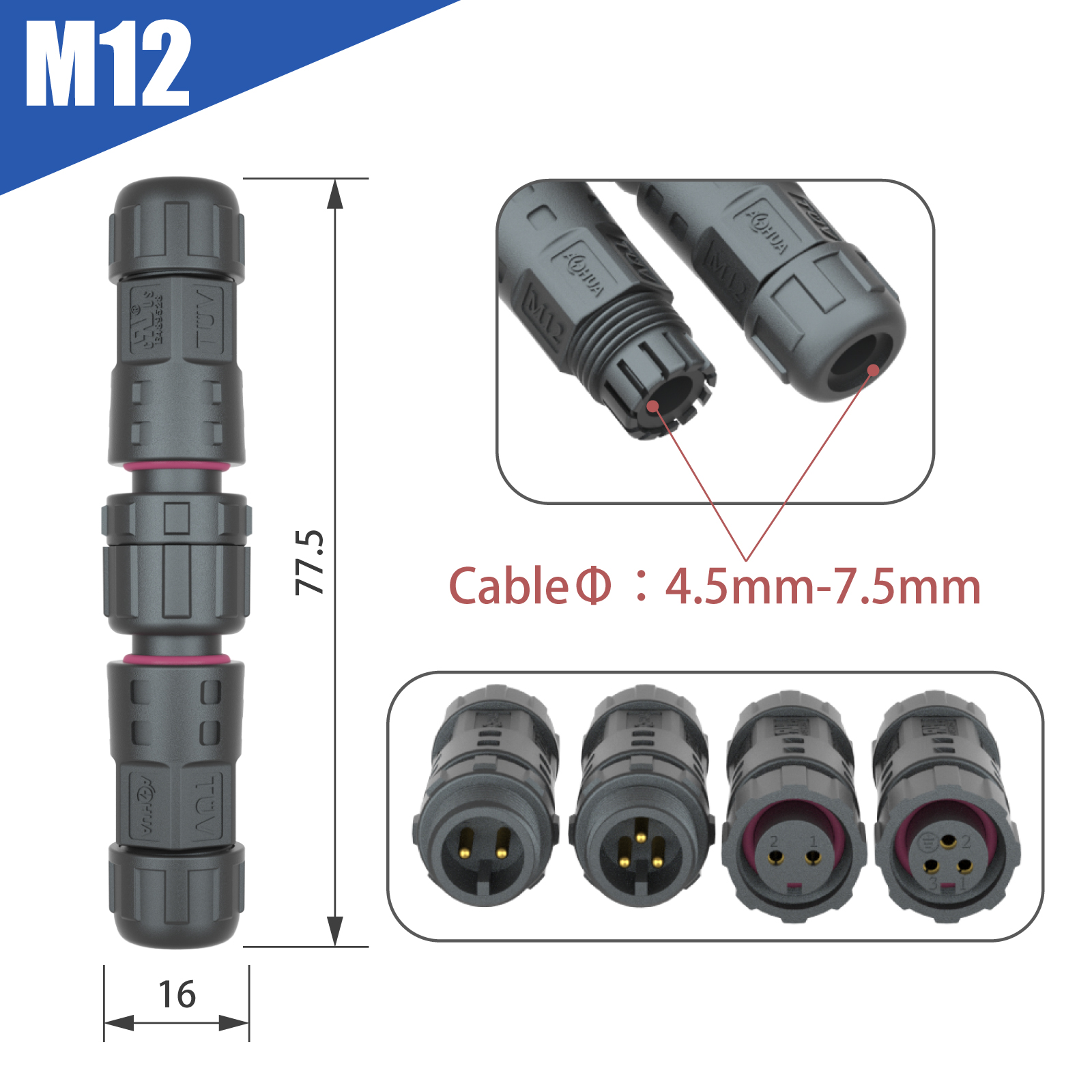

PIN M12 Wire Male&Female Assembly Connector

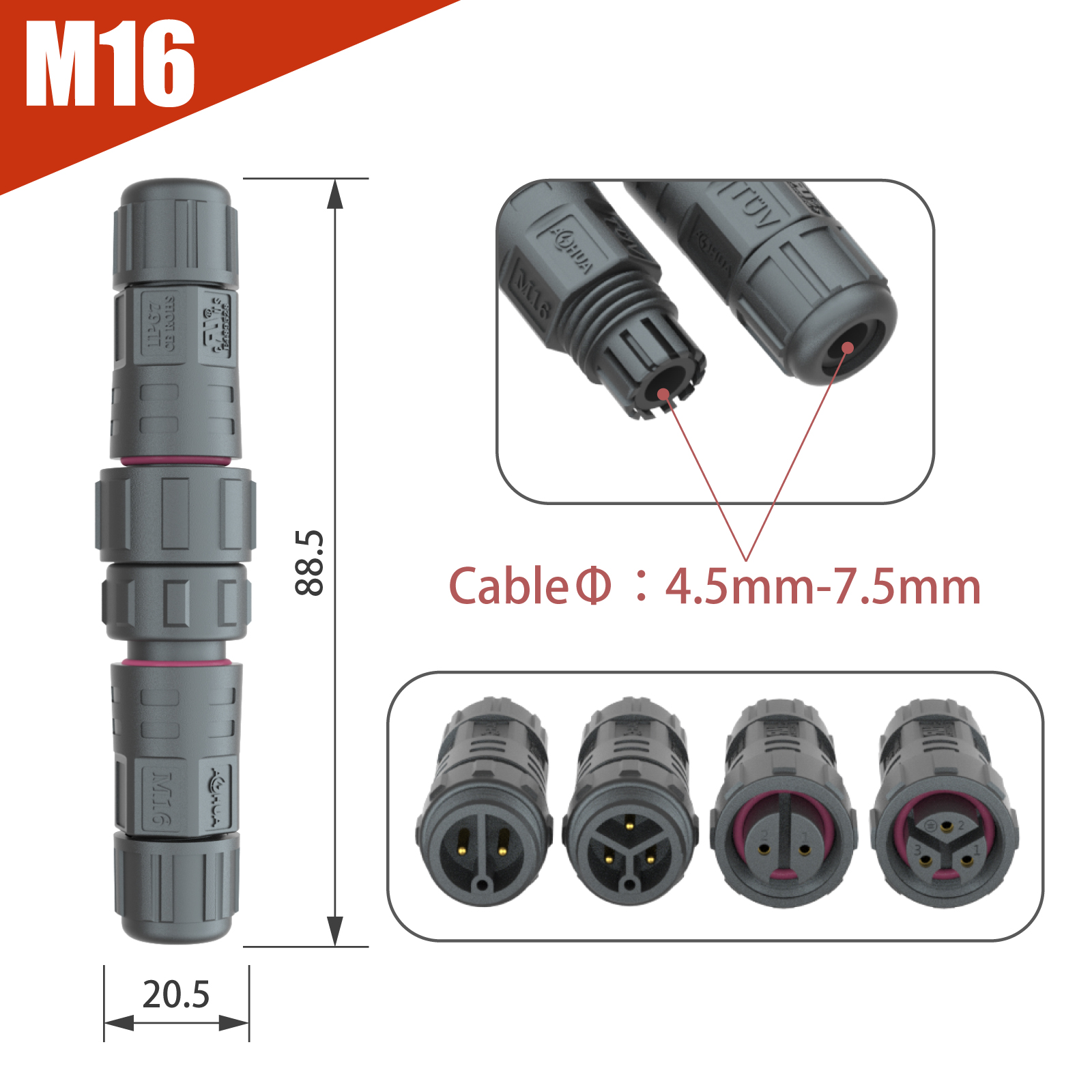

2,3 PIN M16 Wire Male&Female Assembly Connector

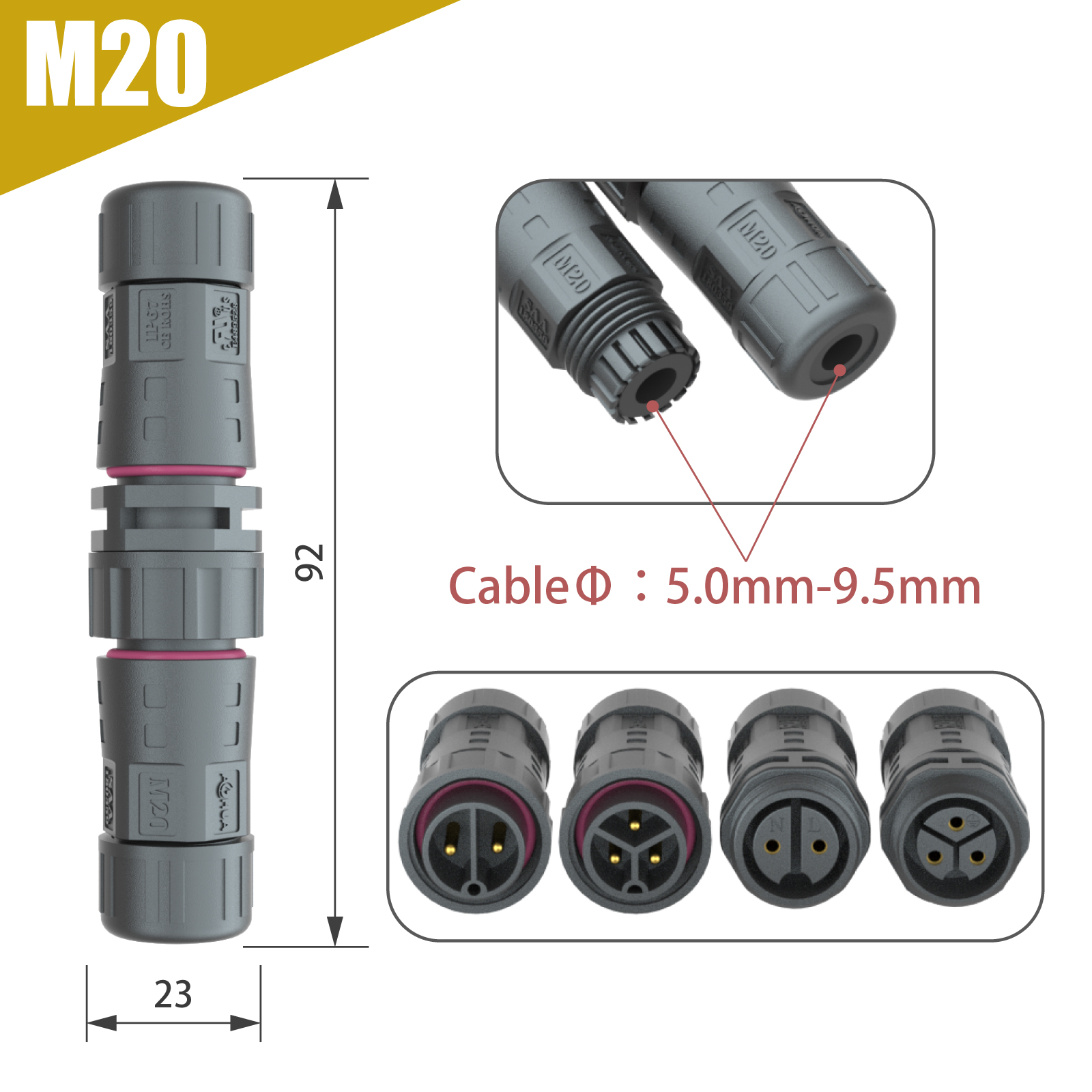

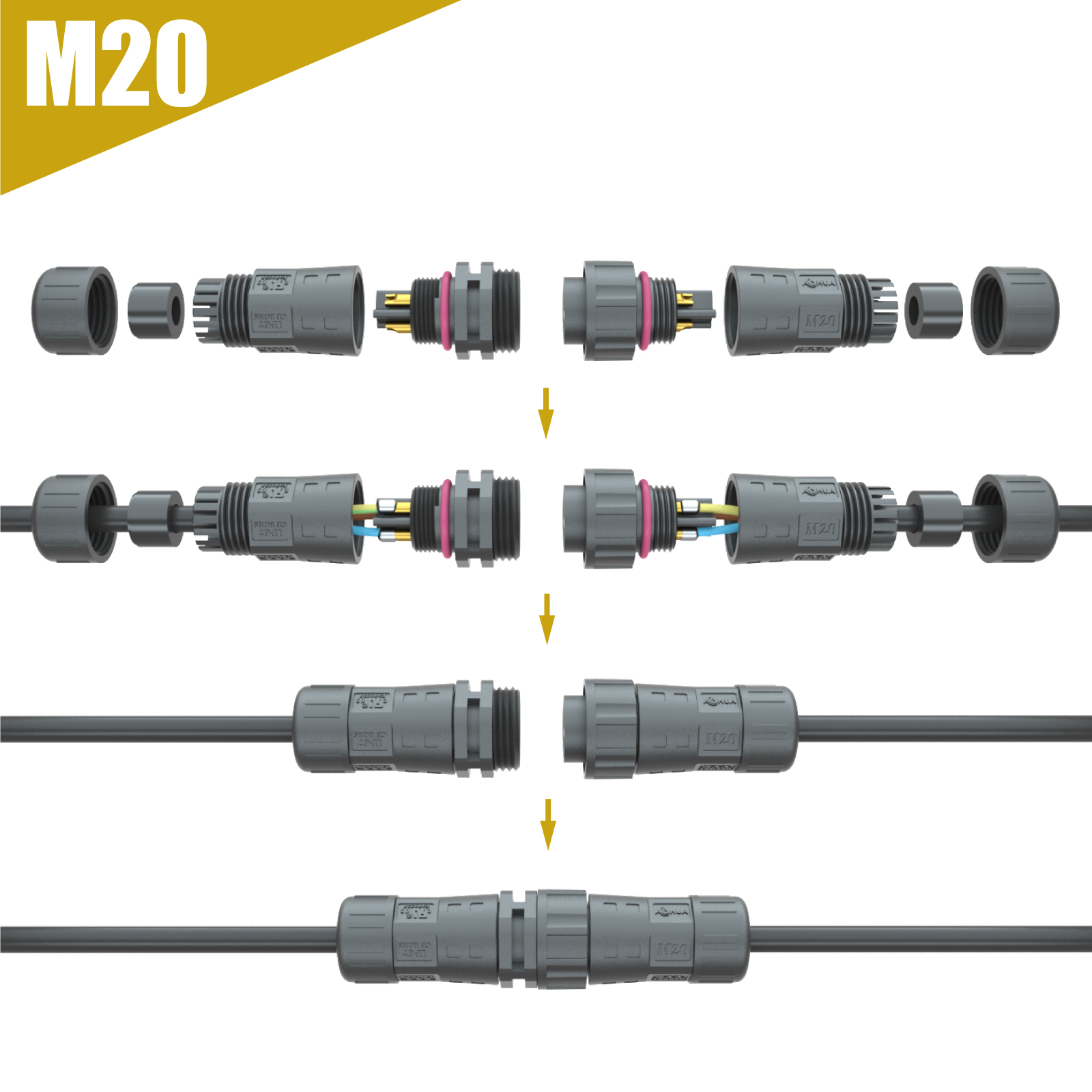

2,3 PIN M20 Wire Male&Female Assembly Connector
