Hero Section (Above the Fold)
-

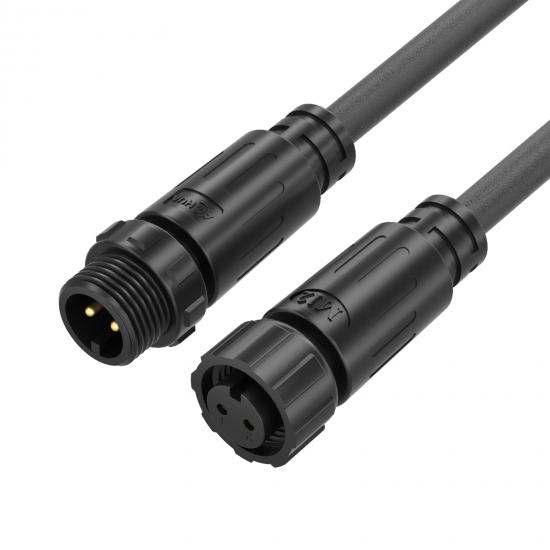

Visual: High-resolution images of the connector (male/female, assembled cable, cross-section of cable).
-
Headline: “M12 Nylon 2P/3P Waterproof Connector – IP68, 0.75mm², ROHS/REACH Certified for LED & Solar PV”
-
Subheadline: “Long Service Life | Excellent Conductivity | Wide Application in Outdoor/Industrial Wiring”

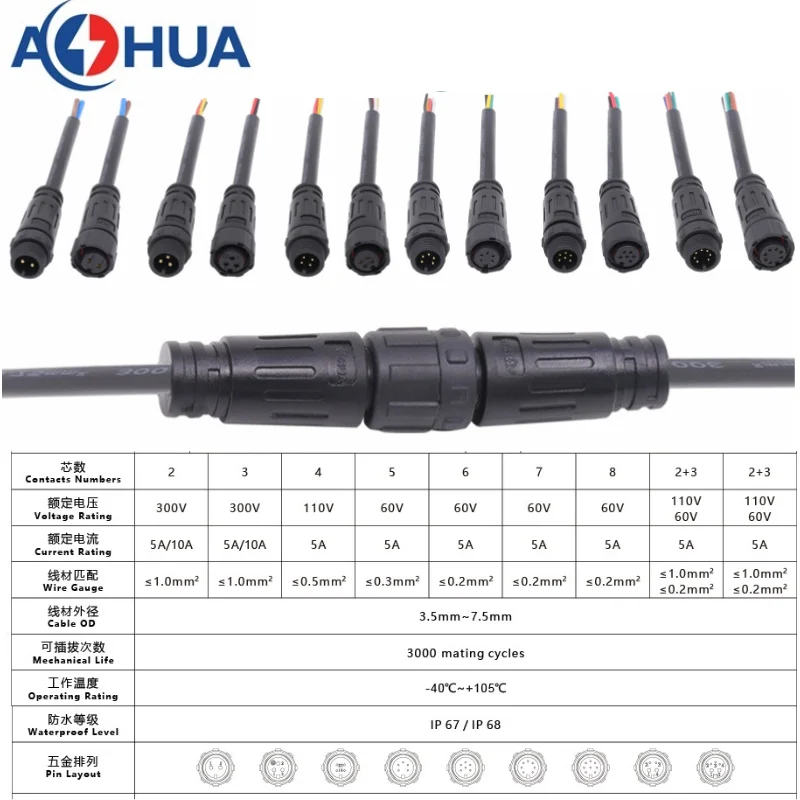

Technical Specifications (Table Format)
|
Parameter |
Details |
|---|---|
|
Connector Type |
M12 Nylon (Male/Female) |
|
Wire Gauge |
1.0mm²/0.75mm²/0.5mm²/0.3mm²/0.2mm² |
|
Cable Length |

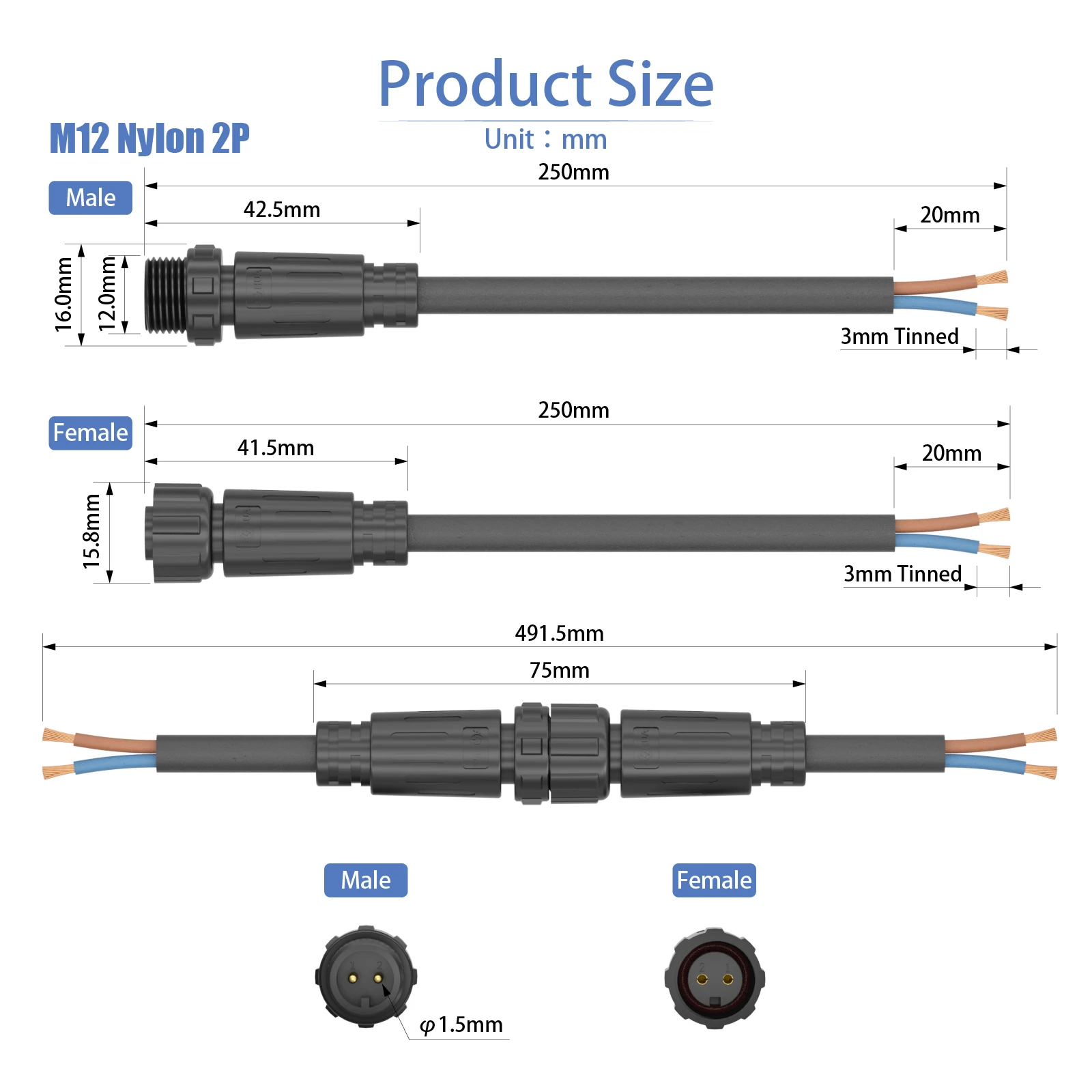

250mm (single) / 491.5mm (assembled) |
|
Protection Level |
IP68 (Waterproof/Dustproof) |
|
Material |

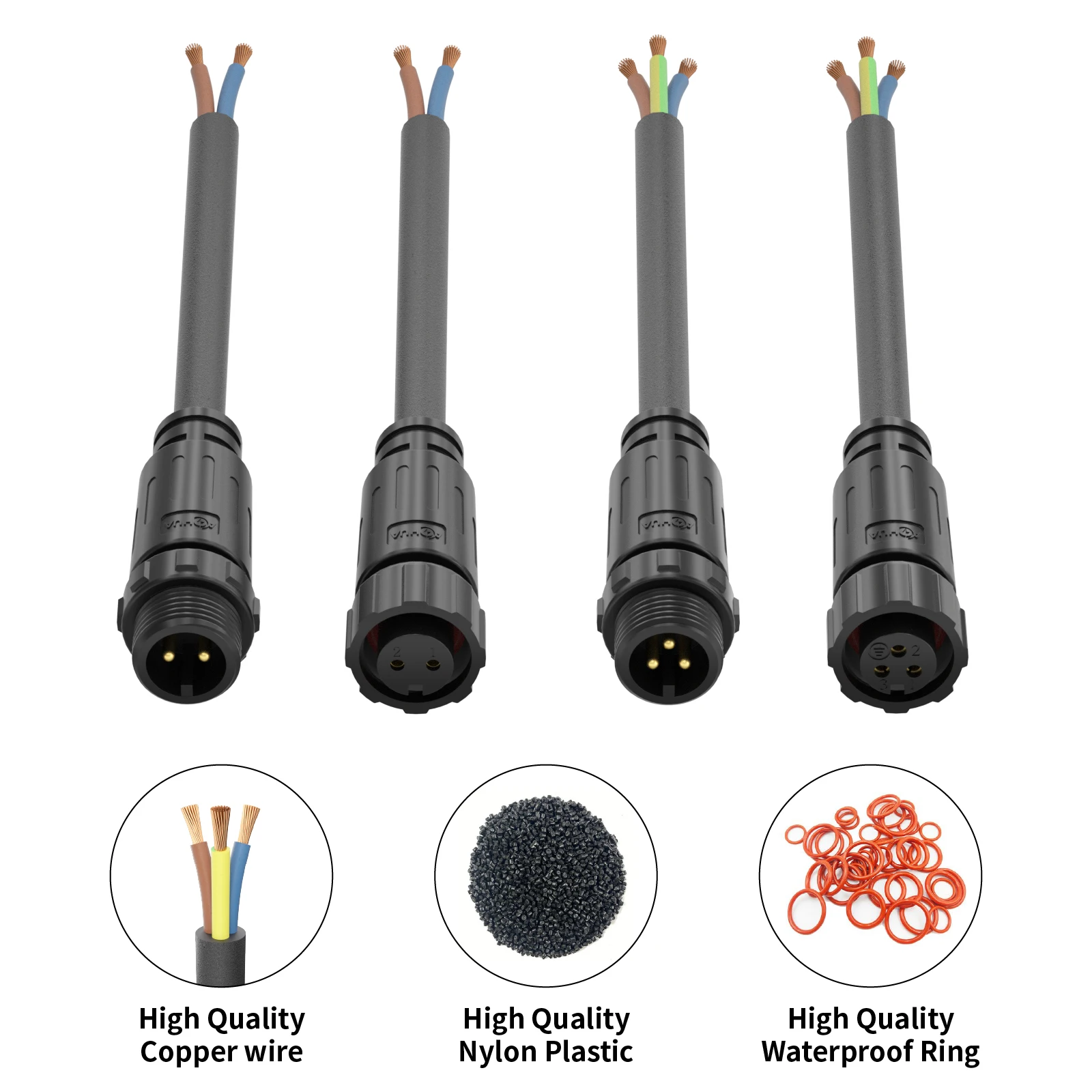

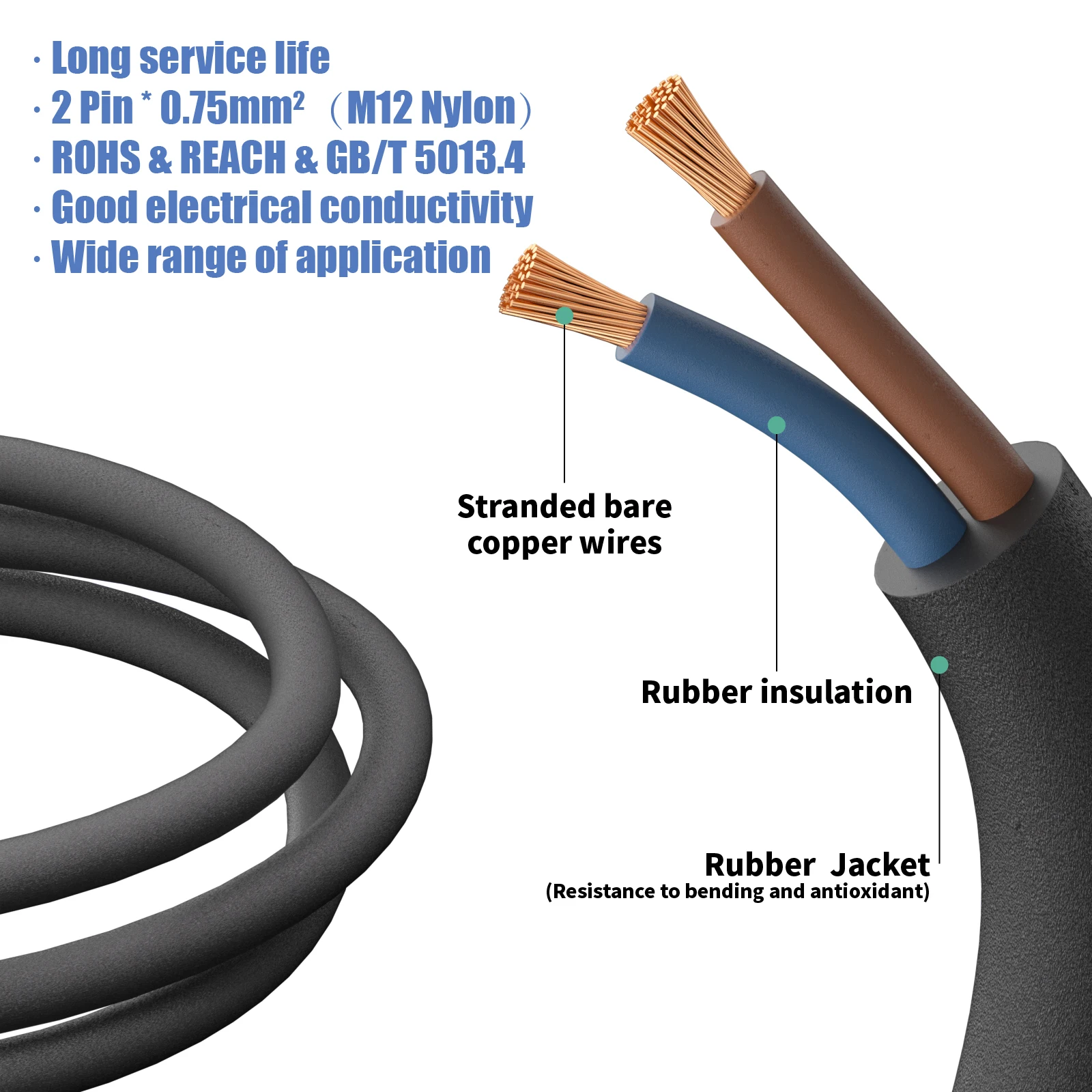

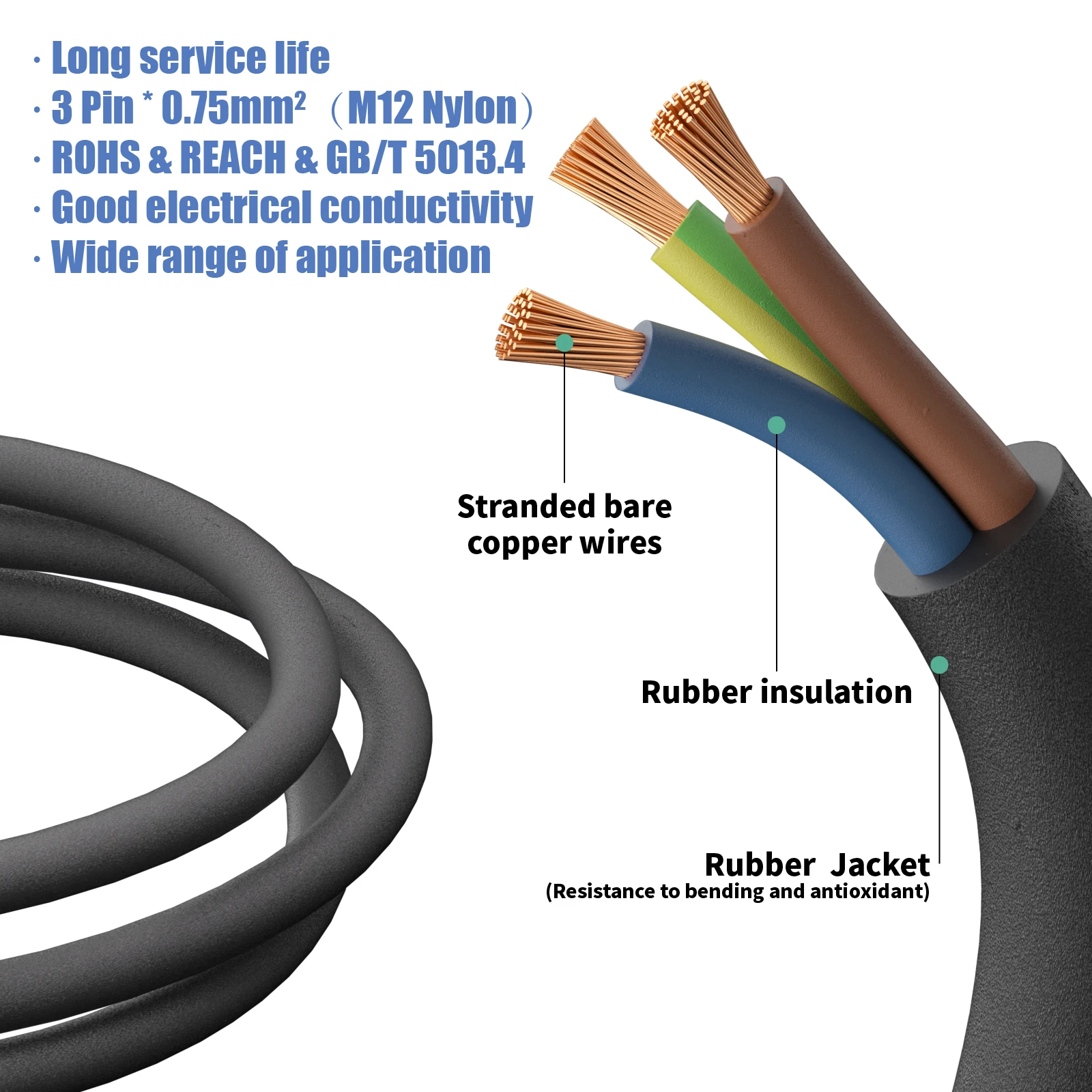

Nylon (housing) + Rubber (insulation/jacket) + Stranded Copper (conductor) |
|
Certification |
ROHS, REACH, GB/T 5013.4 |
If there are not the conenctor's gauge meet your require, you can concide making a customized:
The two key factors in Customized manufacturing cable connectors:
1. Wire Gauge: 2PIN*18AWG/3PIN*1.0MM sq...
2. Cable Length: Male side 1000mm/Female Side:2000mm....
like this picture shows:
Product Structure (Diagram + Explanation)
-
Image: Exploded view of the connector (housing, rubber ring, cable gland, pins).
-
Text: “Modular Design for Easy Assembly: Simply insert the cable into the gland, tighten the nut, and ensure a secure, waterproof seal.”
5. Application Scenarios (With Images)
-
Scenario 1: LED Strip Lighting (Outdoor Garden, Building Facade).
-
Scenario 2: Solar PV System (Panel-to-Inverter/Controller Wiring).
-
Scenario 3: Industrial Automation (Sensor/Device Connections in Harsh Environments).
6. Certifications & Compliance (Logos + Text)
-
Display logos: ROHS, REACH, GB/T 5013.4.
-
Text: “Our connectors meet strict international standards, ensuring safety, reliability, and environmental friendliness for global markets.”
7. FAQs (Address Common Concerns)
-
Q: Is this connector waterproof?
A: Yes, it’s IP68 rated – fully waterproof and dustproof, suitable for outdoor/soggy environments.
-
Q: What’s the wire gauge?
A: 0.75mm² (2P/3P), ideal for low-power signal or power transmission.
-
Q: Can I use it for solar panels?
A: Absolutely! It’s designed for solar PV systems, with stable conductivity and weather resistance.
8. Call-to-Action (CTA)
-
“Ready to upgrade your wiring? Contact us for bulk orders, customization, or samples!”
-
“Click ‘Send Inquiry’ to get a quote or technical support!”
