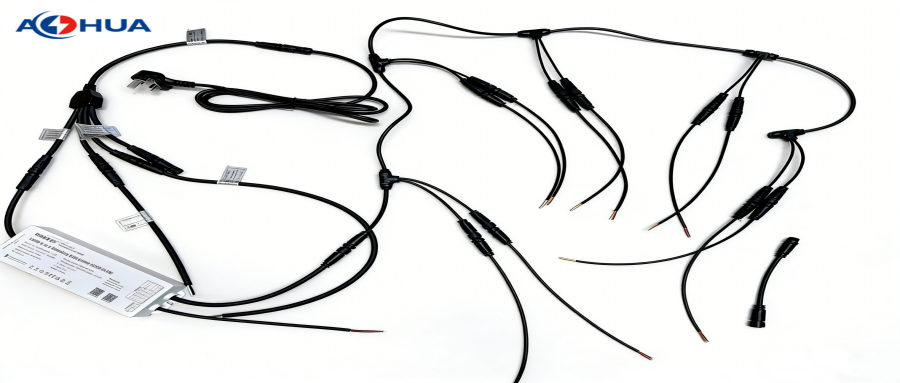

AOHUA M12 Waterproof Connector T/Y Wiring Harness Solution with UK/US/EU Plugs for Outdoor LED Lighting Systems

M12 waterproof connector can be combined with L/T/Y/ F Type connectors to provide a solution for LED lamp modules.
Widely used in LED plant growth lamp, streetlight, garden light, stage light, LED outdoor display, junction box, outdoor engineering,
mining engineering, solar-wind power, solar water heaters and various machinery and so on..

If you need help,pls contact our team:

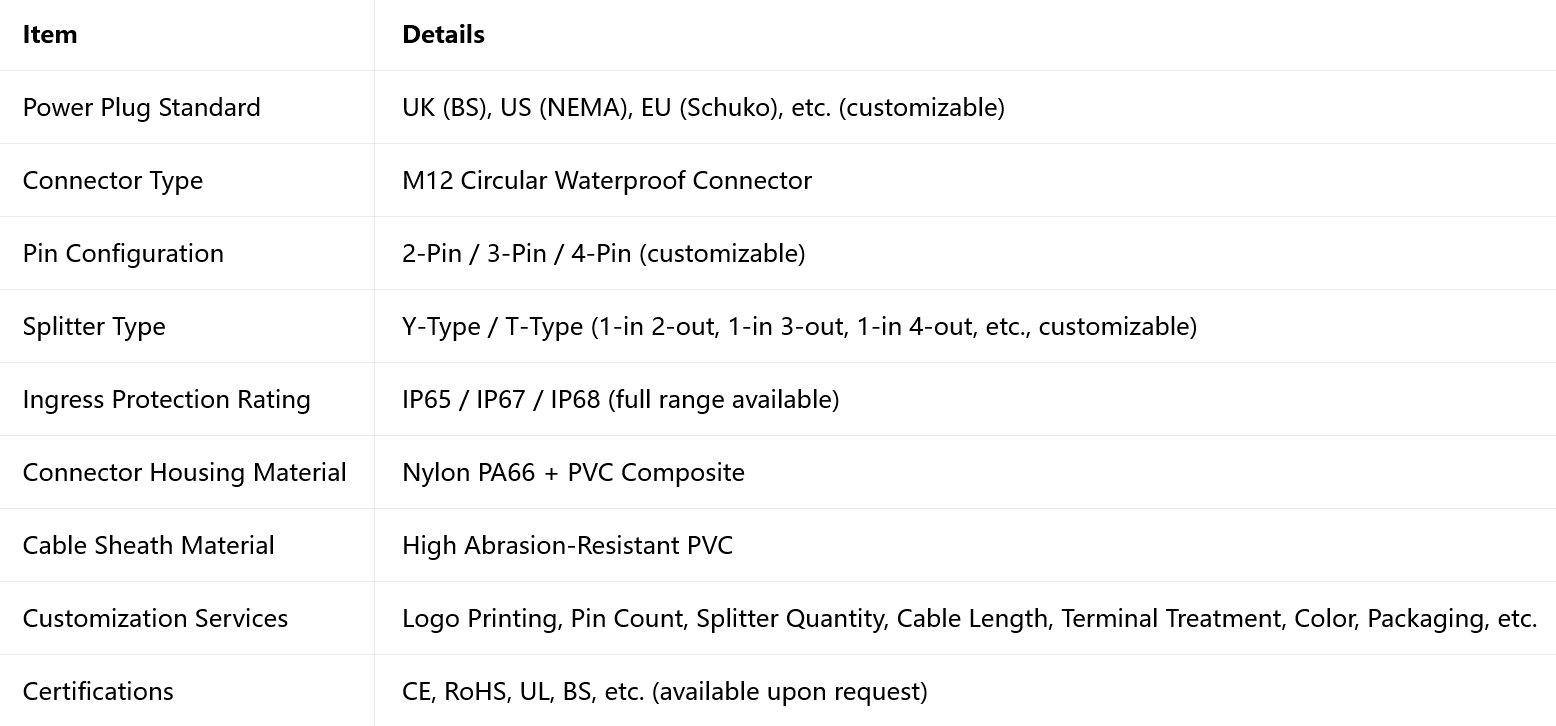

Product Overview:

Key Advantages

1. Global Standard Plugs for Worldwide Compatibility

• Supports UK, US, EU, and other mainstream global power plug standards, which can be flexibly selected according to the customer's sales region and application scenario.
  No additional adapters are required, meeting the power supply needs of outdoor LED projects in different countries worldwide with one-stop convenience.
• All plugs comply with the electrical safety standards of their respective countries, featuring flame retardancy and leakage protection, ensuring safe and compliant project implementation.

  Aohua M12 2PIN 3PIN 4PIN Waterproof Connector adopt Nylon PA66 as its raw material,with high mechanical strength, toughness, and high-temperature resistance,
  and a flame retardant rating of UL94-V0, excellent impact, corrosion.
  The hardware of the pin is gold-plated brass.

  Advantages of gold-plated brass contacts:
  1. Excellent electrical conductivity and low contact resistance.
  2. Outstanding corrosion resistance, preventing oxidation even in humid outdoor environments.
  3. Stable connection, high wear resistance, and long service life.
  4. Ensures reliable signal and power transmission with no poor contact.

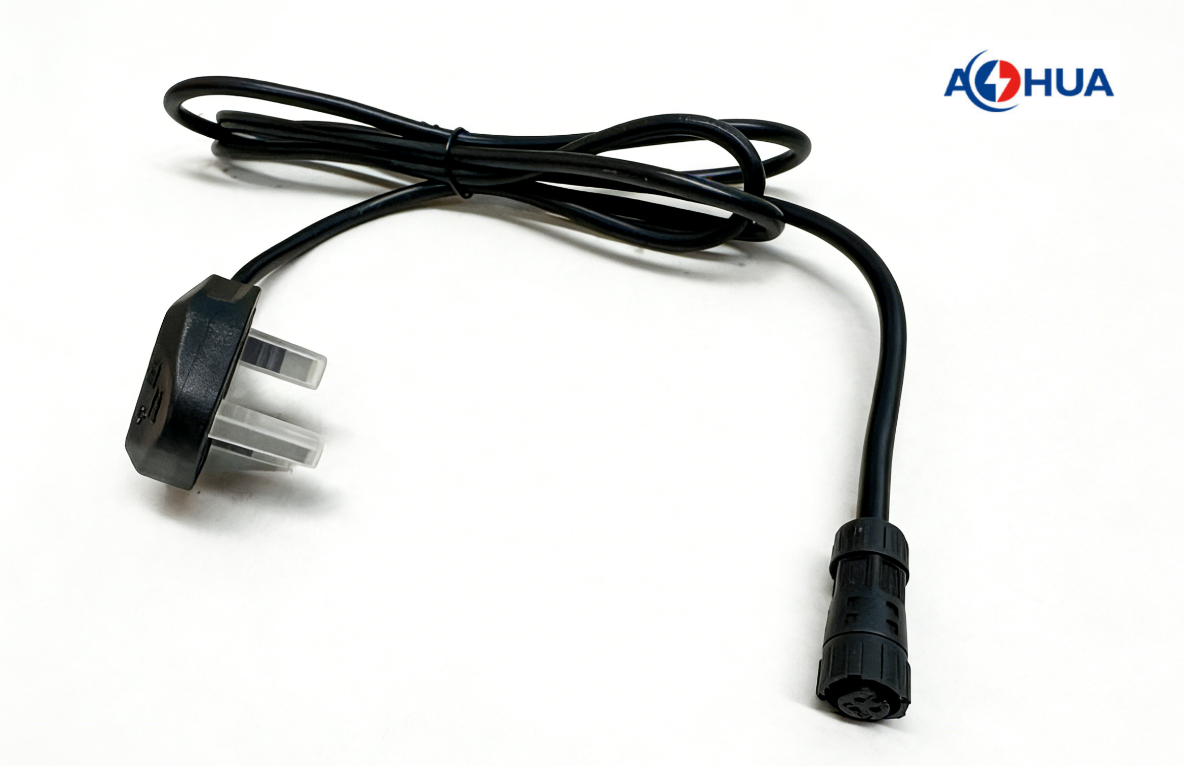

  UK-Plug +M12 UL Assembly Female 3Pin Connector.
  (There is Pre-wired type Female Connector to meet your demand).
  Total Length=2M.
  Cable : ETL 3*0.75mm2 Black PVC OD:6.8±0.2mm.
  High-quality PVC sheath offers outstanding wear resistance, UV resistance, and aging resistance,
  with a wide operating temperature range of -20℃ to 80℃.
  It will not crack or harden after long-term outdoor exposure to sunlight and rain.

  Female Connector Part Number:
  Assembly type:AH-M12-0503MFZ01112; Pre-wired Type: AH-M12-0503MFN01112.
  Female Material: Nylon PA66,
  Contact Pin: Gold-plated brass.
  Voltage/Current: 300V 5A.
  Operating Temperature: -40°C~105°C.
  Mechanical Life: 3000 mating cycles.
  Wiring Cable Outer Diameter Range is: 2.6mm~7.5mm.
  Waterproof Rated: IP67/IP68 (under laboratory test conditions:Submerged at 1 meter depth for 24 hours, no water ingress.)

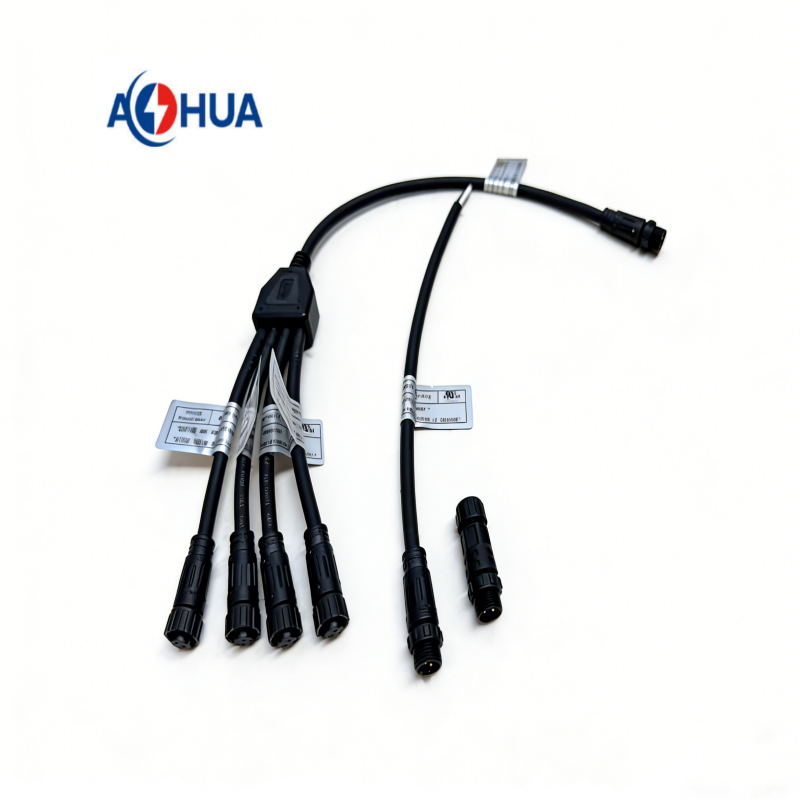

  1 Male TO 4 Y Cable Female Connector.
  Power input molded with 2Pin UL M12 male connector.
  Part number:  AH-M12-0205FMN01112.
  Cable details : 2*18AWG UL Black Rubber cable,each length=300mm.

  Power output with 4pcs 2pin female connector UL M12 connector.
  Part number:  AH-M12-0205MFN01112.
  Cable details : 2*18AWG UL Black Rubber cable,each length=300mm.

  The circuit of Y splitter can be serise and parallel based on your needs.
  Branch cable quantity it could be 1/2/3/4/5/6...or more.
  Cable length can be made as your requirement.

  Male Female Material: Nylon PA66,
  Contact Pin: Gold-plated brass.
  Voltage/Current: 300V 5A.
  Operating Temperature: -40°C~105°C.
  Mechanical Life: 3000 mating cycles.
  Waterproof Rated: IP67/IP68 (under laboratory test conditions:Submerged at 1 meter depth for 24 hours, no water ingress.)

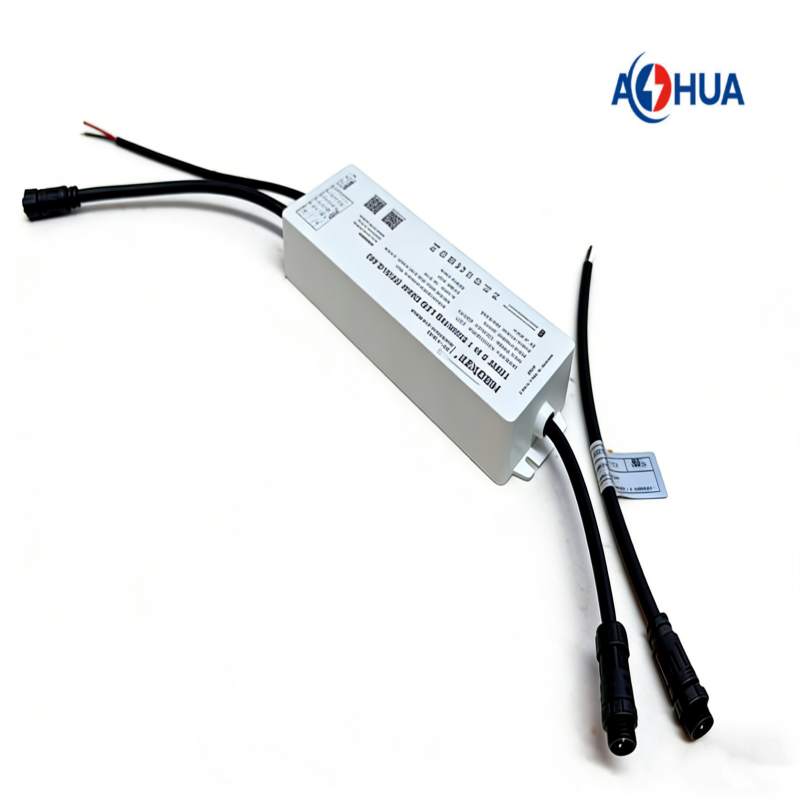

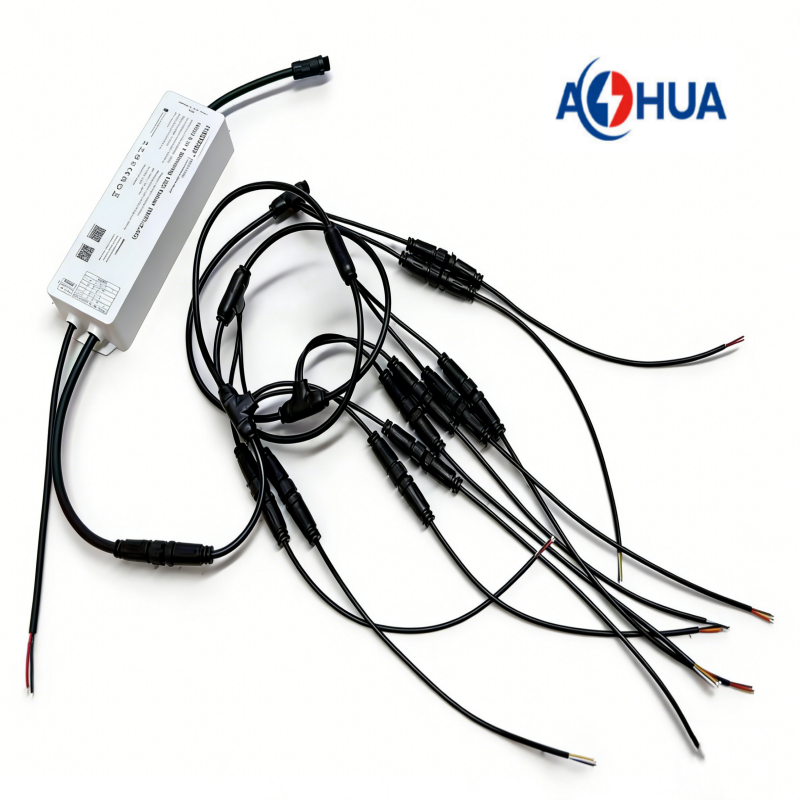

  150W LED Driver+2PIN Male Connector/4Pin Female Connector.
  Power Input Molded With M12 2Pin Male Connector.
  There is Assembly Male Connector can be choosing from.
  Part Number: AH-M12-0502FMN01112.
  Assembly Type Male Connector: AH-M12-0502FMZ01112.
  Cable: VDE 2*1.0mm2 Black Rubber Cable OD:7.2mm.
  Length=180mm
  Voltage/Current:300V 5A

  Power Output Molded with M12 4Pin Male Connector.
  Part Number:
  AH-M12-0504MFN01112.
  Assembly Type 4Pin Male Connector:AH-M12-0504MFZ01112.
  Cable: 4*0.2mm2 Black Rubber Cable.
  Length=200mm.
  Voltage/Current:300V 5A
  Male Female Connector injection with Nylon PA66 Material,Hardware: Gold-plated Brass.
  Operating Temperature: -40°C~105°C.
  Mechanical Life: 3000 mating cycles.
  Waterproof Rated: IP67/IP68 (under laboratory test conditions:Submerged at 1 meter depth for 24 hours, no water ingress.)

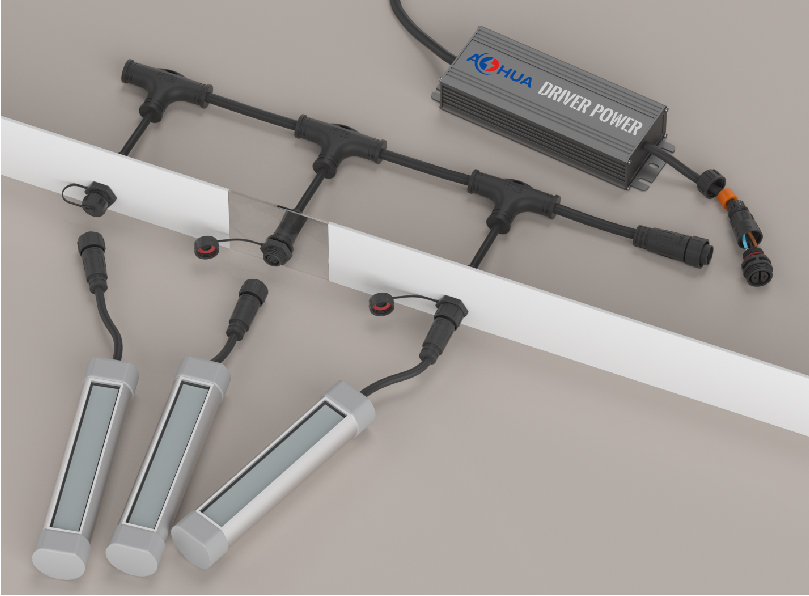

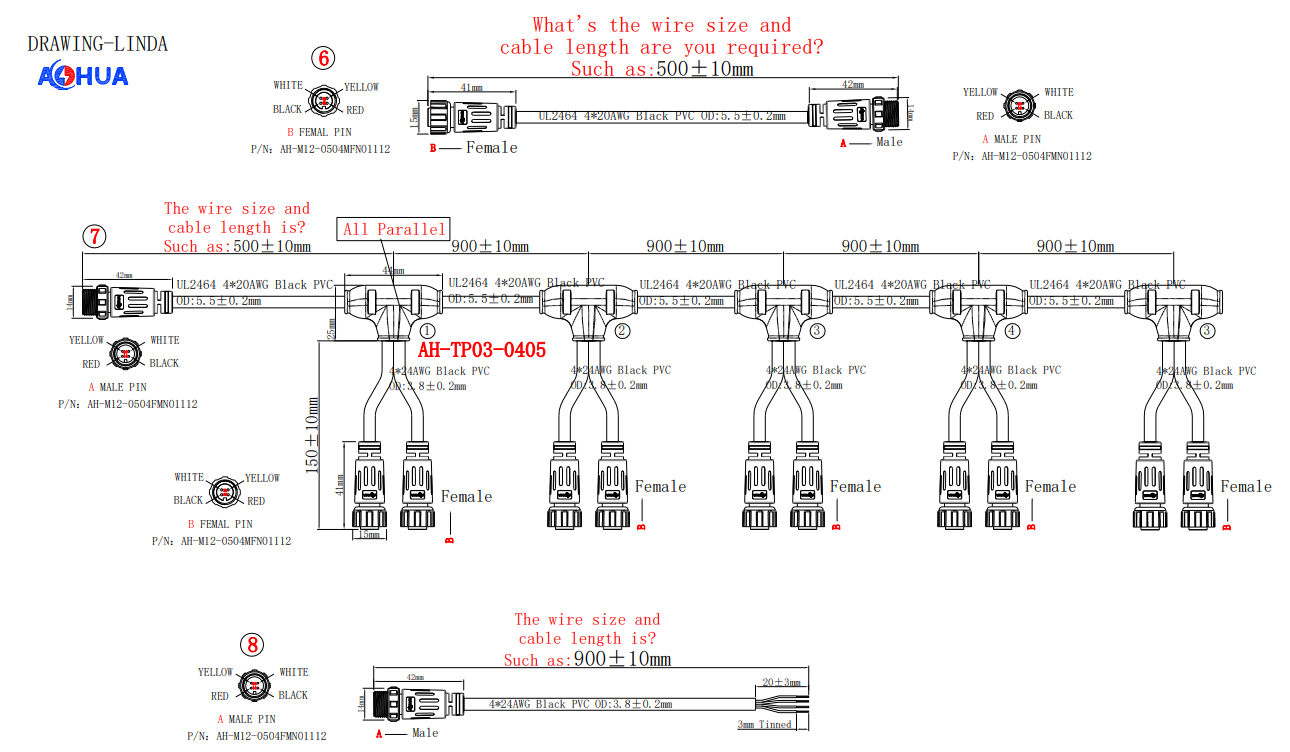

  LED Driver Output 4Pin female connector+5 Pcs T splitter Cable Connector.
  The circuit of T splitter can be serise and parallel for choosing.
  Branch cable quantity it could be 1/2/3/4/5/6...or more.
  Cable length can be made as your requirement.

  Power input 4pin male connector.
  T Splitter injection with PVC material.
  High-quality PVC sheath offers outstanding wear resistance, UV resistance, and aging resistance,
  with a wide operating temperature range of -20℃ to 80℃.
  It will not crack or harden after long-term outdoor exposure to sunlight and rain.
  Voltage/Current:300V 5A

  Male Female Connector injection with Nylon PA66 Material,Hardware: Gold-plated Brass.
  Operating Temperature: -40°C~105°C.
  Mechanical Life: 3000 mating cycles.
  Waterproof Rated: IP67/IP68 (under laboratory test conditions:Submerged at 1 meter depth for 24 hours, no water ingress.)

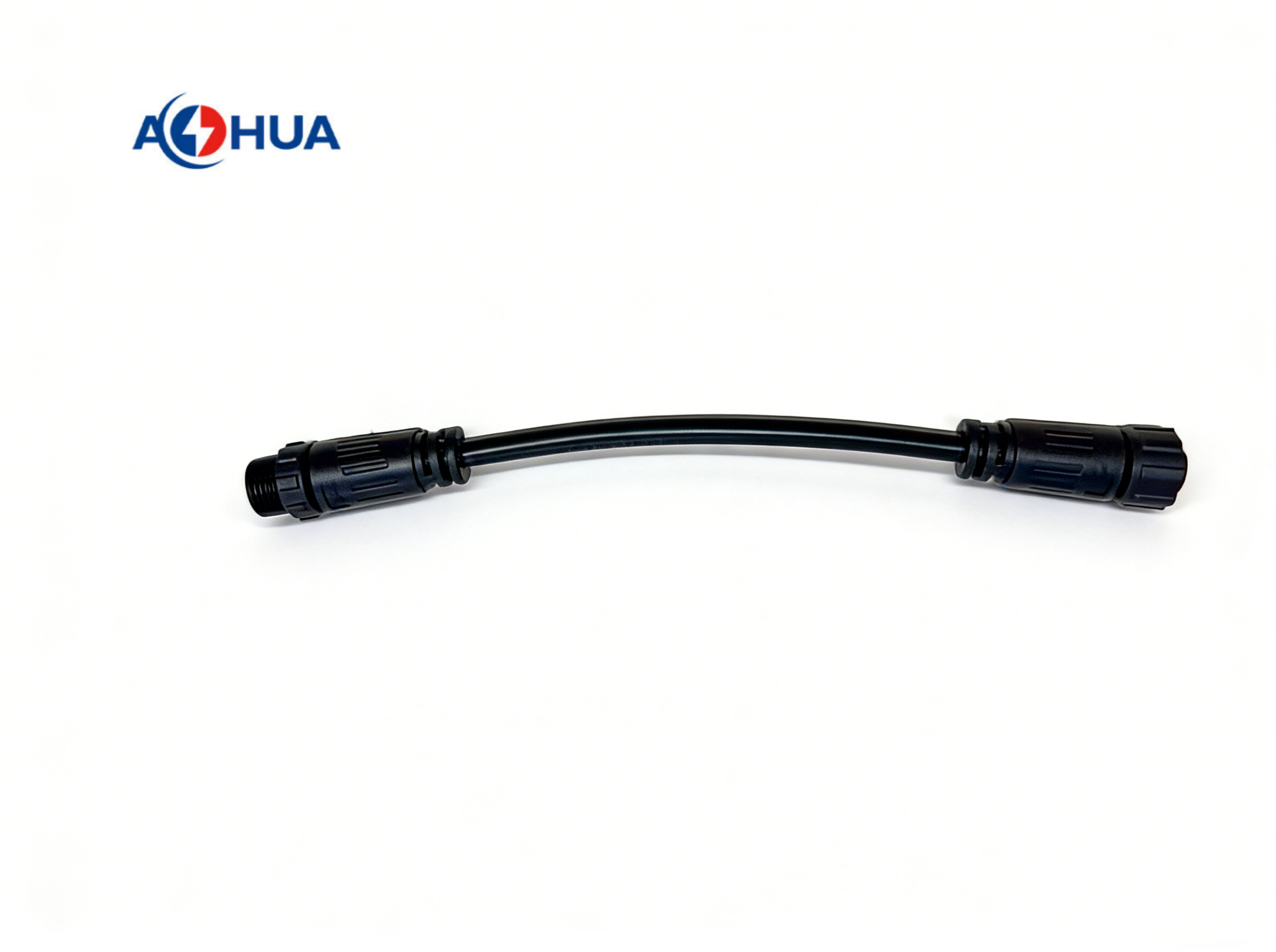

  4Pin Male-Female Bridge Cable Connector M12.
  If the distance between your device and lights is too far away,this bridge cable will be a nice choice.

• Make wiring more neat and convenient in outdoor lighting projects.
• Allow easy adjustment of installation position and later maintenance.
  Part number:
  AH-M12-0504FMN/MFN01112
  Male Female Connector injection with Nylon PA66 Material,Hardware: Gold-plated Brass.
  Operating Temperature: -40°C~105°C.
  Mechanical Life: 3000 mating cycles.
  Cable: UL2464 4*24AWG Black PVC cable.
  High-quality PVC sheath offers outstanding wear resistance, UV resistance, and aging resistance,
  with a wide operating temperature range of -20℃ to 80℃.
  Can be customized as Male-male,Female-female type extension cable conenctor.



Full-Customization Service for Project-Specific Needs.
We support full-process personalized customization to perfectly match your project requirements:
Plug Standards: Customize UK/US/EU and other global plug standards.
Pin & Splitter: Customize 2/3/4-pin, Y/T-type splitters, and 1-in 2/3/4-out configurations.
Cable & Terminals: Customize cable length, terminal treatment (bare wire, pre-terminated, custom plugs), and color.
Branding & Packaging: Support logo printing and exclusive packaging solutions for brand building.
IP Rating: Customize waterproof levels according to specific project environments.


How to get the items you needed?

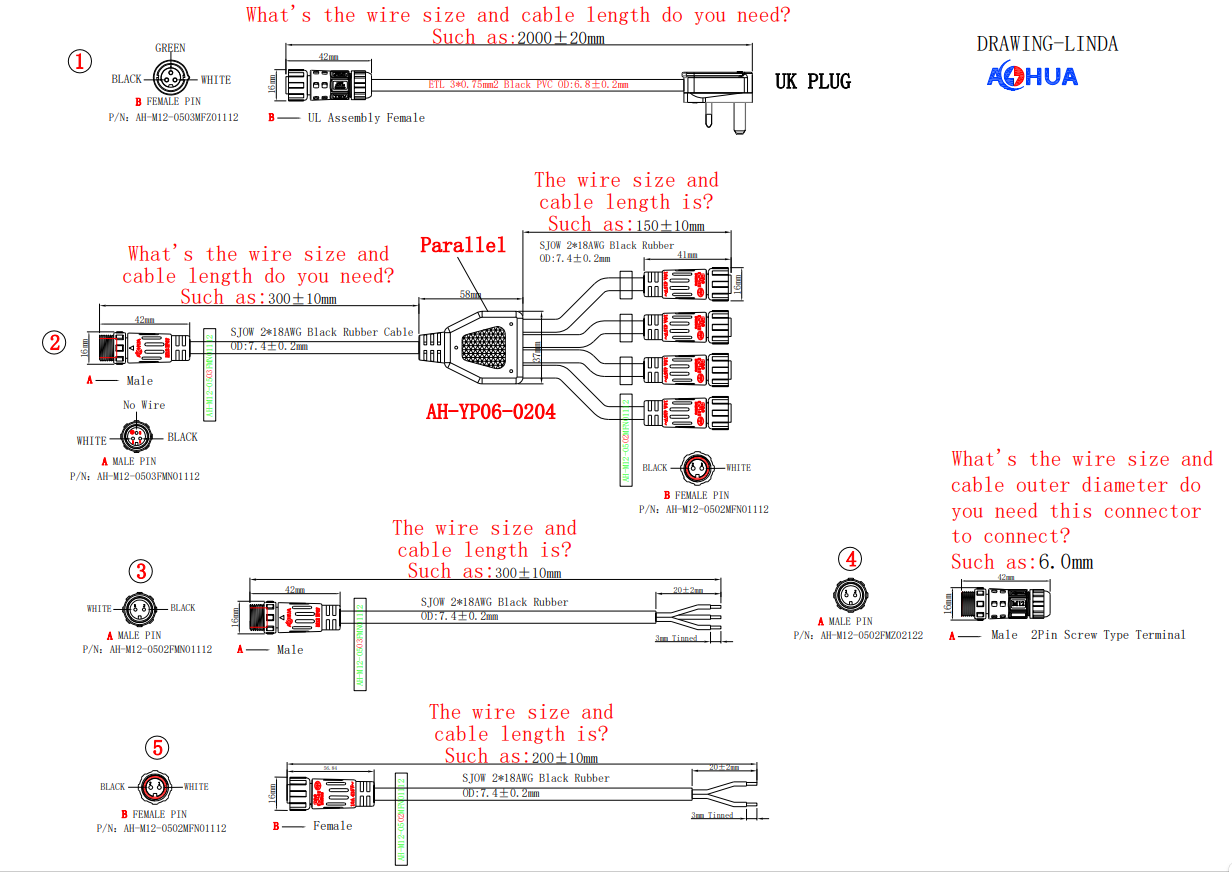

Your sample sketch would be appreciated, so we can clearly understand what you are actually looking for.
then let me know more information about cable details as below:
