This is the AHUA's M12 series waterproof connectors, classified as industrial cable connectors.
1. Product Type

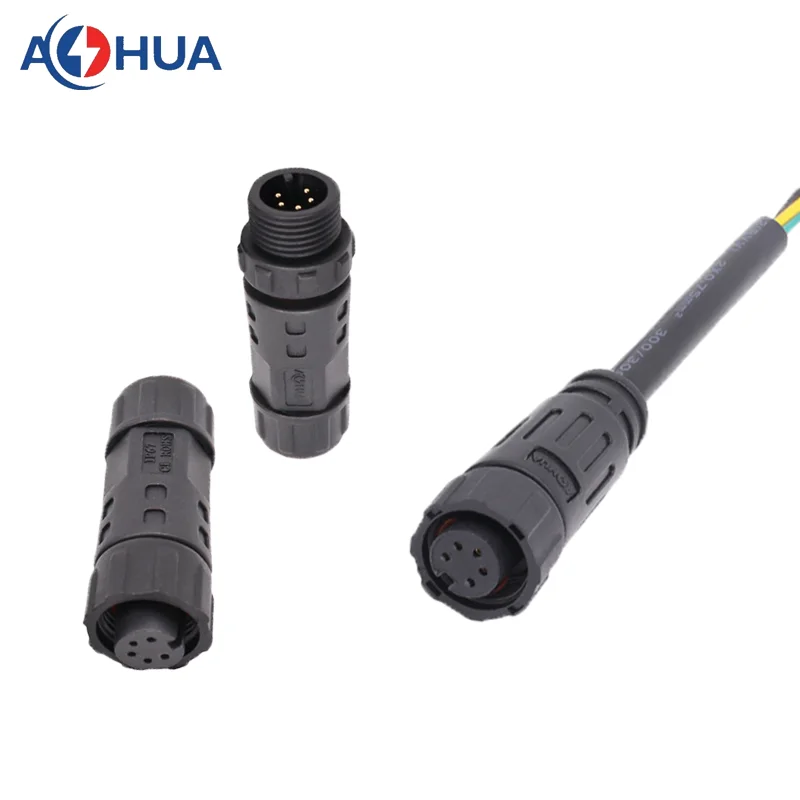

This is a waterproof aviation connector featuring a male-to-female mating design. The illustration depicts three components:
Left: Female connector (socket) with dust cover
Centre: Male connector (plug) with terminal block
Right: Female connector (pre-assembled with cable)
2. Core Features
• Waterproof and dustproof: Typically rated IP67/IP68, suitable for outdoor, buried, and humid environments (e.g., streetlights, sensors, photovoltaic equipment).
• Multi-core Connectivity: Features 5-core/8-core interfaces (illustrated male connector with 5 metal pins), supporting simultaneous power and signal transmission.
• Durability: Constructed with a nylon housing and gold-plated copper pins, withstands temperatures from -40°C to 105°C and offers a mating cycle life of up to 3000 insertions.
3. Application Scenarios
It is primarily employed for cable connections in outdoor electrical installations: such as urban LED streetlights, ensuring stable power supply connections amidst wind and rain; control modules for factory outdoor automation equipment, withstanding vibrations to safeguard signal integrity; outdoor IoT sensors (e.g., agricultural temperature and humidity probes), maintaining reliable data links; and photovoltaic power station components, meeting their insulation and weather resistance requirements to prevent environmental interference with power transmission.

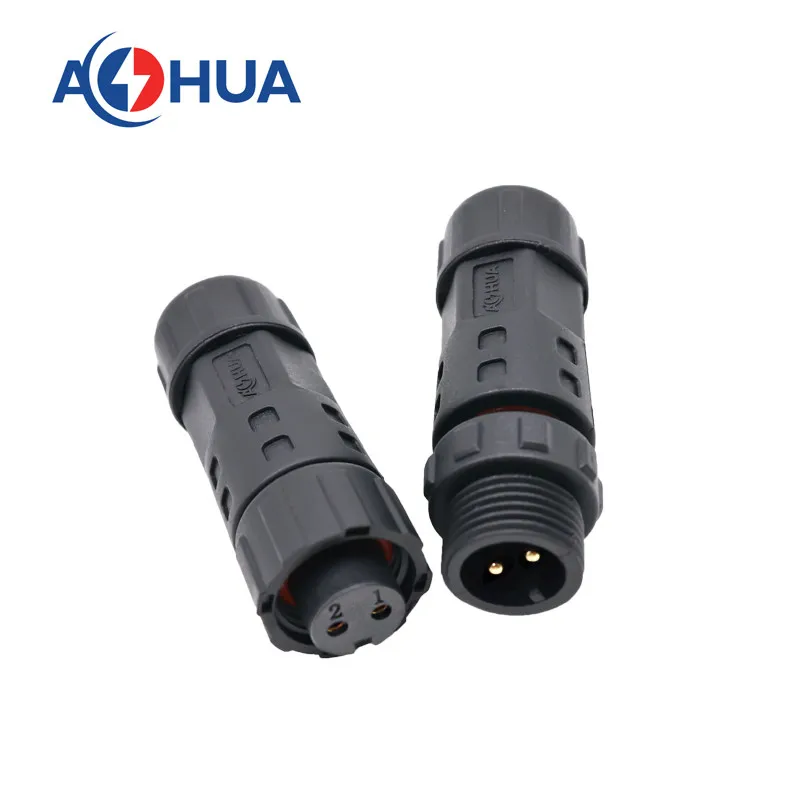

PIN number: 2PIN
Voltage Rating: 300V
Current Rating: 5A
Wire Gauge: 0.2mm²/24AWG| 0.3mm²/22AWG| 0.5mm²/20AWG| 0.75mm²/18AWG| 1.0mm²/16AWG
Suit Cable Outside Diameter: 2.6mm-7.5mm
PIN number: 3PIN
Voltage Rating: 300V
Current Rating: 5A
Wire Gauge: 0.2mm²/24AWG| 0.3mm²/22AWG| 0.5mm²/20AWG| 0.75mm²/18AWG| 1.0mm²/16AWG
Suit Cable Outside Diameter: 2.6mm-7.5mm

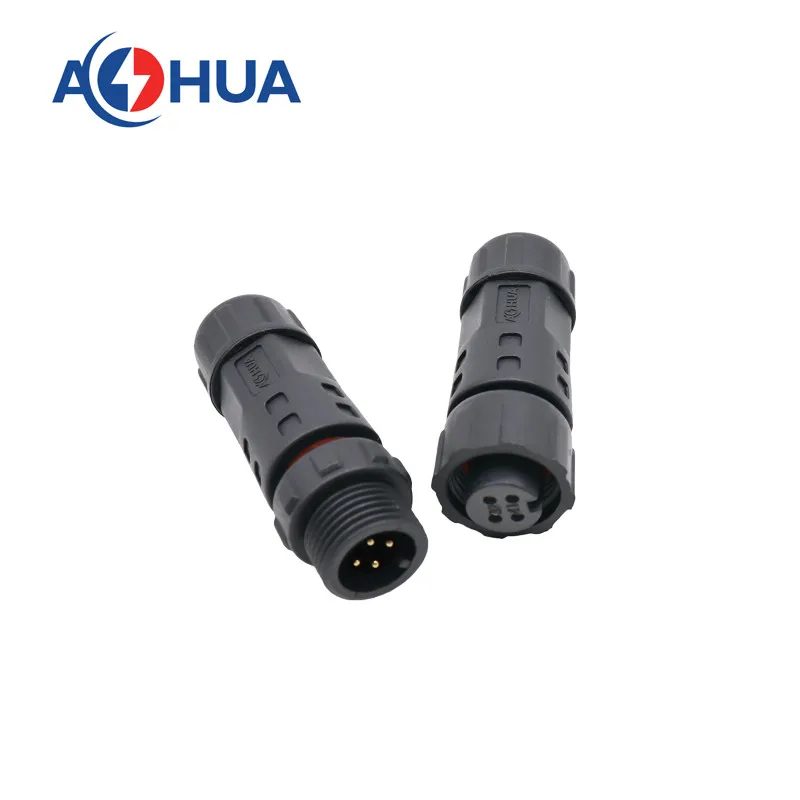

PIN number: 4PIN
Voltage Rating: 300V
Current Rating: 5A
Wire Gauge: 0.2mm²/24AWG| 0.3mm²/22AWG| 0.5mm²/20AWG| 0.75mm²/18AWG| 1.0mm²/16AWG
Suit Cable Outside Diameter: 2.6mm-7.5mm

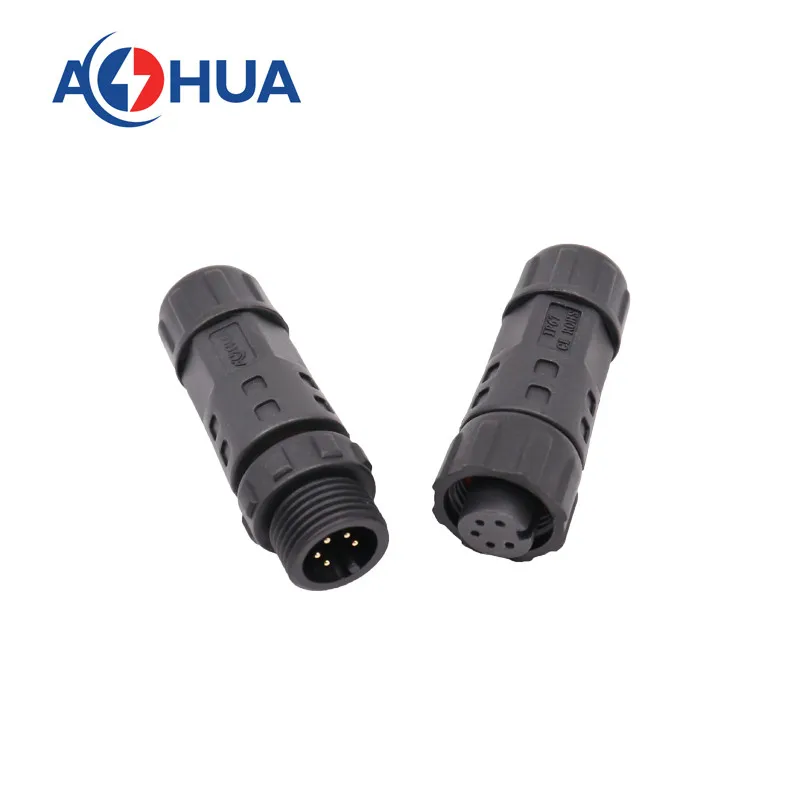

PIN number: 5PIN
Voltage Rating: 60V
Current Rating: 5A
Wire Gauge: 0.2mm²/24AWG| 0.3mm²/22AWG|
Suit Cable Outside Diameter: 2.6mm-7.5mm

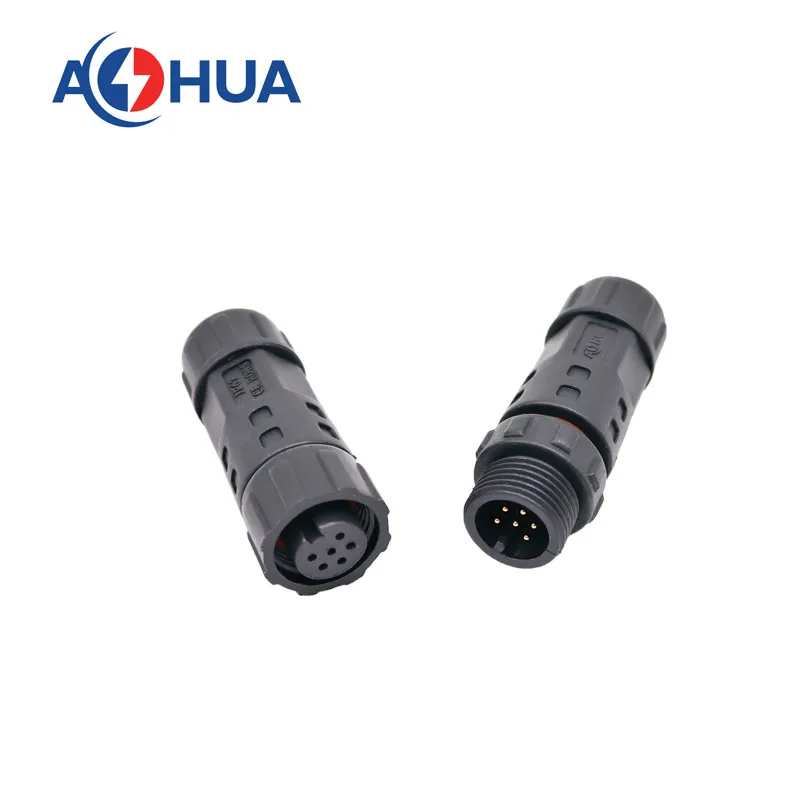

PIN number: 6PIN
Voltage Rating: 60V
Current Rating: 5A
Wire Gauge: 0.2mm²/24AWG|
Suit Cable Outside Diameter: 2.6mm-7.5mm

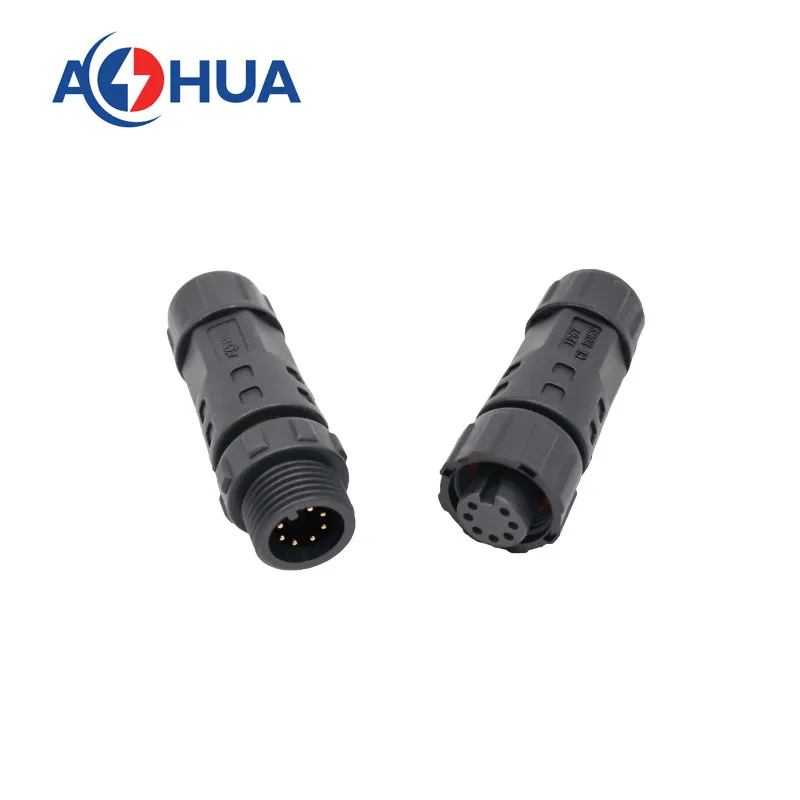

PIN number: 7PIN
Voltage Rating: 300V
Current Rating: 5A
Wire Gauge: 0.2mm²/24AWG
Suit Cable Outside Diameter: 2.6mm-7.5mm

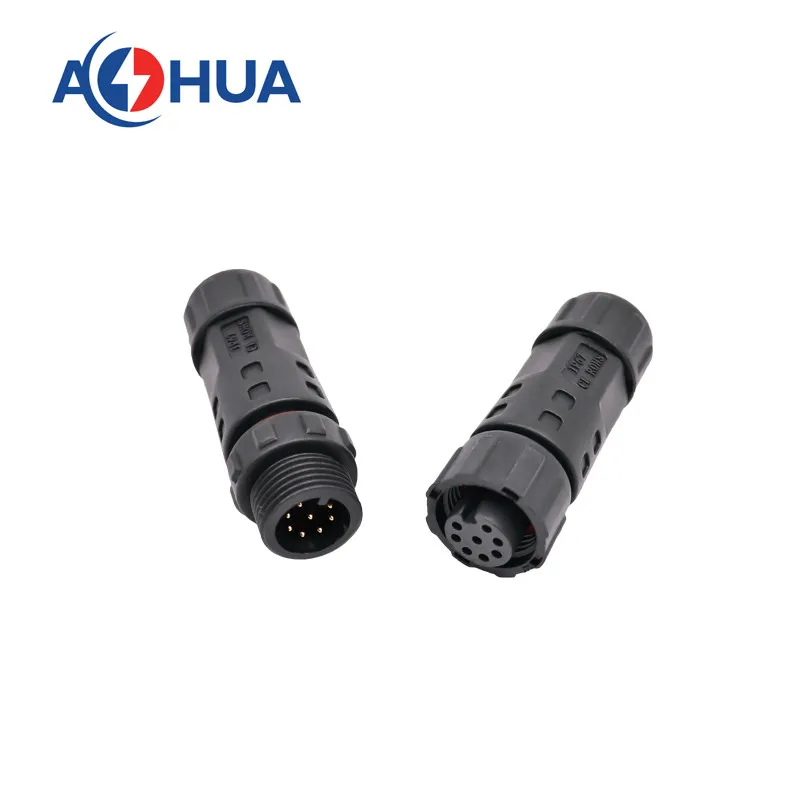

PIN number: 8PIN
Voltage Rating: 300V
Current Rating: 5A
Wire Gauge: 0.2mm²/24AWG|
Suit Cable Outside Diameter: 2.6mm-7.5mm
Specification
|
item
|
M12 Plug to Plug
|
|
Application
|
Power Connection
|
|
Place of Origin
|
China
|
|
Model Number
|
M12
|
|
Brand Name
|
AOHUA
|
|
Gender
|
Male/Female
|
|
Housing Material
|
Thermoplastic plastic PA66
|
|
IP Level
|
IP67/IP68
|
|
Shape
|
Round
|
|
Type
|
waterproof connector
|
