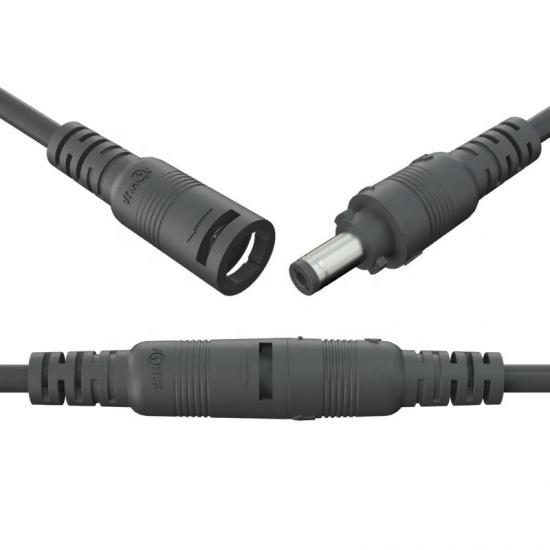

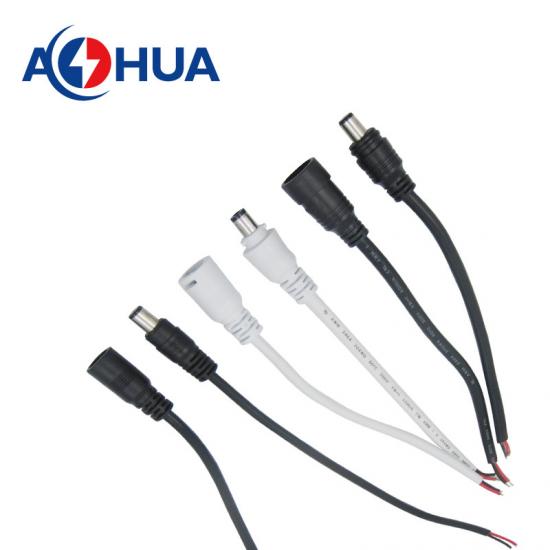

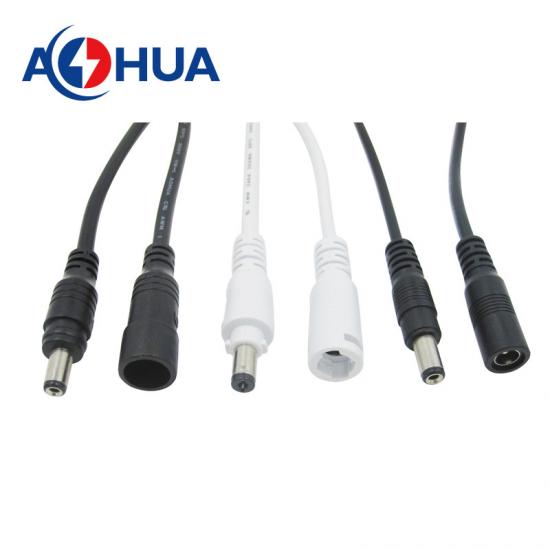

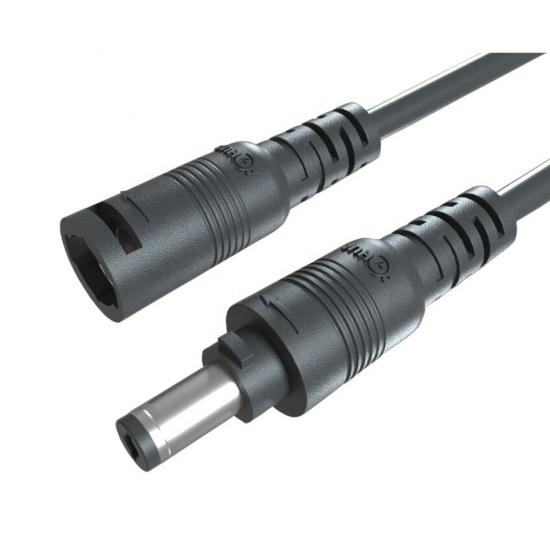

AOHUA M13 quick lock customized cable lenghth 20 22 24AWG DC 5.5 * 2.5 5.5 * 2.1 compatible with dc power extension cable 5521/5525 male female dc power plug wire harness connector double insulated cable wiring harness
Contacts Numbers
1p 2p
Voltage Rating
60V
Current Rating
4A
Wire Gauge
≤0.5mm²
Cable OD
3.5mm~5.5mm
Mechanical Life
500 mating cycles
Operating Rating
-20℃~+80℃
Waterproof Level
Not waterproof type
Note
DC 5.5*2.1 OR DC 5.5*2.5
Product Description
Cable Length: As your require.
Wire size: 20AWG, 22AWG,24AWG (inside black and red wire).
Contactor: According to your requirements, can connect with JST, Molex, XH and other connectors.
Conductor material: Tin-plated copper.
Insulation material:PVC insulation.
Conductor material:Tin-plated copper wire.
This DC power splitter allows many devices to operate from one central power source.
In led strip light system, this power splitter allows you to split power equally up to 2 led module using a single power supply unit.
Applied for led lighting, DVR, recording, and many other electronic devices that has 5.5*2.1mm or 5.5*2.5mm port.
Convenient and most effective way to power up 2 led strip light with 1 power adapter, or lit up more LED strips at the same time.
It provides a simple solution for power connectivity, safe & reliable.
Tips before quotation.
Please tell us the cable details:
1. Current rating, eg: 4A.
2. Pins, eg: 2pin.
3. Wire size, eg, 2*22AWG…
4. Cable outer diameter(OD), eg: 4.5mm…

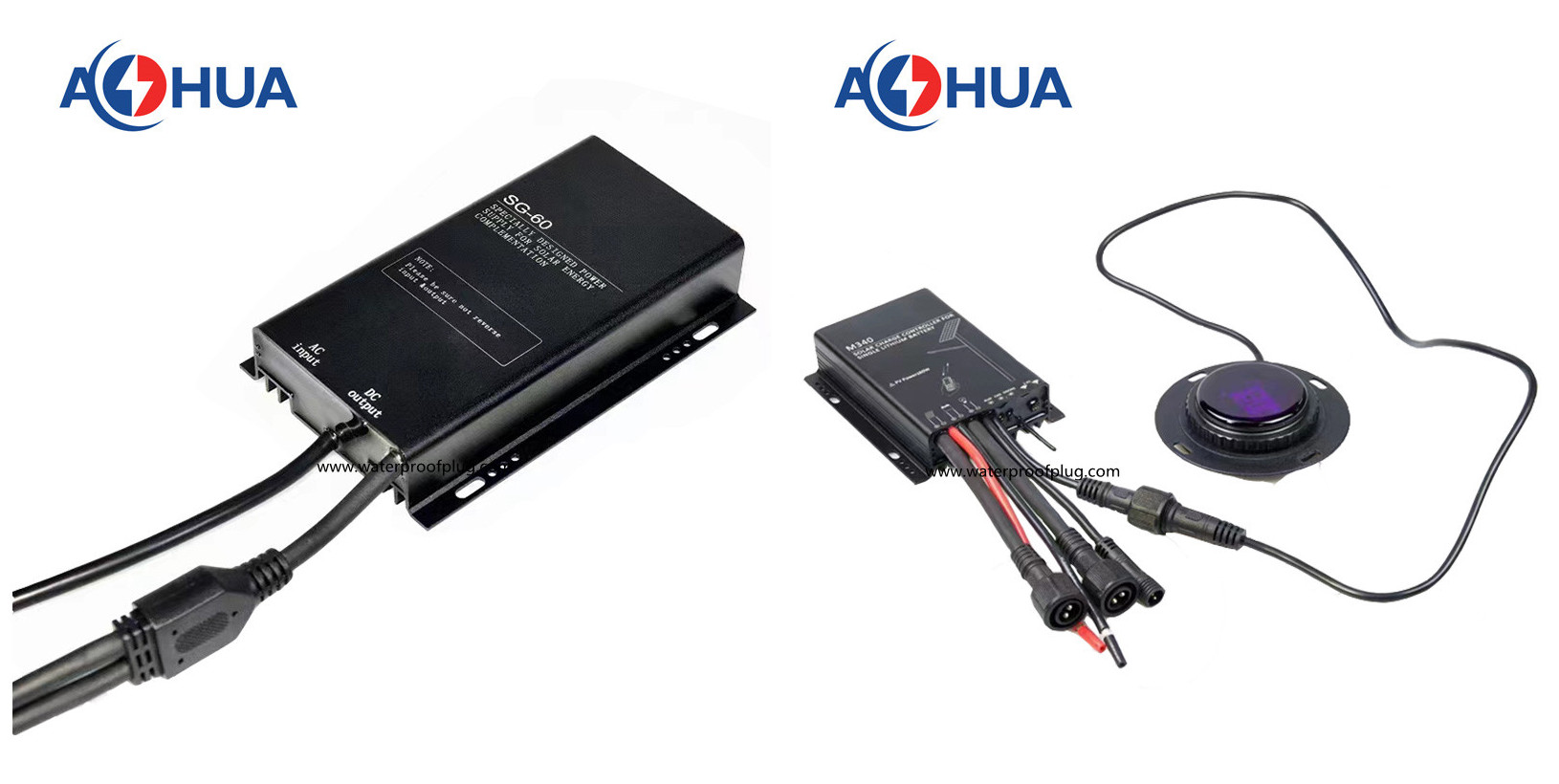

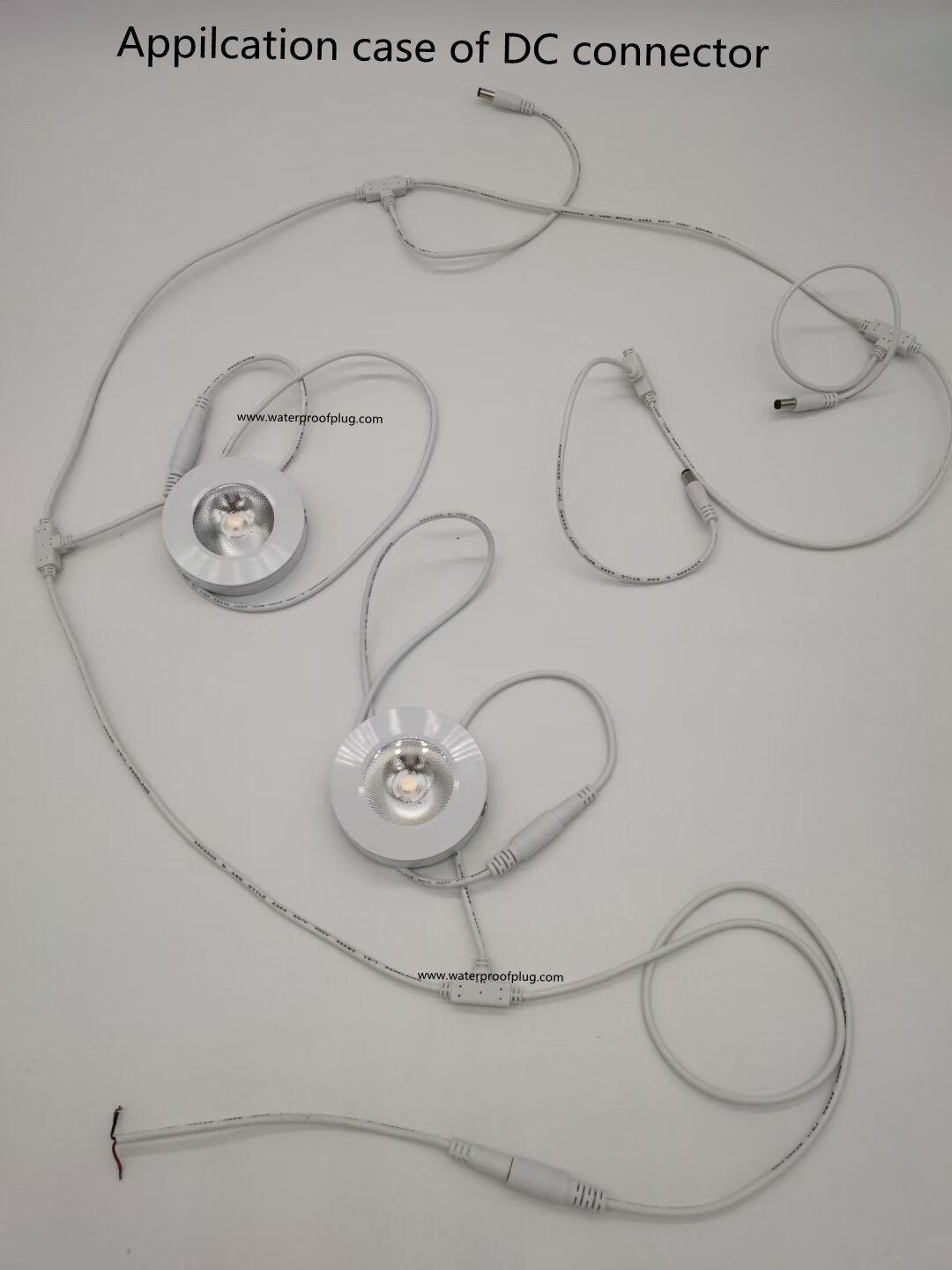

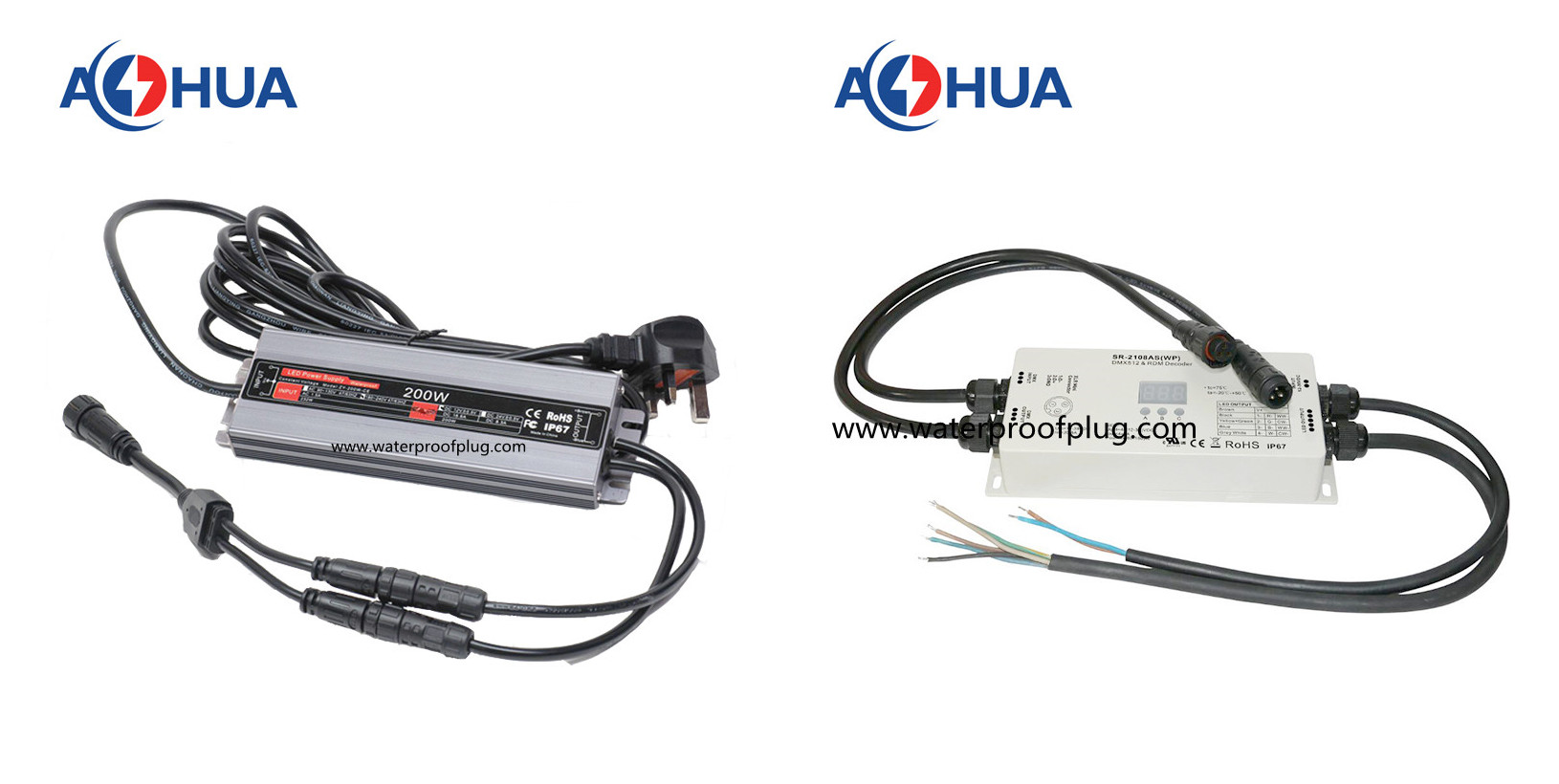

Application
More details, please send inquiry to us, we will try our best to help you!!!
