AOHUA YM16 waterproof connector
Socket
Part Number
Main Cable Gauge
Branch Cable Gauge
Main Cable OD
Branch Cable OD
2
AH-YM16-0202
≤1.5mm²
≤1.0mm²
Max 10.0mm
Max 6.8mm
3
AH-YM16-0203
≤1.5mm²
≤1.0mm²
Max 10.0mm
Max 6.8mm
4
AH-YM16-0204
≤1.5mm²
≤1.0mm²
Max 10.0mm
Max 6.8mm
5
AH-YM16-0205
≤1.5mm²
≤0.5mm²
Max 10.0mm
Max 5.3mm
Operating Rating
-20℃~+80℃
Waterproof Level
IP65
Seal Ring
13mm*9mm*6.5/7.7/8.5/9.5/10mm
Y type integrated wiring harness with small and simple appearance.
Y Series,high quality at competitive price.
Nylon material, one end is a L assembly screw type connector, and the other end is bare wire or with connector.
Favorable waterproof feature: ip65.
You need to check the wire gauge and each cable length.and if it need connector or not.
Any length of the cable is available and terminal processed.
There's a choice of 1 out of 2,1 out of 3, 1 out of 4, 1 out of 5.
Convenient maintenance and replacement, reduce the costs of after service.
| Contacts Numbers | Voltage Rating | Current Rating | Wire Gauge |
| 2 | 300V | 8A |
≤1.5mm² |
| 3 | 300V | 8A |
≤1.5mm² |
| 4 | 250V | 8A |
≤1.0mm² |
| 5 | 110V | 4A |
≤0.5mm² |
| Cable OD | 3.5mm~8.9mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67/IP68 |
1. M15 connector, threaded butt assembly, simple to use and easy to install.
2. Nylon material, stable electrical performance, high strength pressure resistance, high temperature resistance, explosion resistance, corrosion resistance.
3.The pin is made of gold-plated parts, which ensures the product's continuity and stability, and is safe and reliable. 2 3 4 5 pin for choices.
4. Small volume, appearance, high performance plug socket assembly is very convenient, robust explosion-proof housing, waterproof.

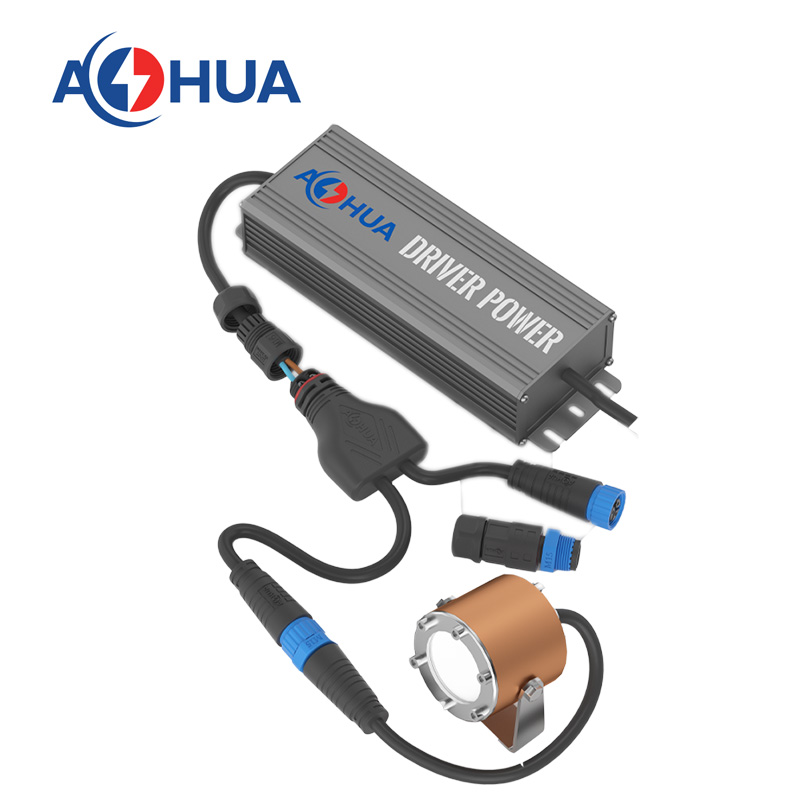

5.Widely used in: LED light bars, LED spotlighting, LED wall washer landscape lighting, outdoor spotlights, bridge tunnel lights, street lights, field exploration equipment, outdoor displays, etc.

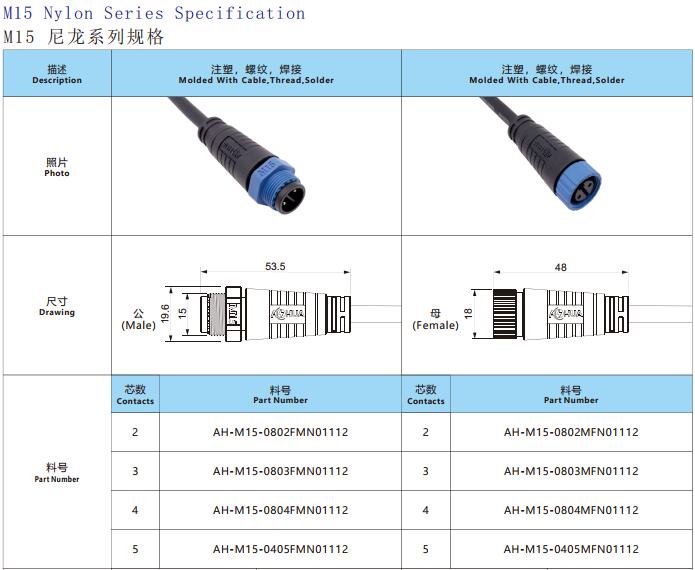

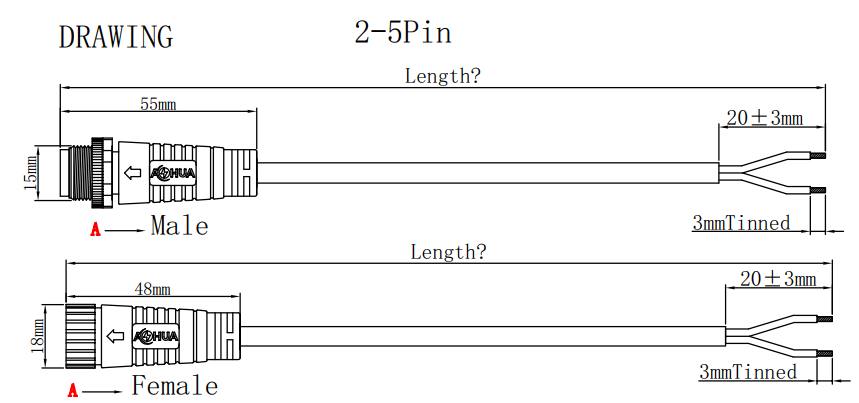

For the M15 over molded cable connector, there are some normal wire sizes for choosing from:
2*0.75mm² , 2*1.0mm² , 2*14AWG, 2*16AWG, 2*18AWG
3*0.75mm², 3*1.0mm²
4*0.5mm² , 4*1.0mm²
5*20AWG , 5*22AWG
| Contacts Numbers | Voltage Rating | Current Rating | Wire Gauge |
| 2 | 300V | 10A |
≤1.5mm² |
| 3 | 300V | 10A |
≤1.0mm² |
| Cable OD | 5.5mm~10mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating |
-40℃~+105℃ |
| Waterproof Level | IP67/IP68 |
| Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm |

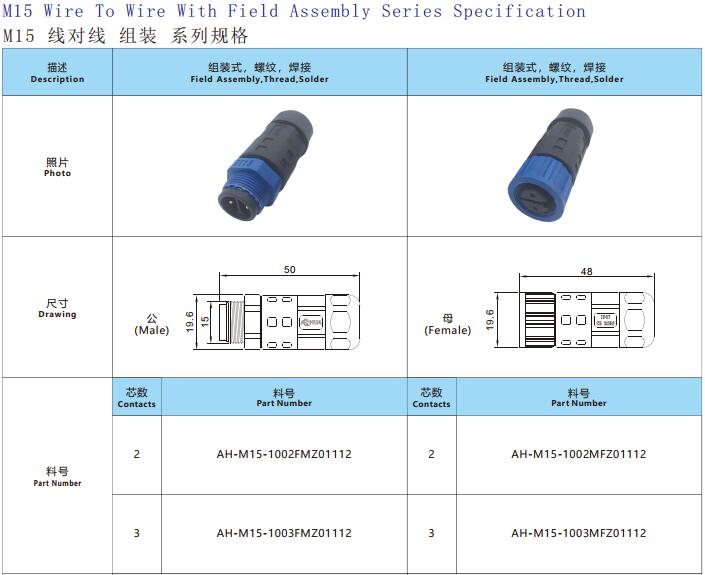

M15 waterproof connector is wire to wire field assembly waterproof plug, which is male to female connector. The male connector only length 50mm*φ19.6mm and female connector only length 48mm*φ19.6mm. It is suitable for cable diameter is 6mm~10mm, which can only be used in a limited space. If your space is limited, the M12 connector is your best bet.
Tips before quotation.
Please tell us the cable details:
1. Current rating, eg: 5A.
2. Pins, eg: 2pin, 3pin.
3. Wire size, eg, main cable 2*1.0mm², branch cable 2*0.75mm².
4. Cable outer diameter(OD), eg: 6.8mm.
5. Length of each cable, eg: 300mm.
Application
More details, please send inquiry to us, we will try our best to help you!!!
