AOHUA M29 Series IP68 Waterproof Electrical Connector – Screw Terminal 2/3/4 Pin 300–500V 25–35A

AH-M29-3502MMZ/FFZ02122                                                                        AH-M29-3502MMZ/FFZ02122

M29 Male to Female Cable Connector                                                            M29 Male to Female Cable Connector

PIN Number: 2PIN                                                                                      PIN Number: 2PIN

Current Rated: 35A                                                                                     Current Rated: 35A

Voltage Rated: 300V                                                                                   Voltage Rated: 300V

Suooprt Wire Gauge: 1.5mm²-6.0mm²                                                         Suooprt Wire Gauge: 1.5mm²-6.0mm²

Support Cable Outside Diameter: 6.5-15mm                                                 Support Cable Outside Diameter: 6.5-15mm

AH-M29-3502MMZ/FFZ02122

M29 Male to Female Cable Connector

PIN Number: 4PIN

Current Rated: 25A

Voltage Rated: 300V

Suooprt Wire Gauge: 1.5mm²-4.0mm²

Support Cable Outside Diameter: 6.5-15mm

Technical Specifications

Series: M29 Wire To Wire Field Assembly

Connection Mode: Thread, Screw (Field Assembly)

Waterproof Level: IP67 / IP68

Pin Options: 2 Pin, 3 Pin, 4 Pin

Rated Voltage: 500V (2 & 3 Pin) / 250V (4 Pin)

Rated Current: 35A (2 & 3 Pin) / 25A (4 Pin)

Wire Gauge: ≤6.0mm² (2 & 3 Pin) / ≤4.0mm² (4 Pin)

Cable Outer Diameter: 6.5mm ~ 15mm

Mechanical Life: 3000 mating cycles

Operating Temperature: -40℃ ~ +105℃

Part Numbers (Male/Female):

2 Pin: AH-M29-3502MMZ01122 / AH-M29-3502FFZ01122

3 Pin: AH-M29-3503MMZ01122 / AH-M29-3503FFZ01122

4 Pin: AH-M29-2504MMZ01122 / AH-M29-2504FFZ01122

IP67 / IP68 Waterproof Rating: Engineered with high-quality silicone seals to provide superior protection against water, dust, and corrosion in harsh outdoor or industrial environments.

High Current & Voltage Capacity: Supports a rated voltage of up to 500V and a current of up to 35A (varies by pin count), making it suitable for heavy-duty power applications.

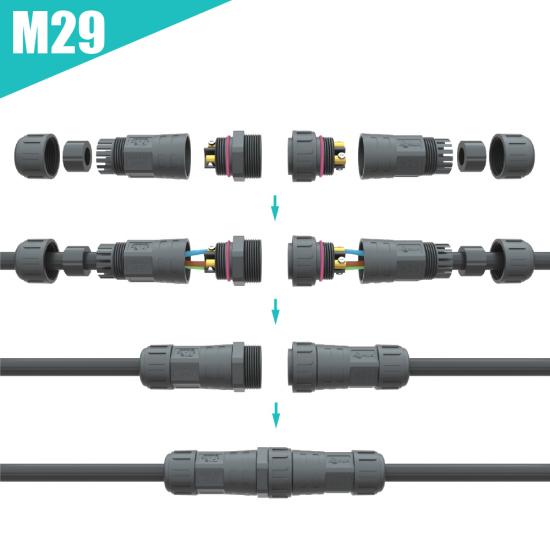

Easy Field Assembly: Features a user-friendly screw terminal design that allows for quick and easy wire-to-wire assembly without the need for soldering. Compatible with cable outer diameters ranging from 6.5mm to 15mm.

Durable & Reliable: Built with high-grade PA66 nylon material, offering excellent mechanical strength and a long service life of over 3,000 mating cycles.

Wide Operating Temperature: Performs reliably in extreme conditions, with an operating temperature range of -40℃ to +105℃.

Secure Thread Locking: The threaded coupling mechanism ensures a vibration-resistant and stable connection, preventing accidental disconnections.
