Application
widely used in outdoor LED,Electric bike scooters,car and ship, lighthouse, cruise ships,industrial quipment, communications equipment,detection equipment, etc.

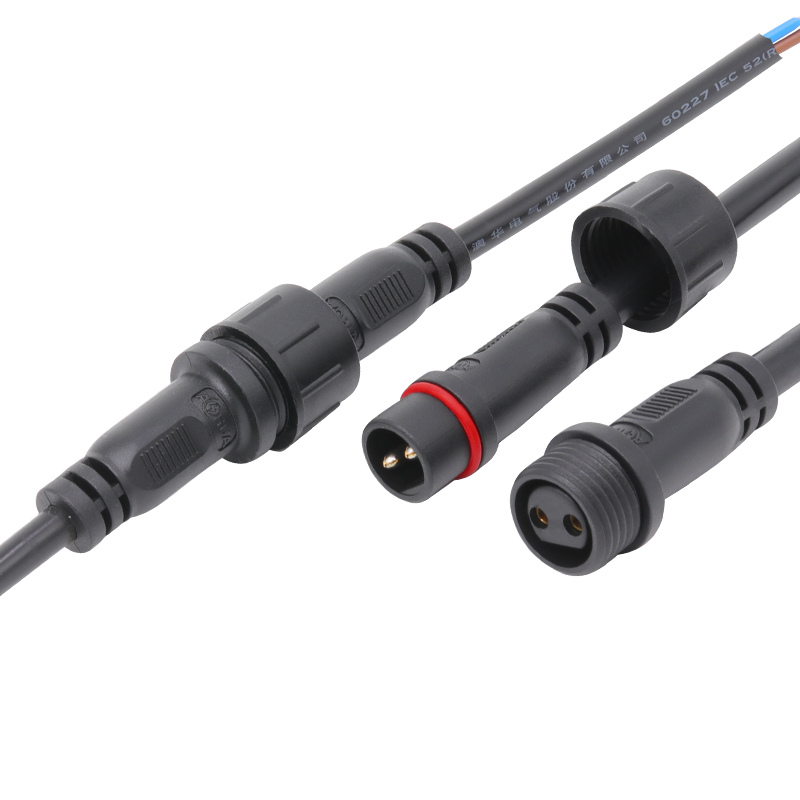

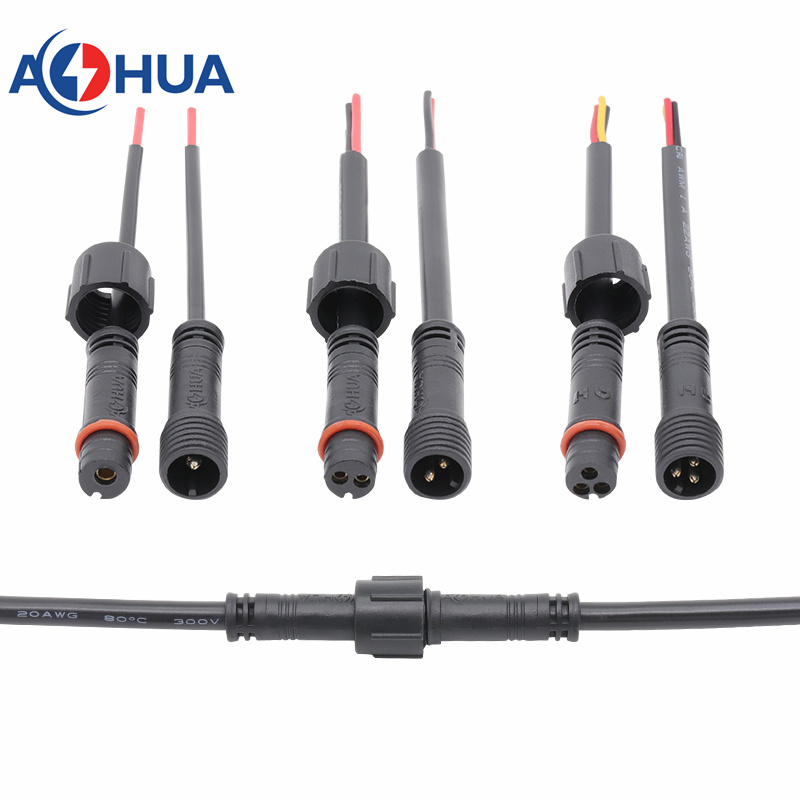

AOHUA Customized Male Female PVC Placstic circular IP65 M10 M12 M14 M16 M19 over-mold Wire Cable Waterproof Connector for Sensor devices

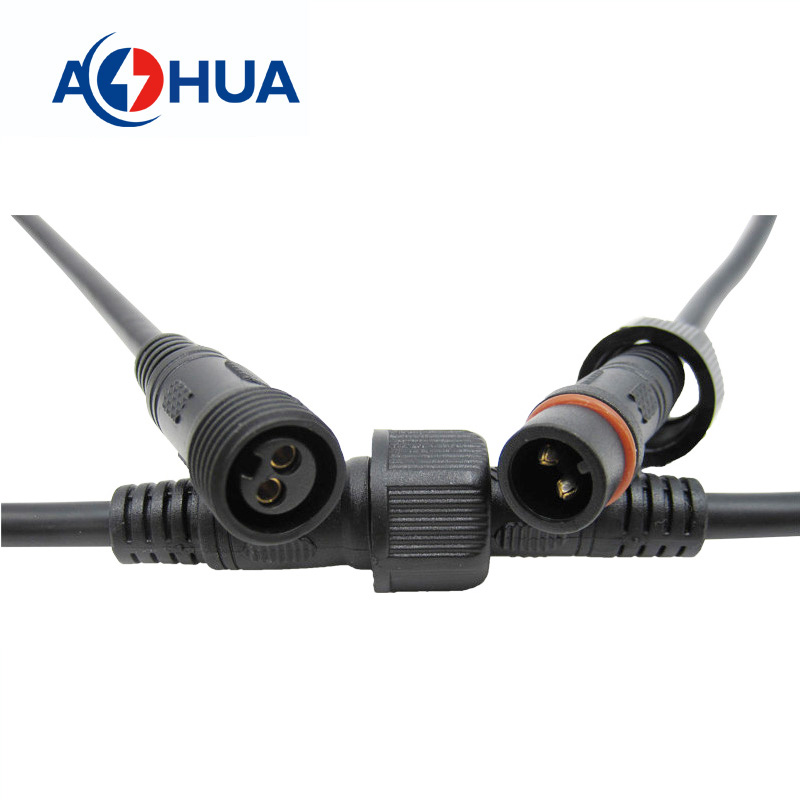

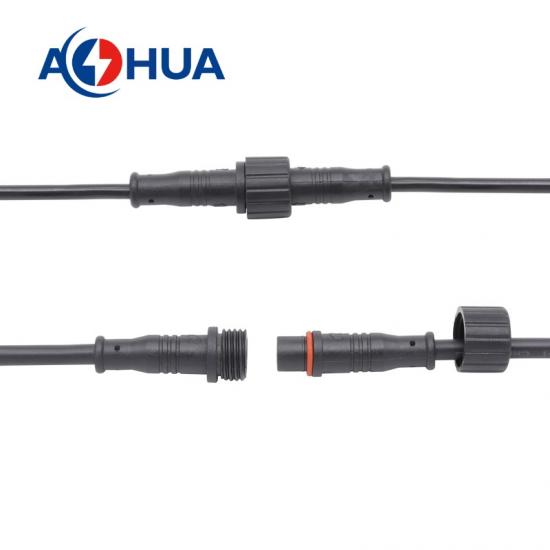

Extended cable, male to female, male to male, female to female.

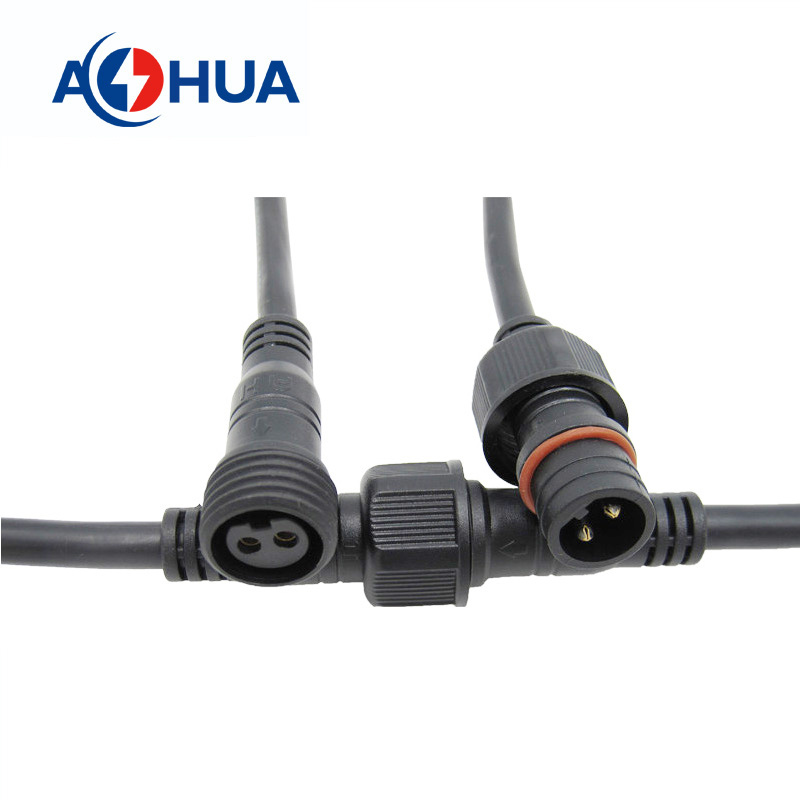

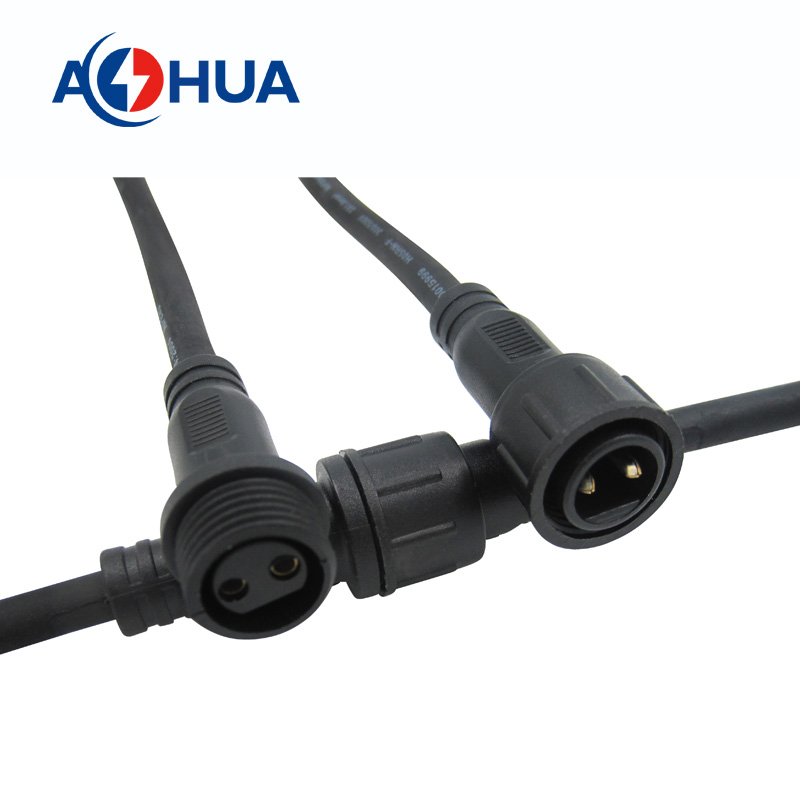

T /Ytype splitter with PVC connector.
3.Install easily and faster, use easily, and save time.
4.Contact Material: pure copper, plated with gold, silver or nickel as your need
5.Injection molding with PVC cable type (length can be customized)
6.Wire tail terminal mode can be customized according to customer requirements
(tin plating, Cold-pressed Terminal,O/U terminal/fuse, etc.)
7.O-Ring is made of silicon. High temperature resistance.
Excellent waterproof and dustproof effect, good resistance, long service life.
Before quotation, please tell us the cable details,thanks.
*Confirm Current Rating and Number of Contacts(such as:8A... and such us:3pin...)
*Confirm Cable Wire size and Cable OD(over diameter) (such as: 2*1.5mm2... and such as 8mm...)
*Confirm Cable Length and Material. (such as:1000mm... and such as Nylon or PVC)
*Confirm tail processing (such as tin plating, Cold-pressed Terminal,O/U terminal/fuse, etc.)

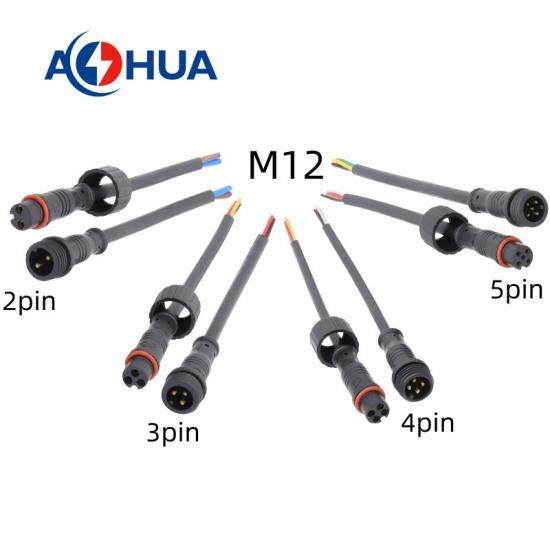

PVC Series waterproof connector M10 M12 M14 M16 M19

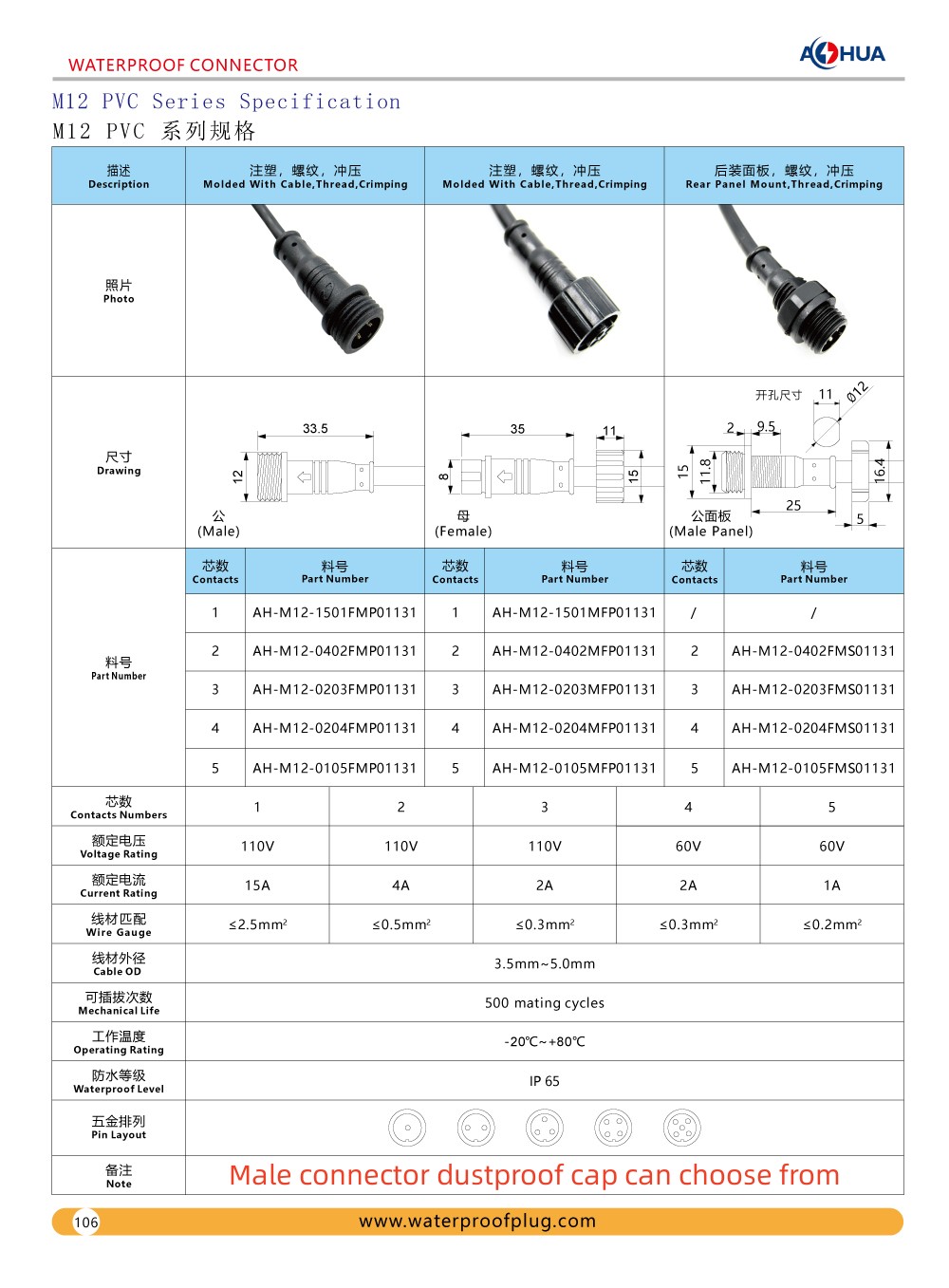

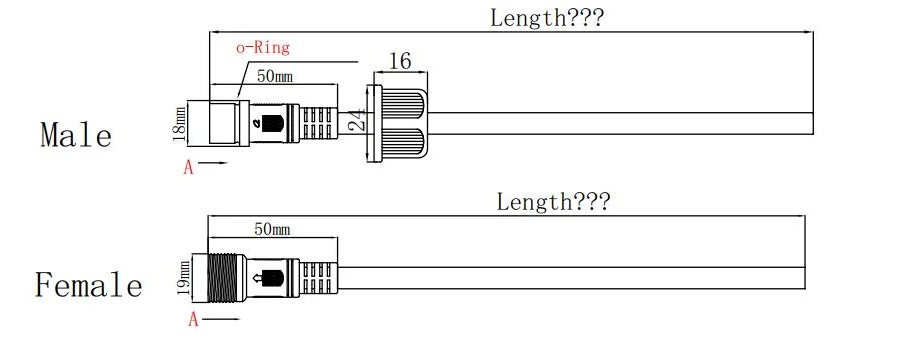

Design Drawing,Specification and Product Display

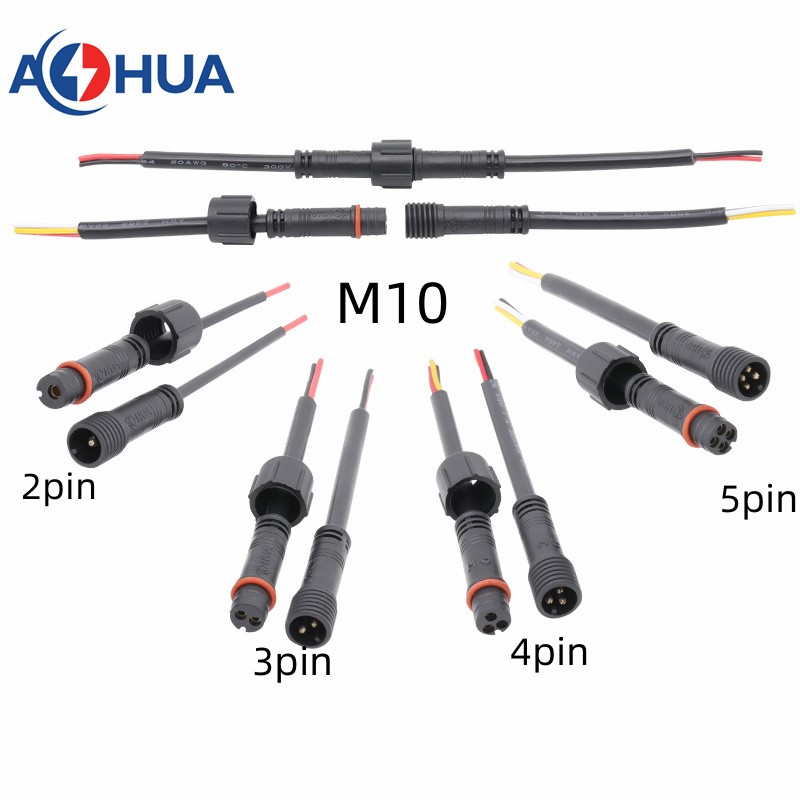

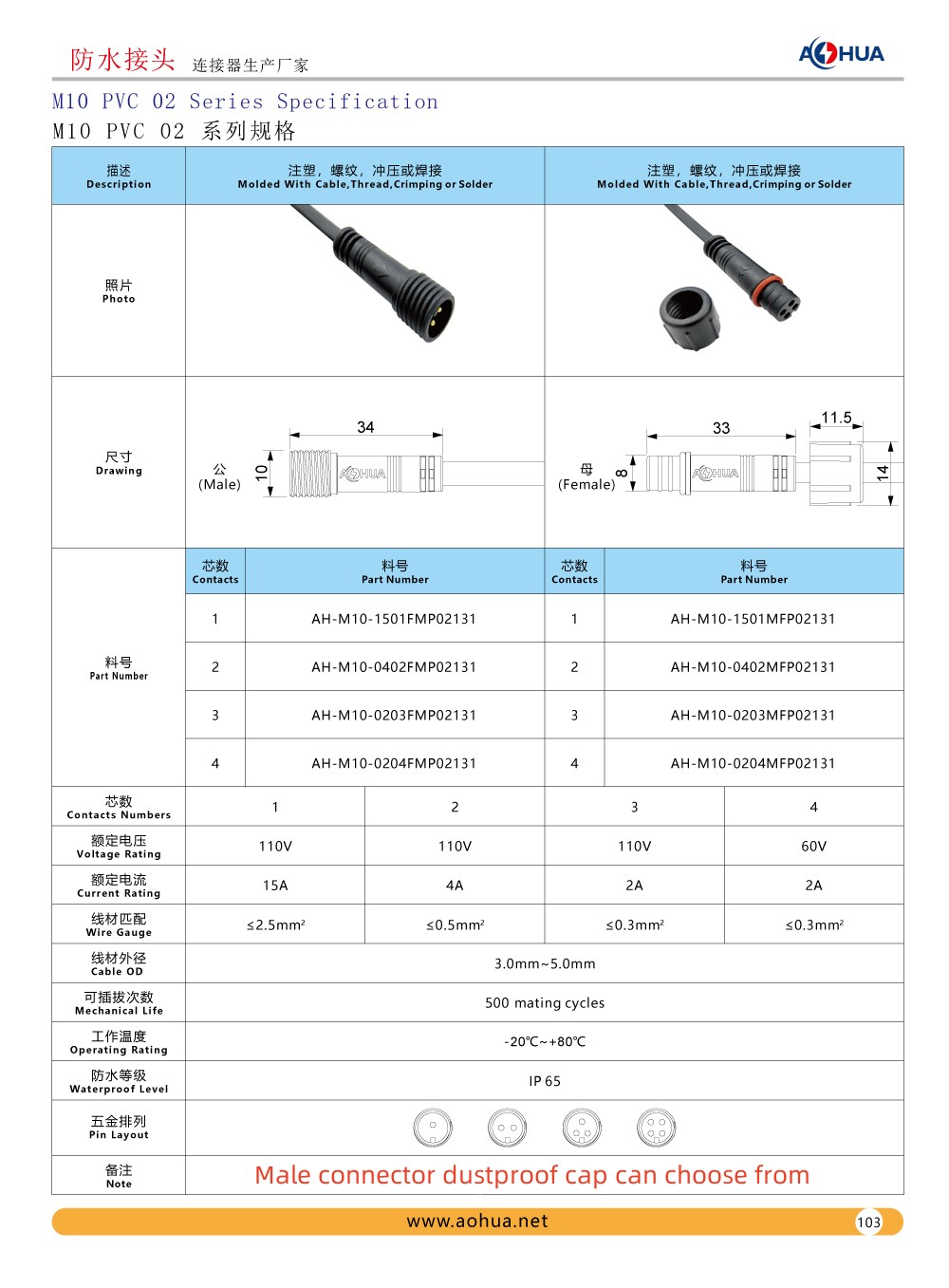

Usually, M10 PVC waterproof connector is suitable for wire gauge as follows:
2pin (2*0.5mm², 2*20AWG, 2*22AWG, 2*24AWG)
3pin(3*22AWG, 3*24AWG)
4pin(4*22AWG, 4*24AWG)
The shortest cable length is 100mm,cable length can be customized as your requirements.

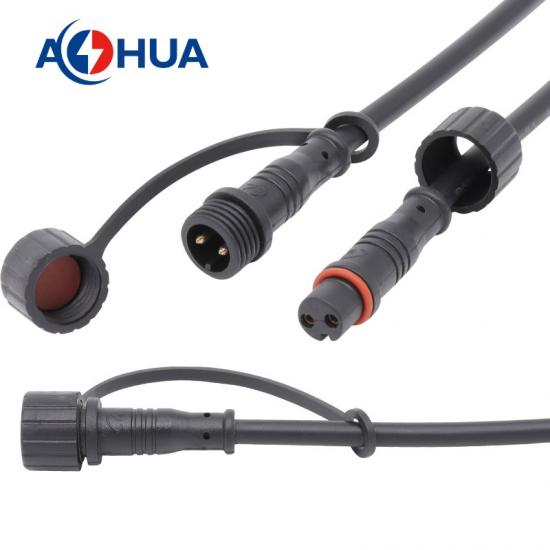

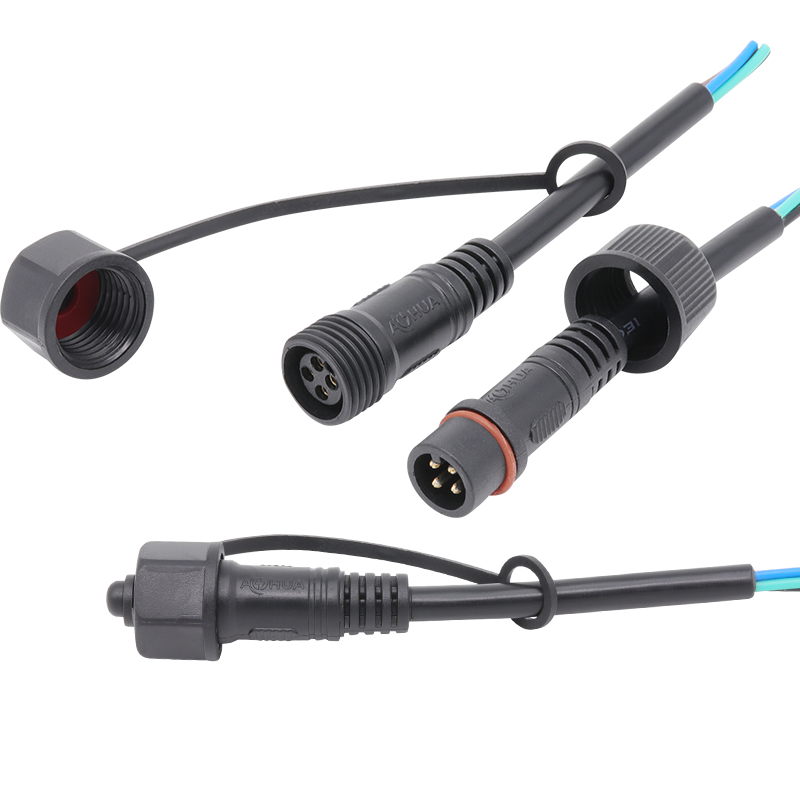

Warm tip: the male connectors have dust cap for choosing from.

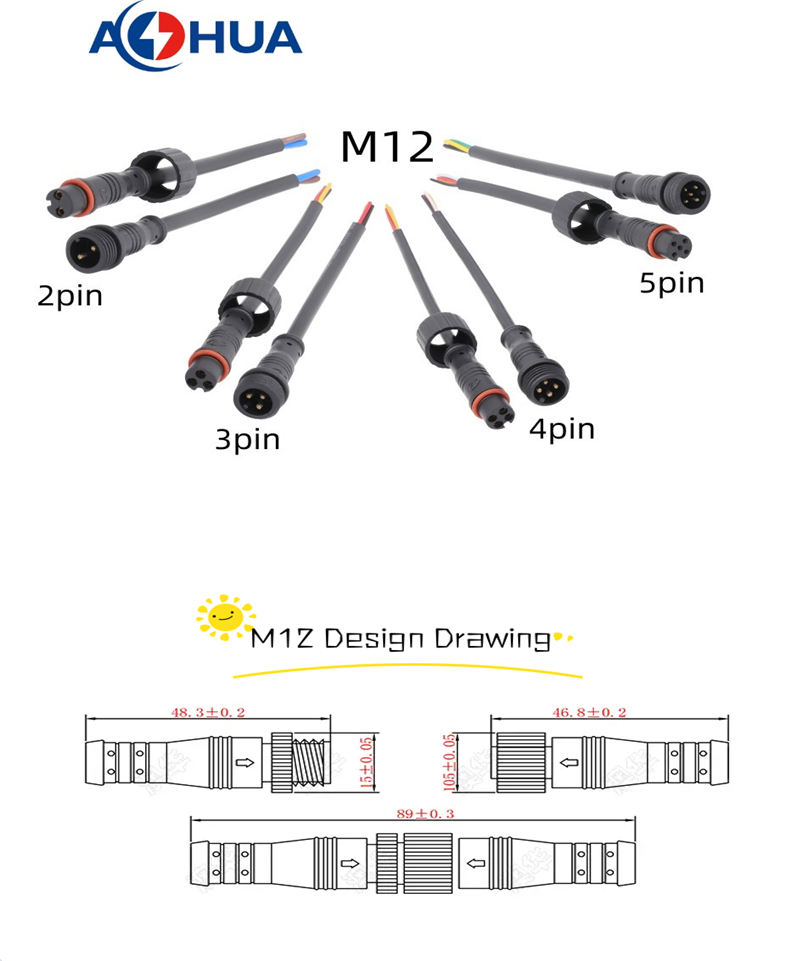

Usually,waterproof connector is suitable for wire gauge as below:
2pin the wire size is 2*20AWG, 2*22AWG, 2*24AWG;
3pin 3*22AWG, 3*24AWG; 4*22AWG;
4pin 4*24AWG; 5*24AWG.the cable length as your demand.
Warm tip:
the male connectors have dust cap for choosing from.

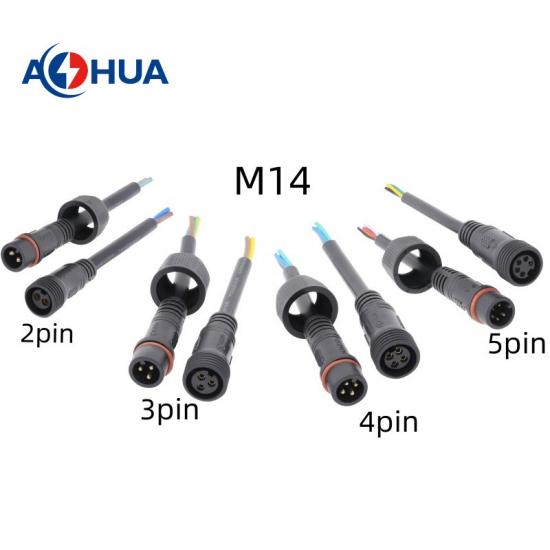

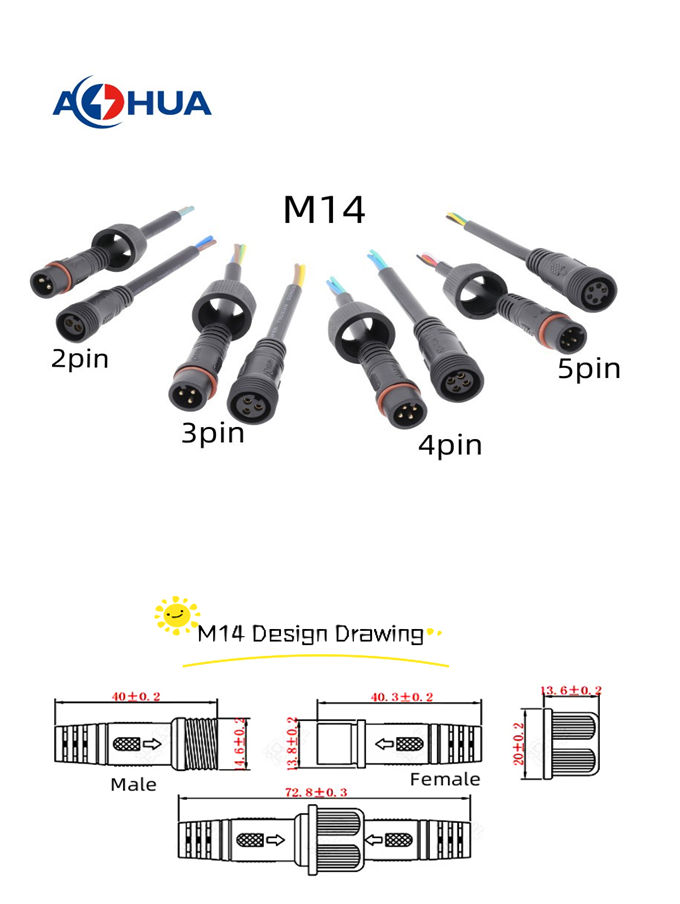

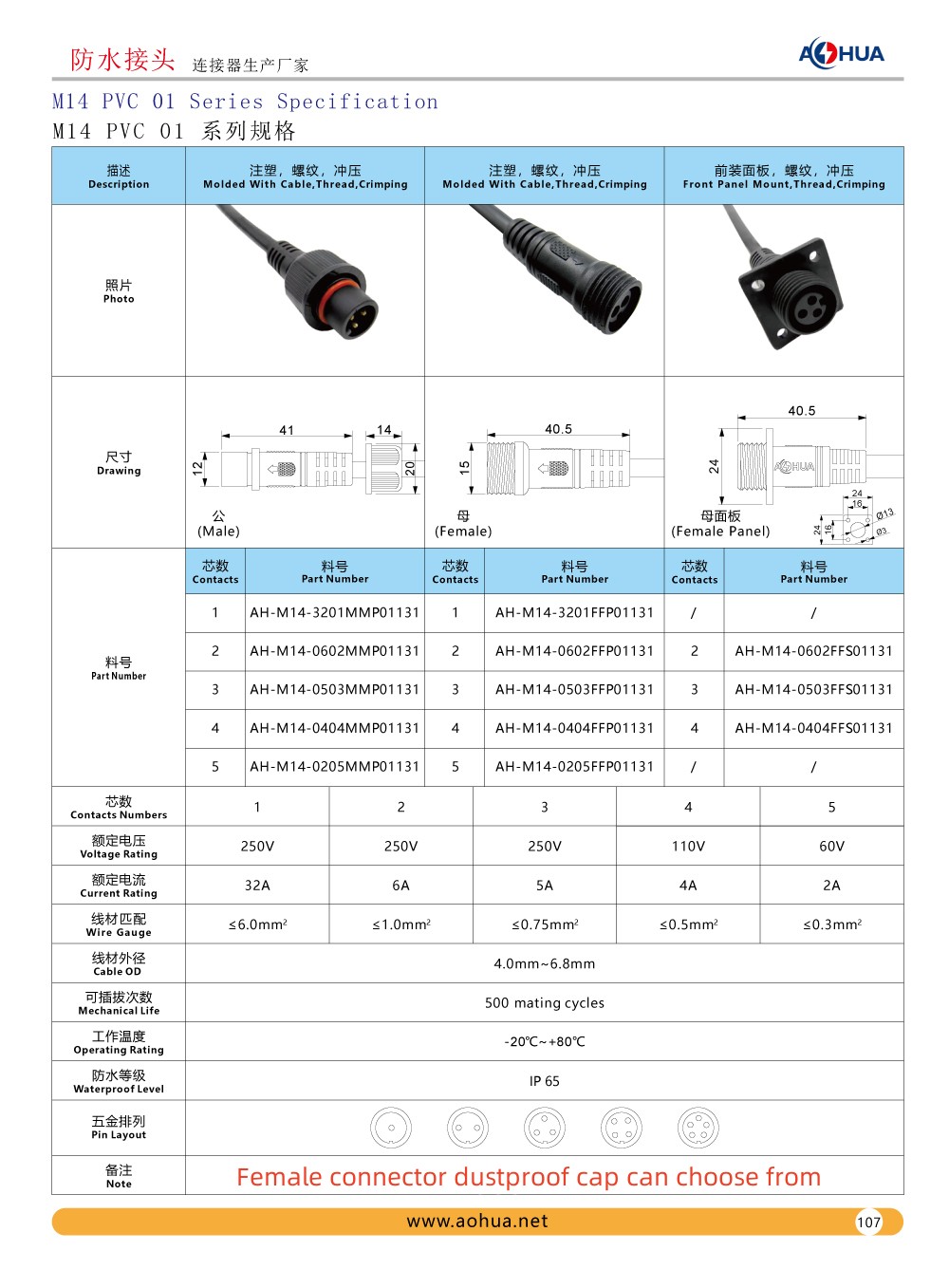

M14 cable OD range is from 4.0mm to 6.8mm.
Normally,waterproof connector is suitable for wire gauge as below:
2pin the wire size is 2*1.0mm², 2*0.75mm², 2*0.5mm², 2*18AWG, 2*20AWG, 2*22AWG;
3*0.75mm², 3*0.5mm, 3*20AWG, 3*22AWG
4*0.5mm², 4*20AWG, 4*24AWG;
5*22AWG, 5*24AWG. The cable length can be customized as your needs.

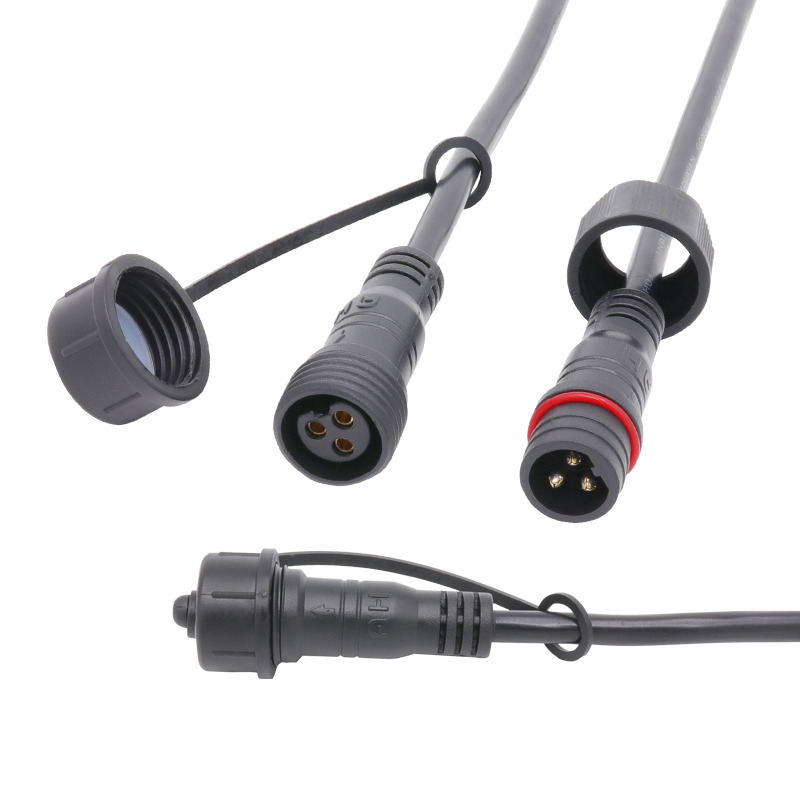

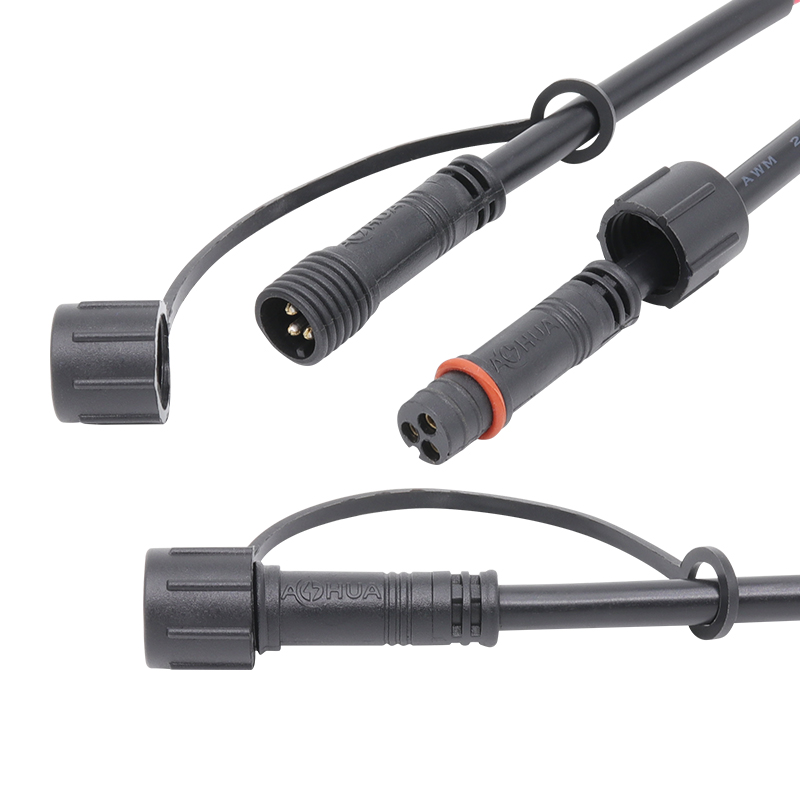

TIP: Female connector dustproof cap can choose from.

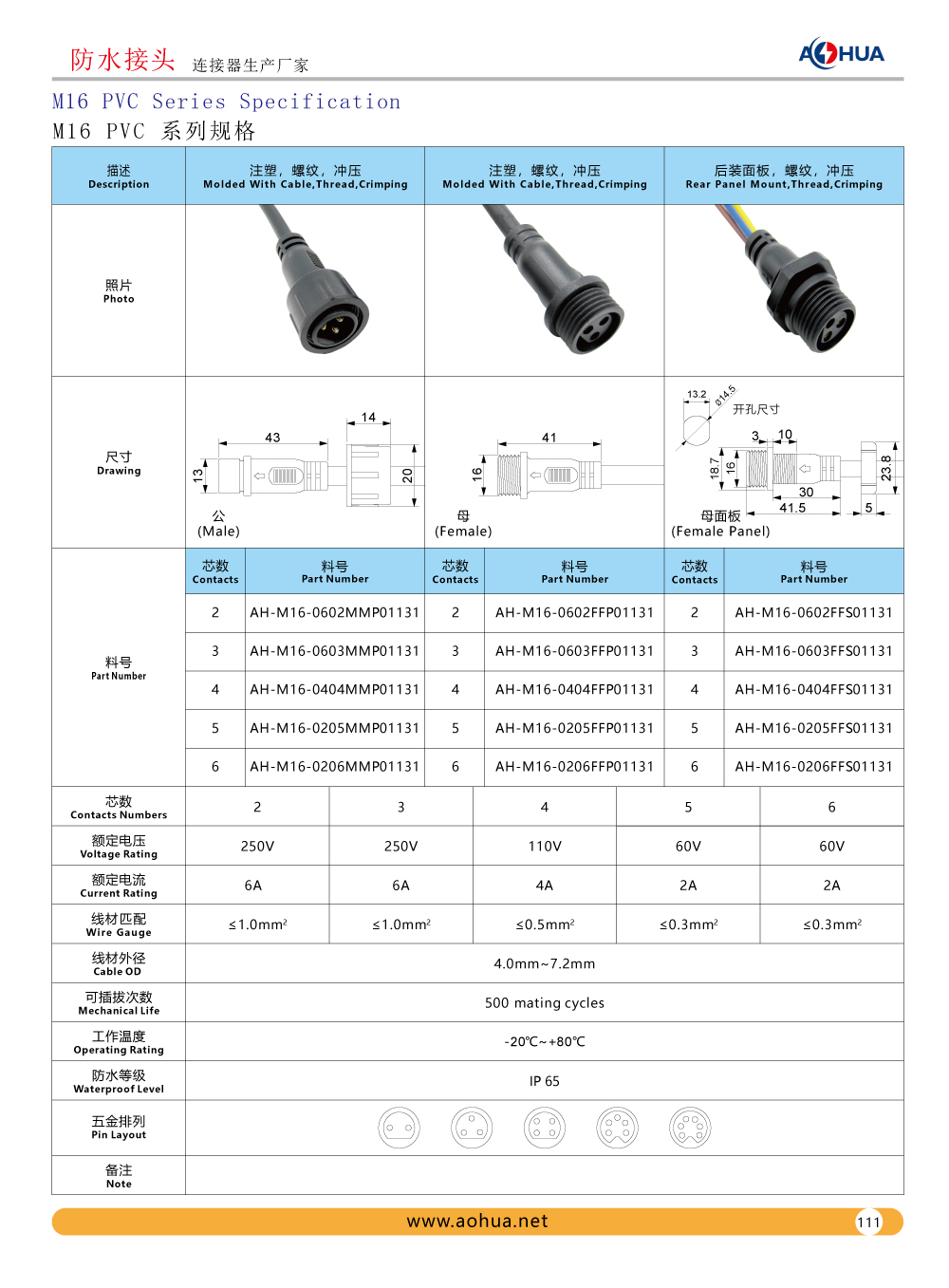

Normally,waterproof connector is suitable for wire gauge as below:
2pin the wire size is 2*1.0mm², 2*0.75mm², 2*0.5mm², 2*18AWG, 2*20AWG, 2*22AWG;
3*0.75mm², 3*0.5mm, 3*20AWG, 3*22AWG
4*0.5mm², 4*20AWG, 4*24AWG;
5*22AWG, 5*24AWG. The cable length can be customized as your needs.
TIP: Female connector dustproof cap can choose from.

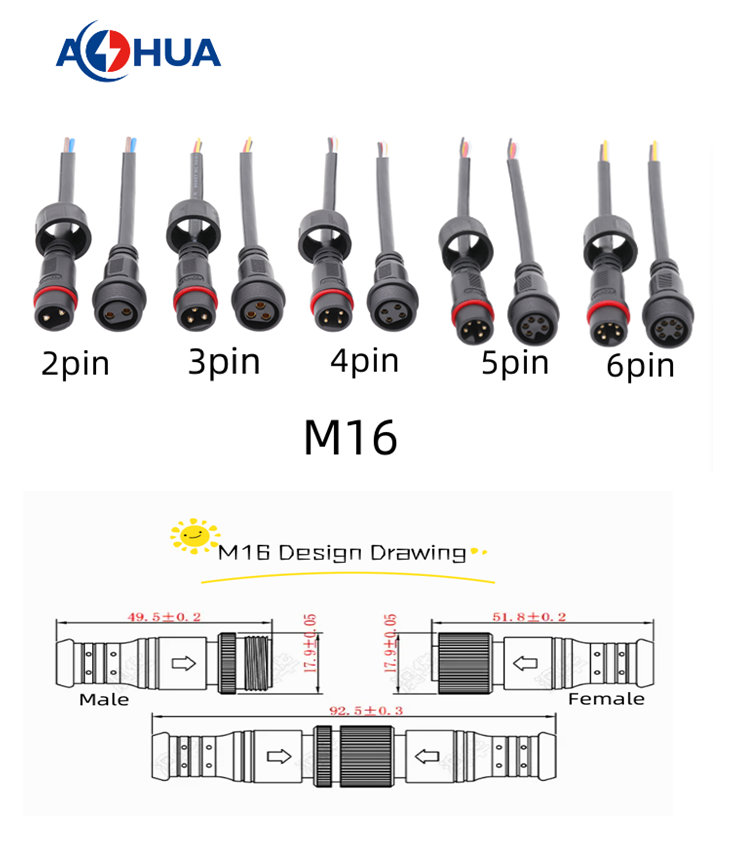

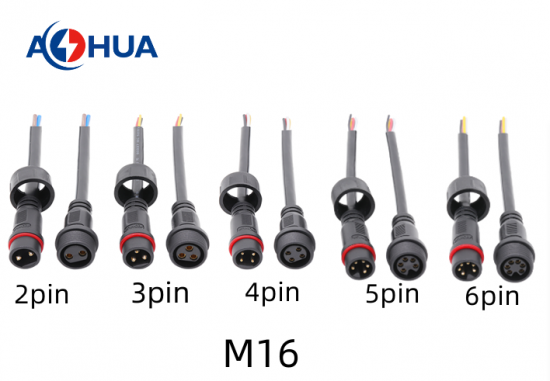

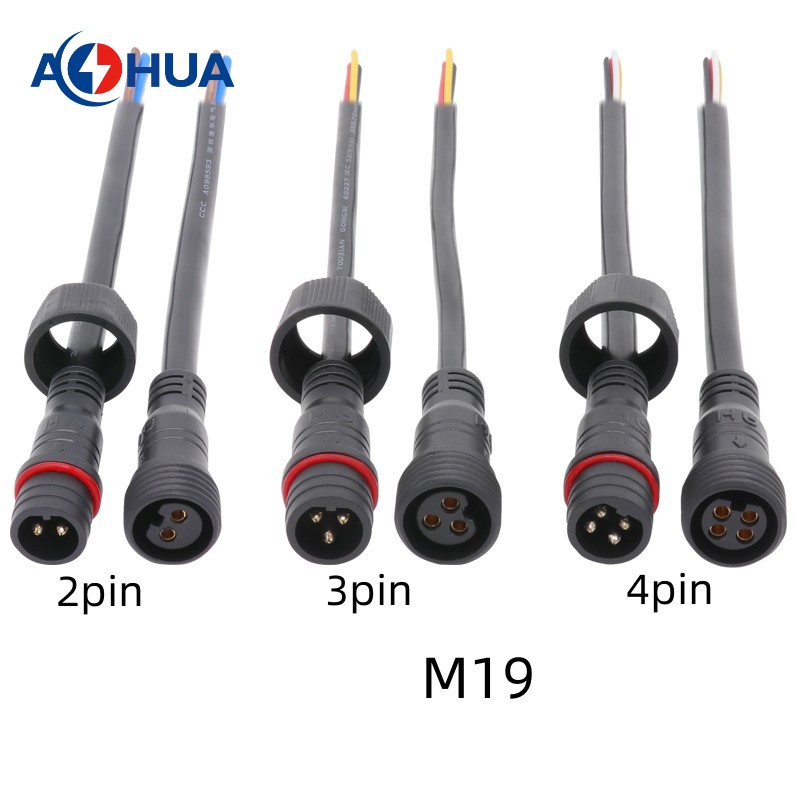

Generally,waterproof connector is suitable for wire gauge as below:
2pin the wire size is 2*1.0mm², 2*0.75mm², 2*0.5mm², 2*18AWG, 2*20AWG, 2*22AWG;
3pin 3*1.0 mm² 3*0.75mm², 3*0.5mm, 3*20AWG, 3*22AWG
4pin 4*0.5mm², 4*20AWG, 4*24AWG;
5pin 5*22AWG, 5*24AWG,6pin 5*22AWG, 5*24AWG
The cable length can be customized as your requirements.

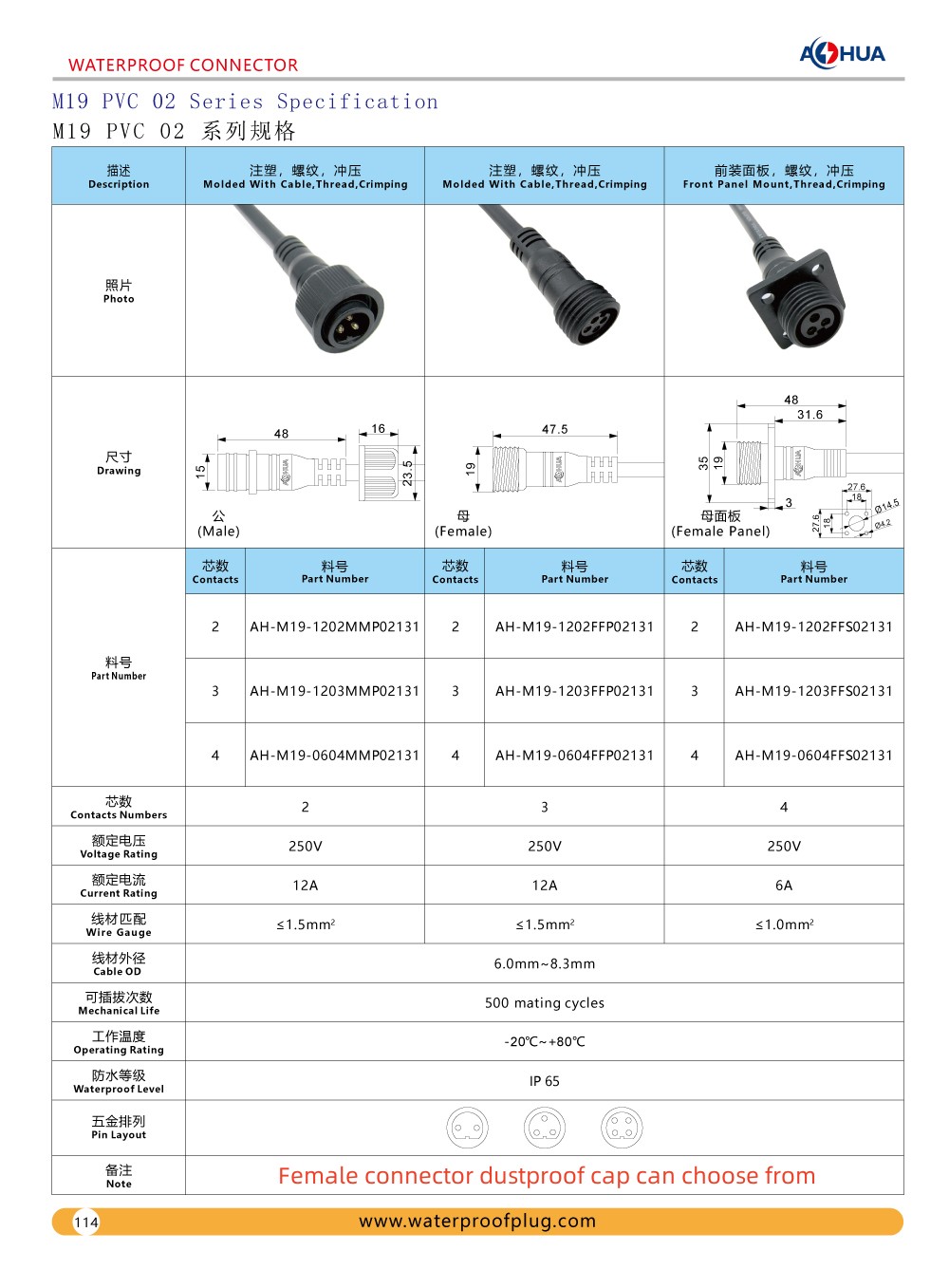

Usually,waterproof connect is useful forwire gague as below:
2pin the wire size is 2*1.5mm², 2*1.0mm², 2*0.75mm², 2*0.5mm².
3*1.5mm², 3*1.0mm², 3*0.75mm², 3*0.5mm², 3*18AWG.
4*0.75mm², 4*0.5mm², 4*18AWG.
The cable length can be customized as your demand.
TIP: Female connector dustproof can be chosen from.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?

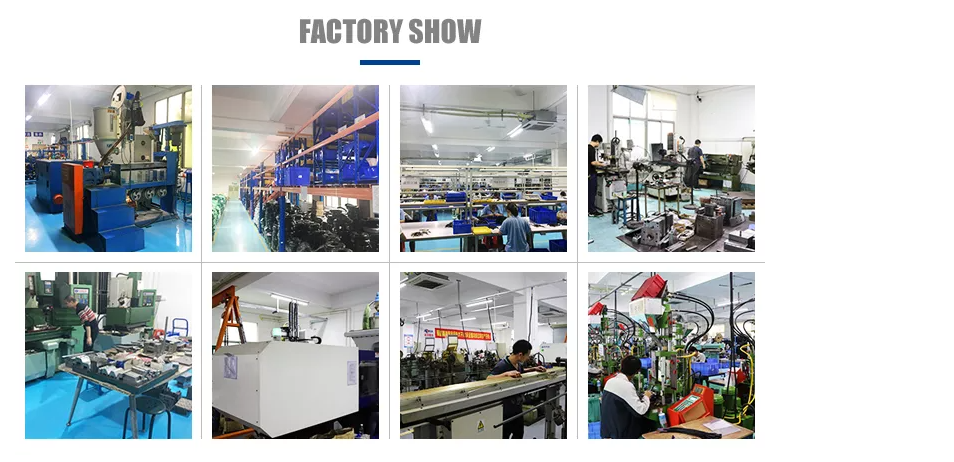

A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing,therefore,we are selected by many domestic and foreign engineering and enterprises.
