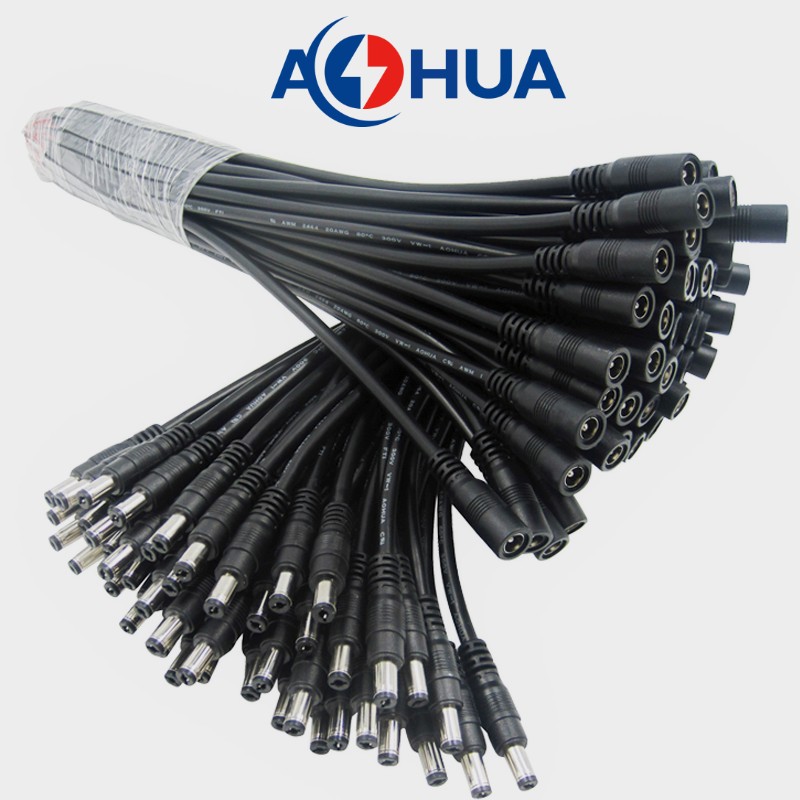

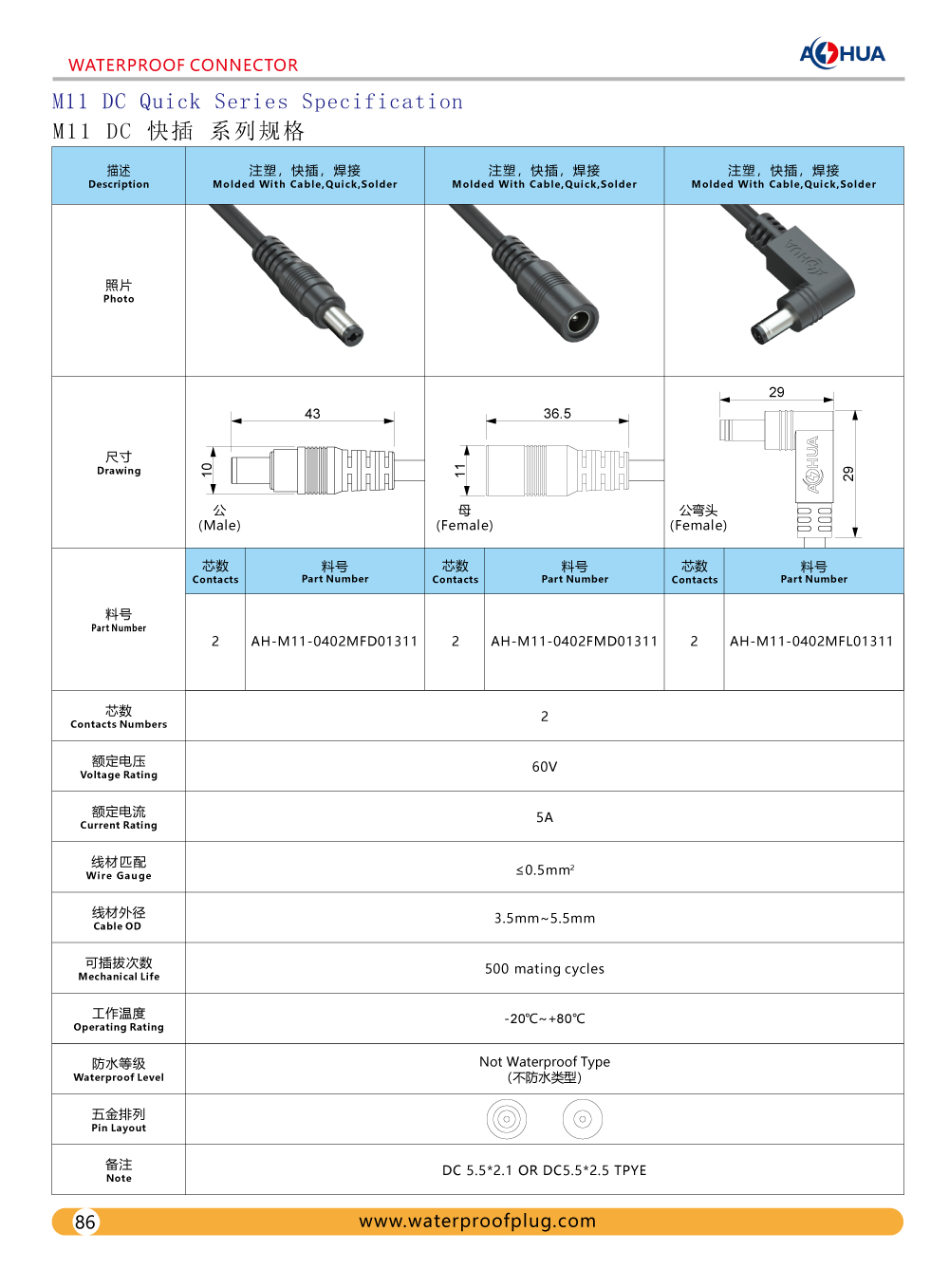

M11 DC Quick Series cable connectors is suited for Wire gague ≤0.5mm², the most common wire gauges are 2*0.5mm²,2*20AWG, 2*22AWG,2*24AGW.The cable length can be customized as your requirements.DC head can be molded into a 90 degree Angle DC connector.
Application
DC series connectors are suitable for a variety of equipment,with Strong compatibility.It is wildly in light electric vehicles,electronic scales,intercom,monitor, camera,treadmill,massage chair, blood pressure monitor, and other equipment connection transmission of DC power.
Warm Tip:
Please check the plugs size before purchase.

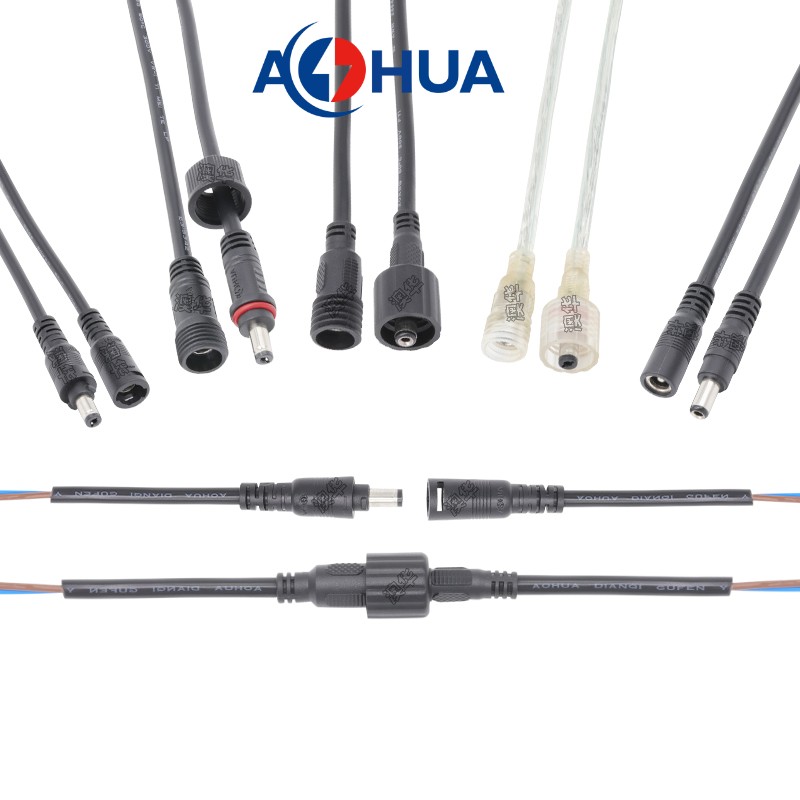

1.DC Series connector are divided into DC Quick Series,DC Quick Lock Series and DC waterproof Series.
DC Quick Series and Quick Lock Series connector M11 and M13 are not waterproof.Waterproof Series is M12 and M13 M14.
2.Plug Size - Please check your device by measuring the barrel plug of the power adapter.
Our cable will only accept:
2.1mm(inside diameter) x 5.5mm (outside diameter)
2.5mm(inside diameter) x 5.5mm (outside diameter)plugs.
DC cable connectors are commonly used for 5v, 9v, 12v, 15v and 24v power adapter. However, not all such power adapter uses 2.1mm x 5.5mm, 2.5mm x 5.5mm barrel plug.
DC cable connectors are commonly used for 5v, 9v, 12v, 15v and 24v power adapter. However, not all such power adapter uses 2.1mm x 5.5mm, 2.5mm x 5.5mm barrel plug.
3.Wire connecting ways of the DC connector are Crimping and Solder type.

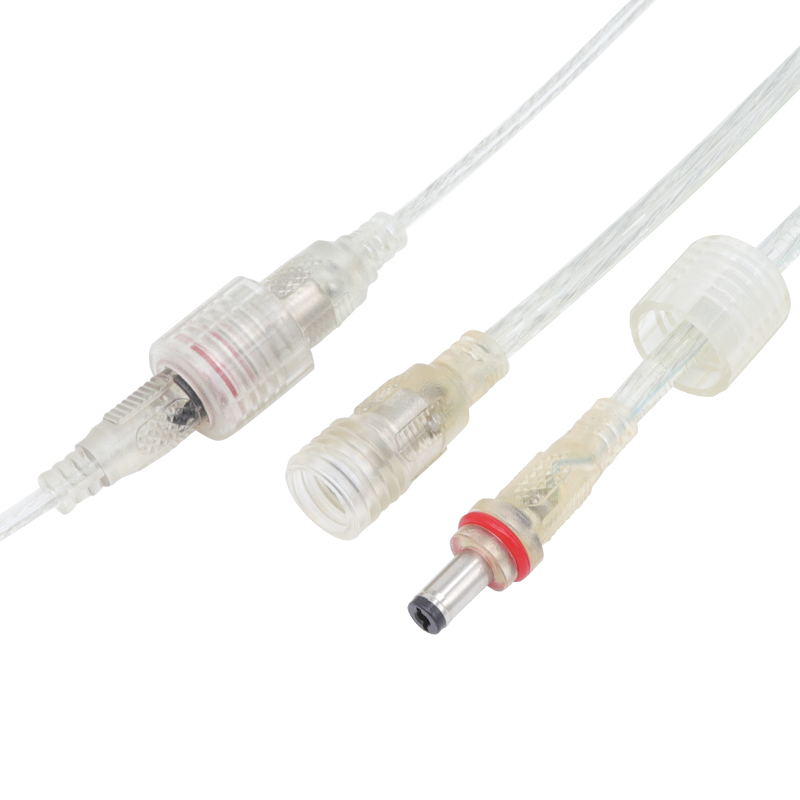

The color are black/white/transparent.(can be customized as your demand)
The DC connector is easy,quick for Installation and save time.

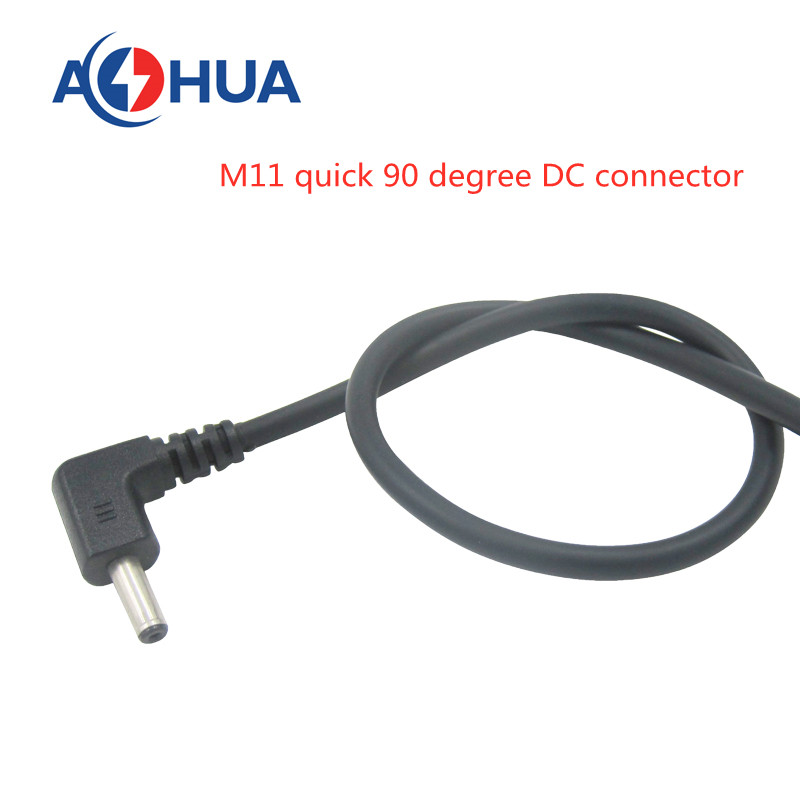

4.DC head can be molded into a 90 degree Angle DC connector,and can be designed to different types of solutions according to the different using environment, such as:

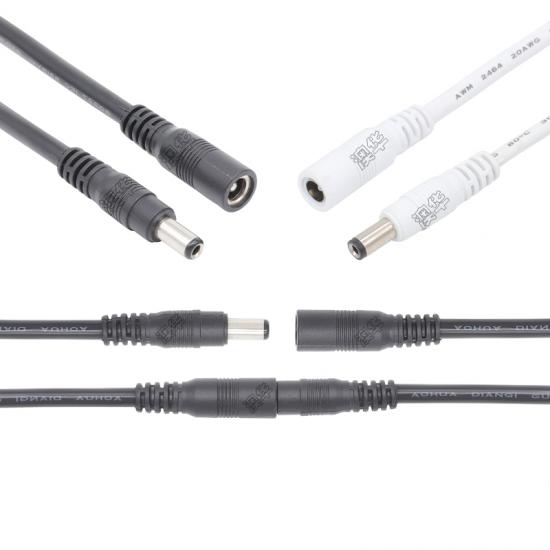

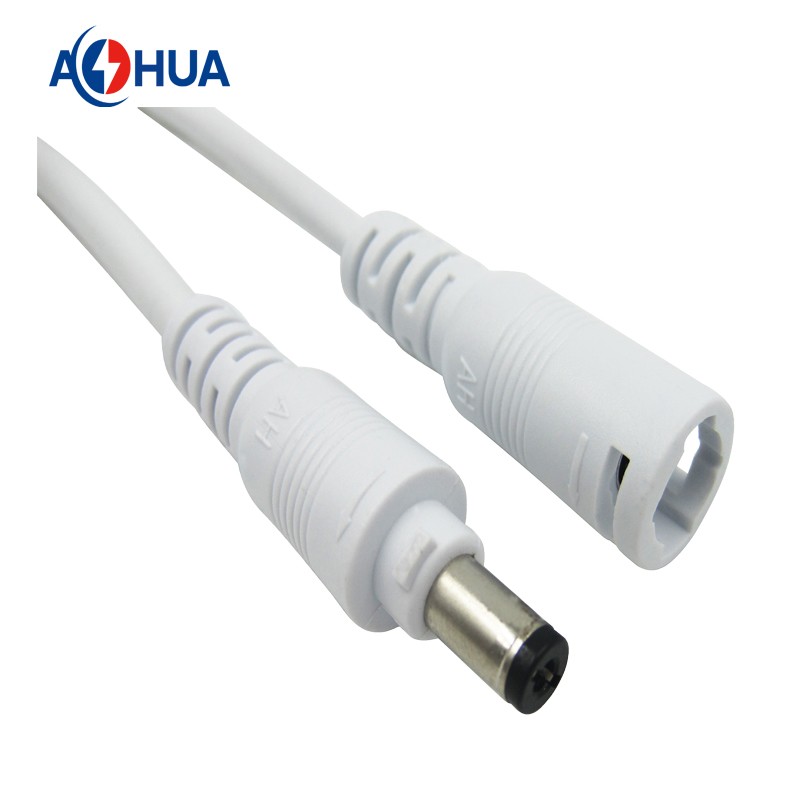

Extended cable, male to female, male to male, female to female.

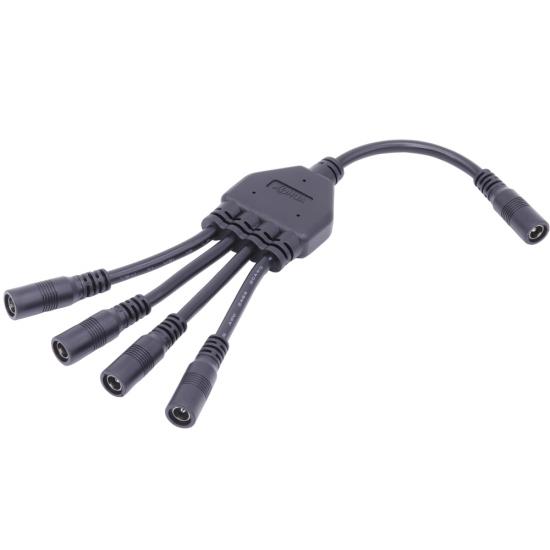

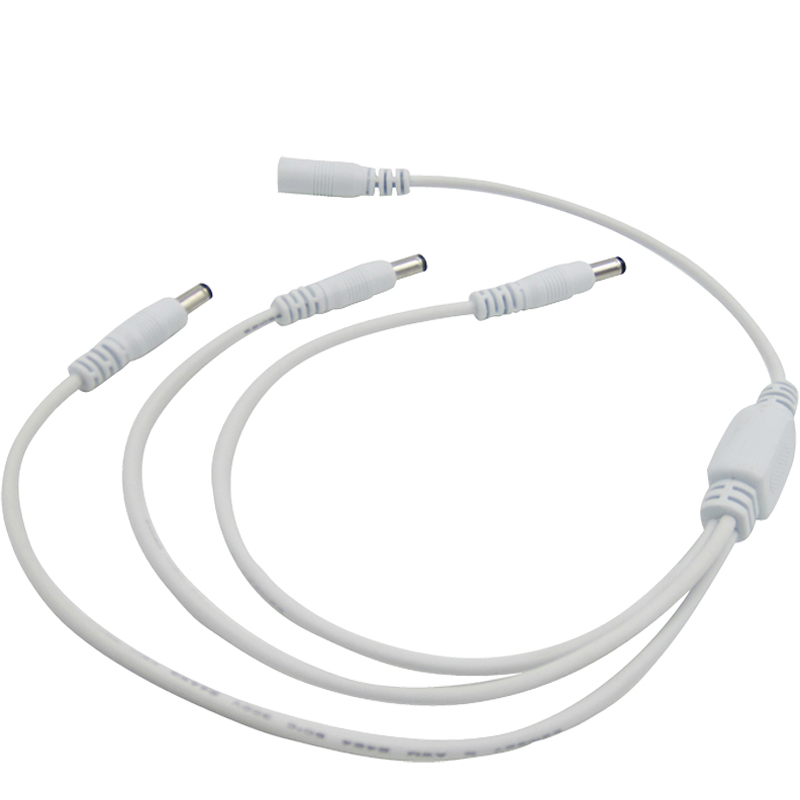

T /Y type splitter with PVC connector.
T /Y type splitter with PVC connector.
5.Injection molding with PVC cable type (length can be customized)
Wire tail terminal mode can be customized according to customer requirements (tin plating, Cold-pressed Terminal,O/U terminal/fuse, etc.)
6.The DC Series connector is made of PVC,cable is PVC too(can be customized as your needs).
6.The DC Series connector is made of PVC,cable is PVC too(can be customized as your needs).

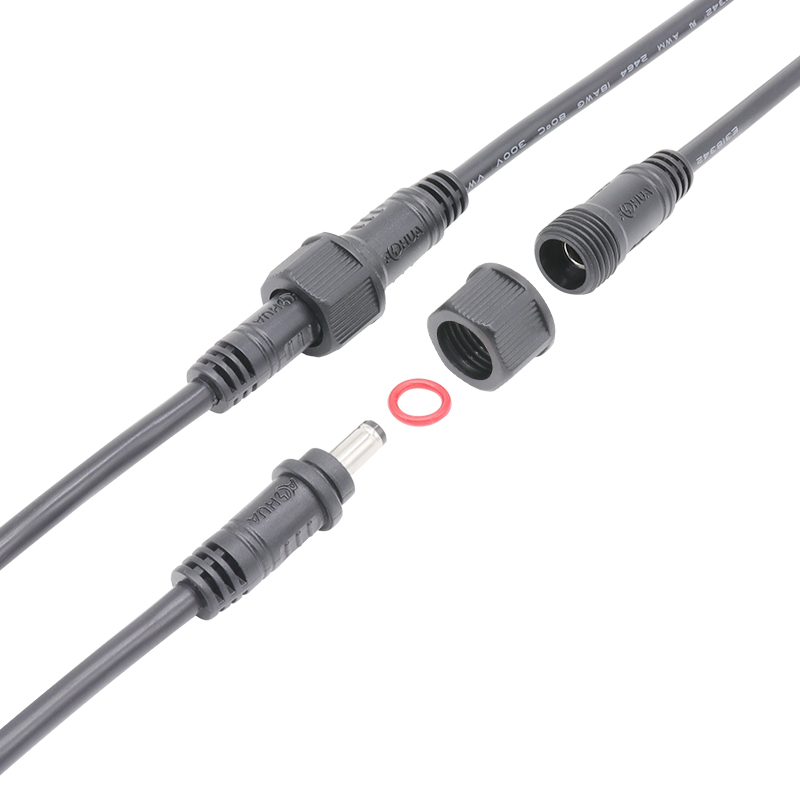

O-Ring is made of Silica Gel. High temperature resistance. Excellent waterproof and dustproof effect, good resistance, long service life.
Before quotation, please tell us the cable details,thanks.
*Confirm Current Rating and Number of Contacts
(such as:8A...and such us:3pin...)
*Confirm Cable Wire size and Cable OD(over diameter)
(such as: 2*1.5mm2...and such as 8mm...)
*Confirm Cable Length and Material.
(such as:1000mm...and such as Nylon or PVC)
*Confirm tail processing (such as tin plating, Cold-pressed Terminal,O/U terminal/fuse, etc.)
Not waterproof DC Quick Series
and Quick Lock Series connector M11 M13

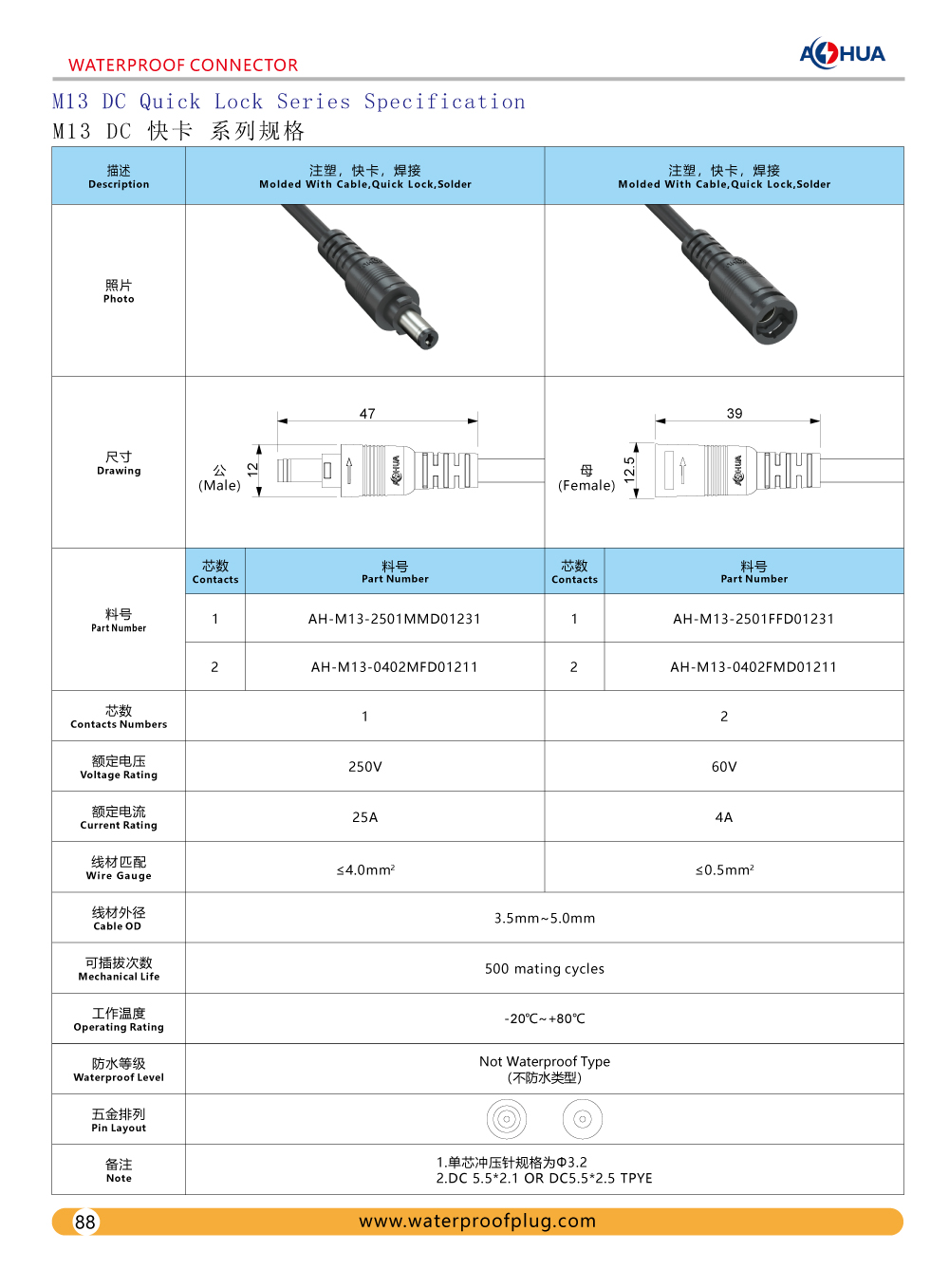

Design Drawing,Specification and Product Display

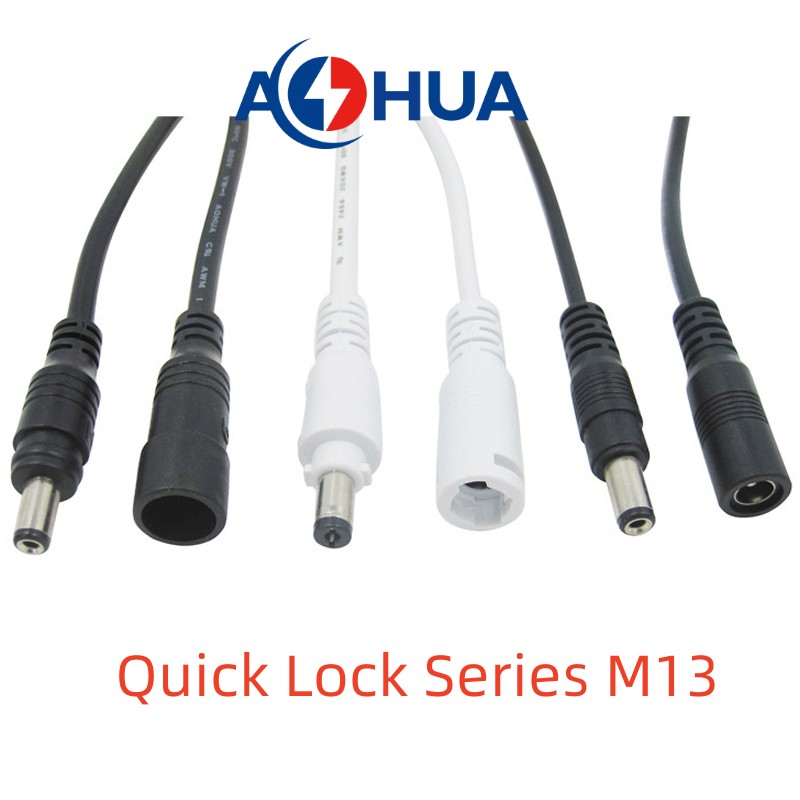

M13 DC Quick Lock series cable connector is suited for Wire gague ≤0.5mm², the most common wire gauges are 2*0.5mm²,2*20AWG,2*22AWG,2*24A GW.The cable length can be customized as your requirements.

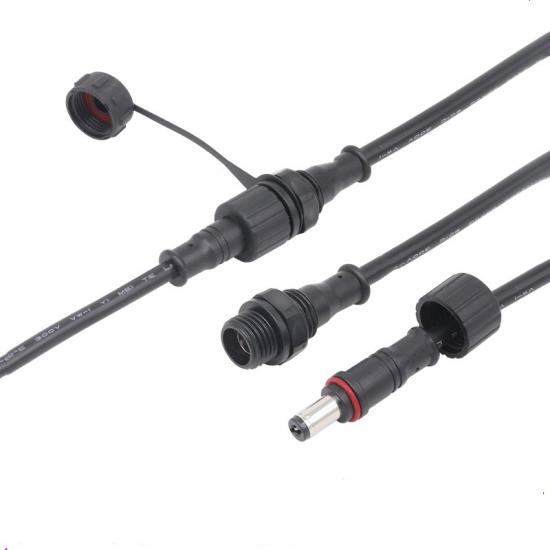

DC Waterproof Series Female Panel M12,

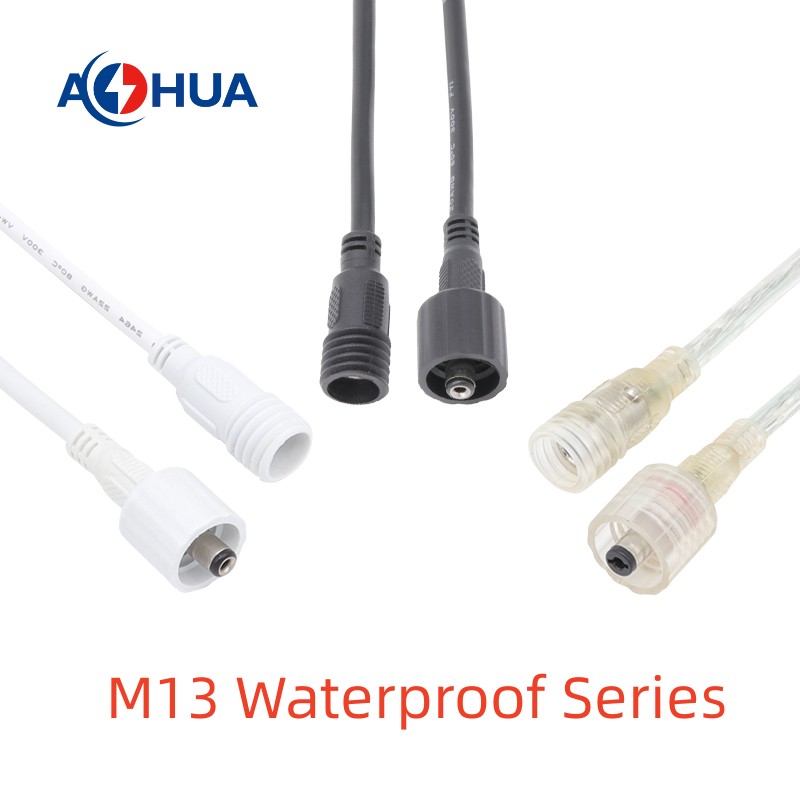

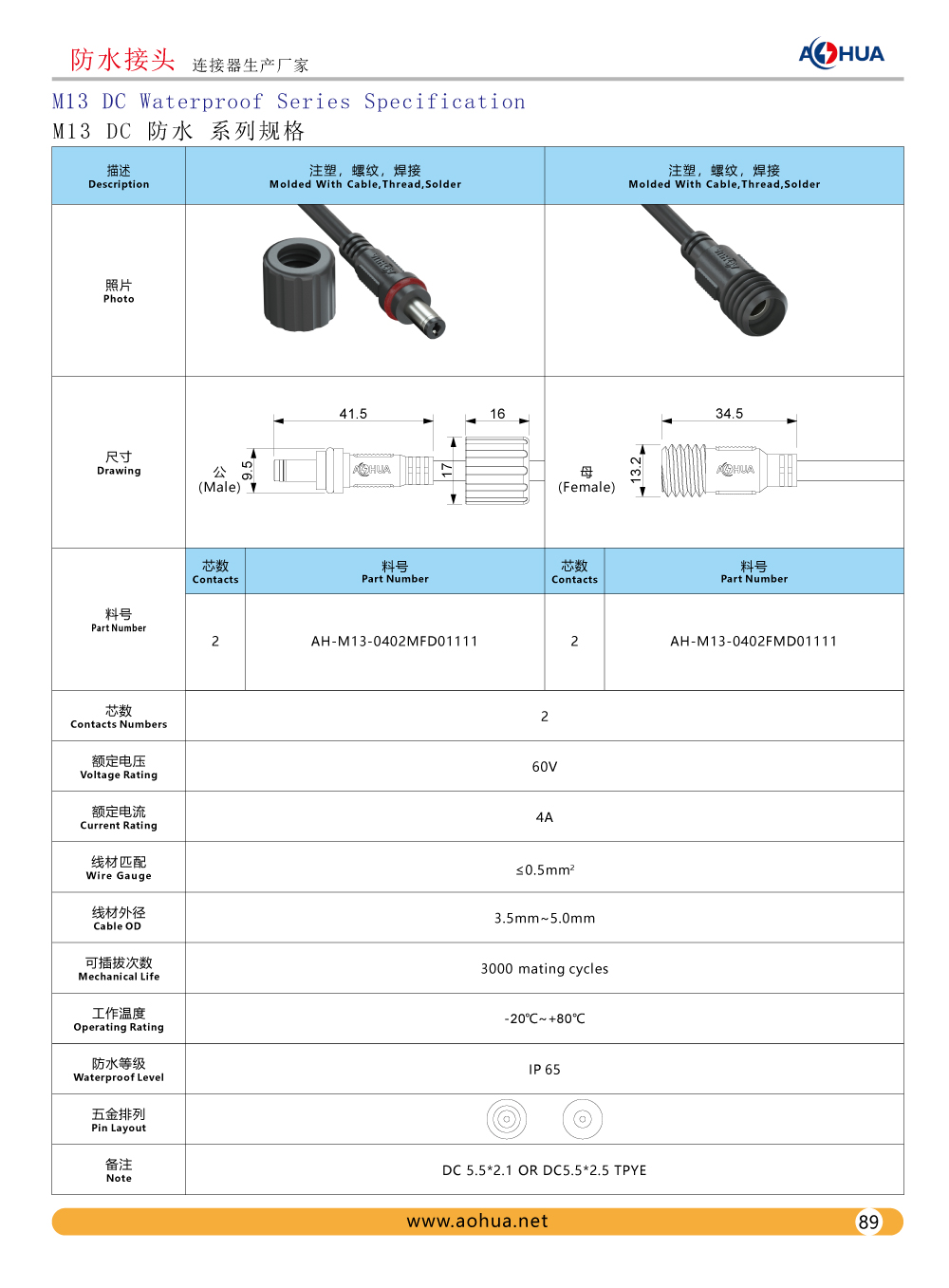

DC Waterproof M13 M14 and Design Drawing,Specification and Product Display

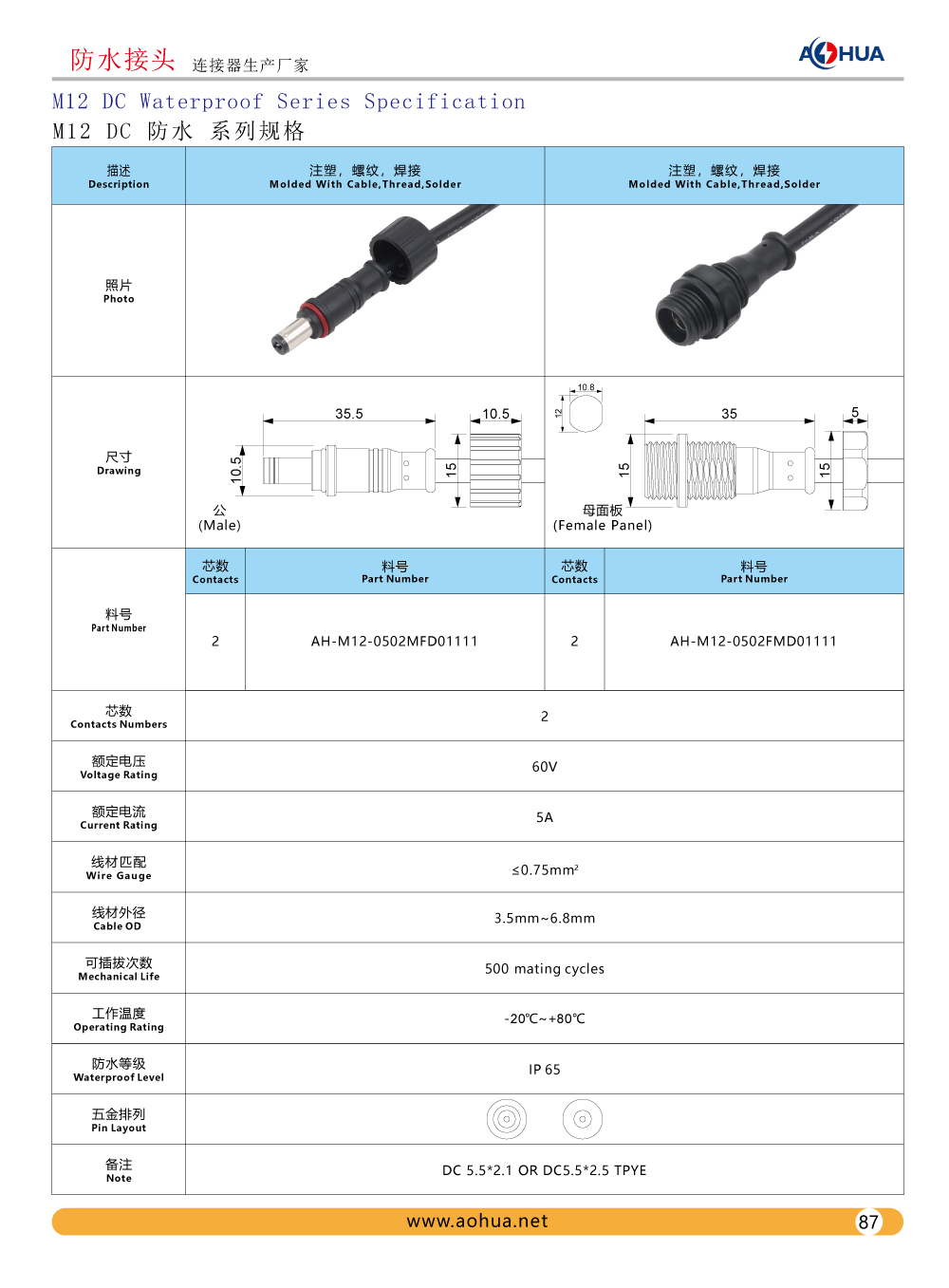

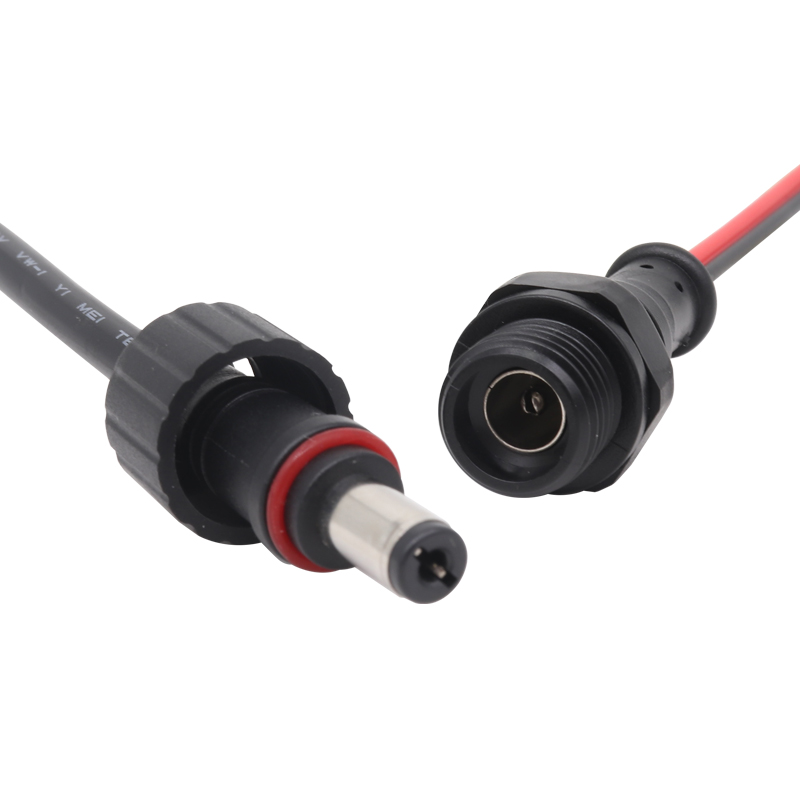

DC M12 Female Panel Waterproof cable connector is suitable for wire gauge ≤0.75mm² , the most common wire gauges are 2*0.75mm², 2*0.5mm²,2*18AWG, 2*20AWG,2*22AWG,2*24AGW.The cable length can be customized as your requirements.

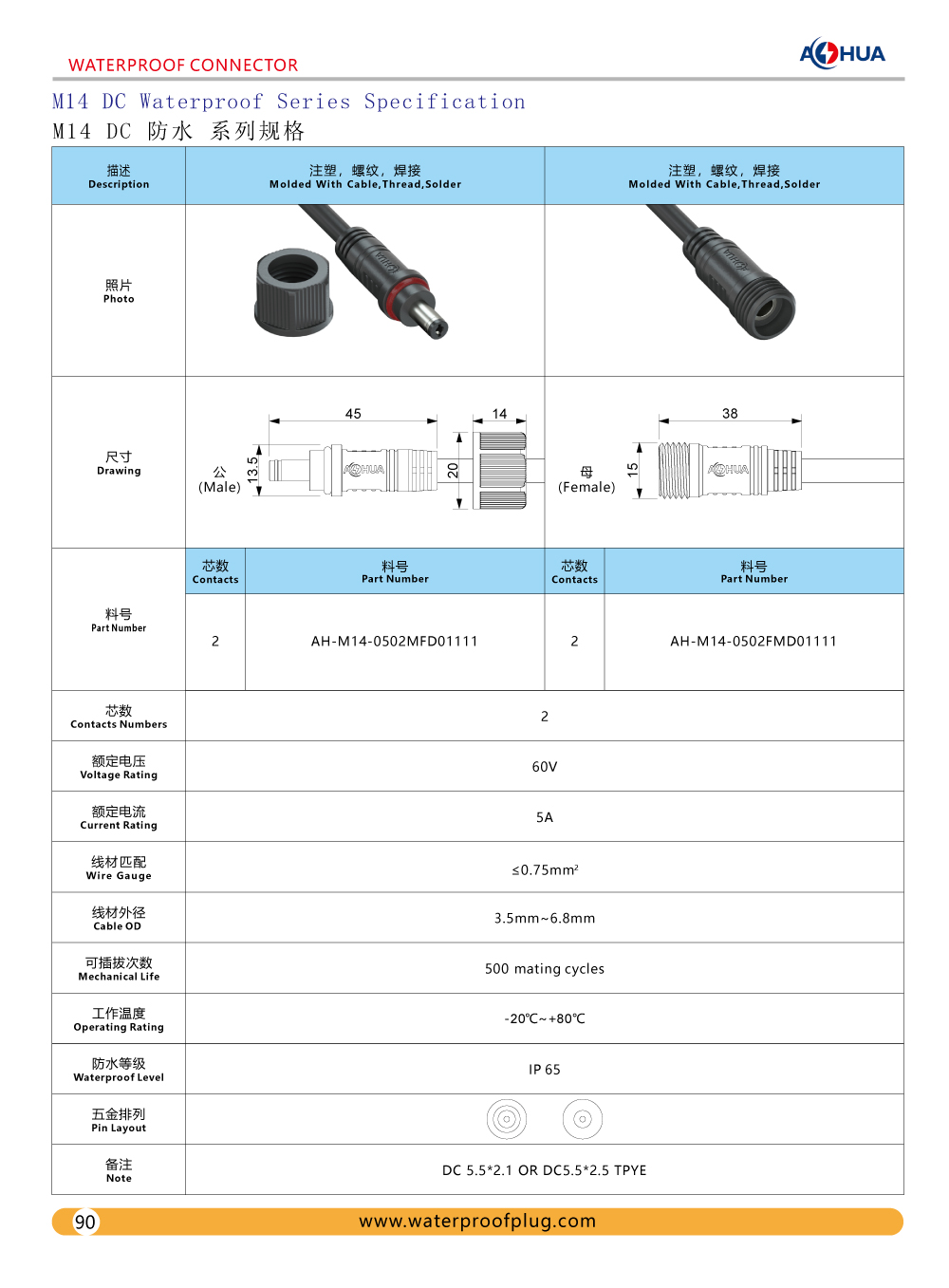

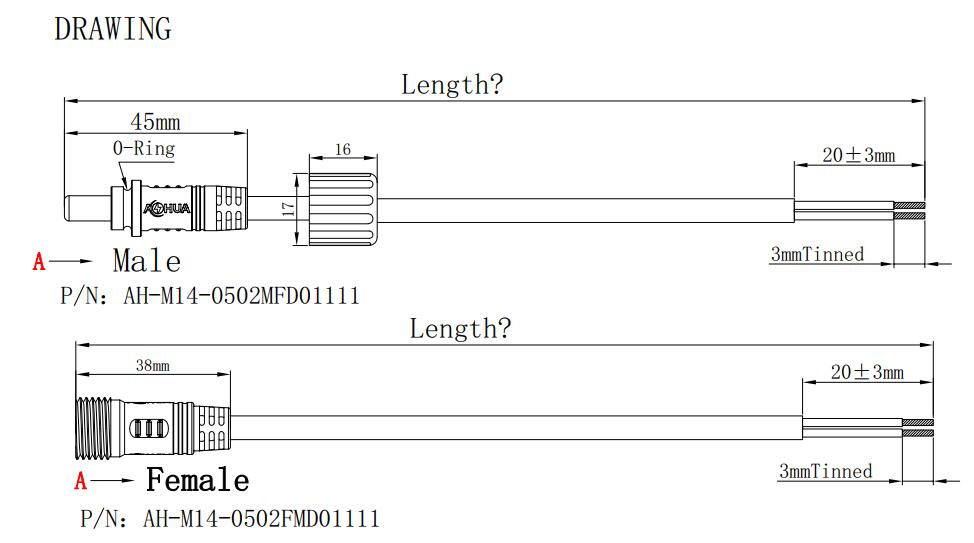

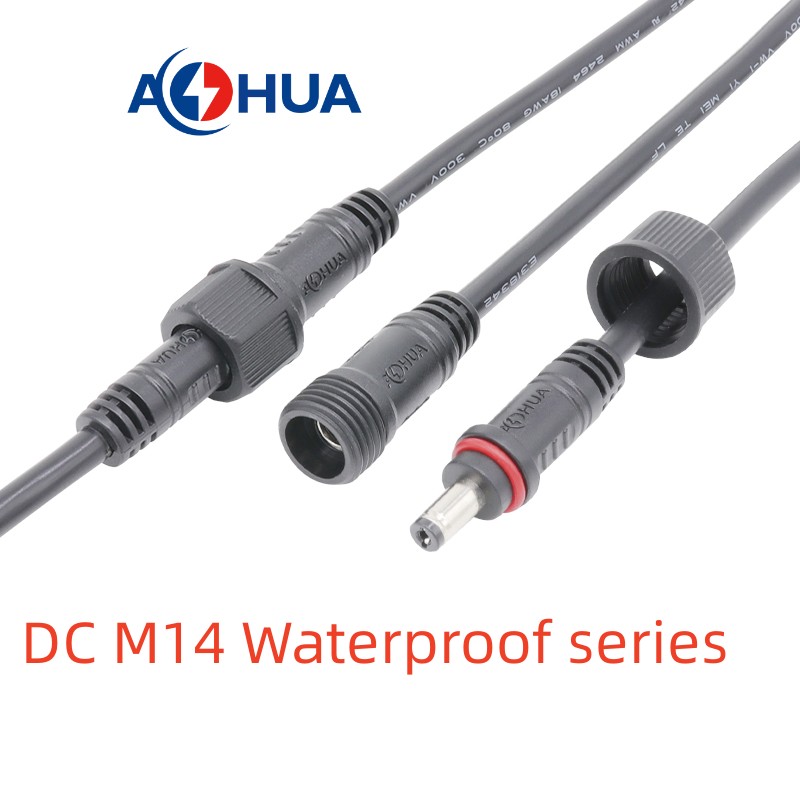

DC M14 Waterproof connector is suitable for wire gauge 0.75mm², 0.5mm²,18AWG, 20AWG, 22AWG, 24AWG.
DC head can be molded into a 90 degree Angle DC connector.
DC series connector can be designed to different types of solutions according to the different using environment, such as:
Extended cable, male to female, male to male, female to female.
T /Ytype splitter with PVC connector.
