AOHUA Q-M20 2PIN 3PIN Qucik Connect Self Lock 10A Waterproof IP68 Connector

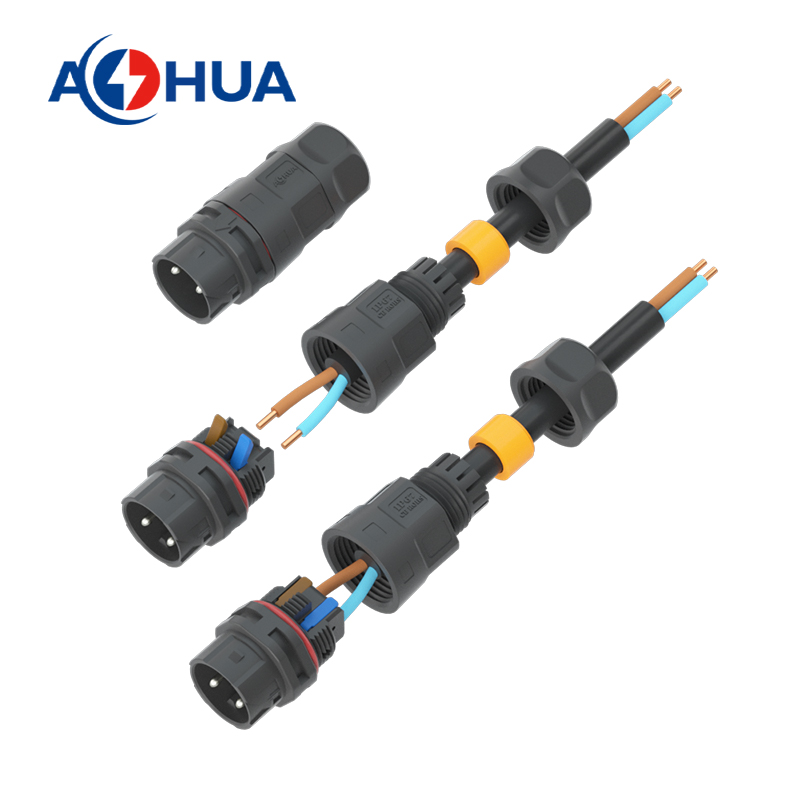

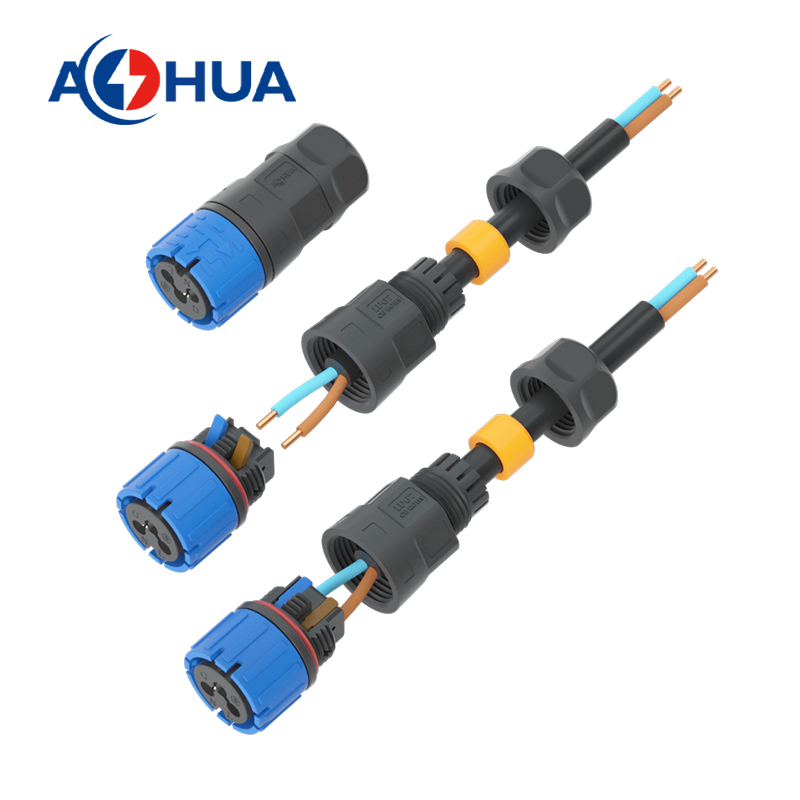

As shown in the diagram:

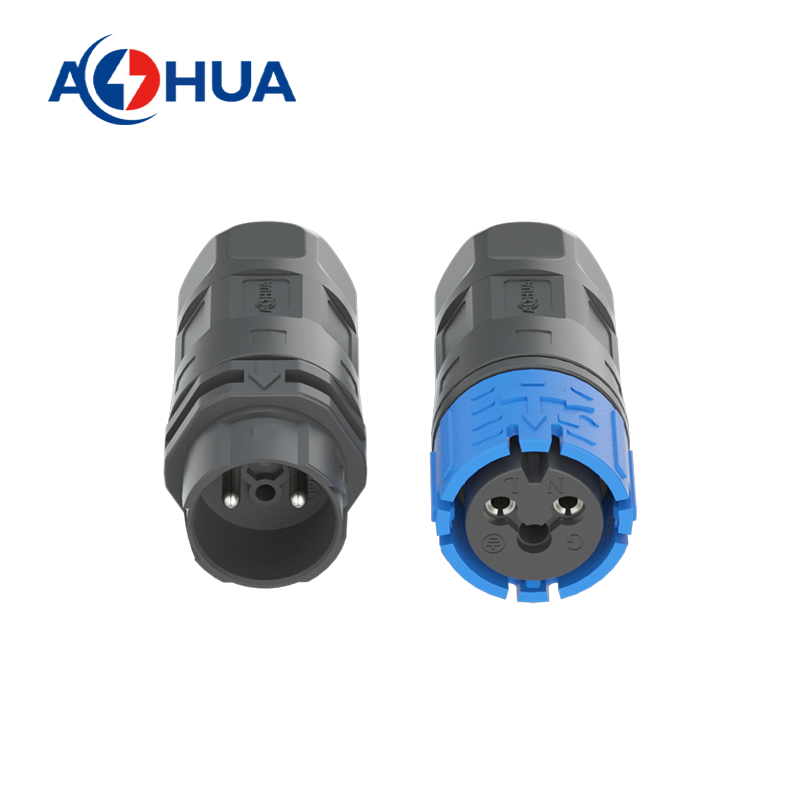

• It features both male and female connectors (the upper and lower sets display different angles of the male and female ends respectively);

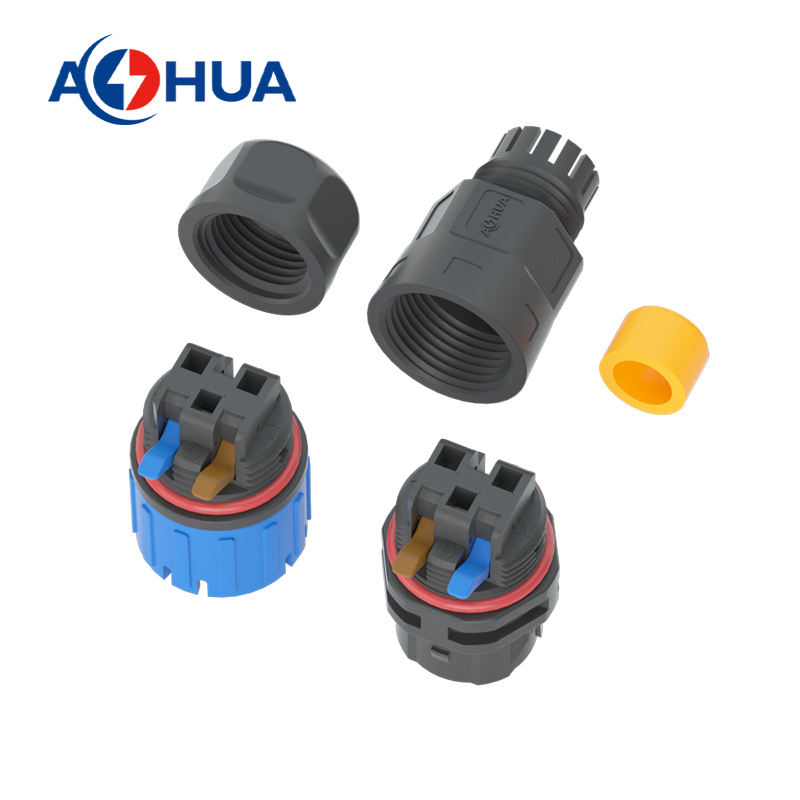

• The housing combines black and blue, incorporating a sealing gasket (red section) for waterproof and dustproof functionality (typically meeting IP65/IP67 standards);
• Internally, it houses two wiring terminals (brown and blue colour-coded for polarity indication), constituting a two-core connector for power or signal transmission.

Such connectors are commonly employed in outdoor lighting, security equipment, and new energy devices requiring moisture and splash resistance. Their advantages include ease of plugging and unplugging alongside robust protective performance.

Technical Specifications

• Interface Type: Q20 Threaded Connection
• Number of Terminals: 2pin/3pin
• Protection Rating: IP68
• Rated Current: 10A
• Rated Voltage: AC 250V / DC 300V
• Operating Temperature: -40°C to +85°C
• Material: Housing - Engineering Plastic, Terminals - Brass
