Customized PVC/Nylon 3-Way Wire Splitter T Connector for Outdoor LED Lighting

T Splitter Waterproof connector

Item NO.:
T
Lead Time:
a week
Product Orgin:
China
Shipping Port:
shenzhen,china
Payment:
TT,PAYPAL
Color:
black;white

Inquiry now

products Details

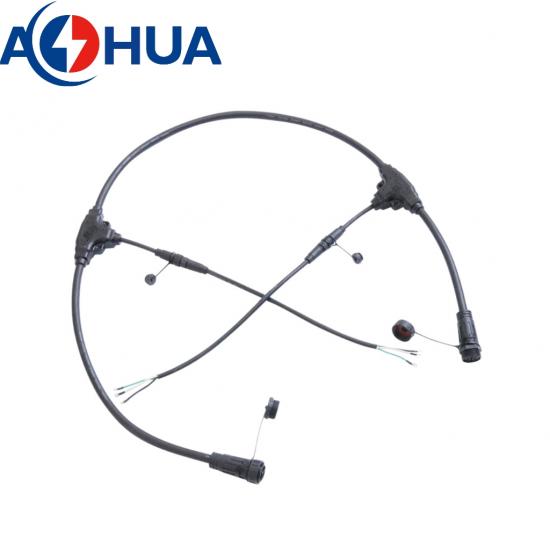

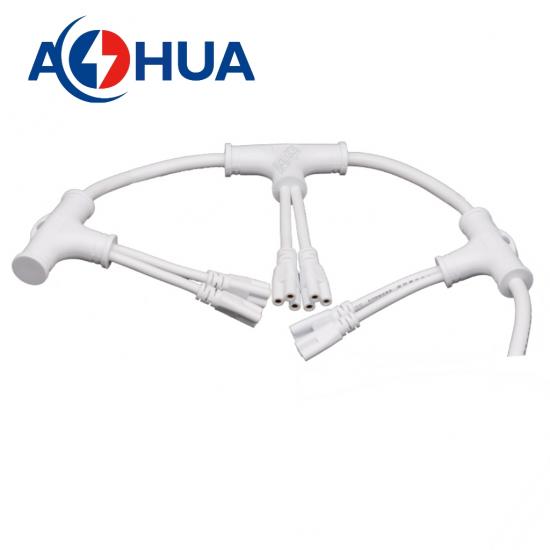

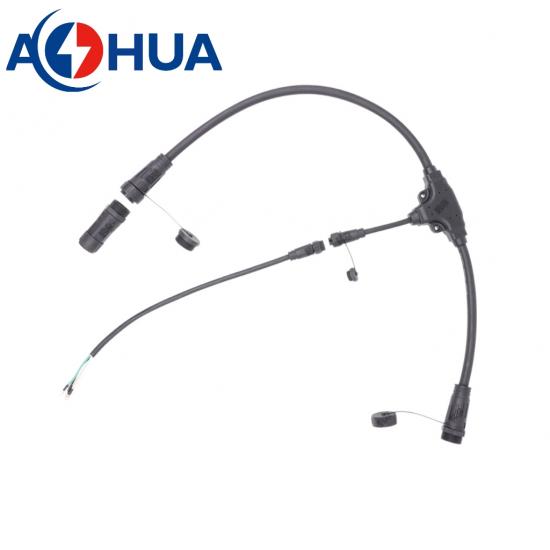

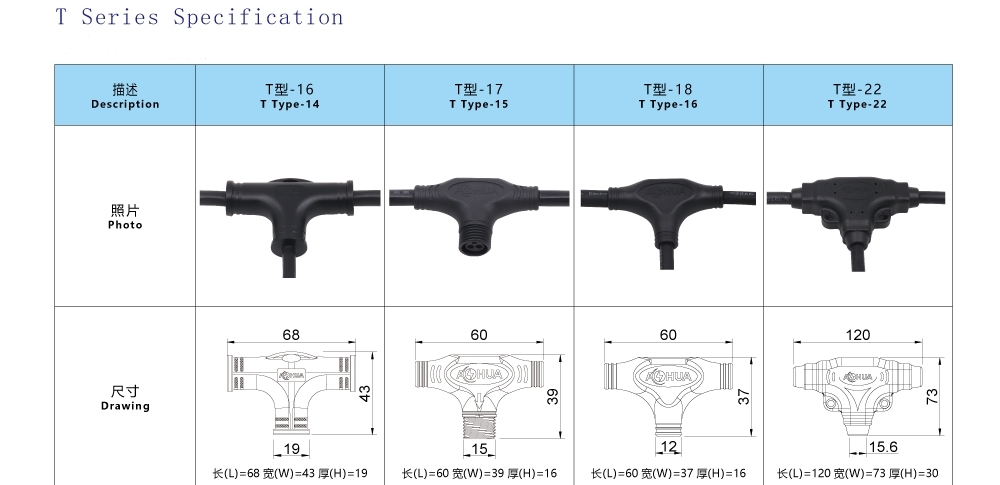

T-16/T-17/T18/T22 T Type Splitter Cable Connector For LED Lighting

Description & Specs

Items	Pins	Part Number	Wire Gauge	Cable OD
T-16	2	AH-TP16-020X	Main Cable Gauge:≤2.5mm² Branch Cable Gauge:≤2.5mm²	Main Cable OD:13.2mm Branch Cable OD:13.2mm
T-16	3	AH-TP16-030X
T-16	4	AH-TP16-040X
T-17	2	AH-TP17-020X	Main Cable Gauge:≤1.5mm² Branch Cable Gauge:≤0.75mm²	Main Cable OD:8.3mm Branch Cable OD:6.8mm
T-17	3	AH-TP17-030X
T-17	4	AH-TP17-040X
T-18	2	AH-TP18-020X	Main Cable Gauge:≤1.0mm² Branch Cable Gauge:≤0.75mm²	Main Cable OD:6.8mm Branch Cable OD:6.0mm
T-18	3	AH-TP18-030X
T-18	4	AH-TP18-040X
T-22	2	AH-TP22-020X	Main Cable Gauge:≤4.0mm² Branch Cable Gauge:≤4.0mm²	Main Cable OD:12.0mm Branch Cable OD:12.0mm
T-22	3	AH-TP22-030X
T-22	4	AH-TP22-040X

Operating Rating	-20ºC-+80ºC(PVC) -40°C-+105°C(Nylon)
Waterproof Level	IP65(PVC) IP67/IP68(Nylon)

Tips for choices:

You can send me email about what you want. like this:
1. T connector
2. Main cable 2*1.0mm² black rubber cable/each T between 200mm
Branch cable 2*0.75mm² black rubber cable 200/300/400mm with female connector /or male connector 200mm
3.Then I will gvie advise which T and connector you can used and make drawing for you.
You can get some sample before mass order.
4.Wised use in led,we can make what the 1 to N waterproof connector you want.

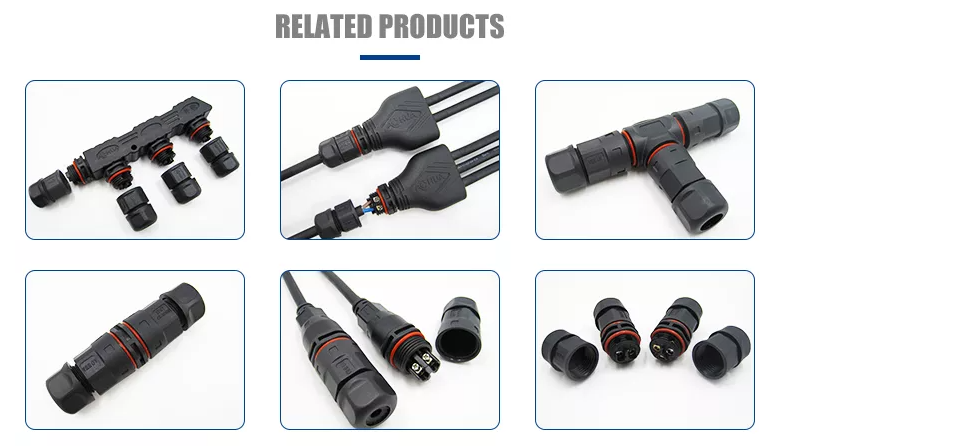

Related Products

Our Advantages

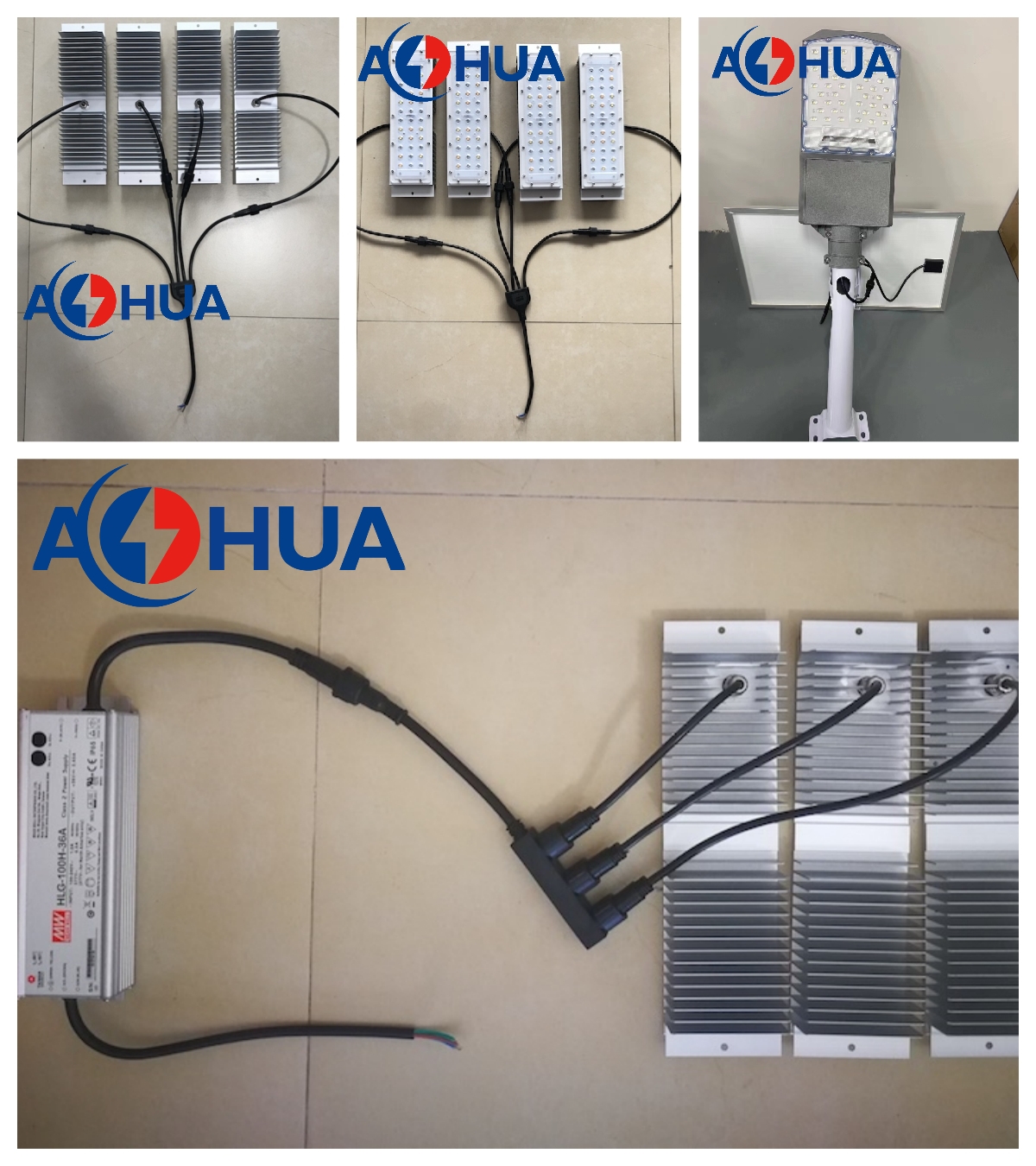

Application

Advantages:

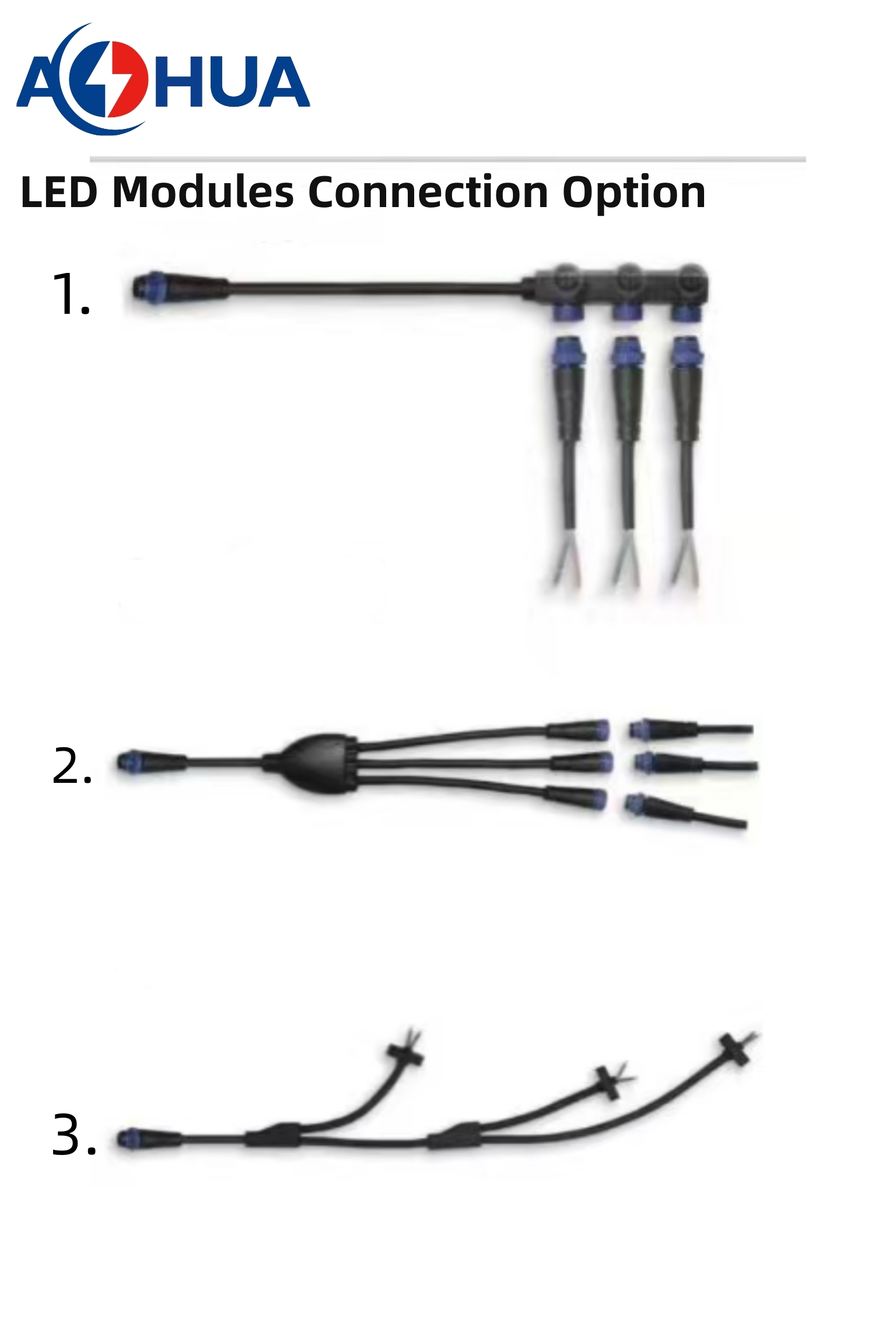

1.Connector:T Type series waterproof connector,1 to 2, 1 to 3, 1 to 4, 1 to 5,parallel type & series type.

2. Quality Assurance: IP65/IP67/IP68 advanced protetion,operating temperature:-40°C-+105°C.

3.Easy Install: The installation process is very simple.

4.Color:Black,White.

5.High-Quality Materials: The Outdoor connector all are made high quality Nylon PA66,high temperature resistant,94V-0 flame retardant.

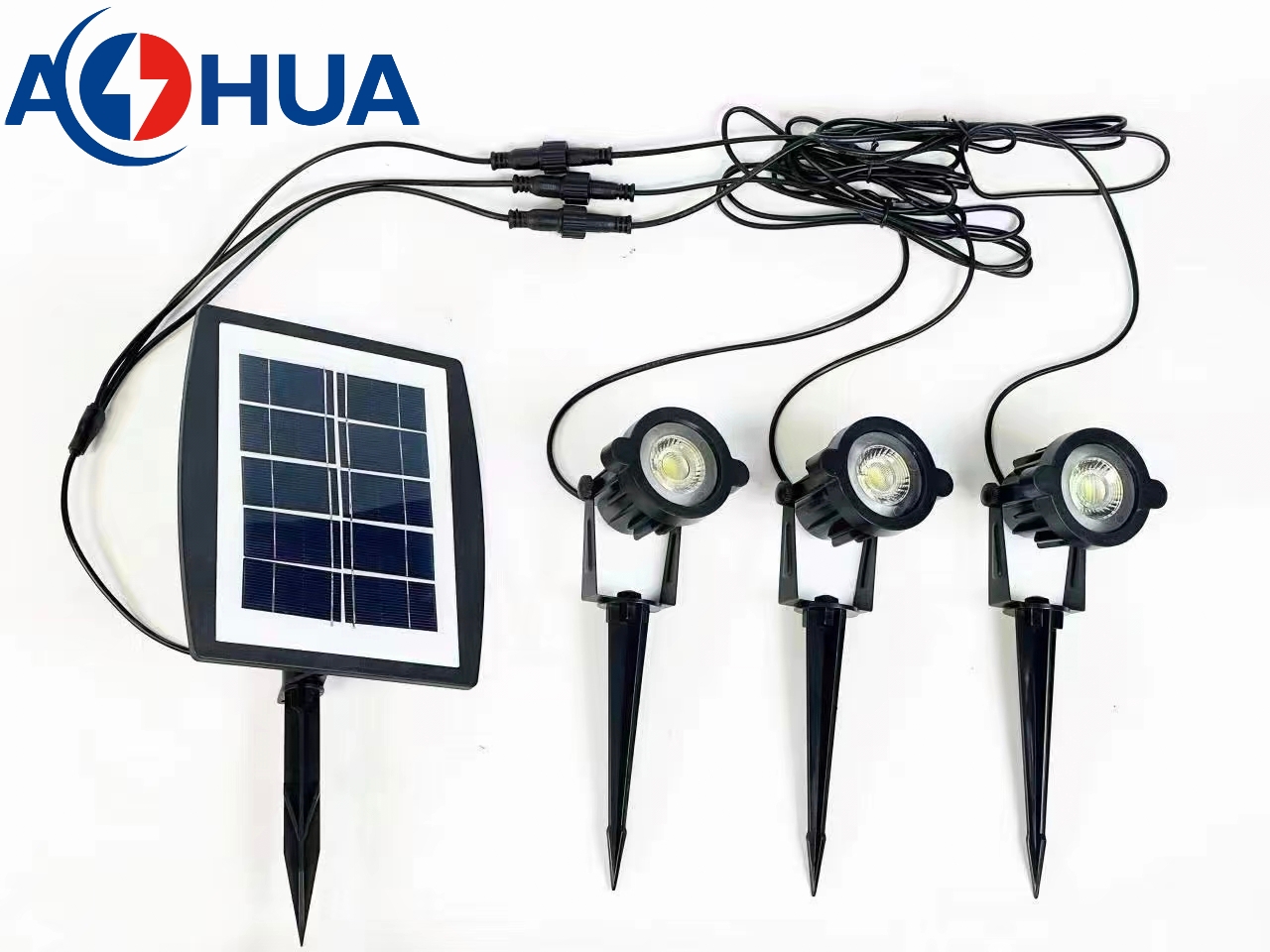

6. Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.

Assembly Connector	Wire to wire /Wire to panel waterproof connector,L/T screw type connector
Over-mold Connector	Nylon/PVC /Metal /Aviation waterproof connector,DC connector
T Connector	Over-mold T waterproof connector
Y Connector	Over-mold Y waterproof connector
Distributor Connector	M15/M18 Series(1to2/3/4/5/6) LED waterproof connector
