Outdoor wiring involving multiple devices is complex and prone to water ingress and short circuits:
Integrated four-way structure, centralised power supply, waterproof and sealed design
Time-consuming on-site installation and non-compliant wiring:
Pre-wired and moulded, with male and female connectors; no need for stripping or soldering
Ageing and cracking of cables in low-temperature or high-temperature environments:
Weather-resistant PVC/TPU material, stable operation between -40°C and 85°C
Additional junction boxes are required for equipment expansion:
The four-way topology directly provides one input and three outputs, reducing the number of intermediate nodes

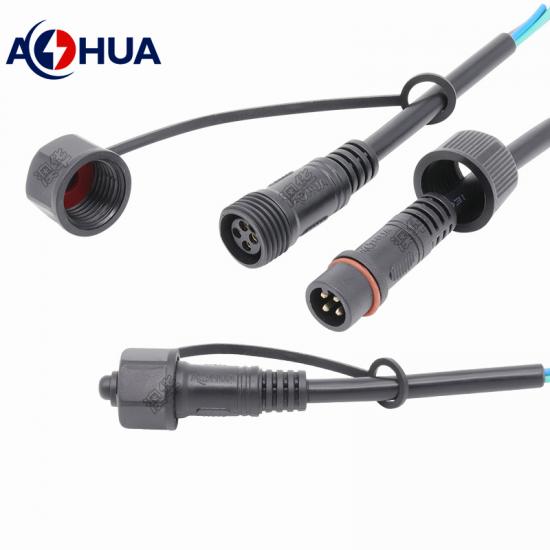

- Waterproof construction:
-
- Screw-lock mechanism + rubber O-ring, IP67-rated, can be submerged in water to a depth of 1 metre for 30 minutes without leaking
-
- Features a dust cover to protect the pins from dust and rain when not in use
-
- Materials and durability:
-
- Conductor: High-purity copper core, low resistance, suitable for high-current transmission
-
- Housing: Weather-resistant TPU/PVC, UV-resistant and anti-ageing, suitable for long-term outdoor use
-
- Electrical performance:
-
- Rated voltage: DC 12V/24V (customisable)
-
- Rated current: 2–5 A (depending on the number of cores)
-
- Available with 2, 3 or 4 conductors to meet power supply and signal transmission requirements
-
-
Ease of installation:
- Male and female connectors simply slot together; no tools required; connection completed in 10 seconds
- Pre-stripped and tinned wires can be connected directly to the equipment terminals, reducing installation time
| Model | Number of cores | Water resistance rating | Wire specifications | Current / Voltage | Operating temperature |
|---|---|---|---|---|---|
| Y-type cross-piece | 2/3/4 PIN | IP67 | 0.5~0.75mm² | 2~5A / 12~24V DC | -40℃~85℃ |
| Direct-connect type | 2/3/4 PIN | IP67 | 0.5~0.75mm² | 2~5A / 12~24V DC | -40℃~85℃ |
Application Scenarios Area:
- Outdoor lighting:Series and parallel connections of street lights, floodlights, wall-washing lights and plant grow lights
-
- Security surveillance:Centralised power supply and signal transmission for cameras, floodlights and alarms
-
- Landscape Engineering:Waterproof wiring for garden lights, in-ground lights and underwater lights
-
- Smart devices:Extended power supply for outdoor sensors, charging points and IoT devices
-
-
Transport infrastructure:Reliable connectivity for tunnel lighting, signpost lighting and road surveillance
