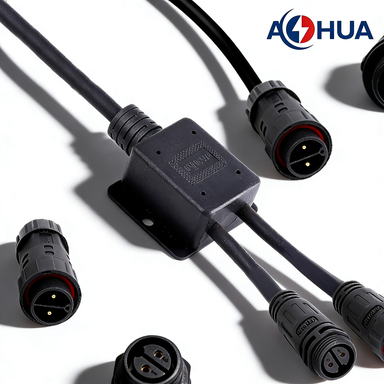

This is the AOHUA Customized Y Shape Pwer Electrical Splitter Connector

In this Splitter connector, it is a Y shape we call it 1 in 2 way out splitter connector, an outdoor/industrial-grade electrical cable splitter, whose primary function is to divide a single power supply into two outputs, whilst offering waterproof and dustproof capabilities.

Specifically:

Main Body Design & Features of the Waterproof Connector

1. Application OrientationDesigned for outdoor and industrial cabling scenarios.
2. Splitter Box Structure & Installation
   • Features an integrated one-in-two-out splitter box at the centre.
   • Symmetrical mounting holes are reserved on both sides of the housing, allowing rapid screw-fastening to carriers like walls, equipment racks, or lampposts.
   • Effectively avoids connector loosening caused by cable tension during installation.
3. Pathway Configuration & Function
   • Adopts a single-in dual-out pathway design: one end acts as the input interface for connecting the main power supply line, and the two output interfaces can power two terminal devices simultaneously.
   • Realizes efficient power distribution from a single power source.
4. Material & Performance
   • All cables and connectors adopt a composite structure of black high-strength engineering plastic and weather-resistant rubber.
   • Engineering plastic housing provides impact resistance and corrosion protection.
   • Rubber components ensure waterproof sealing at the connection points and enhance the resilience of cable-to-connector bonds, suitable for long-term operation in diverse environments.

Accessories section

1.Component Configuration

The accessory kit is fully equipped, comprising independently adaptable core components such as male connectors, female connectors, and terminal blocks. This enables flexible compatibility with diverse equipment integration requirements across multiple scenarios, including LED street lighting, outdoor surveillance systems, and photovoltaic distribution.

2.Structure and Specifications

• The male connector features raised metal pins internally, while the female connector corresponds with recessed metal sockets. These two components interlock precisely to achieve stable electrical conductivity.

• The connector supports both 2-pin and 3-pin configurations: the 2-pin specification is suitable for standard positive and negative power supply scenarios such as garden sprinkler controllers and landscape lighting strips; the 3-pin specification incorporates an additional earth terminal, meeting wiring requirements for industrial equipment, outdoor surveillance cameras, and other applications demanding heightened electrical safety standards.

3.Connectivity Advantage

The complete set of accessories features a convenient plug-and-play design, eliminating the need for complex soldering procedures. Simply align the connectors manually and tighten the threads to complete the connection, enabling rapid wiring assembly and disassembly. This significantly enhances cabling efficiency in demanding environments such as outdoor and industrial settings.

The component configuration includes a comprehensive range of accessories, comprising independently adaptable male connectors, female connectors, terminal blocks and other core components. These enable flexible compatibility with diverse equipment interfacing requirements across multiple scenarios, including LED street lighting, outdoor surveillance systems and photovoltaic distribution.

• Structure and Specifications

• The connectors support both 2-core and 3-core configurations:

the 2-core specification suits standard positive/negative power supply scenarios such as garden sprinkler controllers and landscape lighting strips; the 3-core specification incorporates an additional earth terminal, meeting wiring requirements with heightened electrical safety demands for industrial equipment and outdoor surveillance cameras.

Connection Advantages The complete set of accessories employs a convenient plug-and-play design, eliminating complex soldering procedures. Connection is achieved by manually aligning the interfaces and tightening the threads, enabling rapid wiring assembly and disassembly. This significantly enhances wiring efficiency in complex outdoor and industrial environments.
