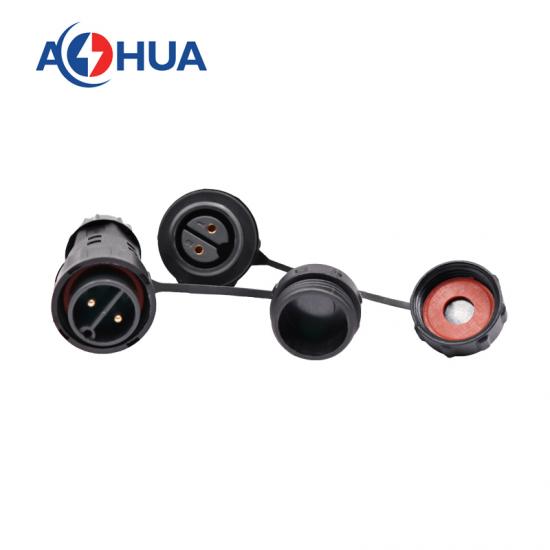

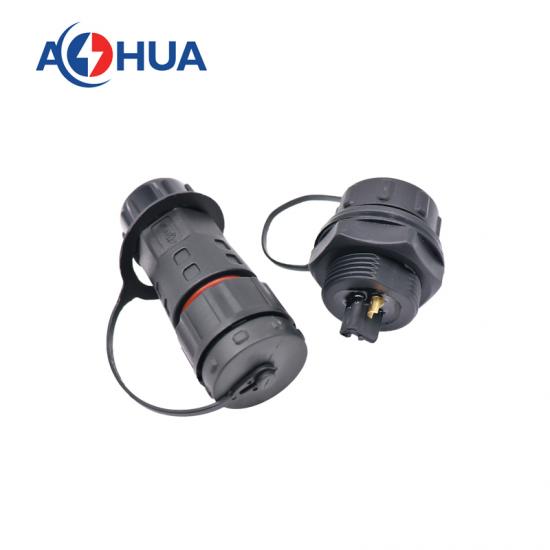

Description & Specs
Items | Pins | Part Number | Voltage Rating | Current Rating | Wire Gauge | Cable OD |
M16 | 2 | AH-M16-1002FFR/MMZ01112 | 300V | 10A | ≤1.0mm² | 2.6mm-7.5mm |
M20 | 2 | AH-M20-1502FFR/MMZ01112 | 300V | 15A | ≤1.5mm² | 5.5mm-10mm |
M25 | 2 | AH-M25-2502FFR/MMZ01122 | 300V | 25A | ≤2.5mm² | 6mm-12mm |
M29 | 2 | AH-M29-3502FFR/MMZ01122 | 300V | 35A | ≤4.0mm² | 6.5mm-15mm |
Contact Numbers | 2 |
Voltage Rating | 300V |
Current Rating | 15A |
Wire Gauge | ≤1.5mm² |
Cable OD | 5.5mm-10mm |
Mechanical Life | 3000 mating cycles |
Operating Rating | -40ºC-+105ºC |
Waterproof Level | IP67/IP68 |

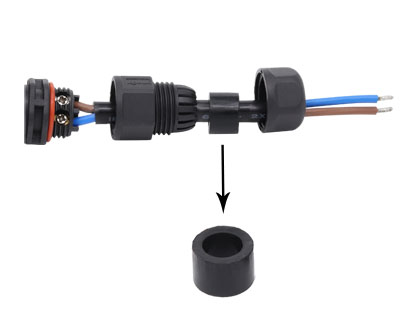

Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm |
Cable OD | Seal Ring |
2.6mm-7.5mm | 9*9*3.6/4.1/5.5/6.5/7.5mm |
5.5mm-10mm | 13*9*6.5/7.5/8.5/9.5/10mm |
6mm-12mm | 15.6*13*7/9/10/11/12/13mm |
6.5mm-15mm | 20.6*13*7.5/8.5/10/12/13/15mm |
Before get the quotation, please tell us the connection of waterproof connector.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...

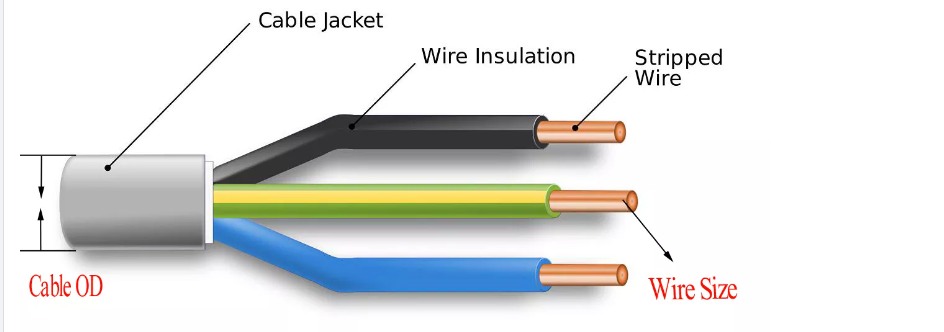

(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.

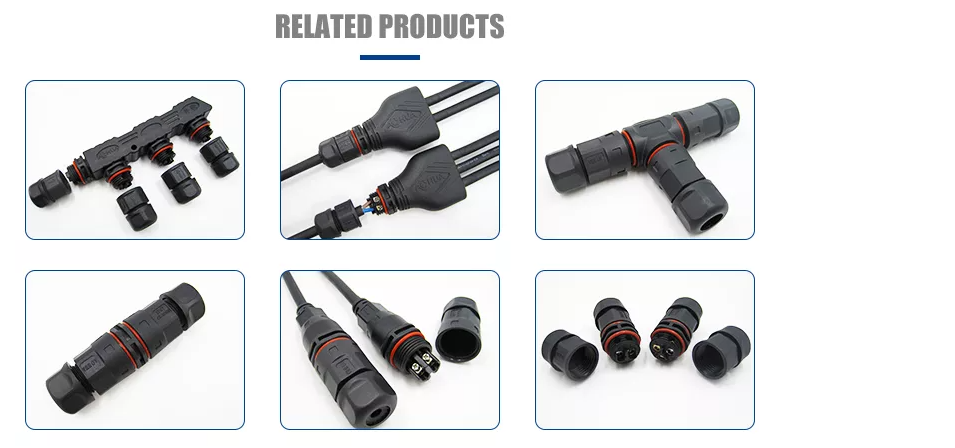

Related Products
Our Advantages
Advantages:

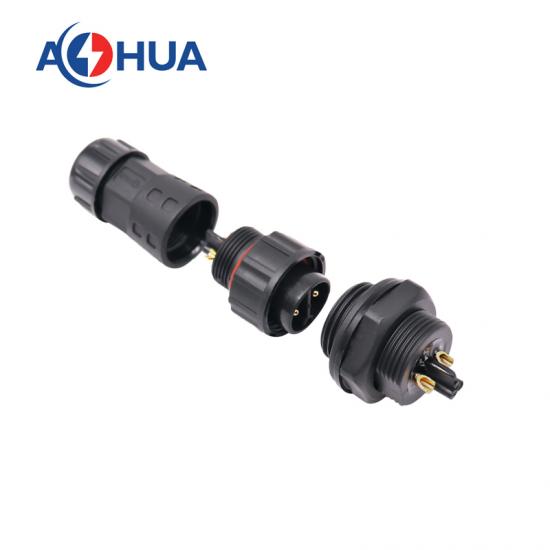

1.Nylon PA66,wire to rear female mount,solder & screw fixing type.

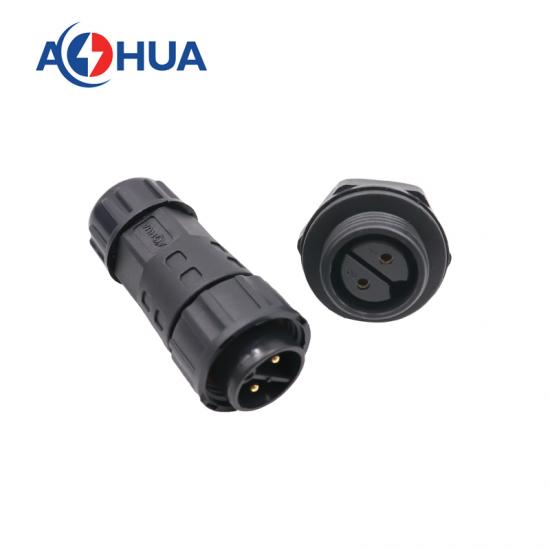

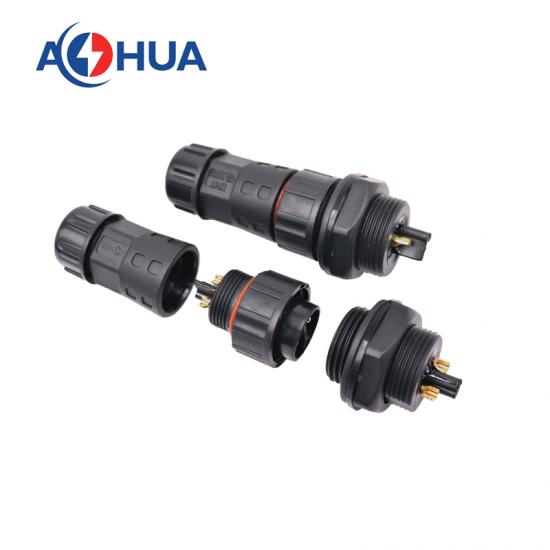

2. Male to female, assemble easily;2, 3, 4, 5,6,7,8 pin for choices,2,3 pin passed UL,CE,RoHS,TUV certificate.
3. Easy Install: The installation process is very simple.

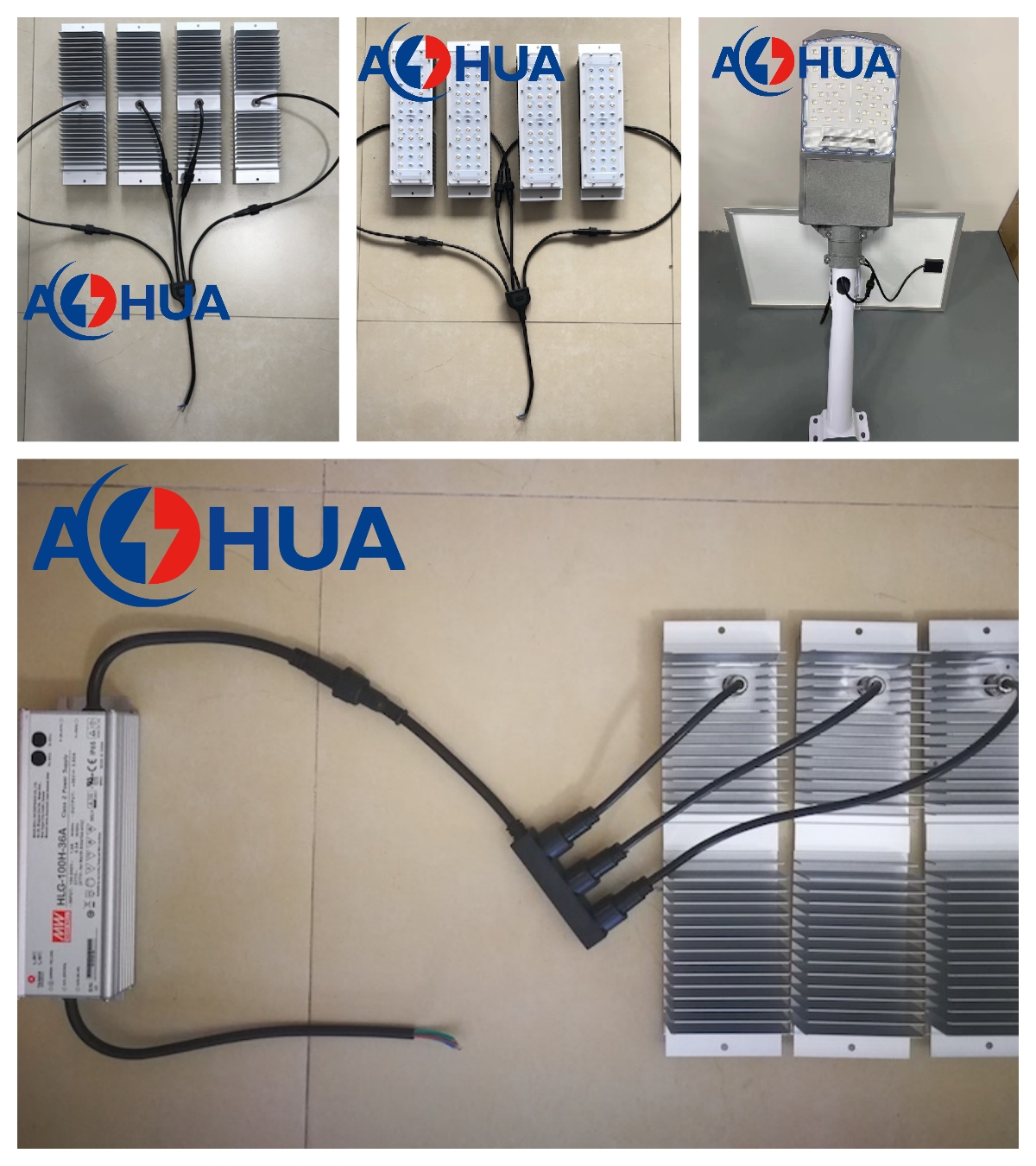

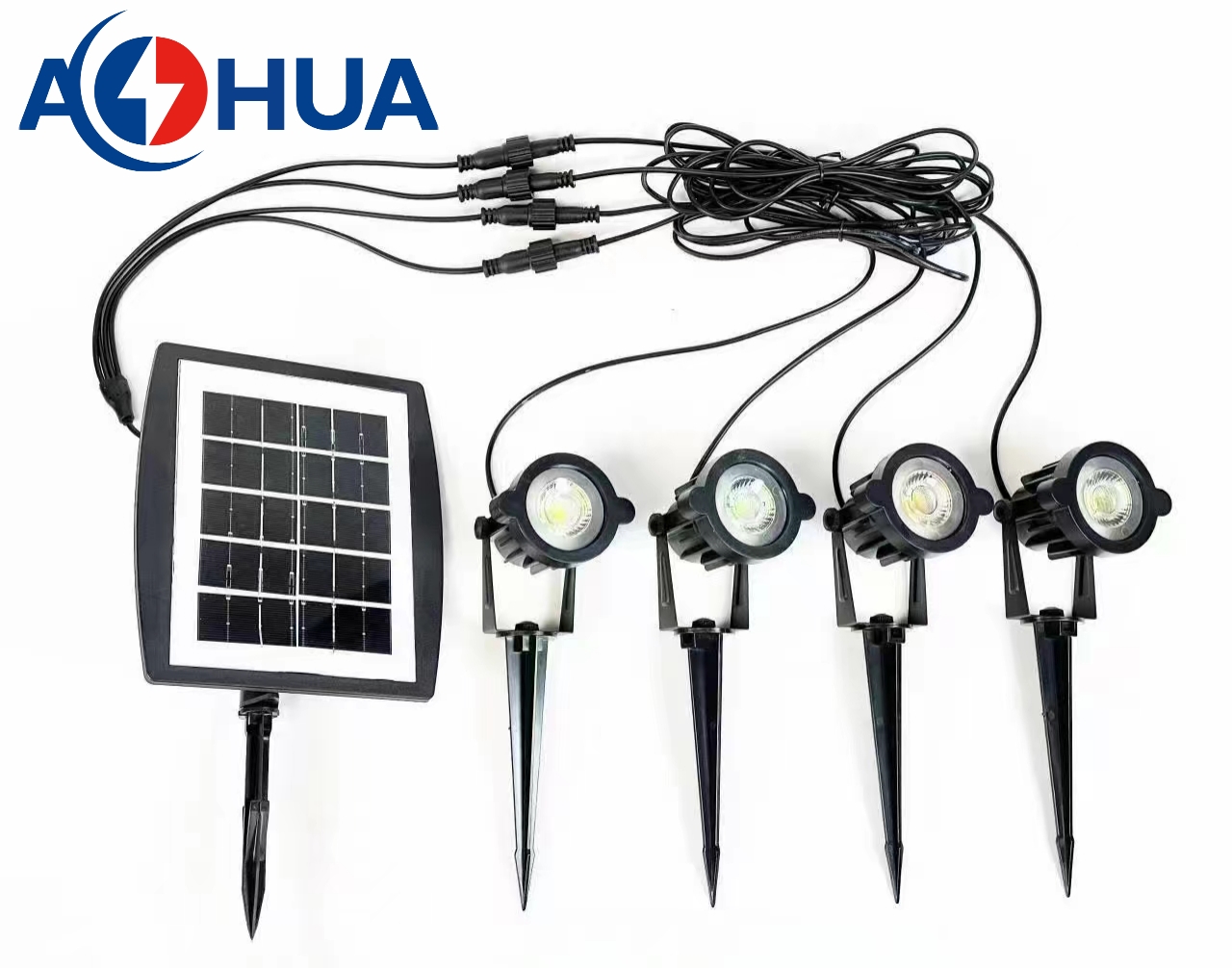

4.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
