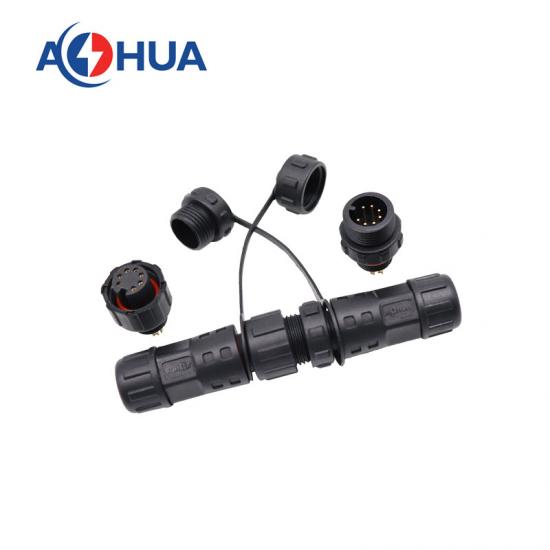

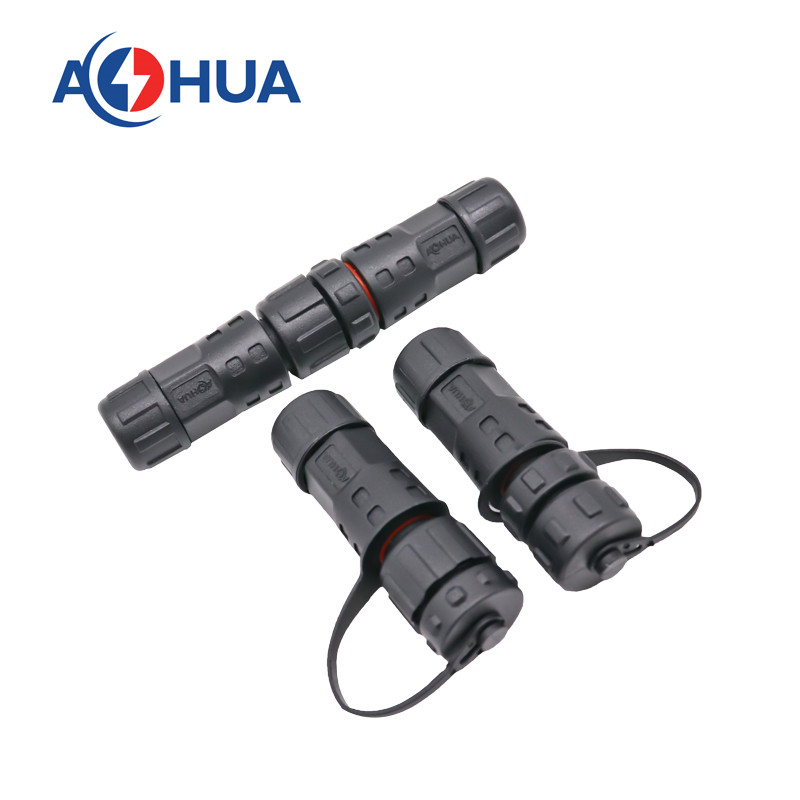

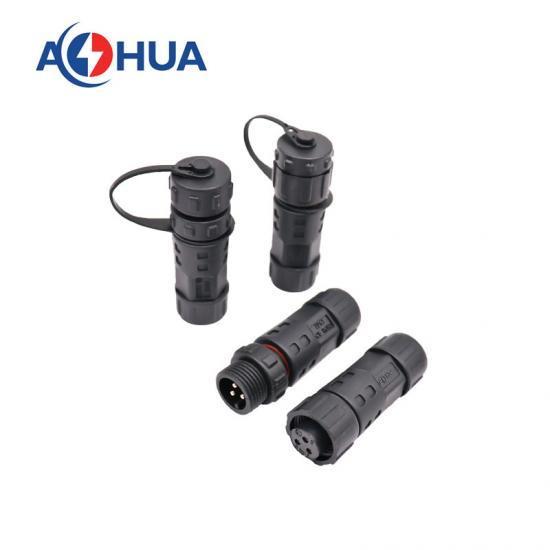

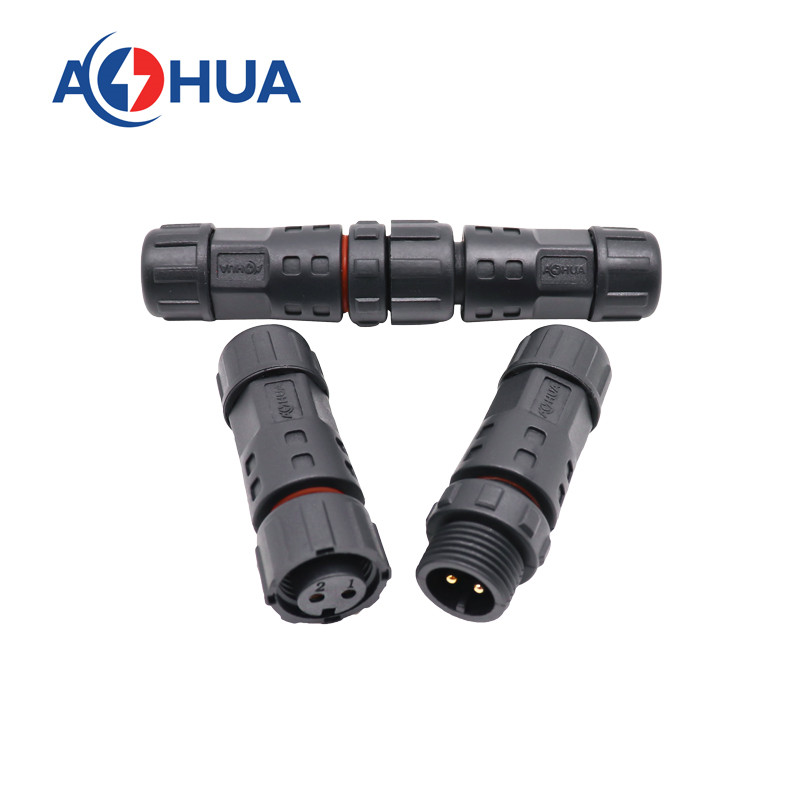

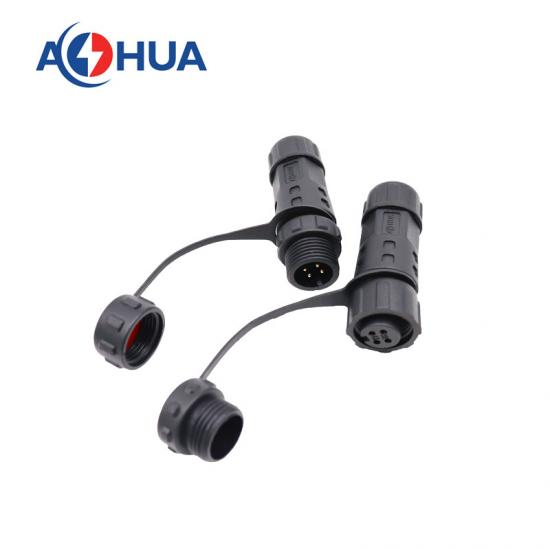

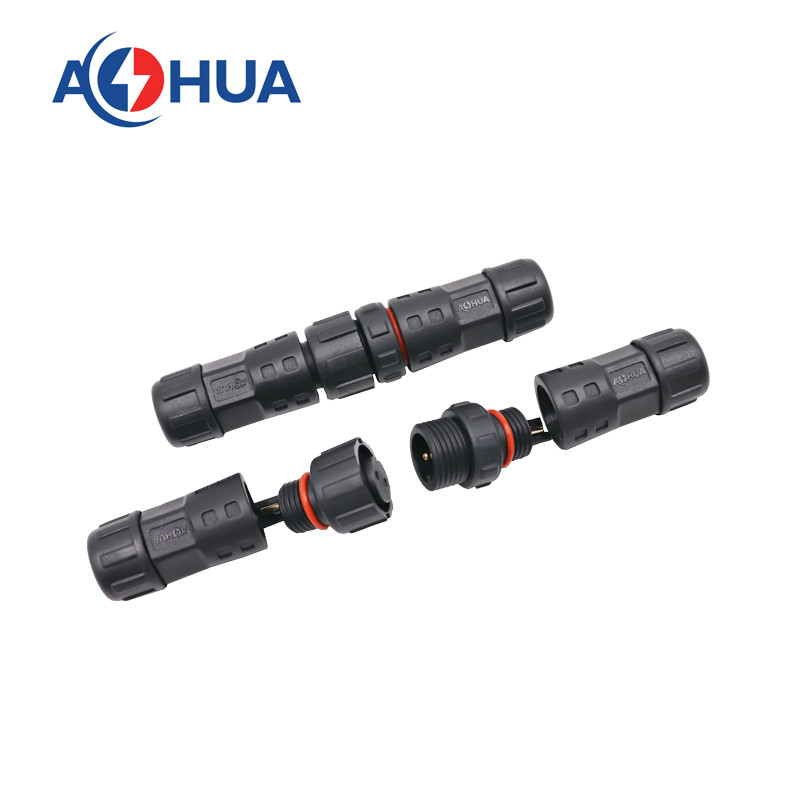

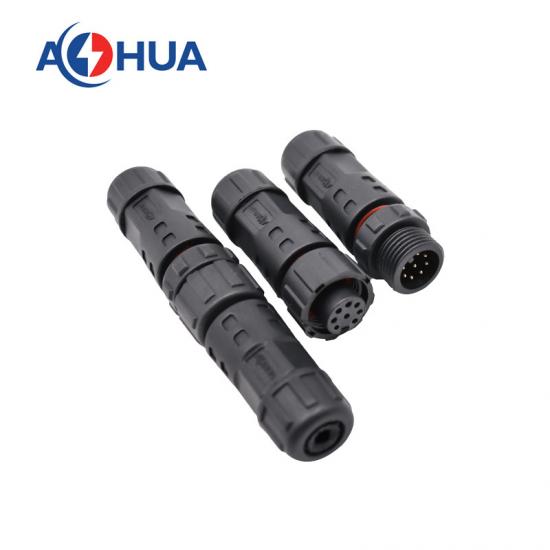

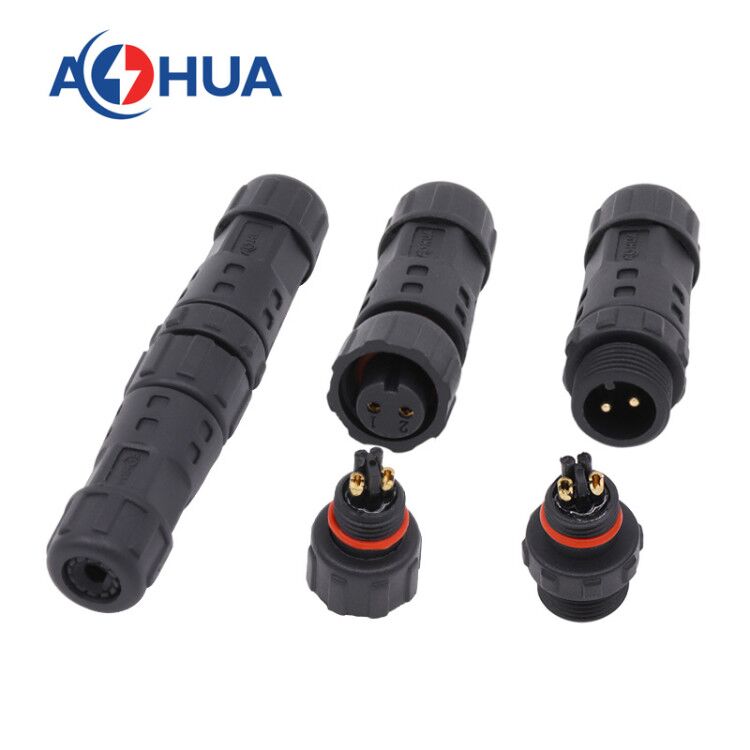

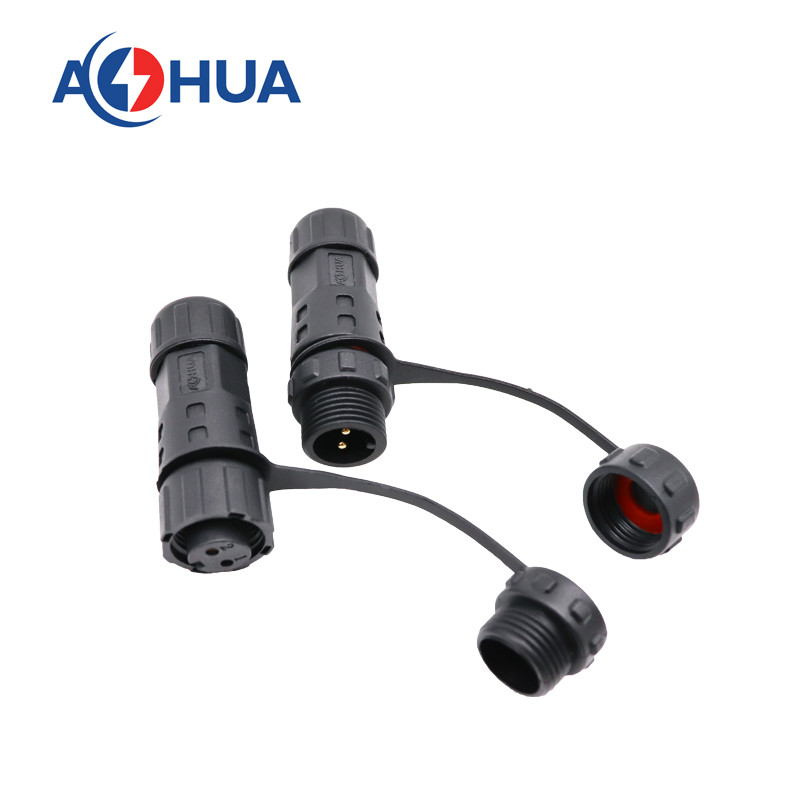

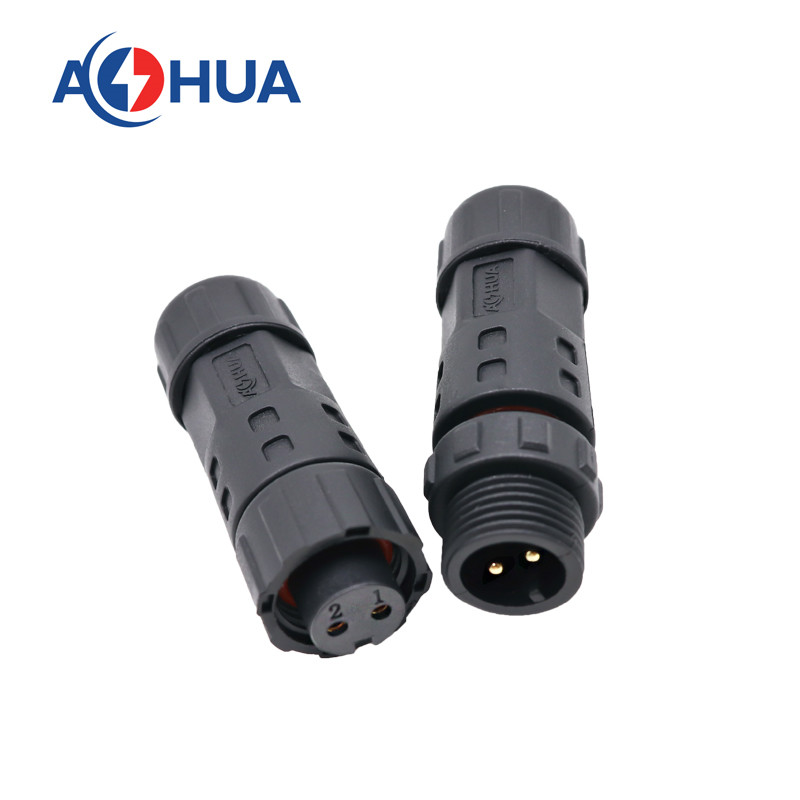

Factory direct sales IP67 Circular cable connector with cap M12 2pin Male and Female waterproof connector 1.0mm² rubber cable joint
Our Advantages
Related Products:
|
Assembly Connector |
Wire to wire /Wire to panel waterproof connector,L/T screw type connector |
|
Over-mold Connector |
Nylon/PVC /Metal /Aviation waterproof connector,DC connector |
|
T Connector |
Over-mold T waterproof connector |
|
Y Connector |
Over-mold Y waterproof connector |
|
Distributor Connector |
M15/M19/M20 Series(1to2/3/4/5/6) LED waterproof connector |
Lead Time:
Quantity(sets)
1 - 500
501 - 2000
>2000
Lead time (days)
4
9
To be negotiated
|
Shell Material |
Nylon PA66 UL94-V0 |
|
Pins Material |
Gold-plated Brass |
|
Pins number |
2pin,3pin,4pin,5pin,6pin,7pin,8pin |
|
Voltage and Current |
300V 5A for 2pin,3pin;110V 4A for 4pin;60V 2A for 5pin; 60V 1A for 6pin 7pin 8pin |
|
Wire Connection Method |
Solder type |
|
connector Coupling type |
Male female threaded lock type cable connector |
|
Function |
Airtight,connecting cable,protection cable, waterproof,dustproof,dampproof... |
|
Waterproof Rate |
IP67/68 |
|
Cable OD |
2.6mm~7.5mm |
|
Mechanical Life |
3000 Mating Cycles. |
|
Wire Gauge |
1.0/0.75/0.5mm²;18/20/22/24AWG |
|
Be Used For |
Both cable to cable (in-line) or cable to devices |
|
Certificate |
UL/TUV/SAA/CE/RoHS/ISO9001... |
|
Operating Rating |
-40ºC~+105ºC |
1.M12 is assembly waterproof cable plug which is without cable.
There are 2pin 3pin 4pin 5pin 6pin 7pin 8pin can be chosen from.
2.Housing Material:Classy Nylon PA66 and gold-plated brass, with high temperature /corrosion /pressure resistance, 94V0 flame
retardant,and good electrical conductivity.
Seal Ring and O-ring are made of rubber,with excellent waterproof and dustproof effect.
The wire gauge range is 1.0mm²,0.75mm²,0.5mm²,18AWG,20AWG,22AWG,24AWG.
2pin:1.0mm²,0.75mm²,0.5mm²,18AWG,20AWG,22AWG,24AWG.
3pin:0.75mm²,0.5mm²,18AWG,20AWG,22AWG,24AWG.
4pin:0.5mm²,20AWG,22AWG,24AWG.
5pin 6pin:0.5mm²,22AWG,24AWG.
7pin 8pin:24AWG.
Before quotation, please tell us the cable details, thanks
1.Current Rating,such as :5A...
3.Cable Wire size,such as: 2*1.0mm2...
