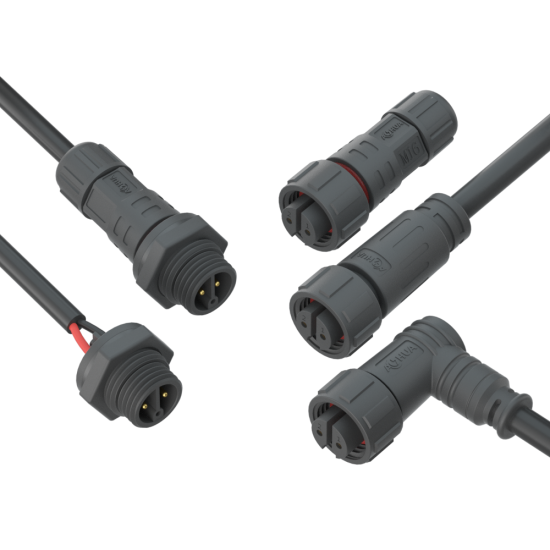

Farm Exhaust Fans Power Cable Connector Male Female 2PIN 3PIN Customized Connector

M16 2PIN 3PIN Cable Connector

Current Rated: 10A

Voltage Rated: 300V

Wire Gauge: ≤1.0mm²

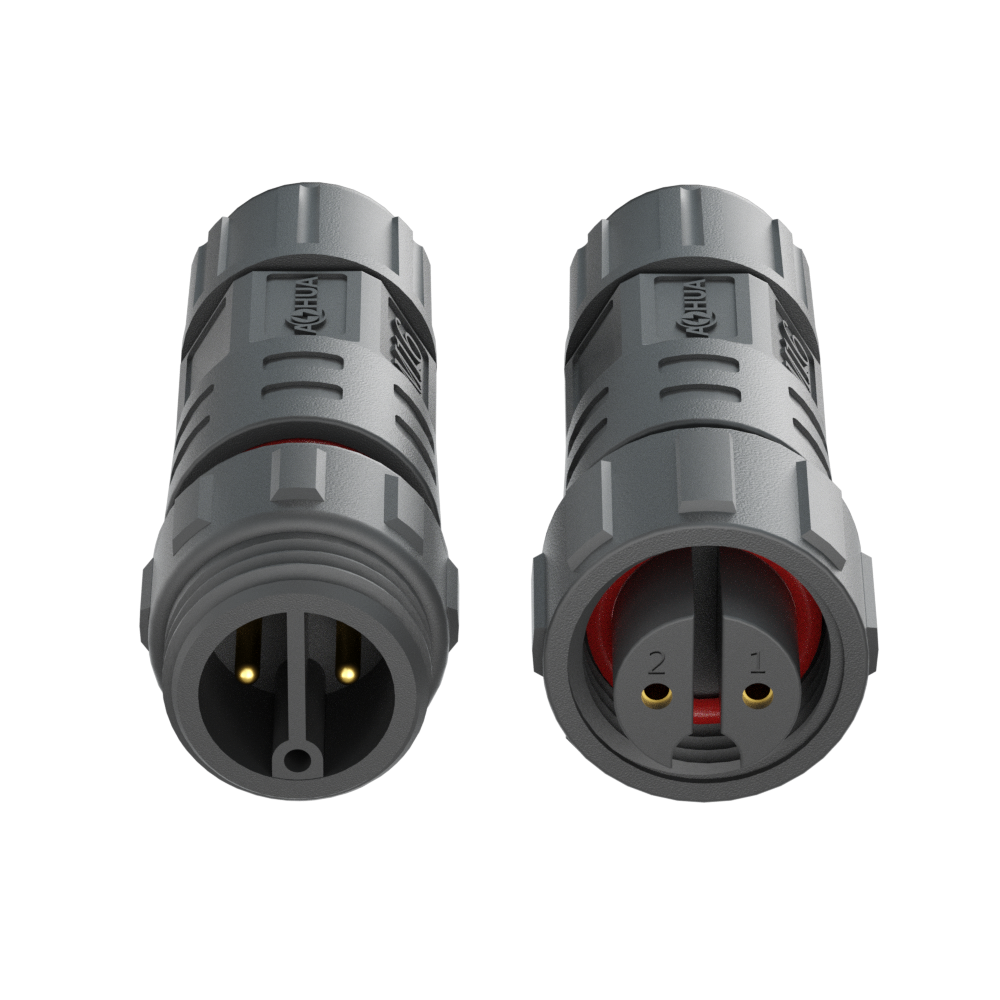

1. Assembly Type Connector

In the assembly type connector, the design of it is suit for you have cable and just only need a type connector.

The most important factor to consider is the wire gauge.

As the conductor, the wire guides the flow of current throughout the circuit. In the design process, it is generally easier to select the appropriate connector once the wire gauge has been determined. For example, if the cable conductor needs to carry a current of 5A, one should choose a connector rated for 5–10A to ensure a safe connection.

This M16 connector the biggest rated current is 10A about 2PIN *3PIN.

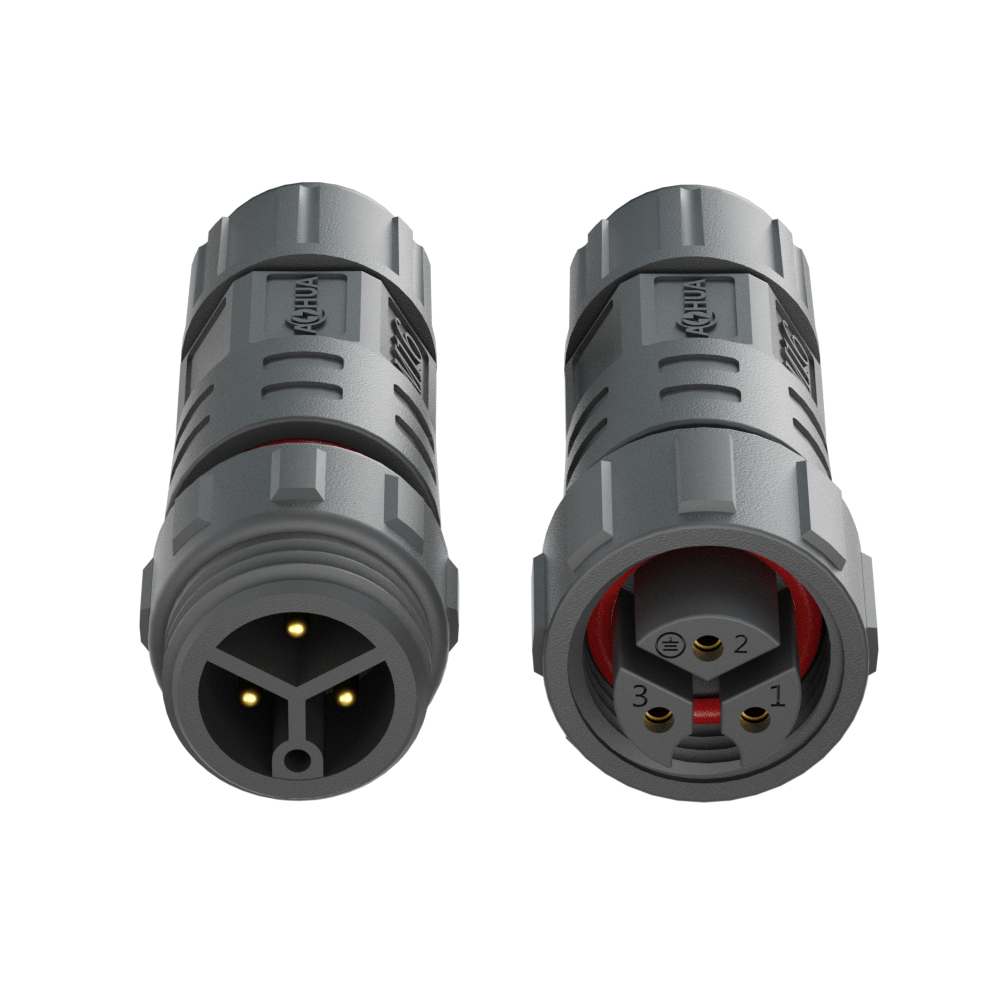

AH-M16-1002FMZ/MFZ01112      AH-M16-1003FMZ/MFZ01112

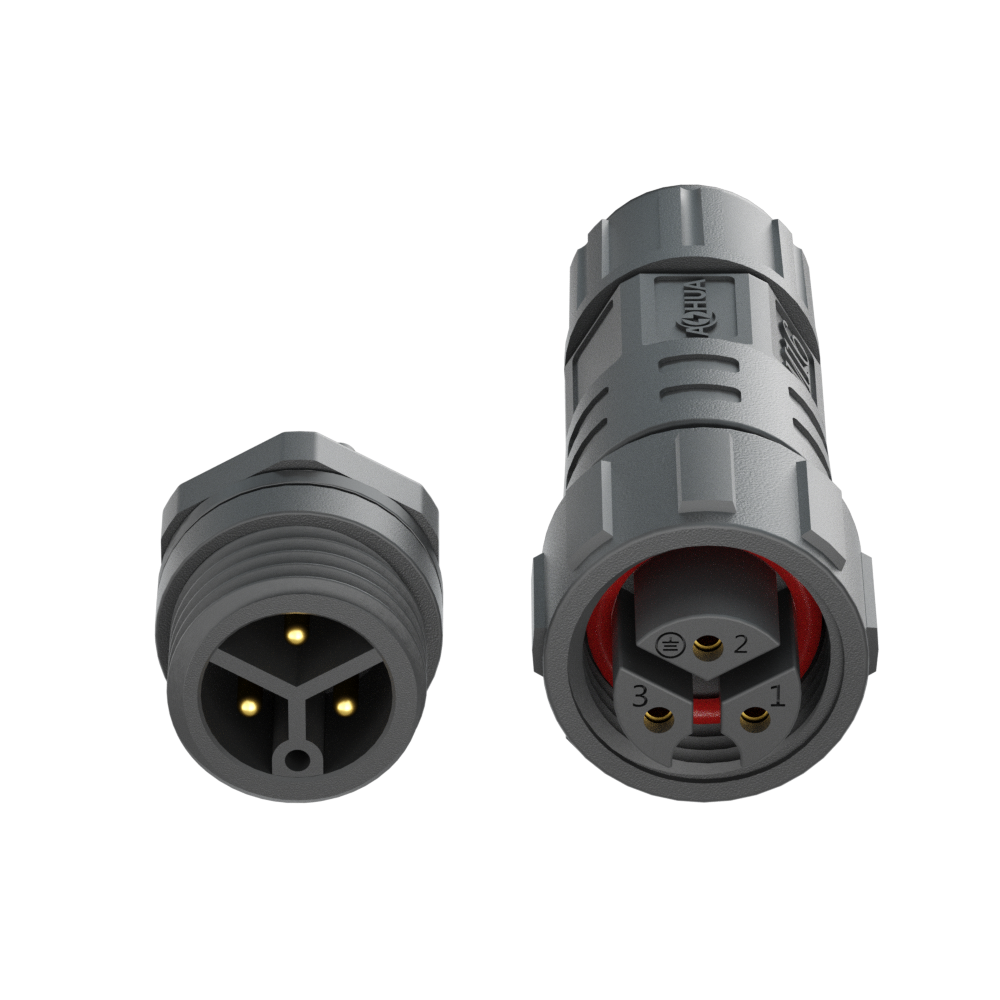

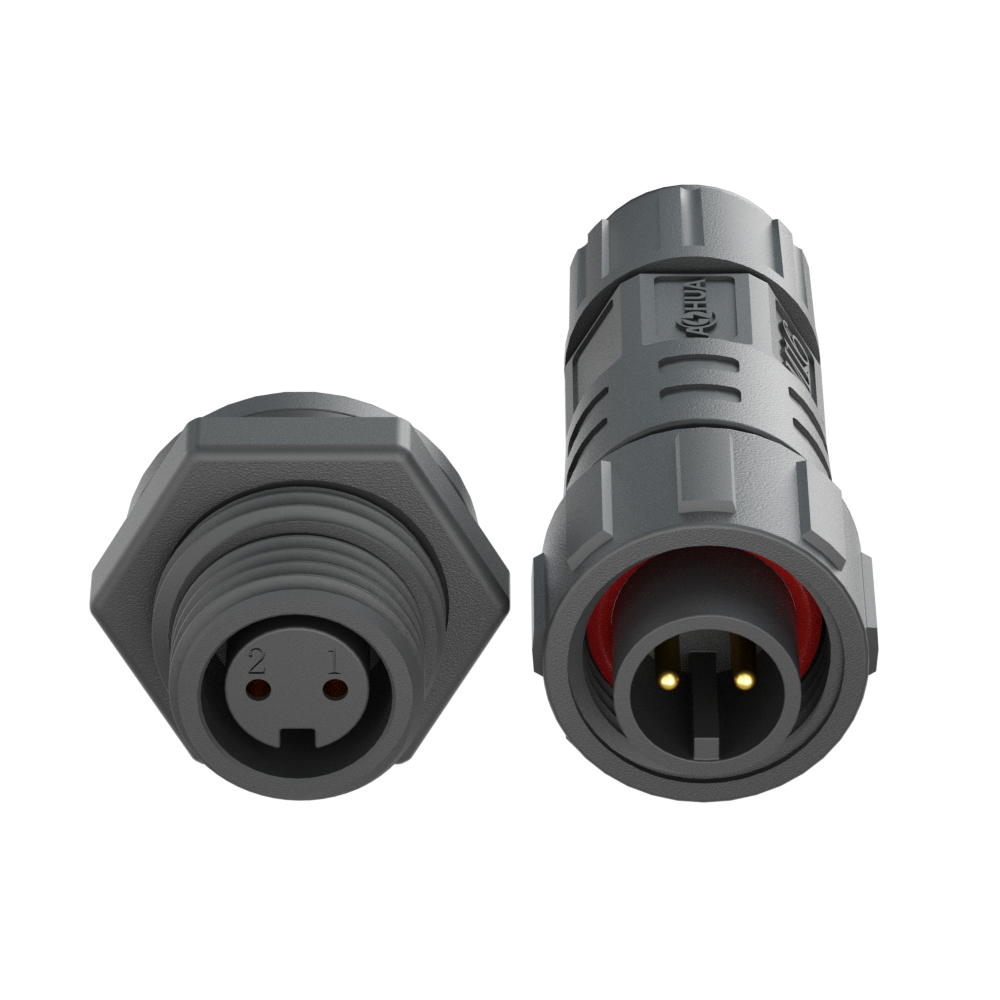

2. Panel Mount Connector

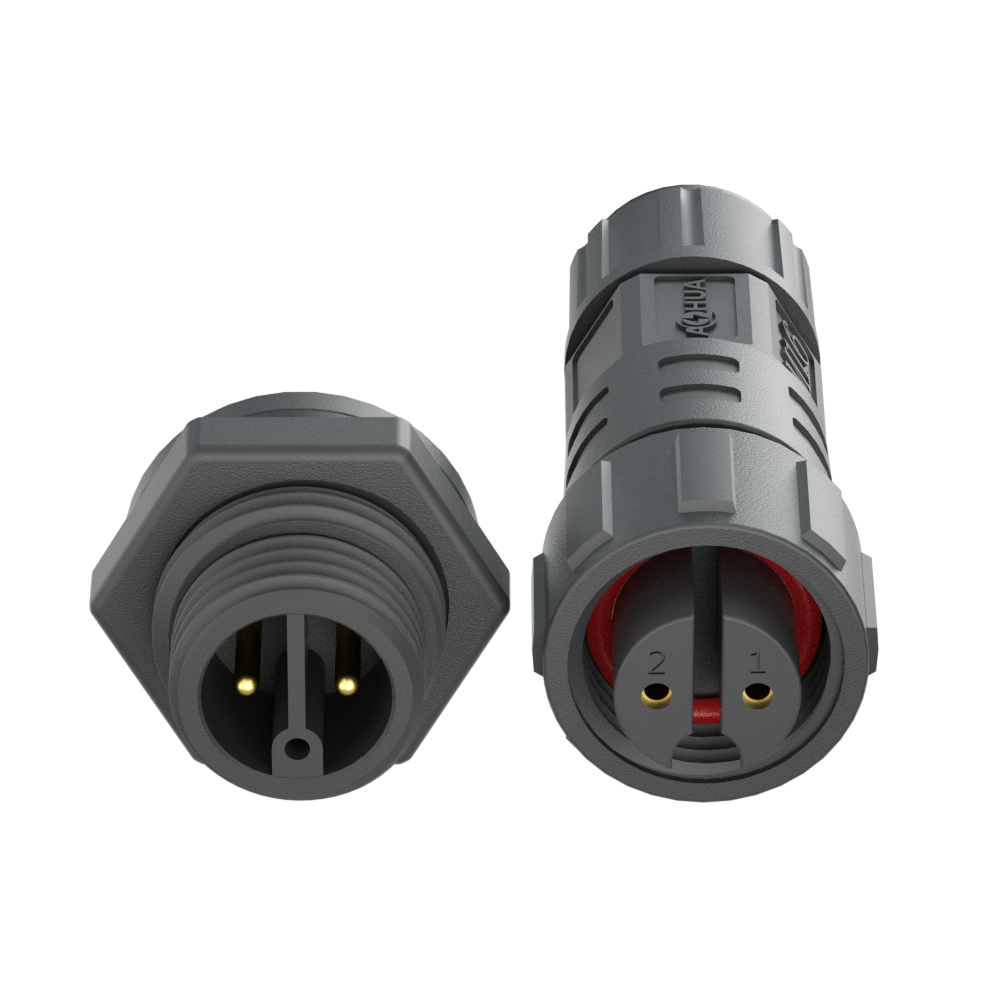

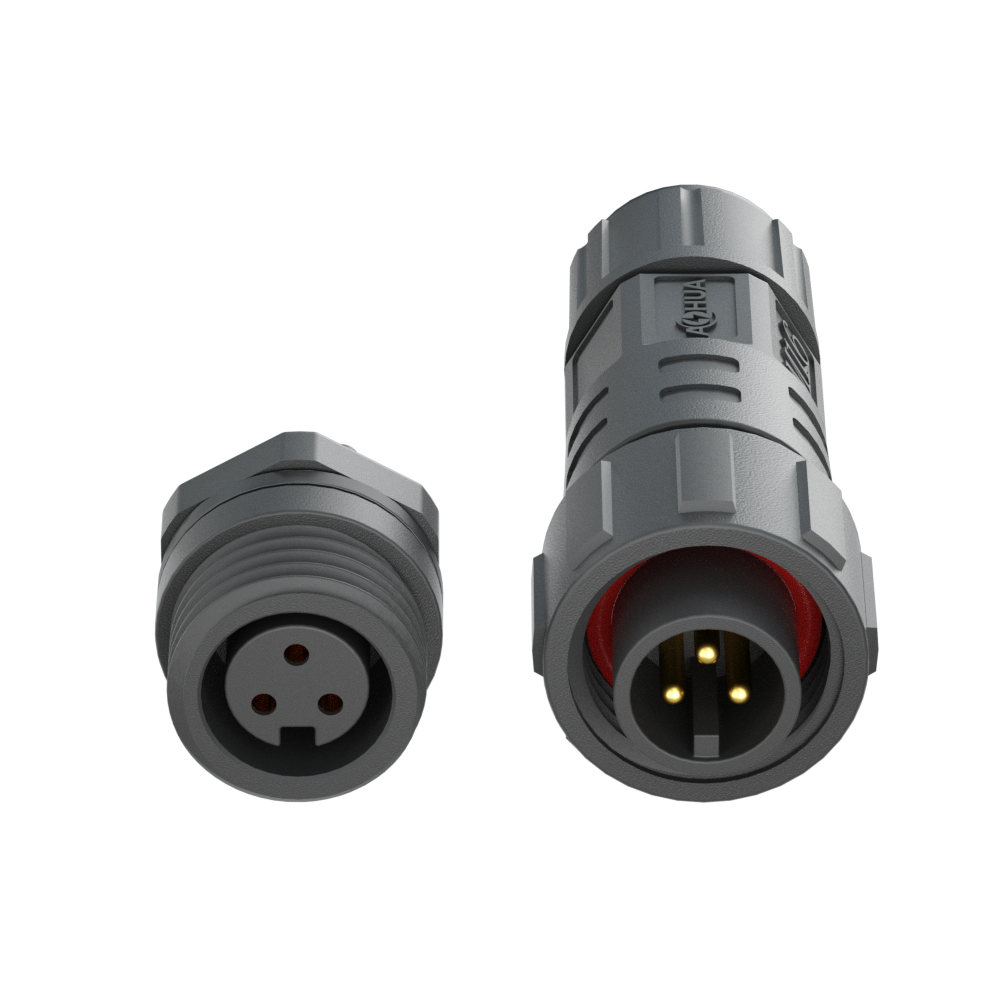

AH-M16-1002FMF/MFZ01112      AH-M16-1003FMF/MFZ01112          AH-M16-1002FFF/MMZ01112      AH-M16-1003FFF/MMZ01112

AH-M16-1002FMR/MFZ01112      AH-M16-1003FMR/MFZ01112          AH-M16-1002FFR/MMZ01112      AH-M16-1003FFR/MMZ01112

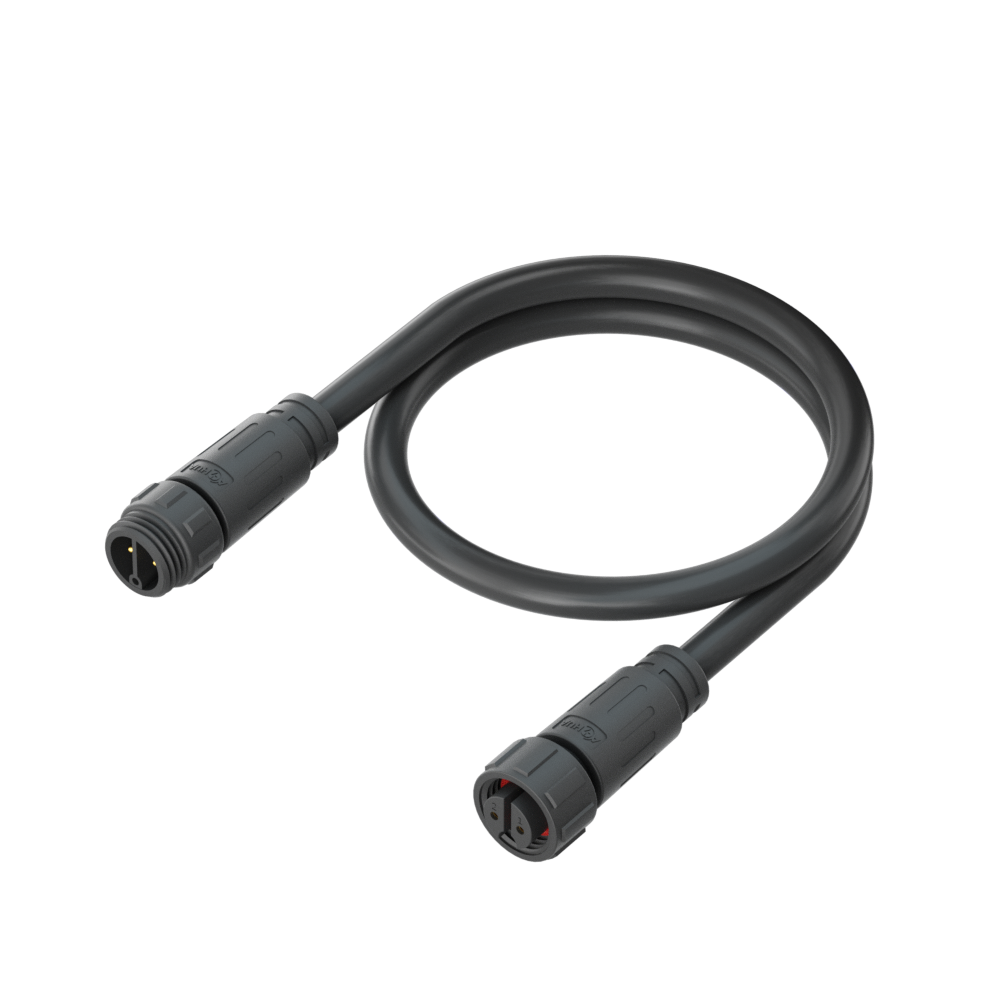

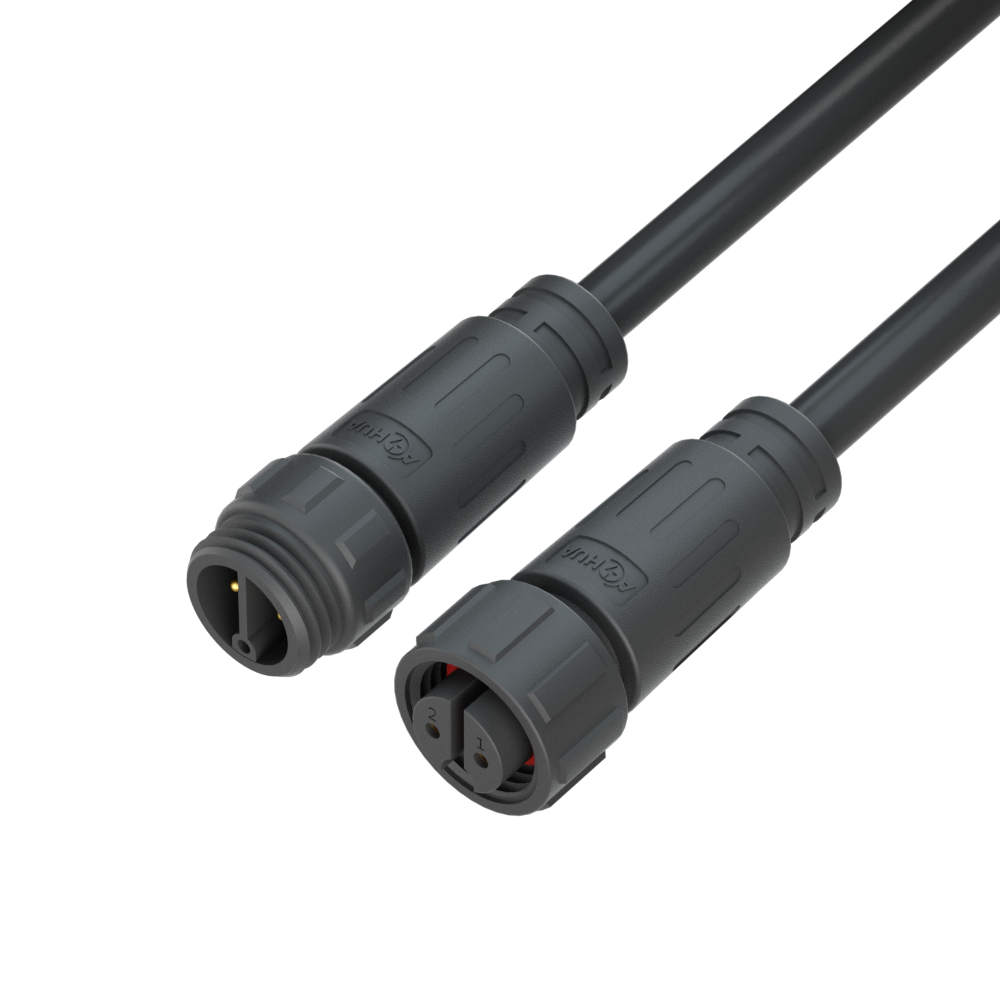

3. Molded Cable Connector

In many case, many peopel are always to make a design about the solution, in this case, we would always thinking about the Pre-wire type connector we also said it is  Molded Cable Connector.

Many designer are thinking about how to connect the device 1 with devide 2, the current rated about the device is confrim and the drawing is confirm, but there are nothing suitable connector suit for them, bigger or too small...

If you are looking forward a 10A current connector, and consider to choose a small but not too smale one, you can look this,

the connector is M16 Mold, biggest current of 2PIN & 3PIN is 10A, and the wire gauge is suit to use ≤1.0mm² （16AWG），

under 16AWG we can all accept them and we can also help you to select a suitable solution about connecting.

AH-M16-1002FMN/MFN01112      AH-M16-1003FMN/MFN01112
