Product Variants (From the Images)
-
Single-Head Connector (With Pre-Terminated Wires)
-
Straight or elbow (90°) design.
-
Pre-wired with yellow-marked conductors (e.g., 2-core, 3-core cables).
-
Ideal for direct device-to-cable connections (e.g., LED strips, sensors).
-
-

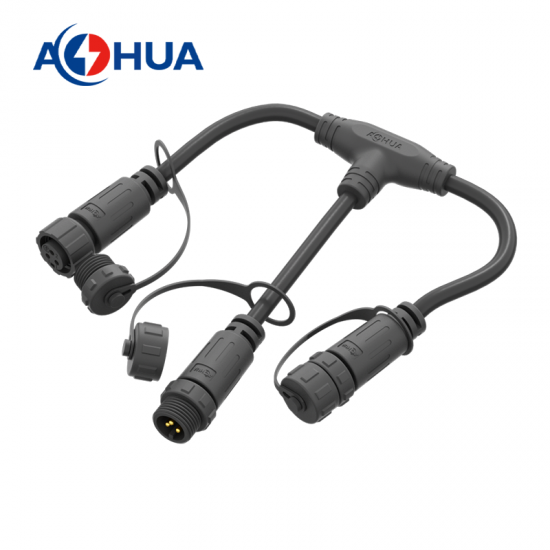

Y-Type (3-Way) Connector
-
Distributes power/signals from one source to three devices.
-
Compact T-shaped housing with strain relief on all ports.
-
Perfect for branching circuits in solar arrays, lighting networks, or control systems.
-
|
Parameter |
Details |
|---|---|
|
Waterproof Rating |
IP67 (Dust-tight, temporary water immersion) |
|
Material |
Nylon/PBT (housing) + Copper (contacts, gold-plated for corrosion) |
|
Operating Temperature |
-40°C ~ +85°C |
|
Voltage/Current |
Up to 300V / 20A (depends on pin count: 2-pin = lower, 4-pin = higher) |
|
Cable Diameter |
Compatible with 4–10mm² cables (customizable) |
|
Pin Count |
2-pin, 3-pin, 4-pin (optional) |
|
Connection Type |
Threaded lock + O-ring seal |
Applications
-
LED Outdoor Lighting: Streetlights, garden lights, facade lighting.
-
Solar Energy Systems: Panel-to-controller, controller-to-battery connections.
-
Security & Surveillance: CCTV cameras, motion sensors in wet environments.
-
Marine & Boat Equipment: Navigational lights, bilge pumps, marine electronics.
-
Industrial Automation: Sensors, actuators, and control systems in factories.
