ip65 Waterproof Black Metal Nut Solder Type M16 Metal Connector

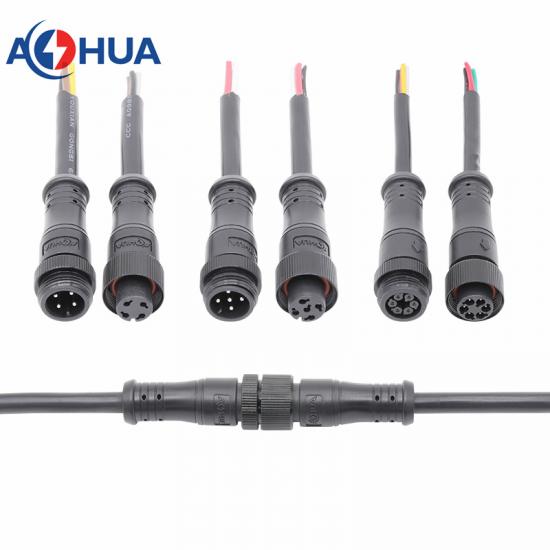

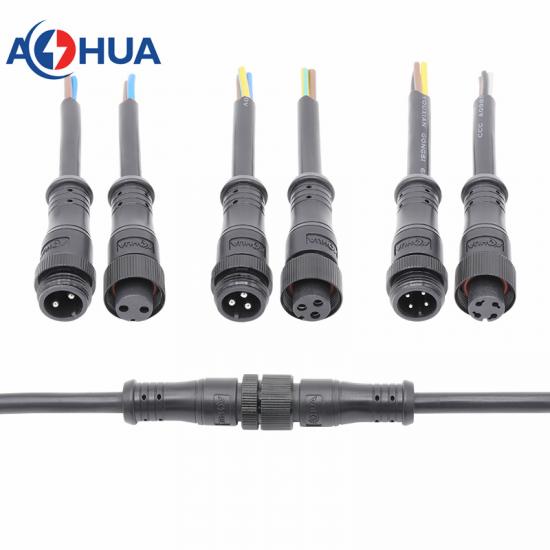

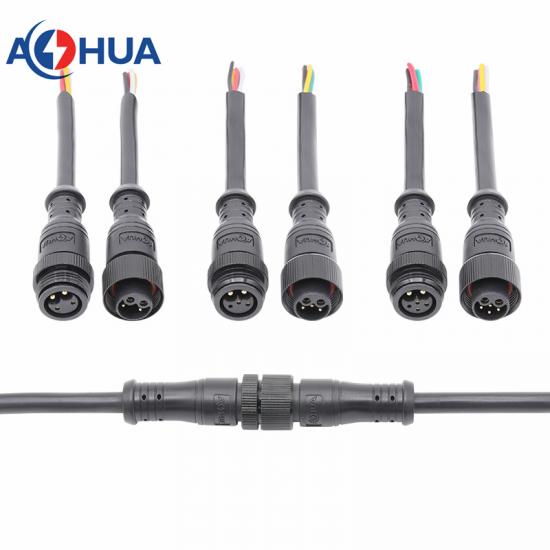

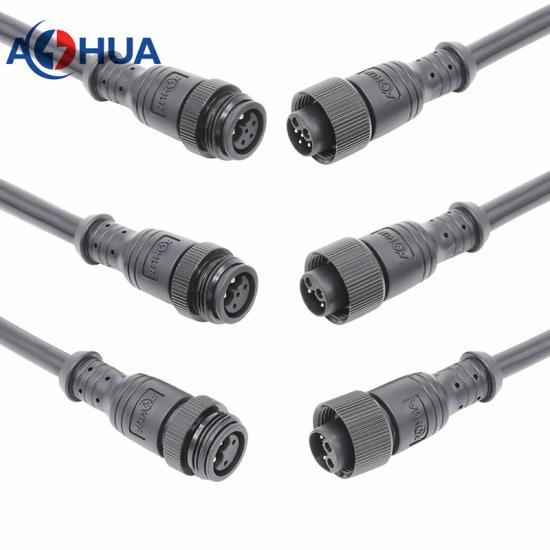

M16 metal cable connector have 2 3 4 5 6 2+2 2+3 2+4 Pin Model for you to choose:

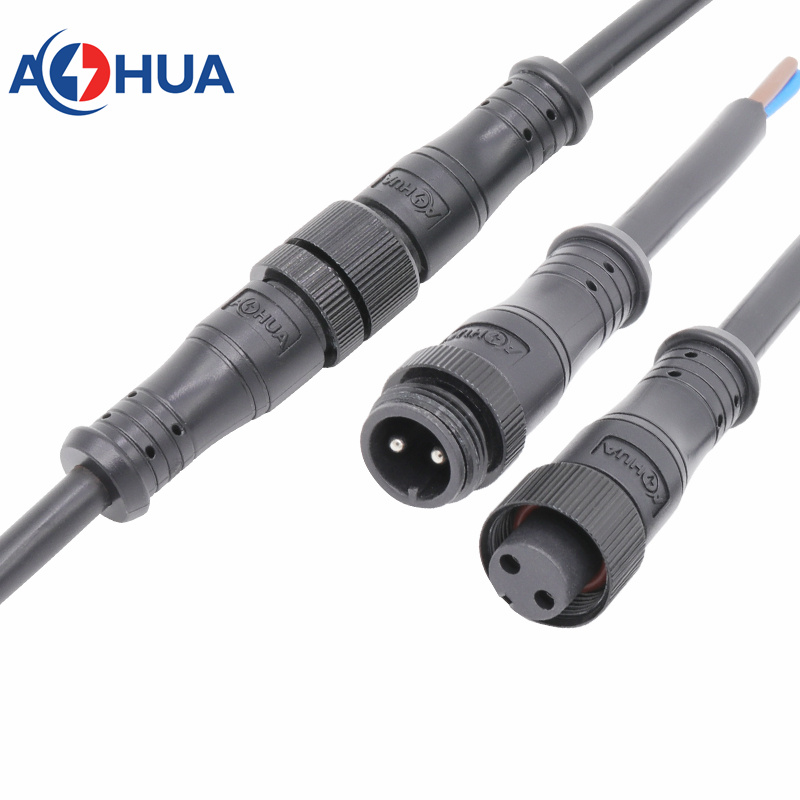

2Pin connector it can match with the wire of 24AWG 22AWG 20AWG 18AWG 16AWG 14AWG, the maximum current that can be carried is 12A

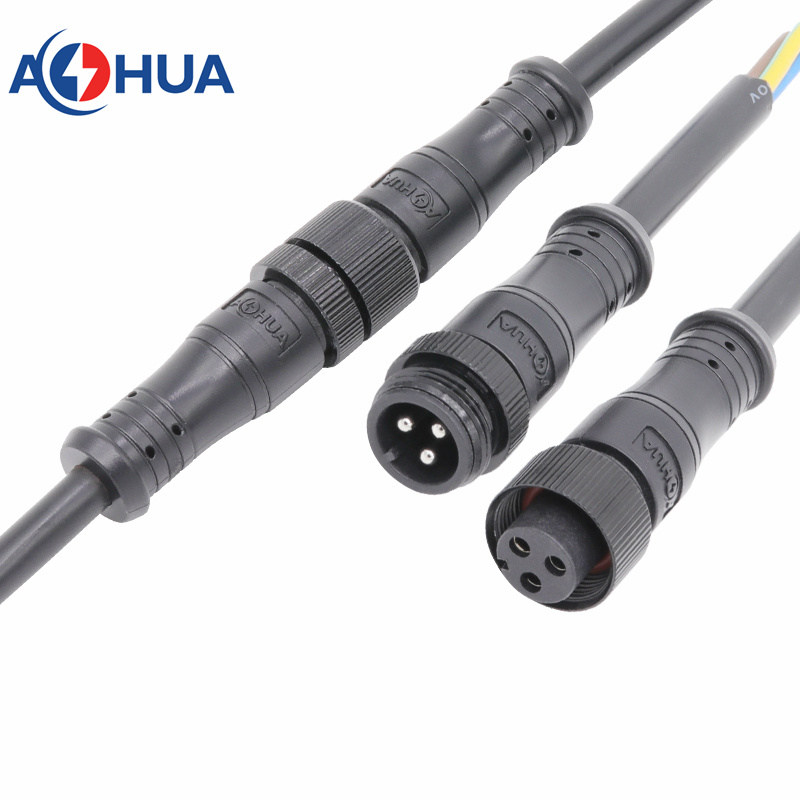

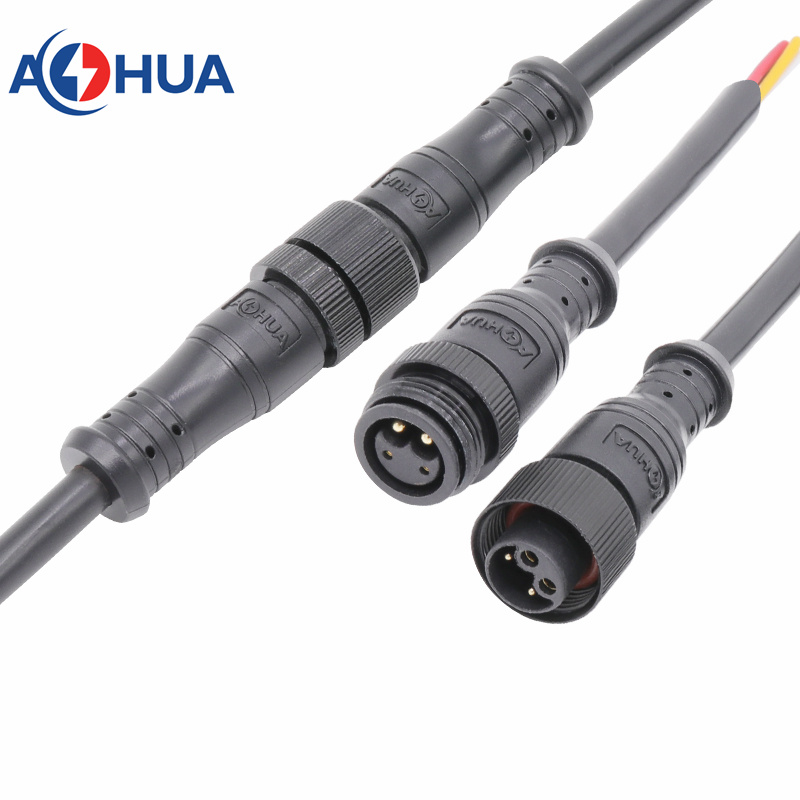

3Pin connector it can match with the wire of 24AWG 22AWG 20AWG 18AWG 16AWG, the maximum current that can be carried is 6A

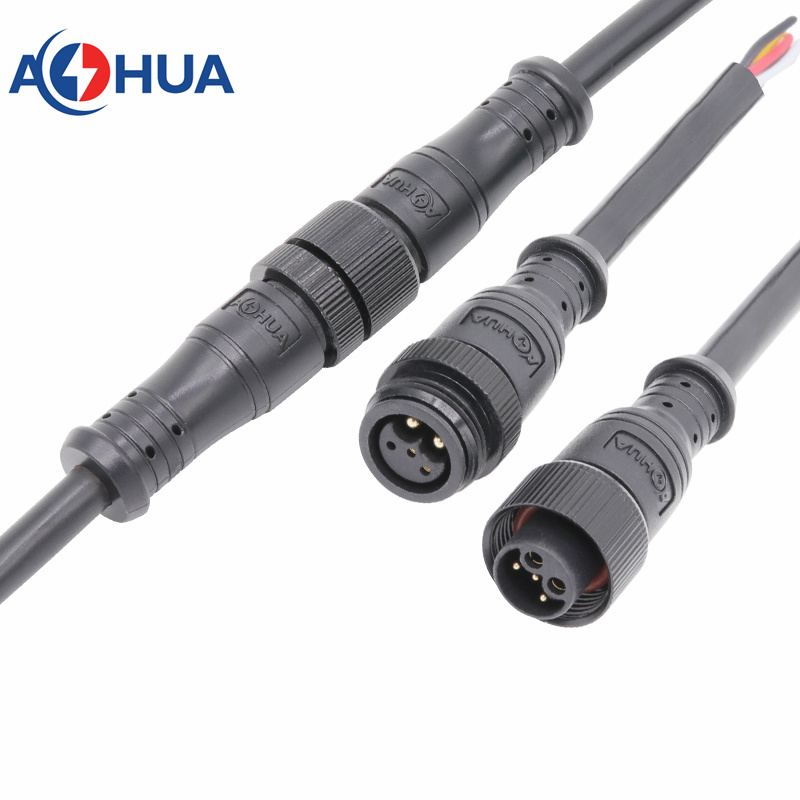

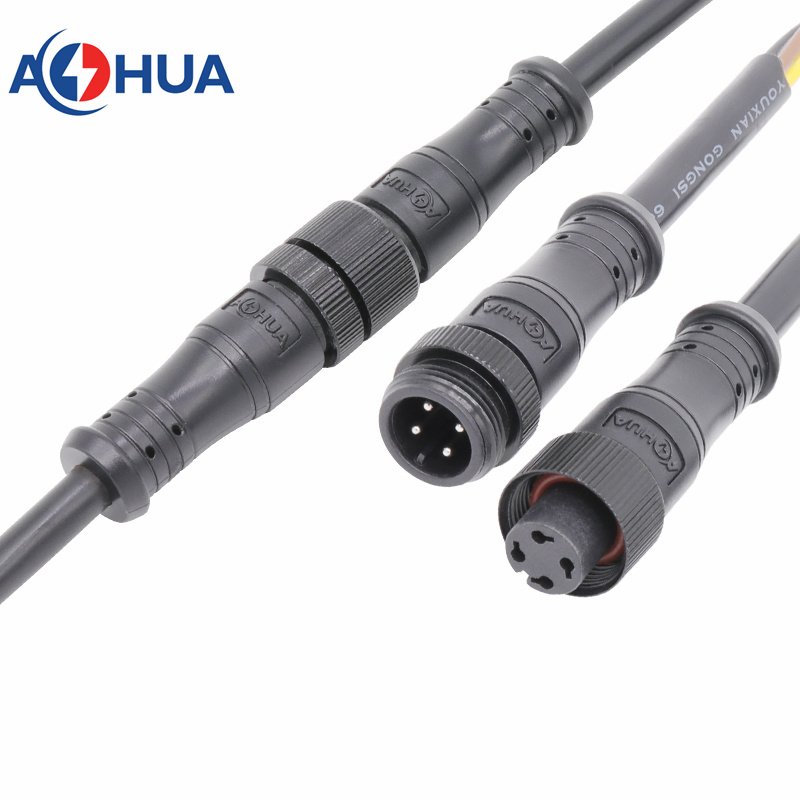

4Pin connector it can match with the wire of 24AWG 22AWG 20AWG 18AWG, the maximum current that can be carried is 5A.

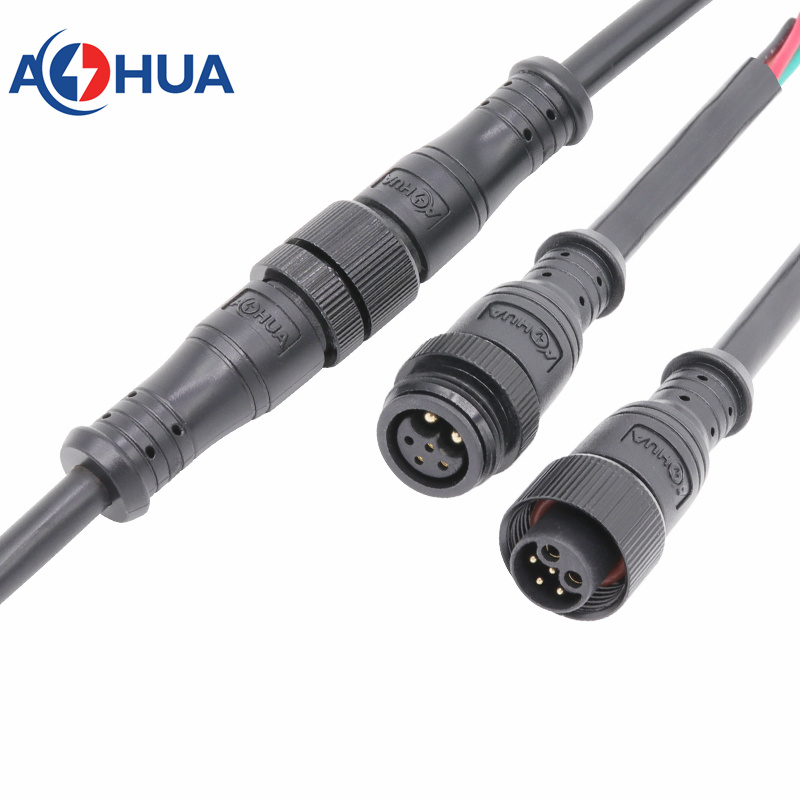

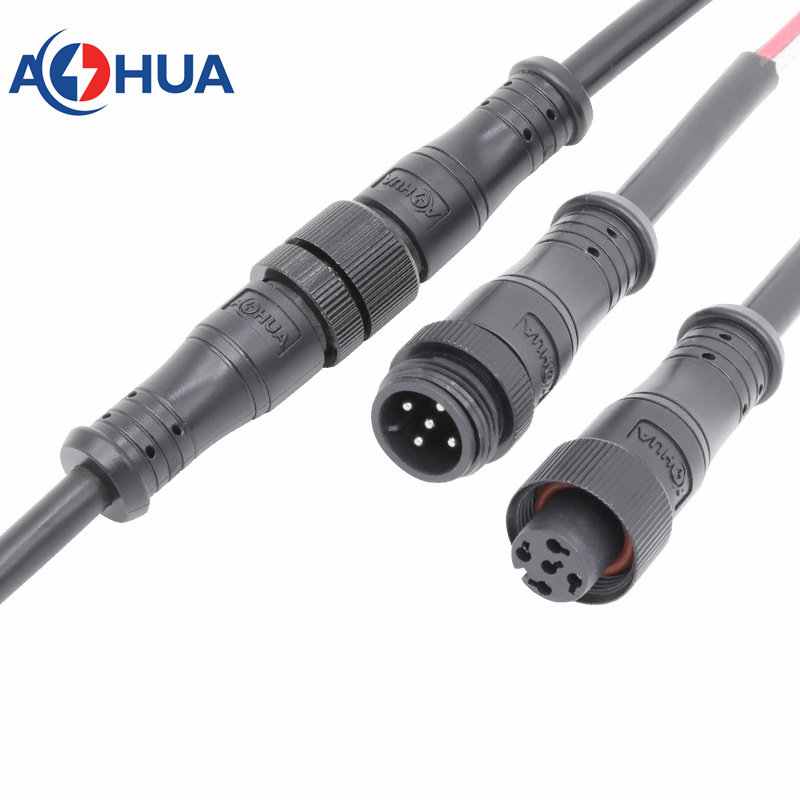

5Pin connector it can match with the wire of 24AWG 22AWG 20AWG, the maximum current that can be carried is 4A.

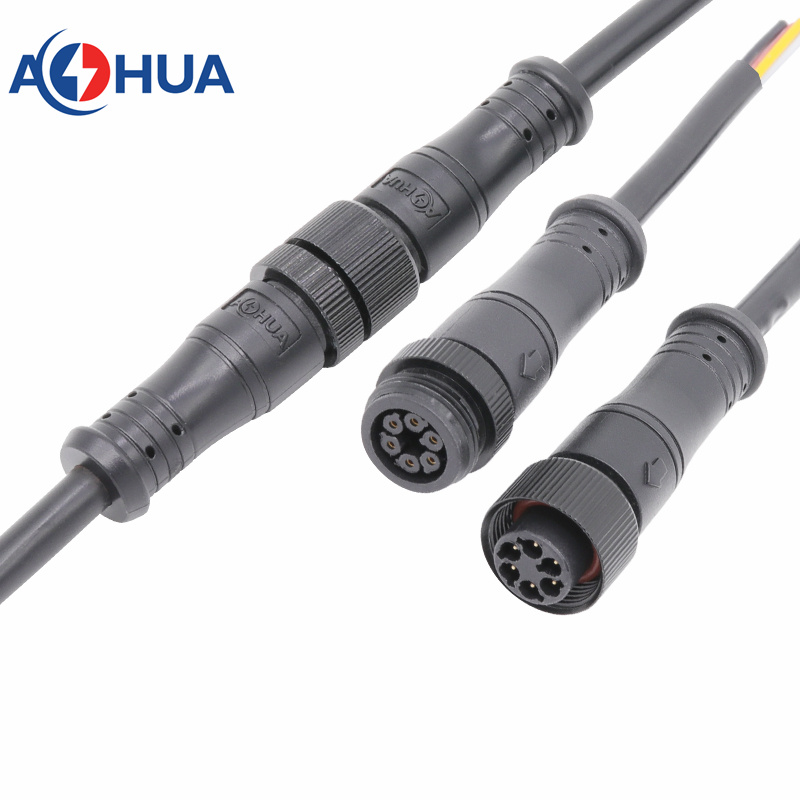

6Pin connector it can match with the wire of 24AWG 22AWG 20AWG, the maximum current that can be carried is 4A.

2+2Pin connector 2Pin connector it can match with the wire of 24AWG 22AWG 20AWG 18AWG 16AWG, and the other 2Pin connector can match with the cable of 24AWG 22AWG,the maximum current that can be carried is 6+2A.

2+2Pin connector 2Pin connector it can match with the wire of 24AWG 22AWG 20AWG 18AWG 16AWG, and the other 2Pin connector can match with the cable of 24AWG 22AWG,the maximum current that can be carried is 6+2A.

2+2Pin connector 2Pin connector it can match with the wire of 24AWG 22AWG 20AWG 18AWG 16AWG, and the other 2Pin connector can match with the cable of 24AWG 22AWG,the maximum current that can be carried is 6+2A.
