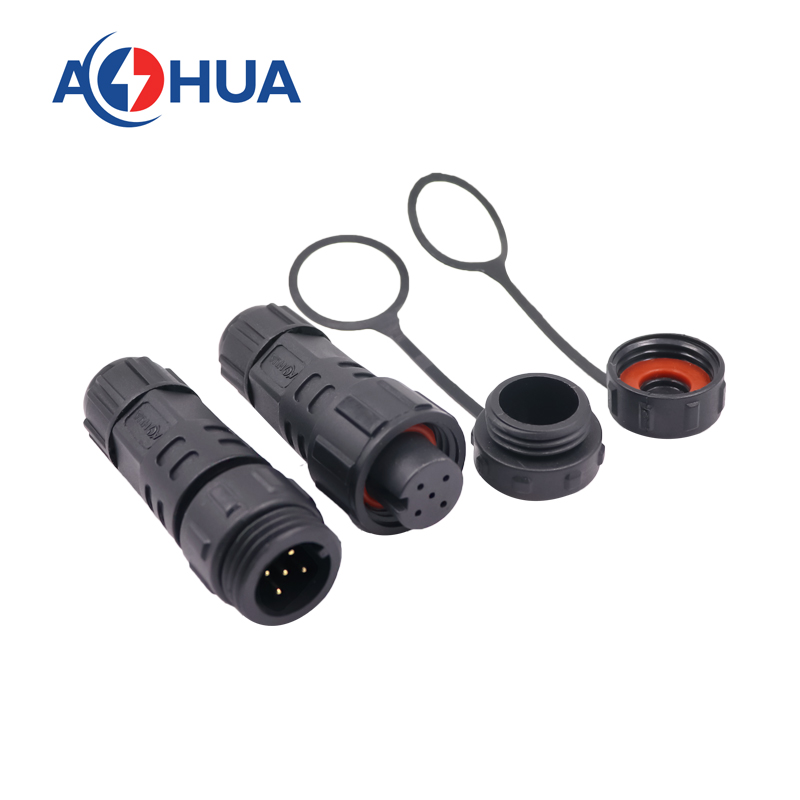

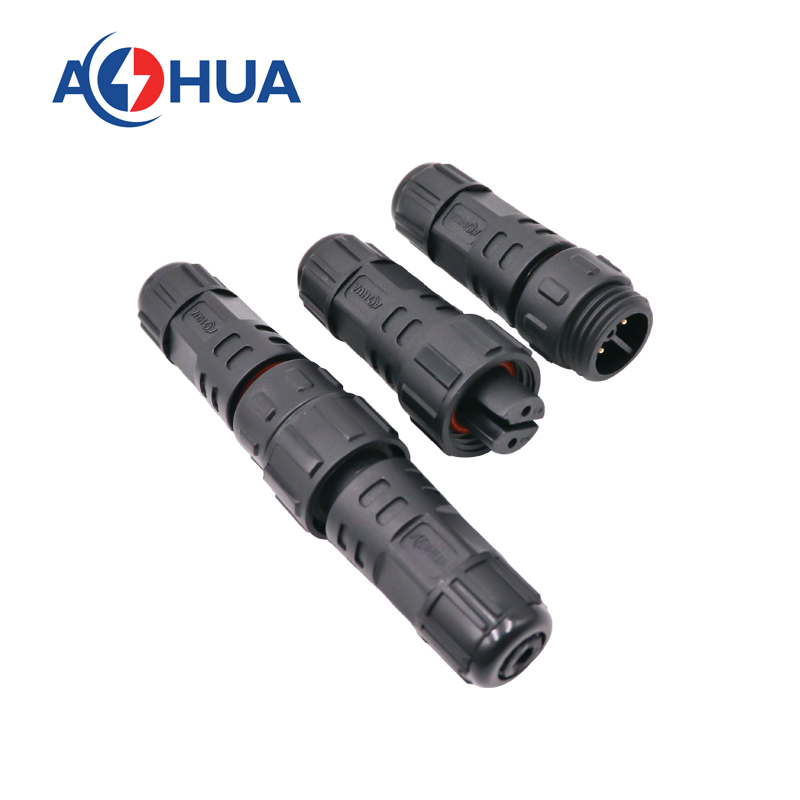

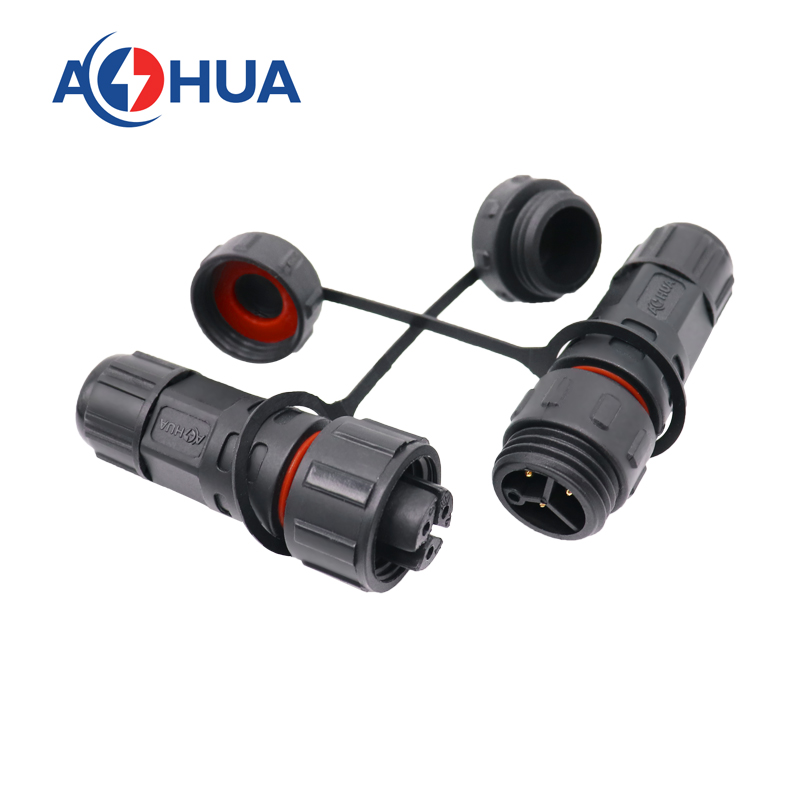

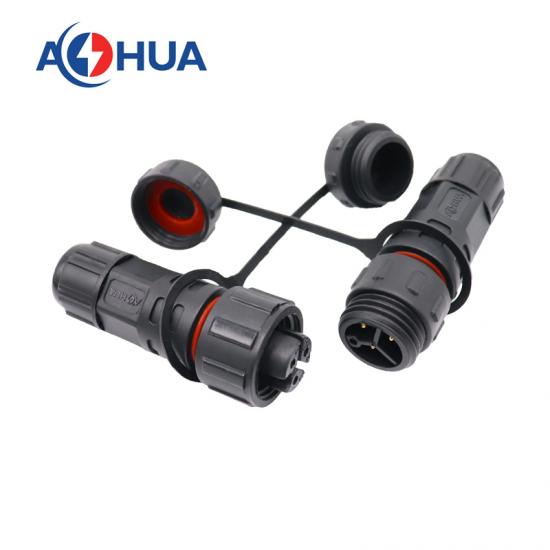

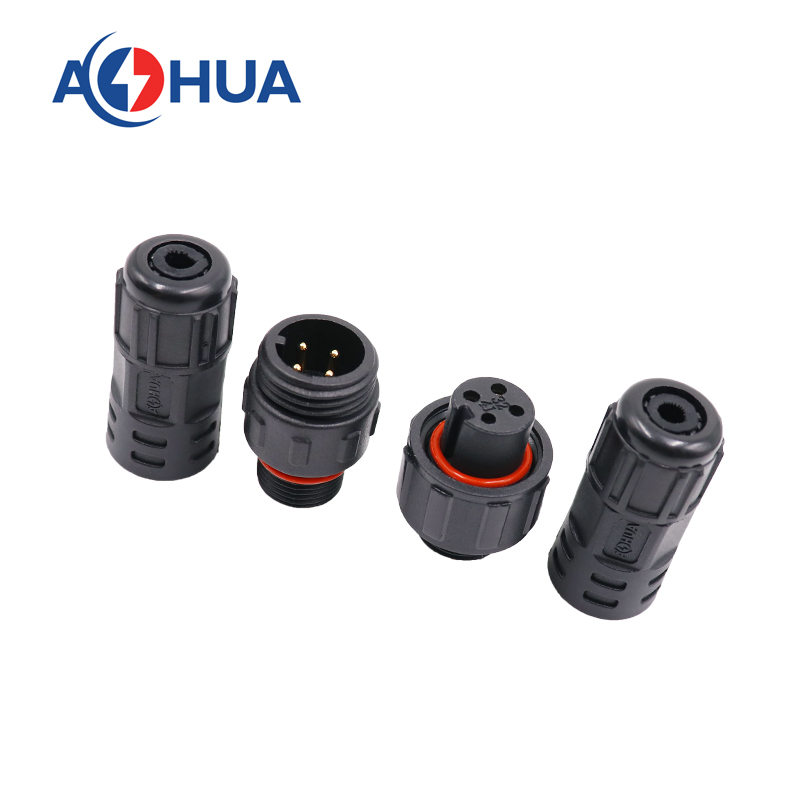

IP67 Electrical Solder Wire Connector Headlight Outdoor Lamp Led Display M16 Waterproof Connector

Pins

Part Number

Voltage Rating

Current Rating

Wire Gauge

2

AH-M16-1002FMZ/MFZ01112

300V

10A

≤1.0mm²

3

AH-M16-1003FMZ/MFZ01112

300V

10A

≤1.0mm²

4

AH-M16-0404FMZ/MFZ01112

250V

4A

≤0.5mm²

5

AH-M16-0205FMZ/MFZ01112

110V

2A

≤0.3mm²

6

AH-M16-0206FMZ/MFZ01112

110V

2A

≤0.3mm²

7

AH-M16-0107FMZ/MFZ01112

110V

1A

≤0.2mm²

8

AH-M16-0108FMZ/MFZ01112

110V

1A

≤0.2mm²

Cable OD

2.6mm-7.5mm

Mechanical Life

3000 mating cycles

Operating Rating

-40°C~+105°C

Waterproof Level

IP67/IP68

Seal Ring

9*9*3.6/4.1/5.5/6.5/7.5mm

Certification:

CE IP67 ROHS certification

Packing:

4 per pack(Comes with 2 sets of different sized grommets to accommodate different size wires.)

Cable Range:

2.6-7.5mm(If you use a cable which is too thin,then the seal won't even cover IP67!!)

Waterproof rating:

IP67/IP68 adcanced waterproof connector

Rated voltage:

≤300V

Rated current:

≤10A

Working Temperature:

-40°C~+150°C

Materal:

plastic(nylon),seal ring(silicon)

Color:

Black

Scope of application:

connectors are suitable for quick connection of garden and outdoor displays,floor heating,beacons,cruise ships,LED billboards,LED tunnel lights,LED street lights,external wiring,ect.

Quantity (sets)

1 - 1000

1000 - 1300

> 1300

Lead time (days)

5

9

To be negotiated

Shipment

Express(DHL,Fedex,TNT,Ups);Ocean freight

Land freight;Air freight
