IP68 Waterproof K15 Male Female 10A Cable Connector Thread LED Connector

In our K15 series connector we have 3 type connector

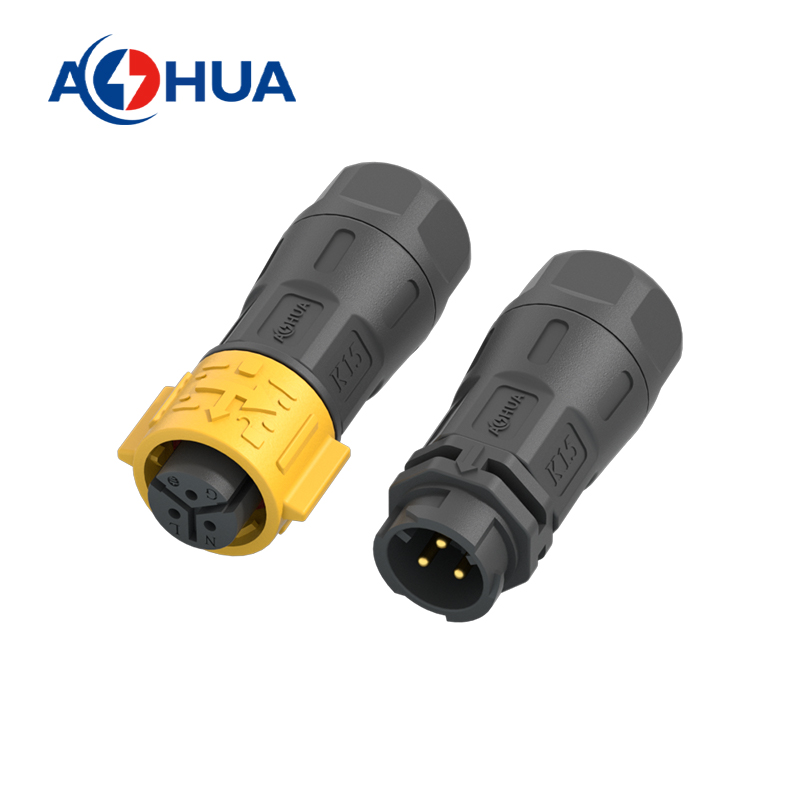

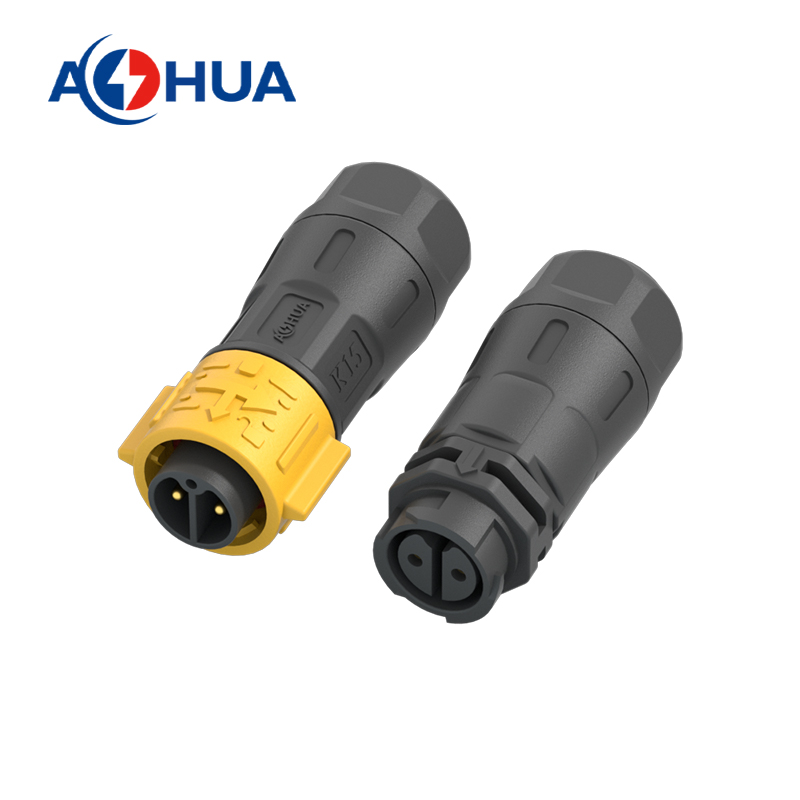

1.Plug to Plug Type

AH-K15-1002MMZ/FFZ01222        AH-K15-1003MMZ/FFZ01222

AH-K15-1002FMZ/MFZ01222        AH-K15-1003FMZ/MFZ01222

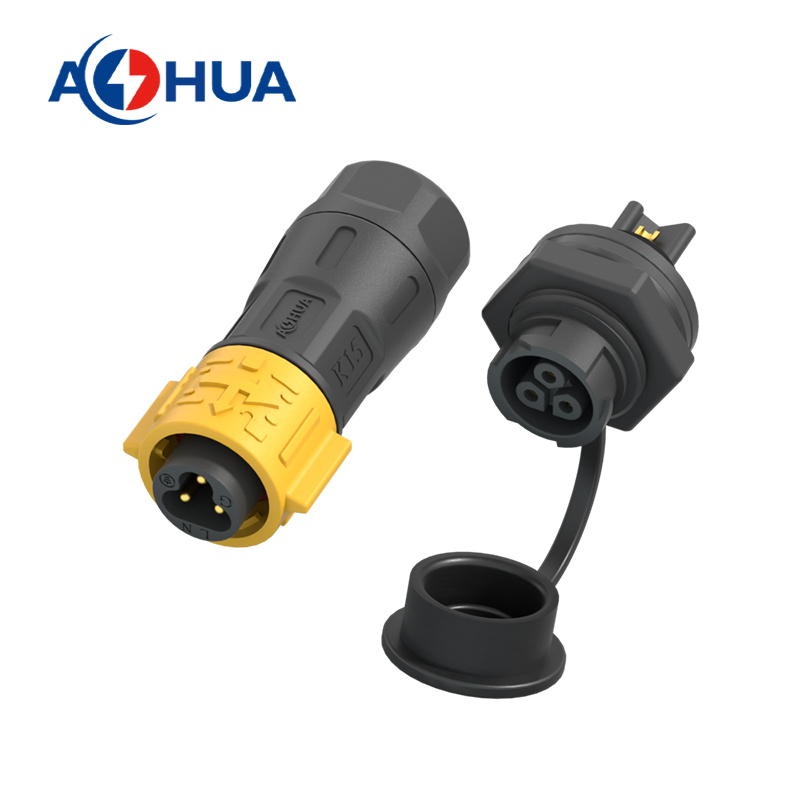

2.Plug to Panel Mount Connector

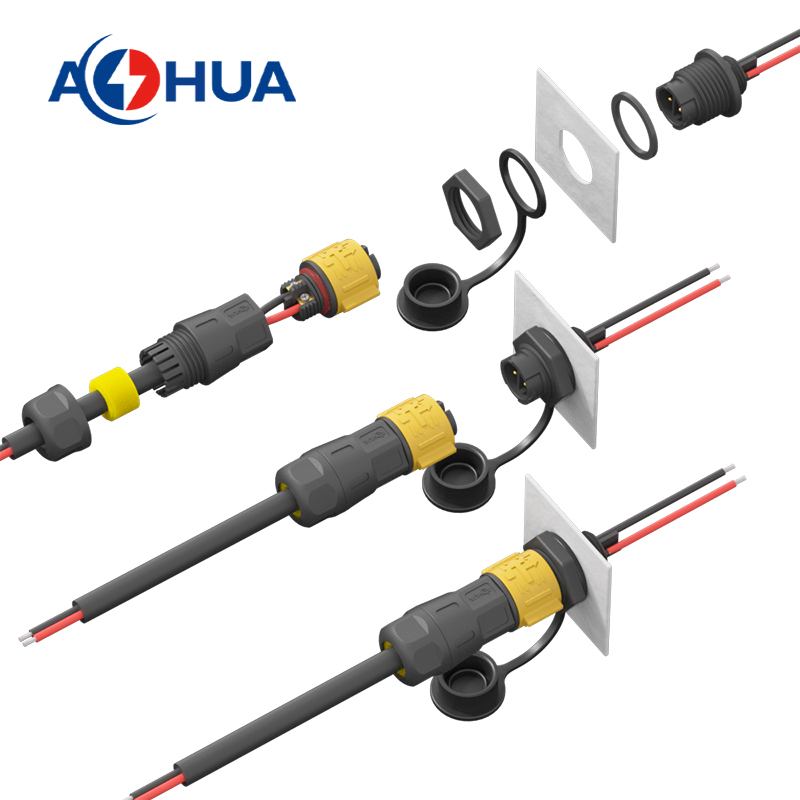

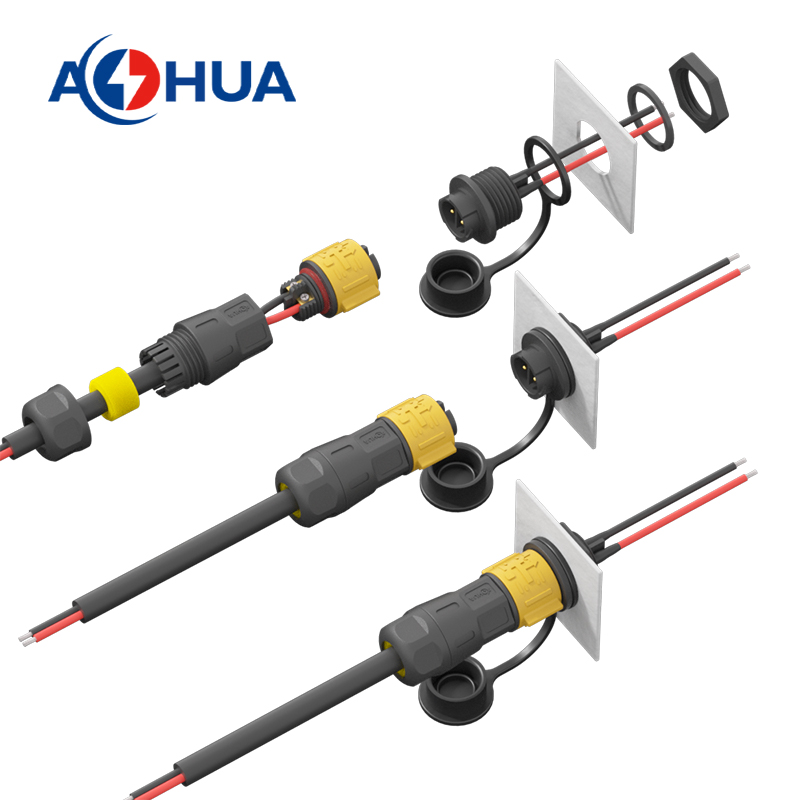

Frisr of all, in this type connector is divided into two type connector, one is front type another is rear type.

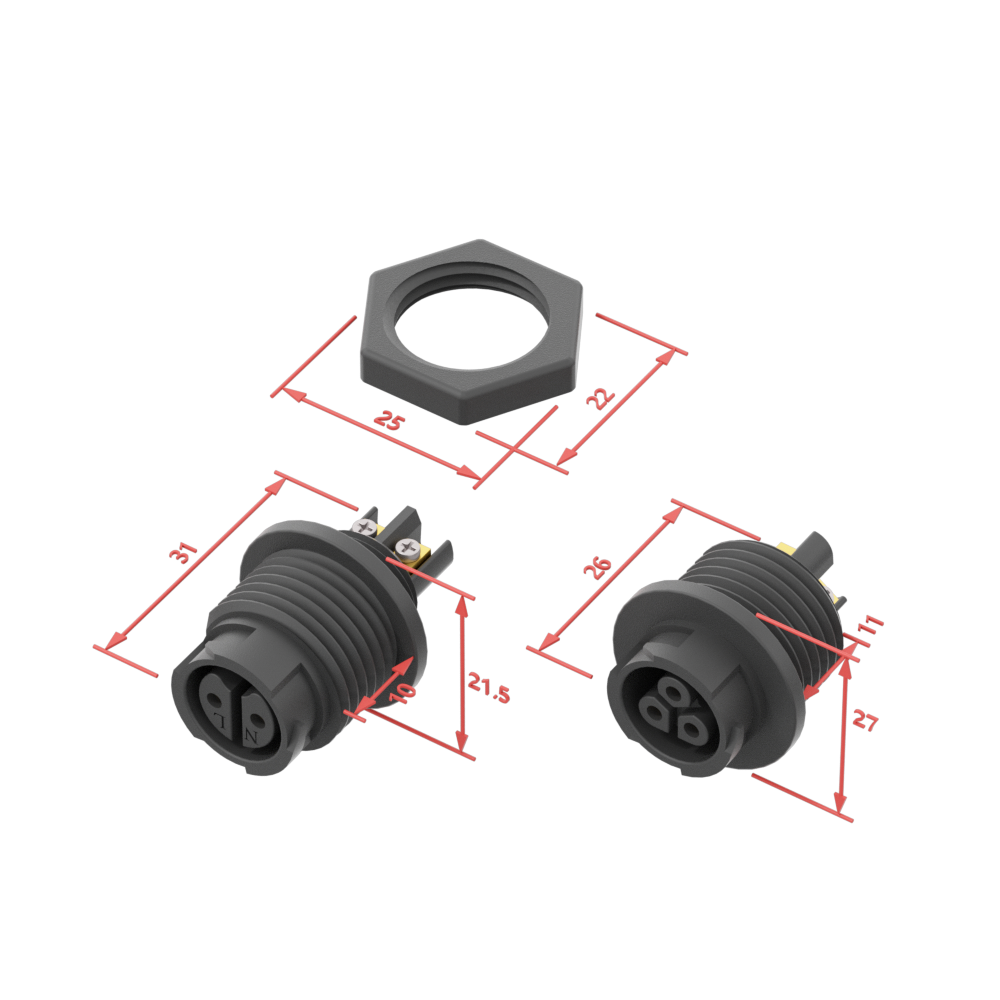

The distinction between the two lies in the hexagonal component of the screw securing the panel: when the component is at the front, it is the front panel; when the component is at the rear, it is the rear panel.

Front Type:                                  RearType:

The specific choice depends on the actual usage scenario.

 The front panel is more suitable for environments with limited space, while the rear panel is better suited for scenarios requiring enhanced security features.

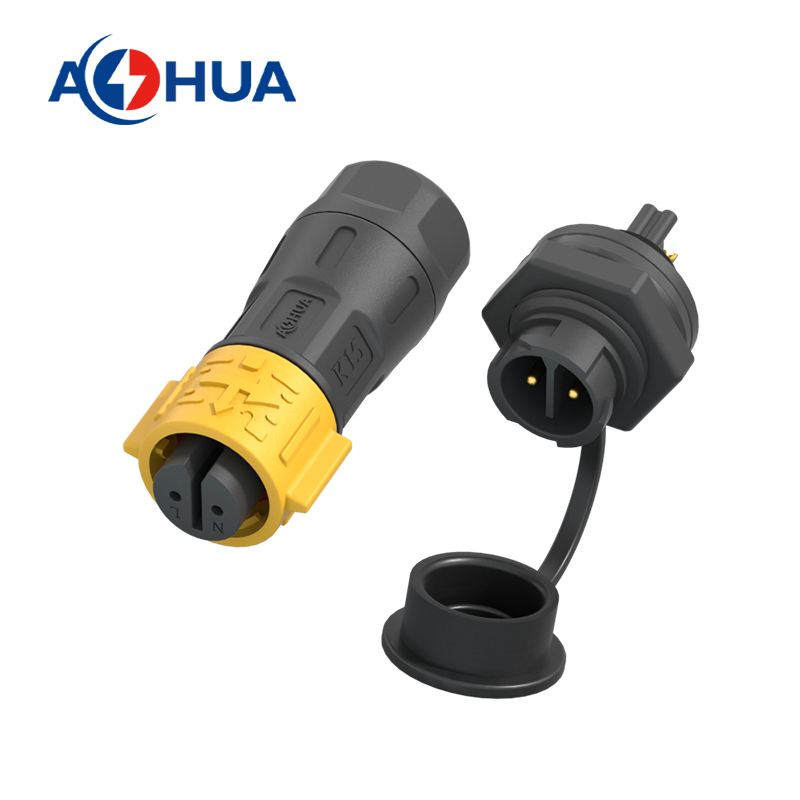

2-1. Male Panel Mount Connector to Female Plug

Front Type:

AH-K15-1002MFZ/FMF01222               AH-K15-1003MFZ/FMF01222

Rear Type:

AH-K15-1002MFZ/FMR01222               AH-K15-1002MFZ/FMR01222

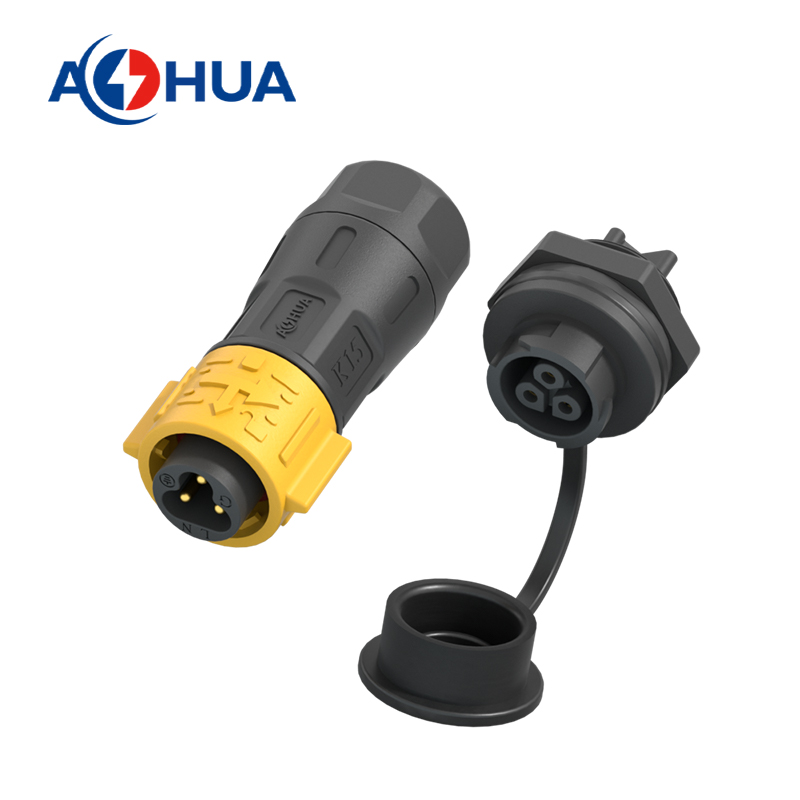

2-2. Female Panel Mount Connector to Male Plug

Front Type:

AH-K15-1002MMZ/FFF01222             AH-K15-1003MMZ/FFF01222

Rear Type:

AH-K15-1002FFR/MMZ01222            AH-K15-1002FFR/MMZ01222

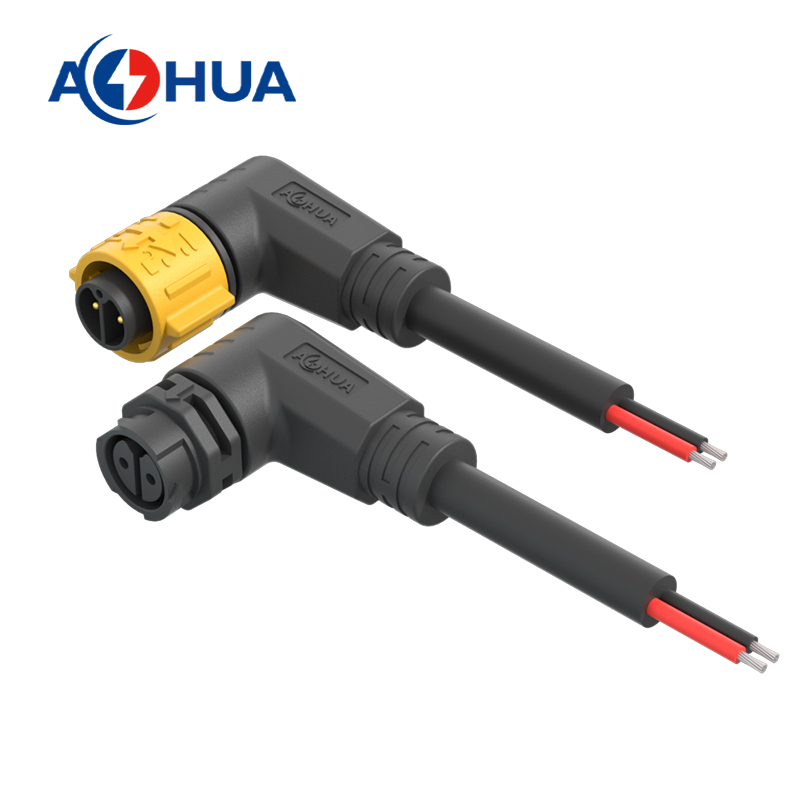

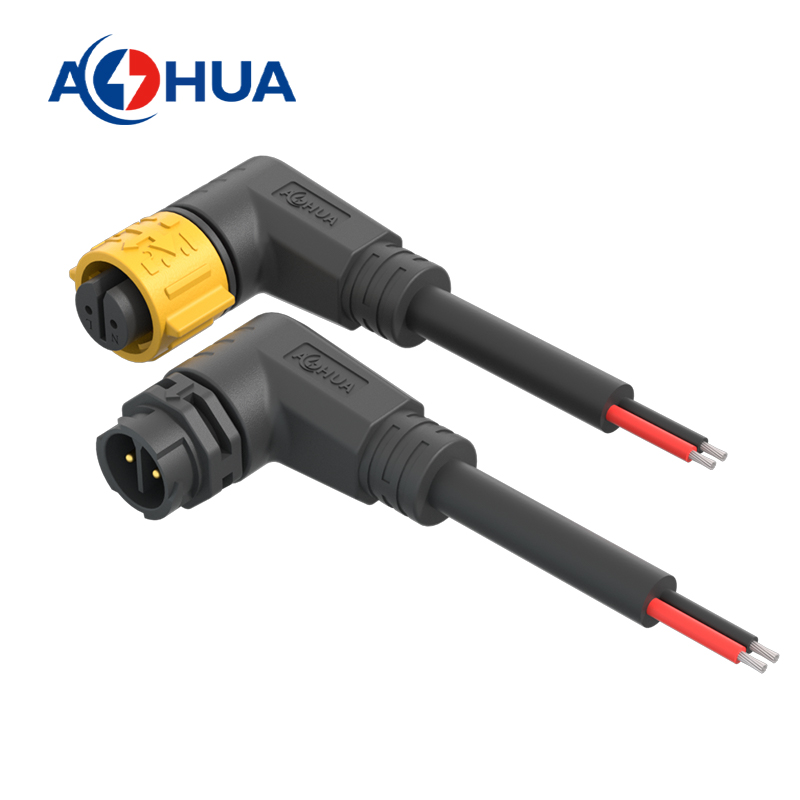

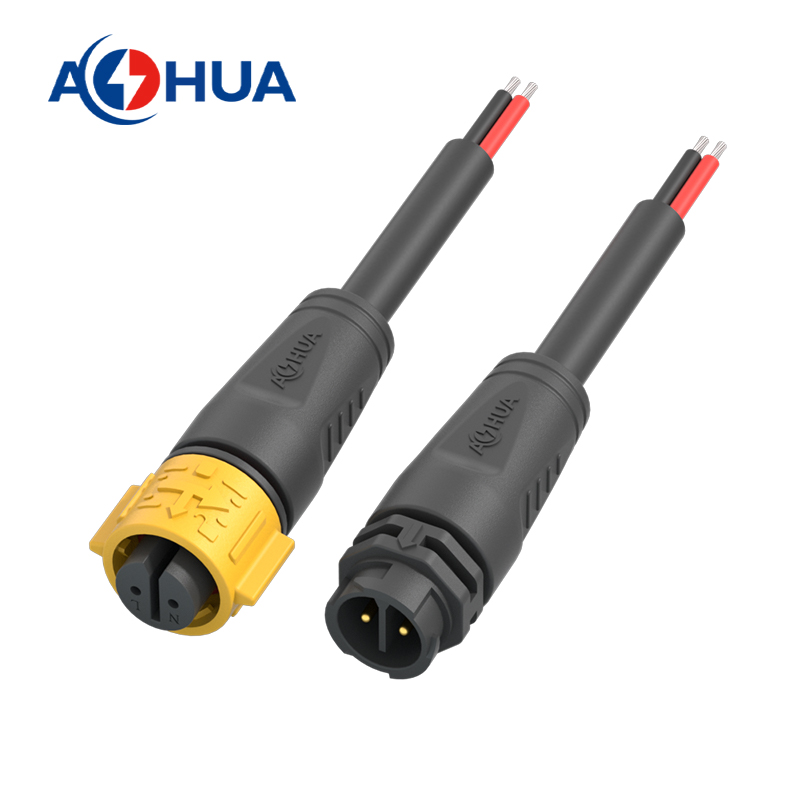

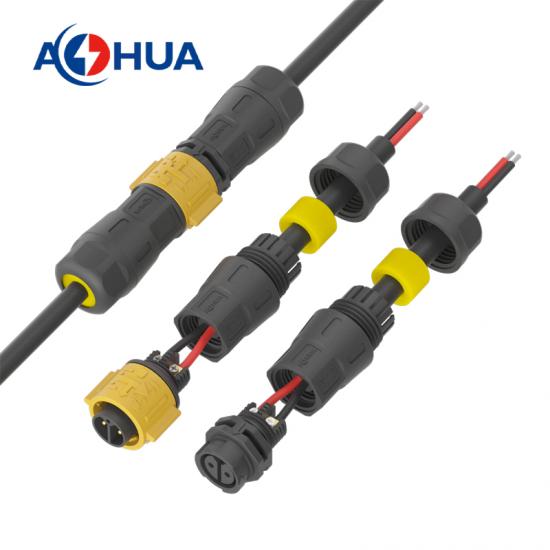

3. Solding with Wire Type

AH-K15-1002MMN/FFN02212       AH-K15-1003MMN/FFN02212

AH-K15-1002FMN/MFN02212       AH-K15-1003FMN/MFN02212

AH-K15-1002MML/FFL02212        AH-K15-1003MML/FFL02212

AH-K15-1002MFL/FML02212        AH-K15-1003MFL/FML02212

For the color, we have yellow/ Blue/ Red for you choose, you can choose them according to the use cases.

And there are also other PIN for you choose, like 4PIN/5PIN/6PIN..., check the wire gauge and the current and make a design, then we will help you to choose a solution according to the design.Thanks!
