IP68 Waterproof Male Female Solder Type Connector M16

E-mail: Judy@aohuadz.com

Whatsapp/Wechat: 13926511198

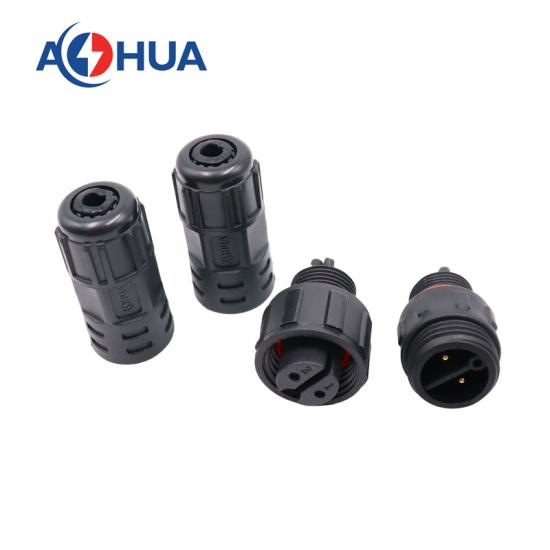

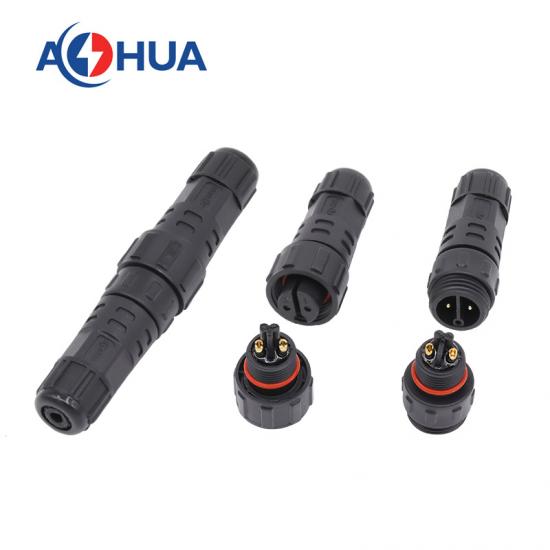

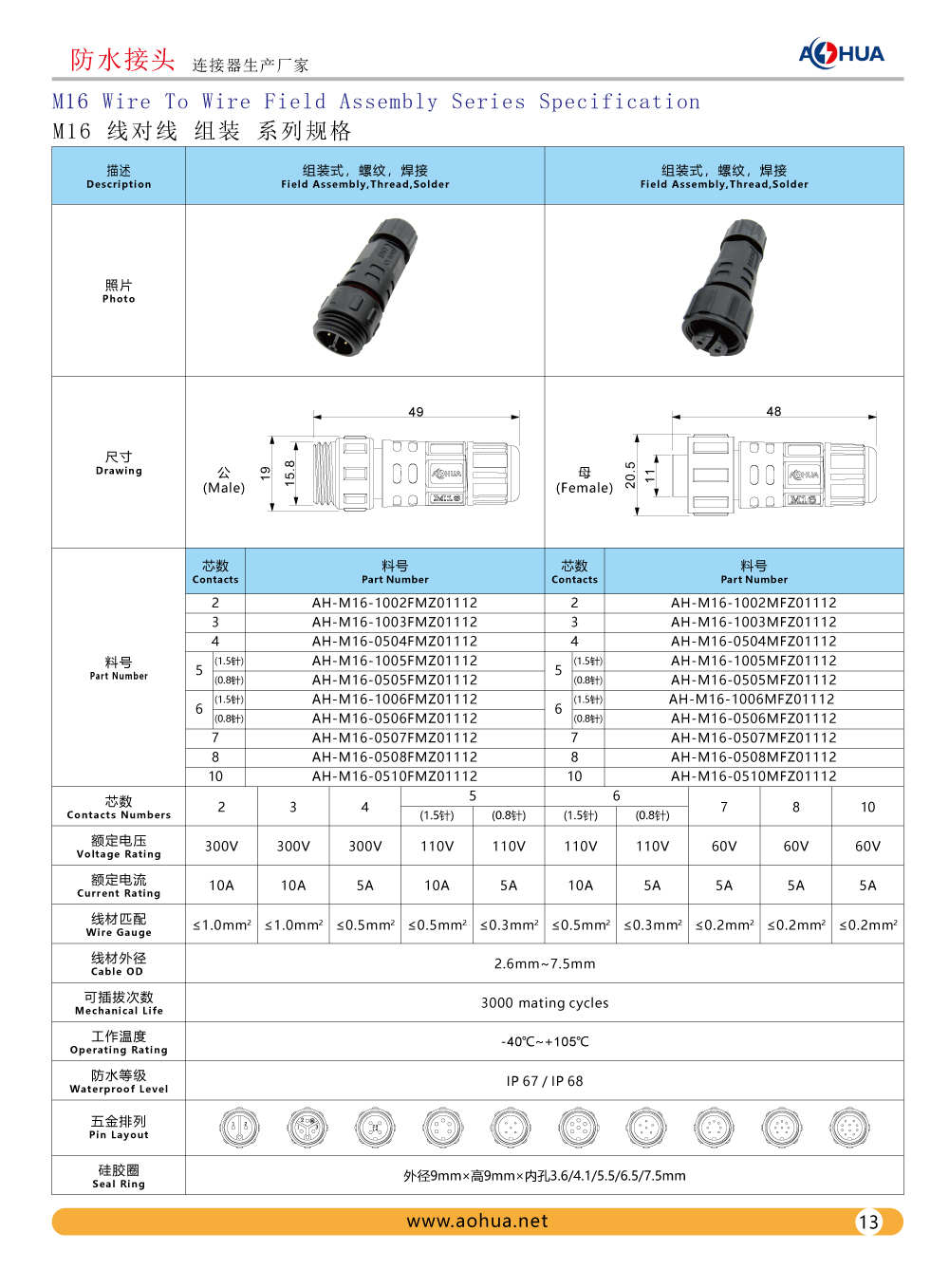

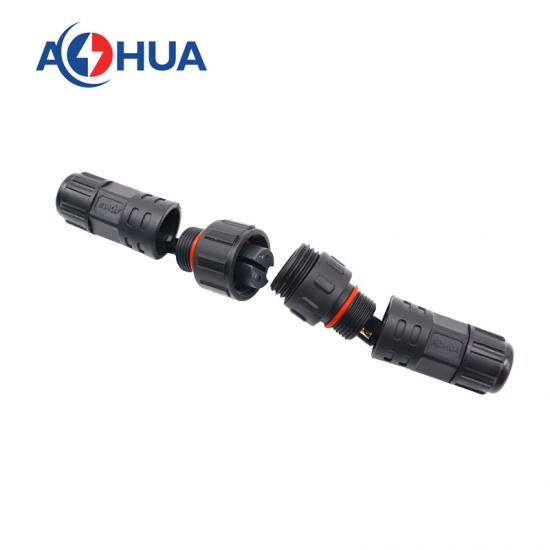

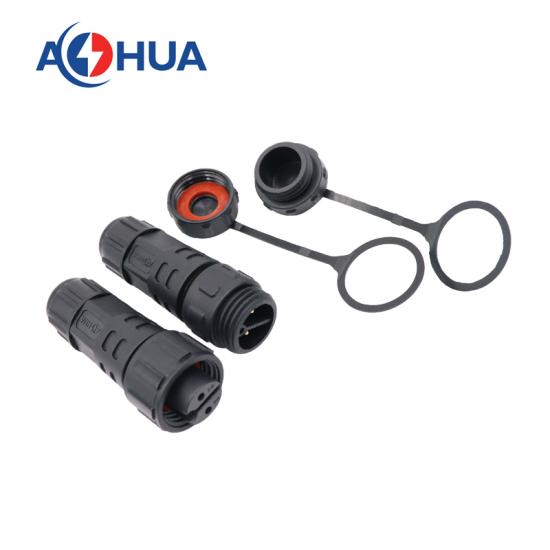

AOHUA M16 Wire to Wire Male Female Assembly Connector

2Pin

Voltage Rating:300V

Current Rating: 10A

Wire Gauge:≤1.0mm²

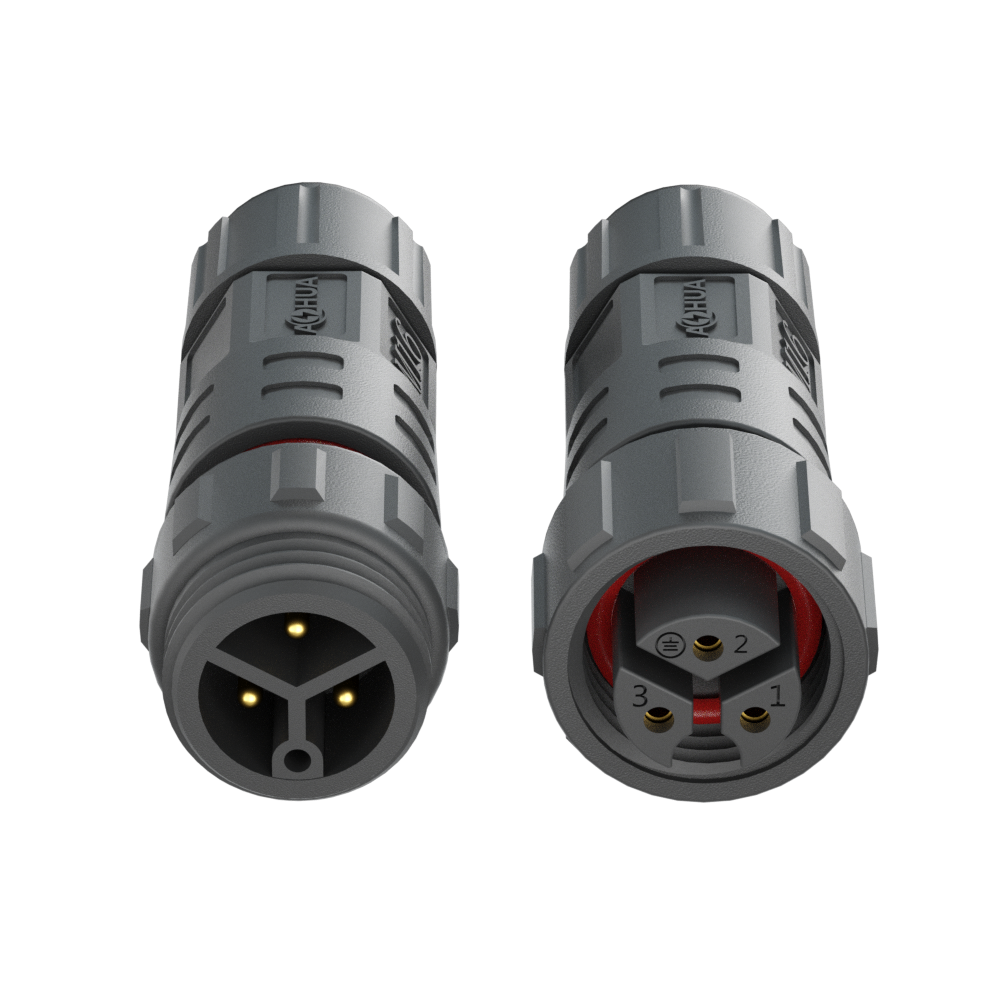

3Pin

Voltage Rating:300V

Current Rating: 10A

Wire Gauge:≤1.0mm²

4Pin

Voltage Rating:300V

Current Rating: 10A

Wire Gauge:≤1.0mm²

5Pin

Voltage Rating:110V

Current Rating: 05A

Wire Gauge:≤0.5mm²

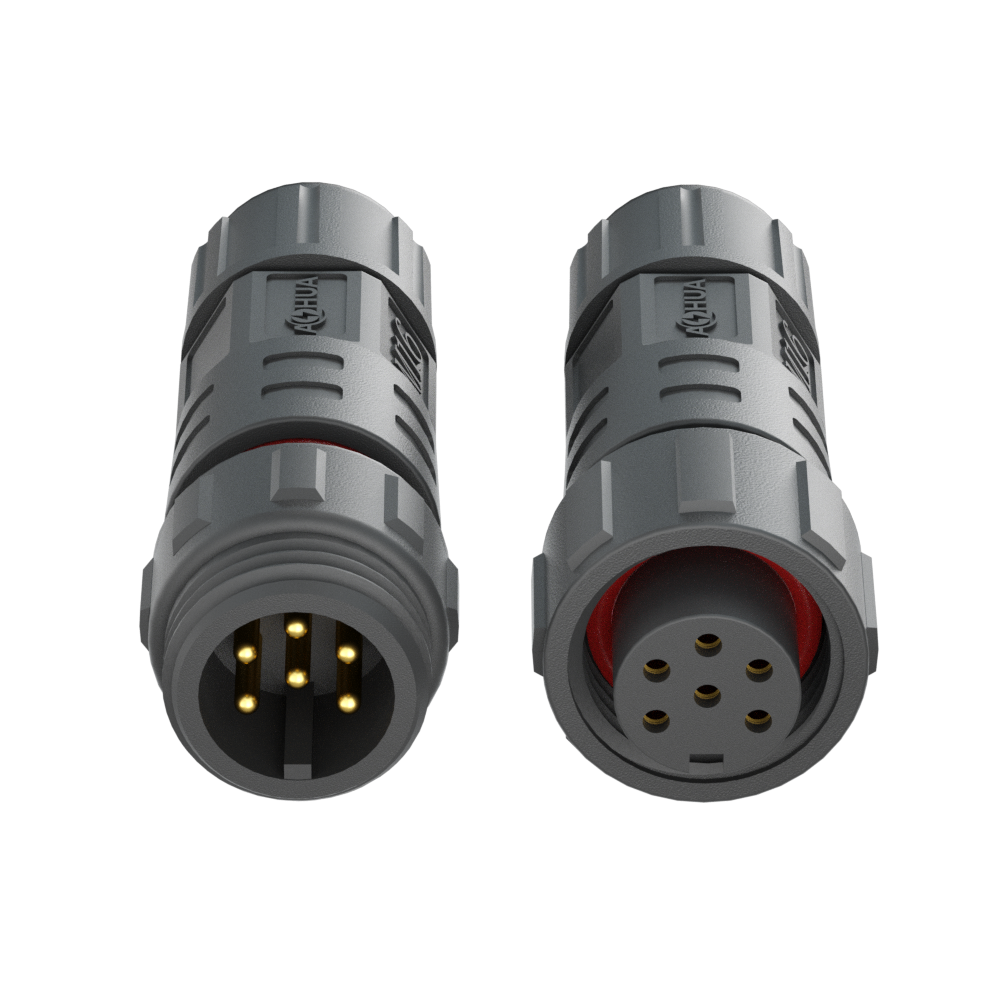

6Pin

Voltage Rating:110V

Current Rating: 05A

Wire Gauge:≤0.5mm²

7Pin

Voltage Rating:110V

Current Rating: 05A

Wire Gauge:≤0.3mm²

8Pin

Voltage Rating:60V

Current Rating: 05A

Wire Gauge:≤0.2mm²

9Pin

Voltage Rating:60V

Current Rating: 05A

Wire Gauge:≤0.2mm²

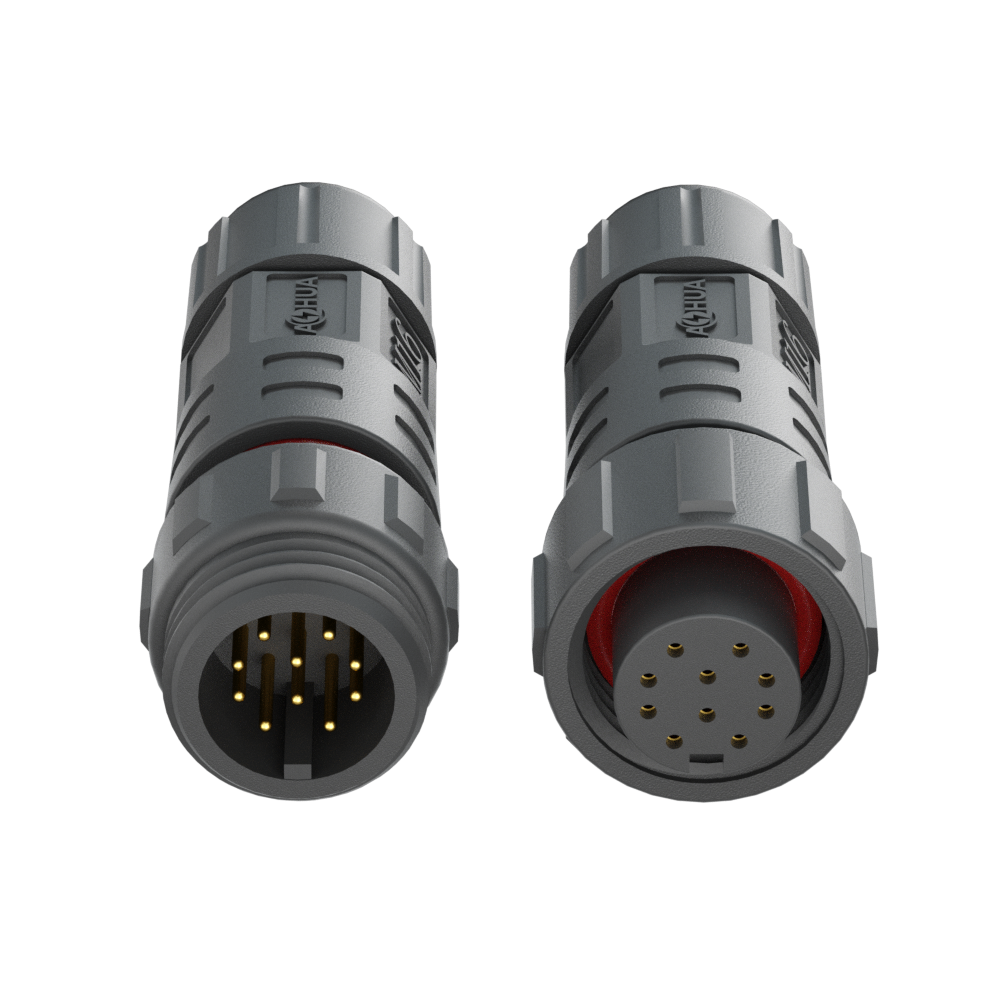

10Pin

Voltage Rating:60V

Current Rating: 05A

Wire Gauge:≤0.2mm²
