LED Lights Waterproof Wire Harness M19 Connector 250V 12A Power Connector Overmold 2Pin Male Female Extension Cable Connector IP65 for Outdoor/Indoor

If you need more help you can send email to linda@aohuadz.com,our sales will get back to you in 24 hours.
ODM,OEM and Customized service are available.

Brief Introduction:

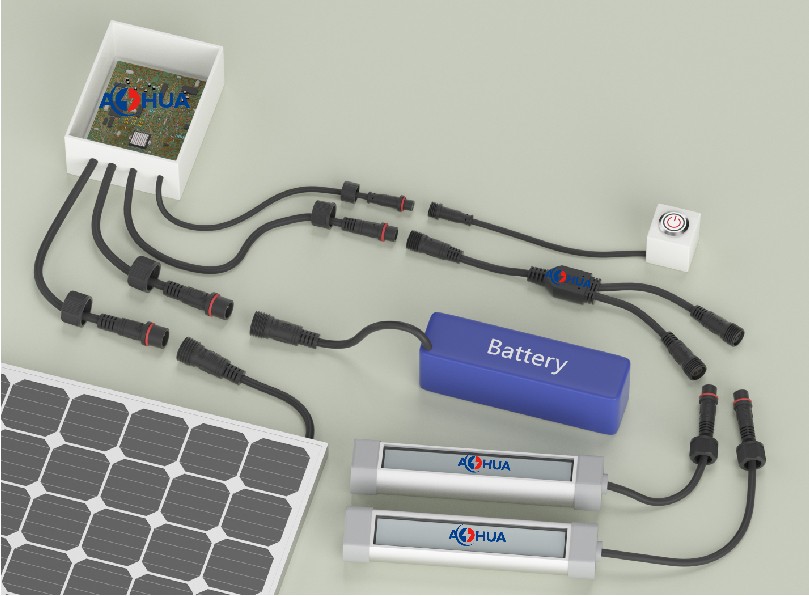

This batch is custom-produced for Miak, a customer from Australia, and is mainly used in outdoor lighting applications.

• 1.PVC one-piece injection molded connector, IP65 waterproof

  Adopting integrated injection molding technology with a tight and gap-free structure, it provides excellent waterproof and dustproof performance.


  It operates stably in complex outdoor environments such as humidity and rain, ensures firm and watertight connection, and is resistant to aging and cracking for long-term use.
• 2.Pin Material: Nickel-plated hollow pin terminals

  Featuring excellent electrical conductivity, low contact resistance and stable current transmission. The nickel-plated layer effectively resists oxidation and corrosion, ensuring smooth plugging and high durability.


  The hollow pin structure is lightweight with high adaptability, remaining secure during long-term use.
• 3.High-quality PVC cable

  Flexible and easy for routing, wear-resistant and tensile-resistant, with good weather resistance and insulation performance. Suitable for long-term outdoor use, safe, stable and cost-effective.
• Professional ODM & OEM customization services

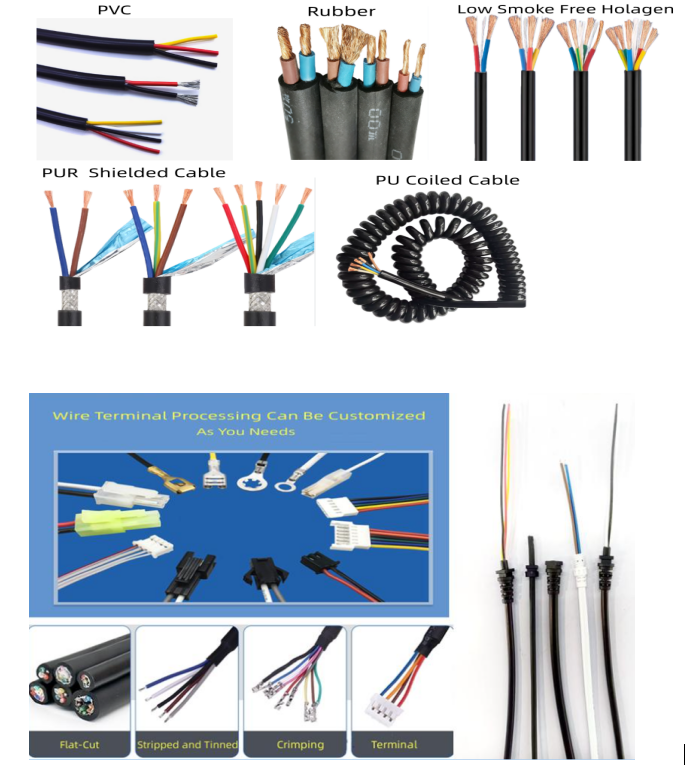

  Support custom LOGO printing on connectors, optional cable specifications, customizable lengths, and diversified wire end processing solutions to meet personalized supporting needs in different scenarios.

Quality and Delivery

We also support flexible lead times to provide efficient and reliable mass production supply for overseas customers.

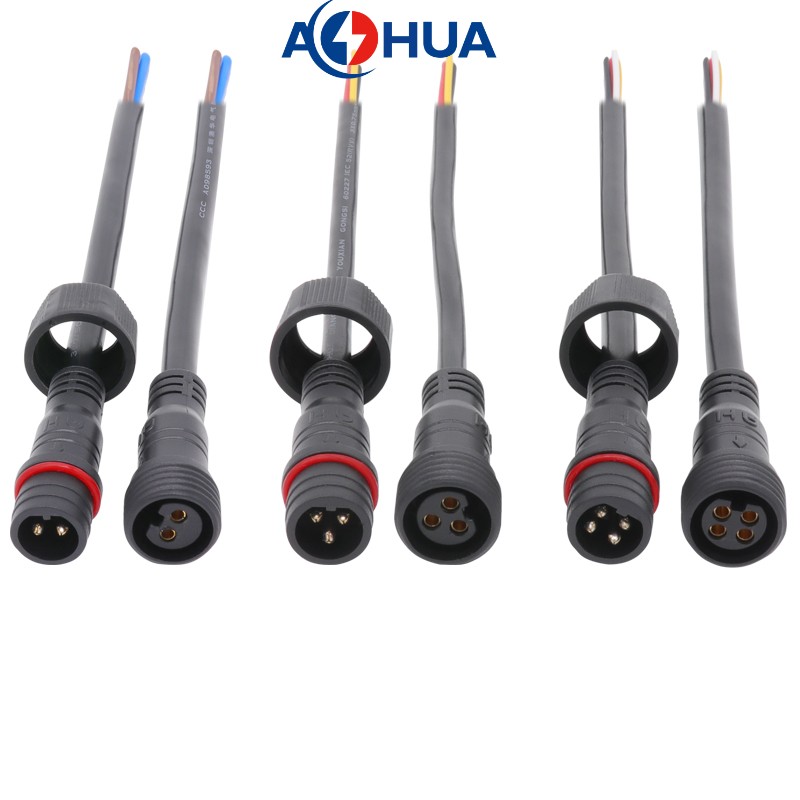

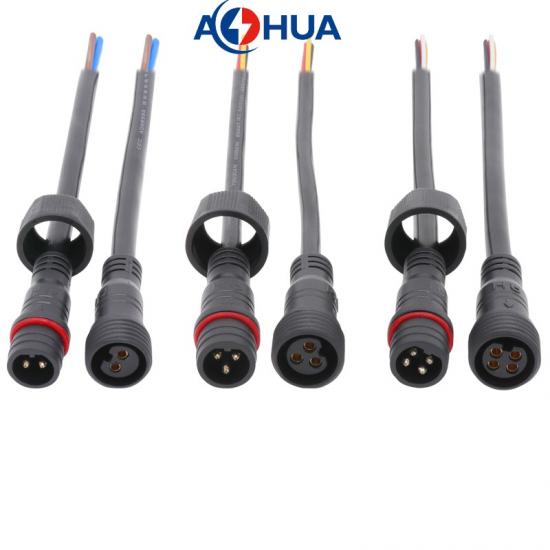

There are 2pin 3pin and 4pin to meet your needs.

Male Female injection PVC material,Cable is PVC type
2PIin and 3Pin can carry on the maximum 250V 15A.
This connector is suitable for 1.5mm2/1.0mm/0.75mm2;16AWG/18AWG/20AWG cable size.
4Pin for 250V,6A, can accept 1.0mm/0.75mm2;18AWG/20AWG cable size.
If you need a bigger cable more than 1.5mm2,this connector is not suitable,need to select a bigger size connector.
There are M21/M23/M28 to meet your demands.

Operating Temperature:-20°C~+80°C.
Waterproof Rating:IP65.
Mechanical Life: 500 mating cycles.

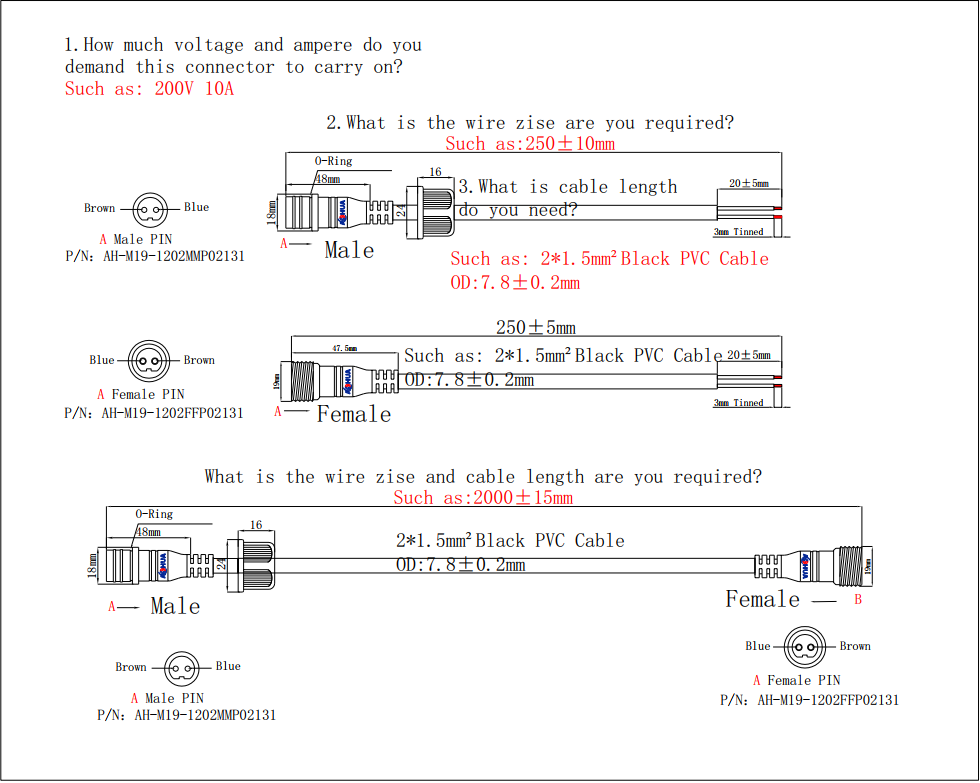

Part Number for 2Pin:
Male: AH-M19-1202MMP02131
Female: AH-M19-1202FFP02131

Part Number for 3Pin:
Male: AH-M19-1203MMP02131
Female: AH-M19-1203FFP02131

Part Number for 4Pin:
Male: AH-M19-0604MMP02131
Female: AH-M19-0604FFP02131

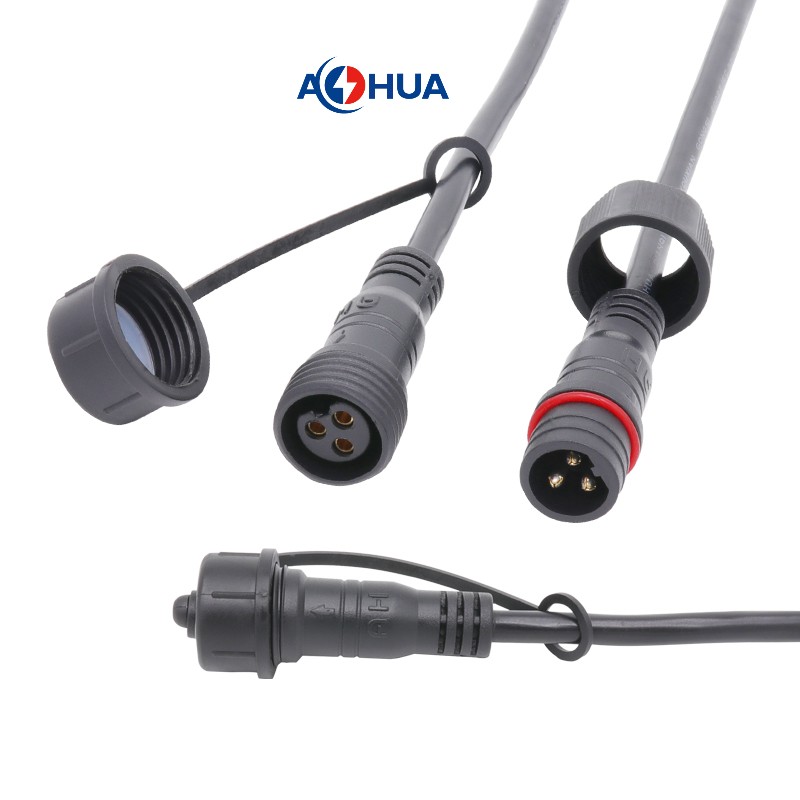

For Female side,there is a Cap can be chosen from.

Auxiliary protection: Anti-lost design provides reliable temporary protection during installation and maintenance.
