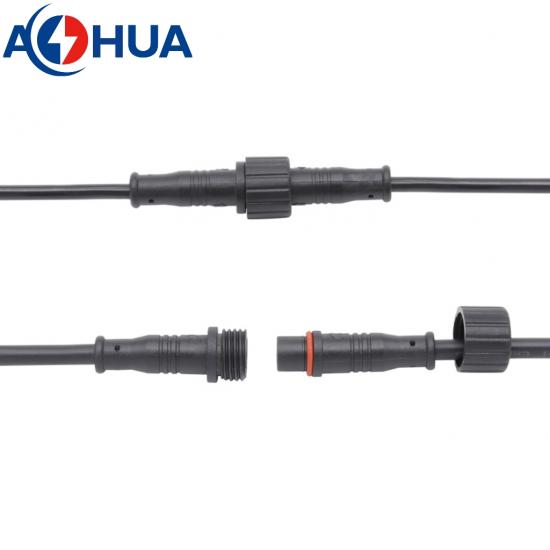

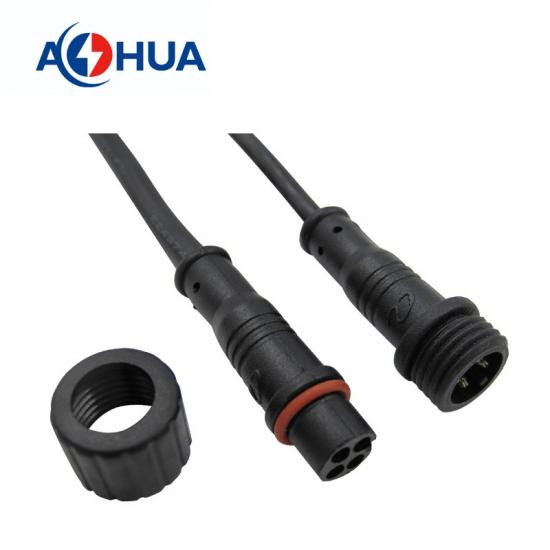

Description & Specs

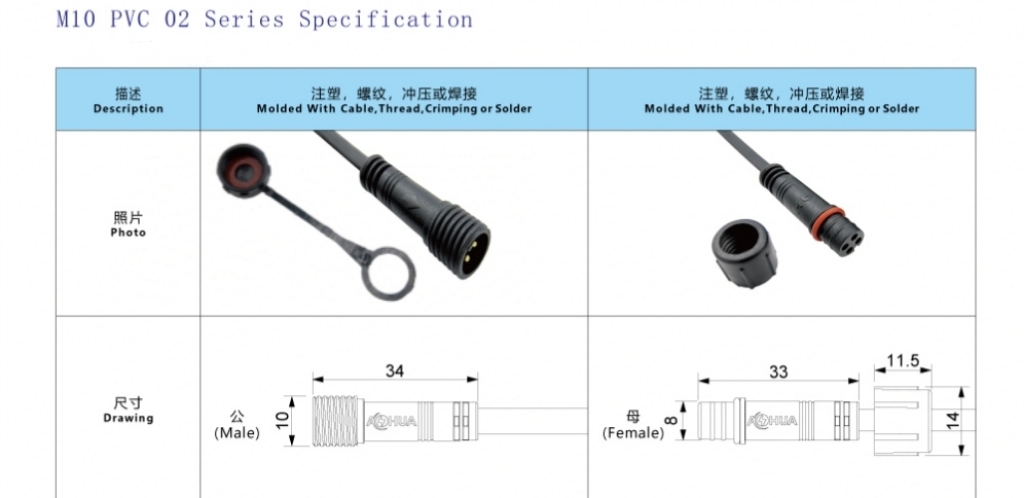

Items | Pins | Part Number | Voltage Rating | Current Rating | Wire Gauge | Cable OD |
M10-02 | 1 | AH-M10-1501FMP/MFP02131 | 110V | 15A | ≤2.5mm² | 3.0mm-5.0mm |
M10-02 | 2 | AH-M10-0402FMP/MFP02131 | 110V | 4A | ≤0.5mm² | 3.0mm-5.0mm |
M10-02 | 3 | AH-M10-0203FMP/MFP02131 | 110V | 2A | ≤0.3mm² | 3.0mm-5.0mm |
M10-02 | 4 | AH-M10-0204FMP/MFP02131 | 60V | 2A | ≤0.3mm² | 3.0mm-5.0mm |
Mechanical Life | 500 mating cycles |
Operating Rating | -20ºC-+80ºC |
Waterproof Level | IP65 |
Note:
1. The 2-core needle can be solid.
2. This male with cable is equipped with waterproof cap.

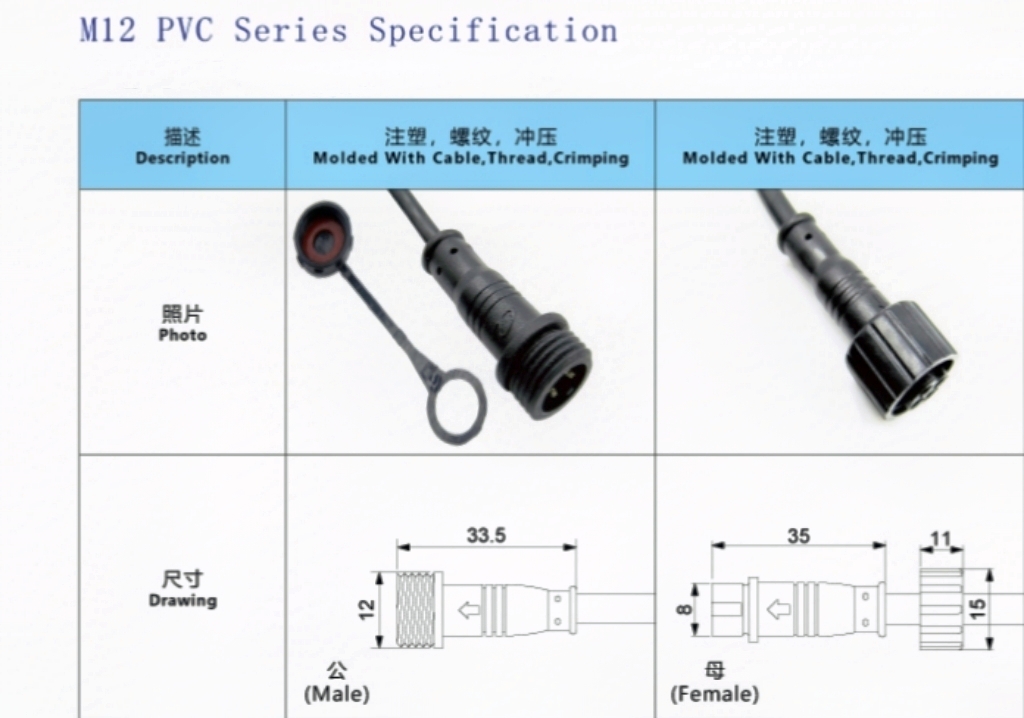

Items | Pins | Part Number | Voltage Rating | Current Rating | Wire Gauge | Cable OD |
M12 | 1 | AH-M12-1501FMP/MFP01131 | 110V | 15A | ≤2.5mm² | 3.0mm-5.0mm |
M12 | 2 | AH-M12-0402FMP/MFP01131 | 110V | 4A | ≤0.5mm² | 3.0mm-5.0mm |
M12 | 3 | AH-M12-0203FMP/MFP01131 | 110V | 2A | ≤0.3mm² | 3.0mm-5.0mm |
M12 | 4 | AH-M12-0204FMP/MFP01131 | 60V | 2A | ≤0.3mm² | 3.0mm-5.0mm |
M12 | 5 | AH-M12-0105FMP/MFP01131 | 60V | 1A | ≤0.2mm² | 3.0mm-5.0mm |
Mechanical Life | 500 mating cycles |
Operating Rating | -20ºC-+80ºC |
Waterproof Level | IP65 |
Note:
The male with cable is equipped with waterproof cap.

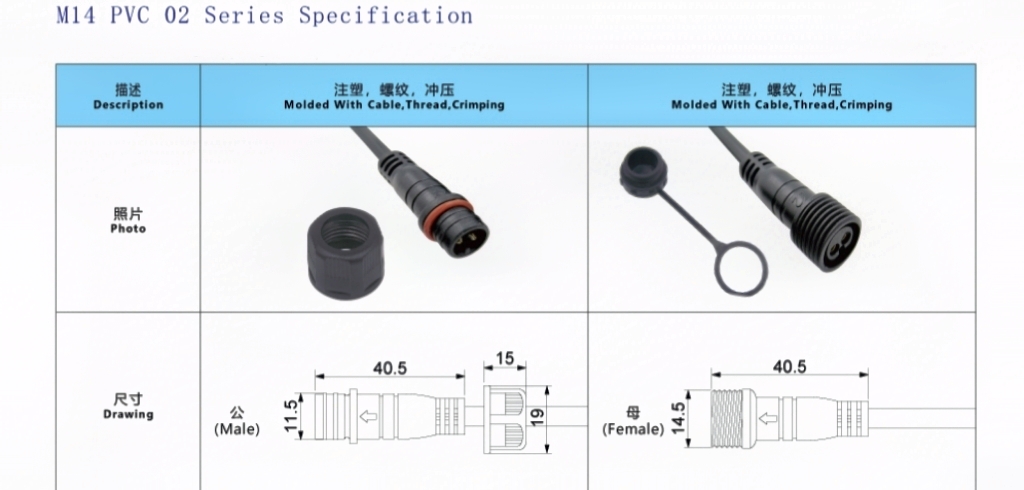

Items | Pins | Part Number | Voltage Rating | Current Rating | Wire Gauge | Cable OD |
M14 | 1 | AH-M14-3201MMP/FFP01131 | 250V | 32A | ≤6.0mm² |
4.0mm-6.8mm |

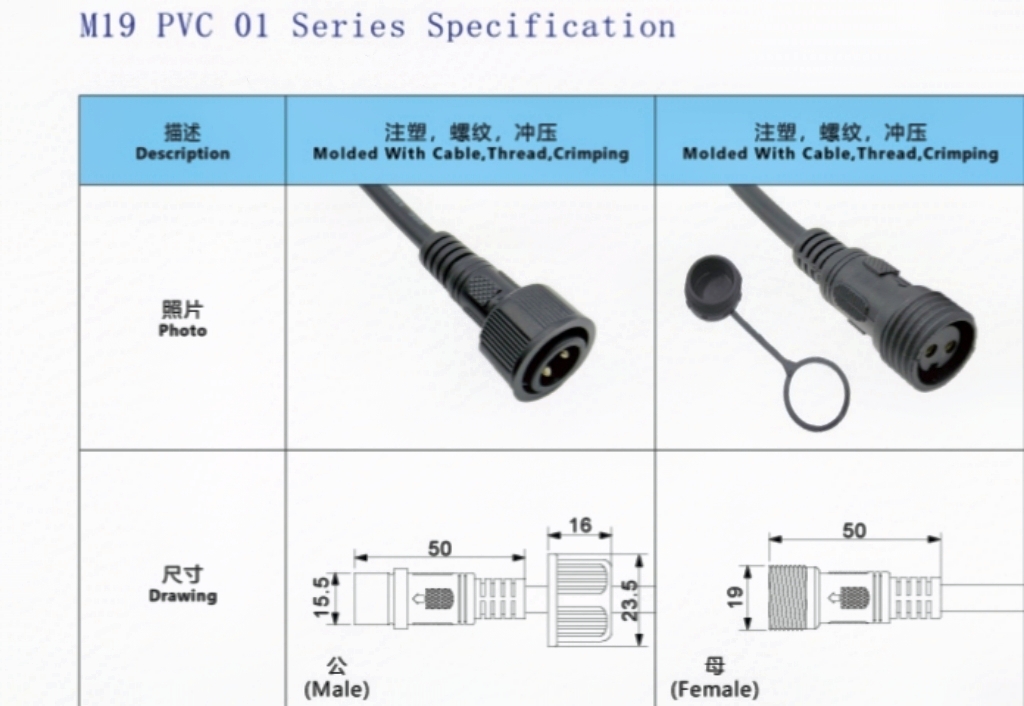

M14 | 2 | AH-M14-0602MMP/FFP01131 | 6A | ≤1.0mm² | ||
M14 | 3 | AH-M14-0503MMP/FFP01131 | 5A | ≤0.75mm² | ||
M14 | 4 | AH-M14-0404MMP/FFP01131 | 110V | 4A | ≤0.5mm² | |
M14 | 5 | AH-M14-0205MMP/FFP01131 | 60V | 2A | ≤0.3mm² | |
M19-01 | 2 | AH-M19-1202MMP/FFP01131 | 250V | 12A | ≤1.5mm² |
6.0mm-8.3mm |

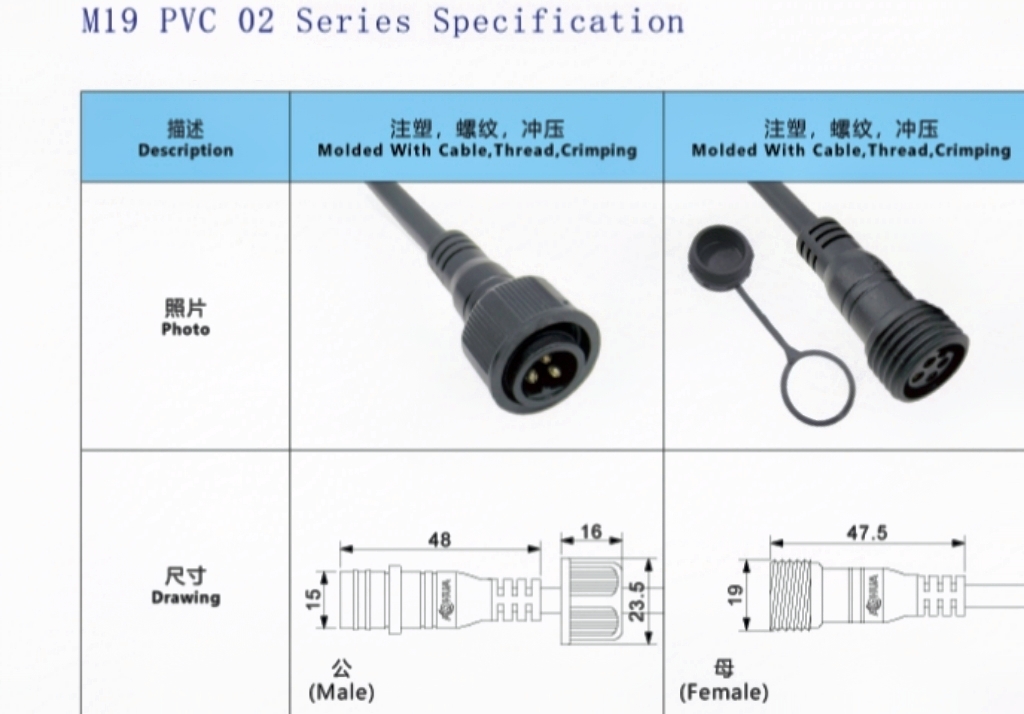

M19-01 | 3 | AH-M19-1203MMP/FFP01131 | 12A | |||
M19-01 | 4 | AH-M19-0504MMP/FFP01131 | 5A | ≤0.75mm² | ||
M19-01 | 5 | AH-M19-0405MMP/FFP01131 | 110V | 4A | ≤0.5mm² | |
M19-01 | 6 | AH-M19-0406MMP/FFP01131 | 4A | |||
M19-01 | 7 | AH-M19-0207MMP/FFP01131 | 60V | 2A | ≤0.3mm² | |
M19-01 | 8 | AH-M19-0208MMP/FFP01131 | 2A | |||
M19-02 | 2 | AH-M19-1202MMP/FFP02131 | 250V | 12A | ≤1.5mm² | |
M19-02 | 3 | AH-M19-1203MMP/FFP02131 | 12A | |||
M19-02 | 4 | AH-M19-0604MMP/FFP02131 | 6A | ≤1.0mm² |
Mechanical Life | 500 mating cycles |
Operating Rating | -20ºC-+80ºC |
Waterproof Level |
IP65 |
Note:
M14,M19 female with cable is equipped with waterproof cap

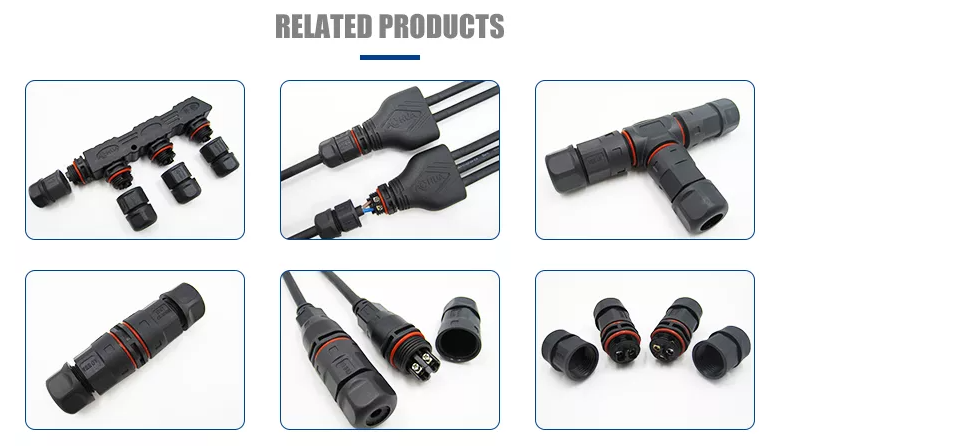

Related Products

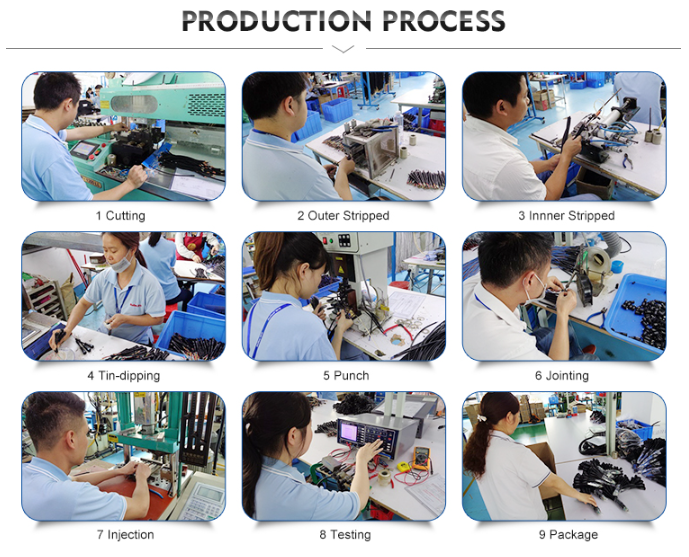

Our Advantages
Advantages:
1. Connector:PVC series waterproof connector,
Mold making and inject molding type.
2.Color: Black, white for choices.
3. Price&Quality:High quality and best price.

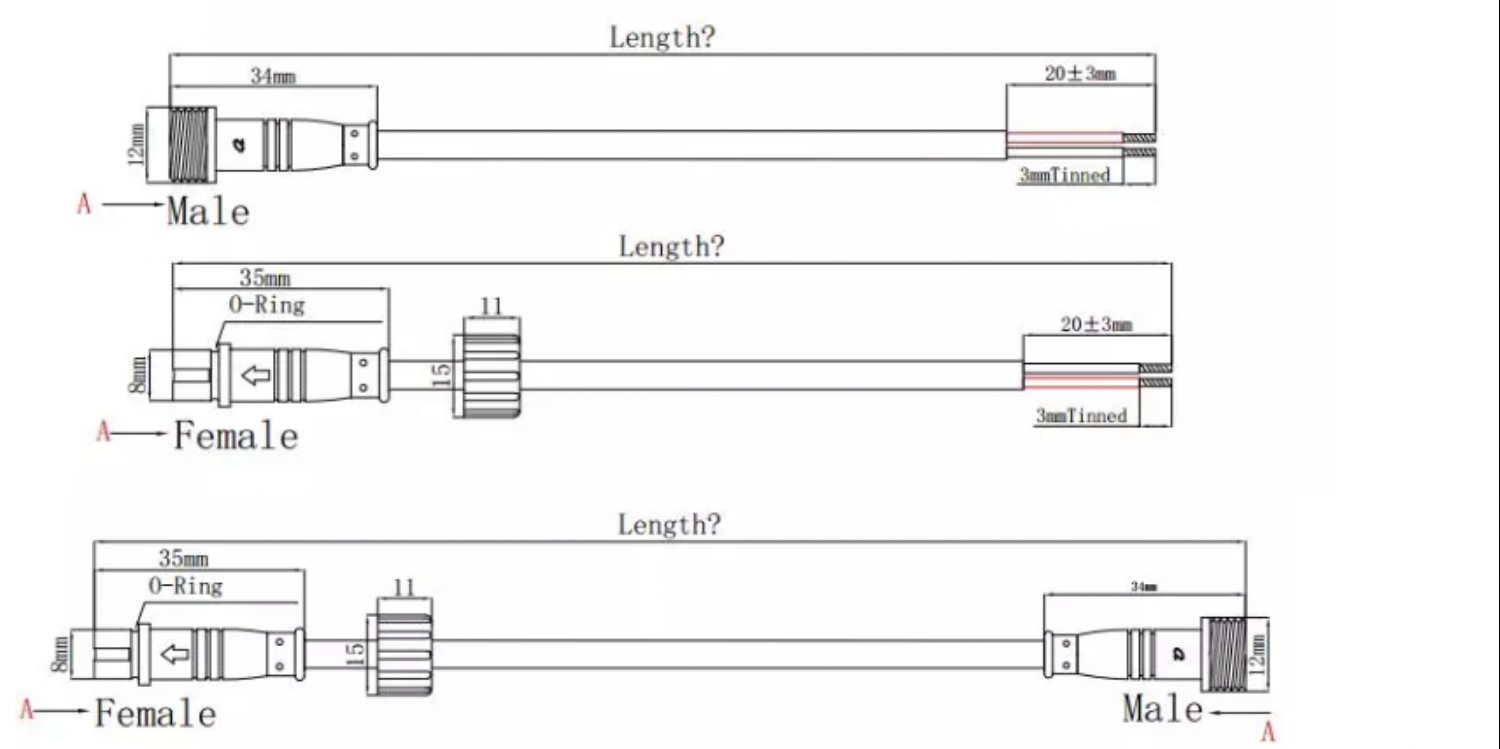

4. Wire Length:Any length of the cable is available and terminal processed.
5.Favorable waterproof feature: IP65.
6.The accepted wire diameter: 5.0mm.
7.4*22awg can be choiced

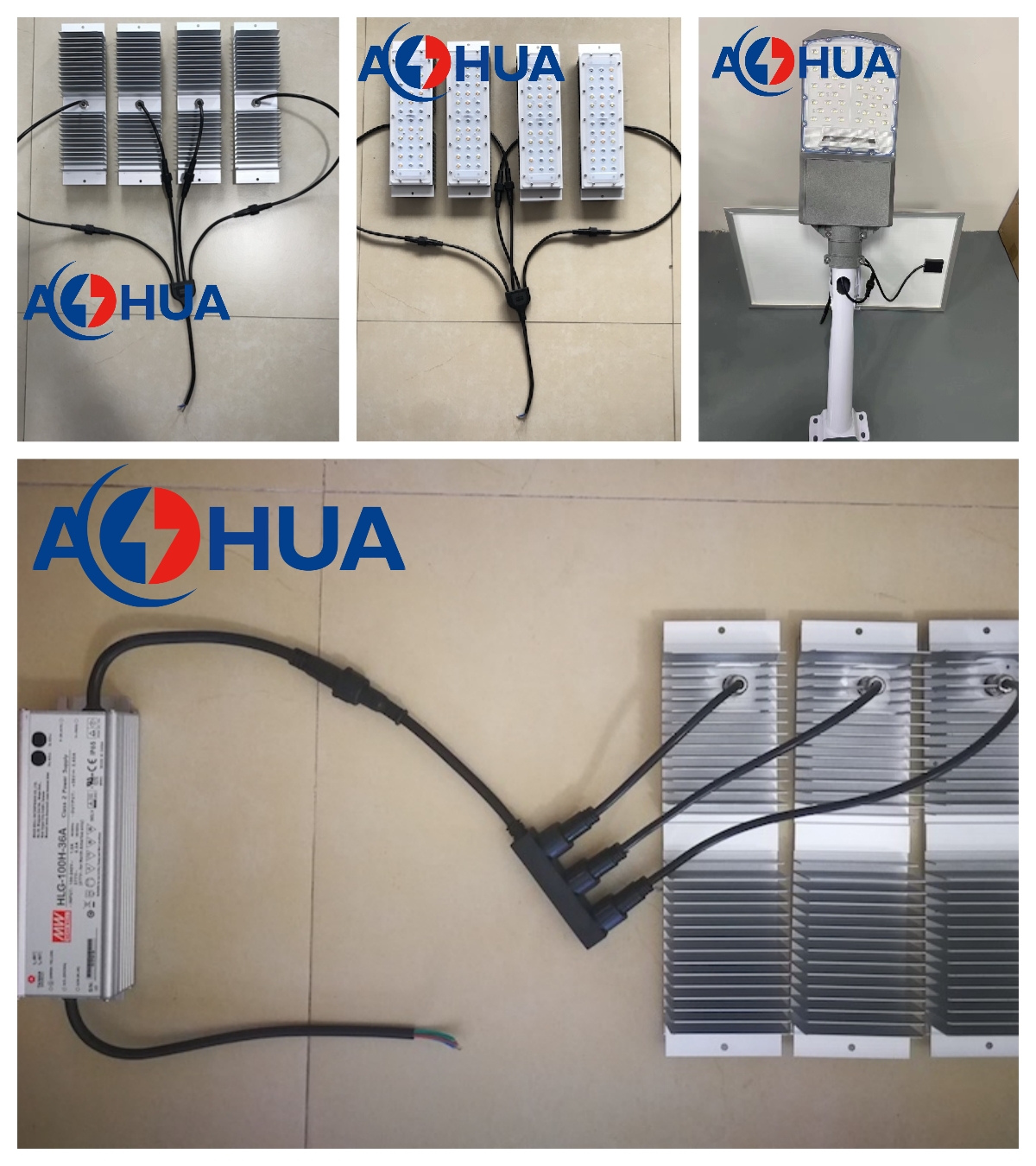

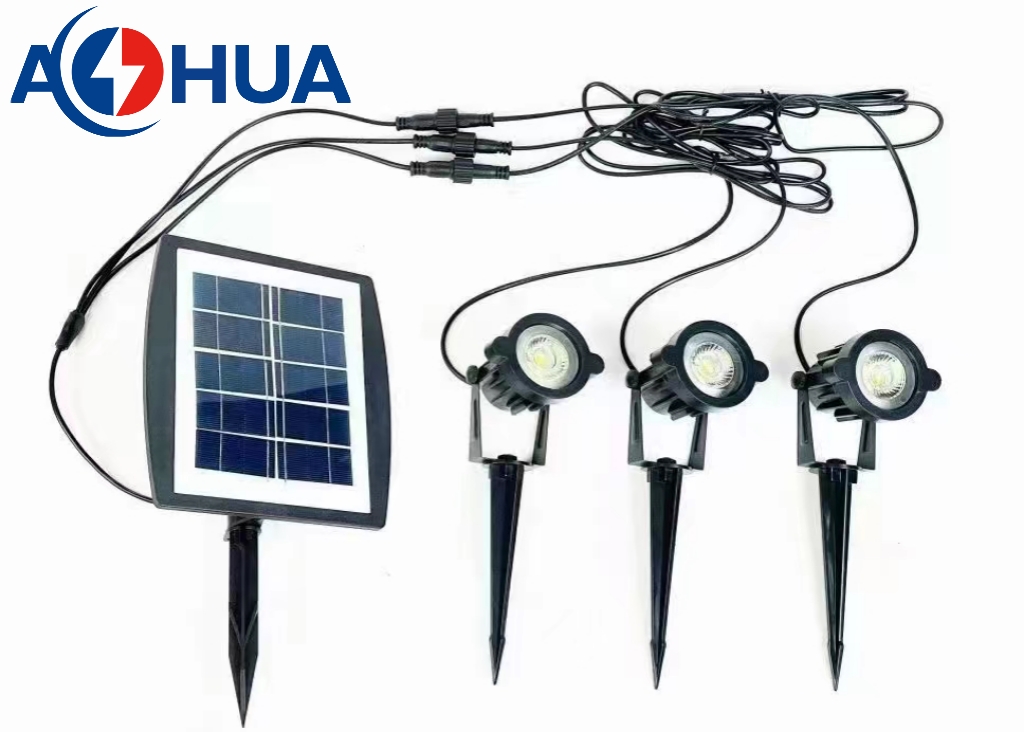

8.Application:connectors are suitable for quick connection of garden and outdoor dispalys,floor heating,beacons,cruise ships,LED billboards,LED tunnel lights,LED street lights,external wiring,ect.
Assembly Connector | Wire to wire /Wire to panel waterproof connector,L/T screw type connector |
Over-mold Connector | Nylon/PVC /Metal /Aviation waterproof connector,DC connector |
T Connector | Over-mold T waterproof connector |
Y Connector | Over-mold Y waterproof connector |

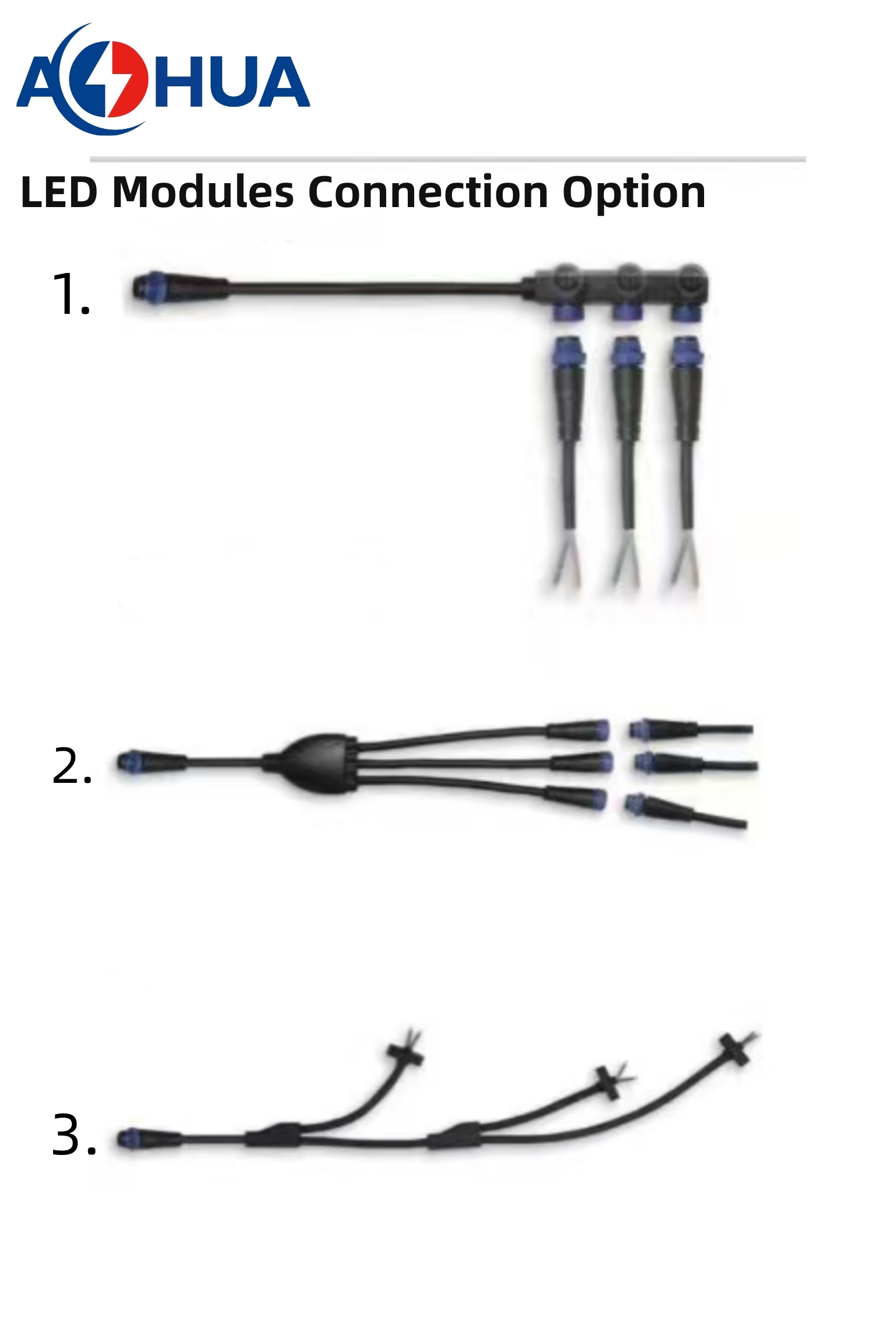

Distributor Connector | M15/M18 Series(1to2/3/4/5/6) LED waterproof connector |
Before get the quotation, please tell us the connection of waterproof connector.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.
